1955-0-00-15-00-00-03-0: DescriptionTARGET CONTACT FOR SPRING PINS; CategoryThe connector; File Size875KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

1955-0-00-15-00-00-03-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1955-0-00-15-00-00-03-0	-	-	View	Buy Now

1955-0-00-15-00-00-03-0 Overview

TARGET CONTACT FOR SPRING PINS

1955-0-00-15-00-00-03-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

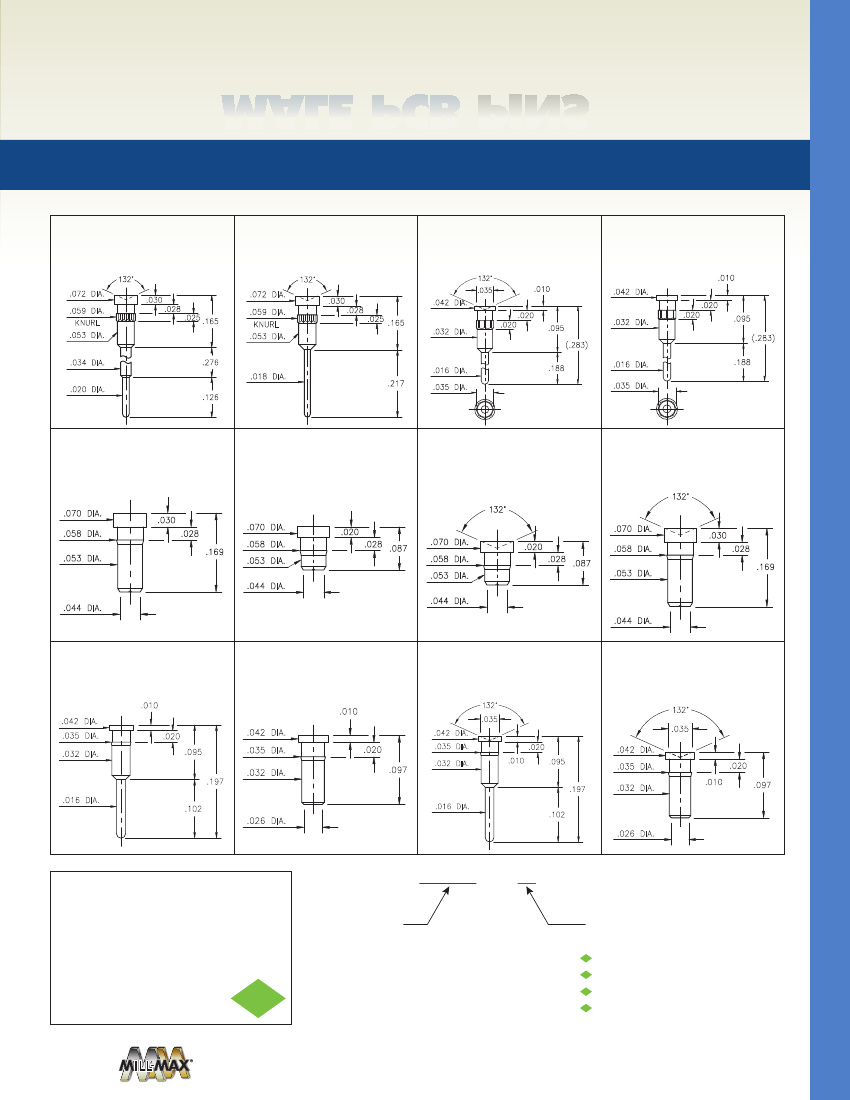

MALE PCB

PINS

PRINTED CIRCUIT PINS

1958

.072 DIA.

.059 DIA.

KNURL

.053 DIA.

1958-0-00-15-00-00-03-0

132°

1960

.072 DIA.

Concave face Target contact, solder Tail

Press-fit in .057 mounting hole

.030

.028

.025

.165

1960-0-00-15-00-00-03-0

132°

1831

Concave face Target contact, solder Tail

Press-fit in .057 mounting hole

.030

.028

.025

.165

1831-1-00-15-00-00-03-0

1931

Concave face Target contact, solder Tail

Hex press-fit in .034 mounting hole

1931-1-00-15-00-00-03-0

Flat face Target contact, solder Tail

Hex press-fit in .034 mounting hole

.059 DIA.

KNURL

.053 DIA.

.276

.034 DIA.

.020 DIA.

.018 DIA.

.126

.217

1953

.070 DIA.

.058 DIA.

.053 DIA.

1953-0-00-XX-00-00-03-0

1954

Flat face Target contact, surface mount

Press-fit in .056 mounting hole

1954-0-00-XX-00-00-03-0

1955

Flat face Target contact, surface mount

Press-fit in .056 mounting hole

1955-0-00-15-00-00-03-0

1957

Concave face Target contact, surface mount

Press-fit in .056 mounting hole

132°

1957-0-00-15-00-00-03-0

132°

Concave face Target contact, surface mount

Press-fit in .056 mounting hole

.030

.028

.169

.070 DIA.

.058 DIA.

.053 DIA.

.044 DIA.

.020

.028

.087

.070 DIA.

.058 DIA.

.053 DIA.

.044 DIA.

.020

.028

.087

.070 DIA.

.058 DIA.

.053 DIA.

.030

.028

.169

.044 DIA.

1933

.042 DIA.

.035 DIA.

.032 DIA.

1933-0-00-XX-00-00-03-0

.010

1935

Flat face Target contact, solder Tail

Press-fit in .034 mounting hole

1935-0-00-XX-00-00-03-0

.010

1934

Flat face Target contact, surface mount

Press-fit in .034 mounting hole

1934-0-00-15-00-00-03-0

132°

.035

.042 DIA.

1936

Concave face Target contact, solder Tail

Press-fit in .034 mounting hole

1936-0-00-15-00-00-03-0

132°

.035

Concave face Target contact, surface mount

Press-fit in .034 mounting hole

.020

.095

.042 DIA.

.035 DIA.

.032 DIA.

.020

.097

.035 DIA.

.032 DIA.

.010

.020

.095

.042 DIA.

.035 DIA.

.197

.020

.010

.097

.197

.016 DIA.

.102

.032 DIA.

.016 DIA.

.026 DIA.

.102

.026 DIA.

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - 0 - 00 -

XX

- 00 - 00 - 03 - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

21

20

μ”

GOLD OVER NICKEL (RoHS)

34

50

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 223.2 | MALE PCB PINS
