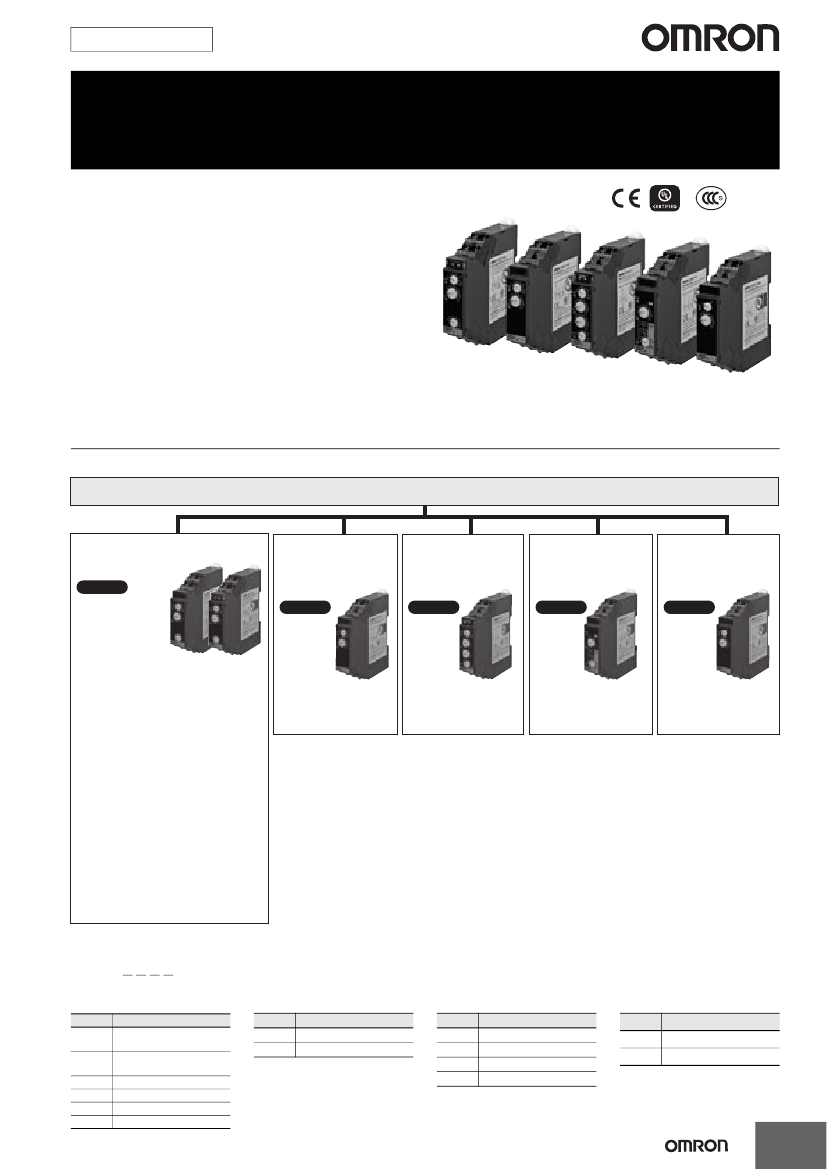

New Product
Solid-state Timers
H3DT
DIN 17.5-mm-wide Slim Timers with
Push-in Plus Terminal Blocks for
In-panel Applications
•
Saves space and reduces work in control panels.
•
Slim Timers (17.5-mm width) with two sets of
contacts: One of the slimmest Timers worldwide. *1
•
Reduces power consumption (active power) by up to
60%to help reduce heat generation in control panels. *2
•
Certified for maritime standards (LR/DNV GL). *3
*1.
According to OMRON investigation in October 2015.
*2.
Based on OMRON comparison (excluding the H3DT-H).
*3.
Certification is pending for DNV GL.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
*
LR
*
CSA conformance evaluation by UL.
Model Number Structure
The Entire H3DT Series
H3DT Series
H3DT-N/-L Multi-range,
Multi-mode Timers
P.2
H3DT-A
H3DT-F
Power ON-delay Twin Timers
Timers
P.12
P.17
H3DT-G
Star-delta Timers
P.21
H3DT-H
Power OFF-delay
Timers
P.25
■Standard
Eight-mode Timers
H3DT-N
●
Operating Modes
A2: ON Delay (Power ON Delay)
B3: Flicker OFF Start (Power ON Start)
B4: Flicker ON Start (Power ON Start)
D: Signal OFF Delay
E2: Interval (Power ON Start)
E3: Signal OFF Interval
F2: Cumulative (ON Delay)
F3: Cumulative (Interval)
■Expansion
Eight-mode Timers
H3DT-L
●
Operating Modes
A: ON Delay (Signal ON Delay)
B: Flicker OFF Start (Signal Start)
B2: Flicker ON Start (Signal Start)
C: Signal ON/OFF Delay
E: Interval (Signal Start)
G: Signal ON/OFF Delay
J: One-shot Output (Signal Start)
J2: One-shot Output (Power ON Start)
●
Operating Modes
Power ON-delay Timer
●
Operating Modes
Flicker-OFF Start/
Flicker-ON Start
●
Operating Modes
Star-delta Timer
●
Operating Modes
Power OFF-delay Timer
Model Number Legend
H3DT-@@@@
1 2 3 4
1. Type
Symbol
N
L
A
F
G
H
Meaning
Standard Eight-mode
Timer
Expansion Eight-mode
Timer
Power ON-delay Timer
Twin Timer
Star-delta Timer
Power OFF-delay Timer
2. Control Output
*
Symbol
1
2
Meaning
SPDT
DPDT
3. Supply Voltage
Symbol
Blank
B
*
C
*
D
*
Meaning
24 to 240 VAC/DC
24 to 48 VAC/DC
100 to 120 VAC
200 to 240 VAC
4. Time Ranges
*
Symbol
S
L
Meaning
0.1 to 1.2 s or 1 to 12 s
1 to 12 s or 10 to 120 s
*
N-, L- and A-type models only.
*
H-type models only.
*
H-type models only.
1
Multi-range, Multi-mode Timer
H3DT-N/H3DT-L
•
Multiple time ranges and operating modes for a wide range of
applications.
•
The time-limit DPDT output contacts can be changed to time-
limit SPDT and instantaneous SPDT output contacts using a
switch.
•
Sequence checks are easily performed by setting an
instantaneous output to 0.
•
Start signal control for some operating modes.
*
LR
*
CSA conformance evaluation by UL.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.

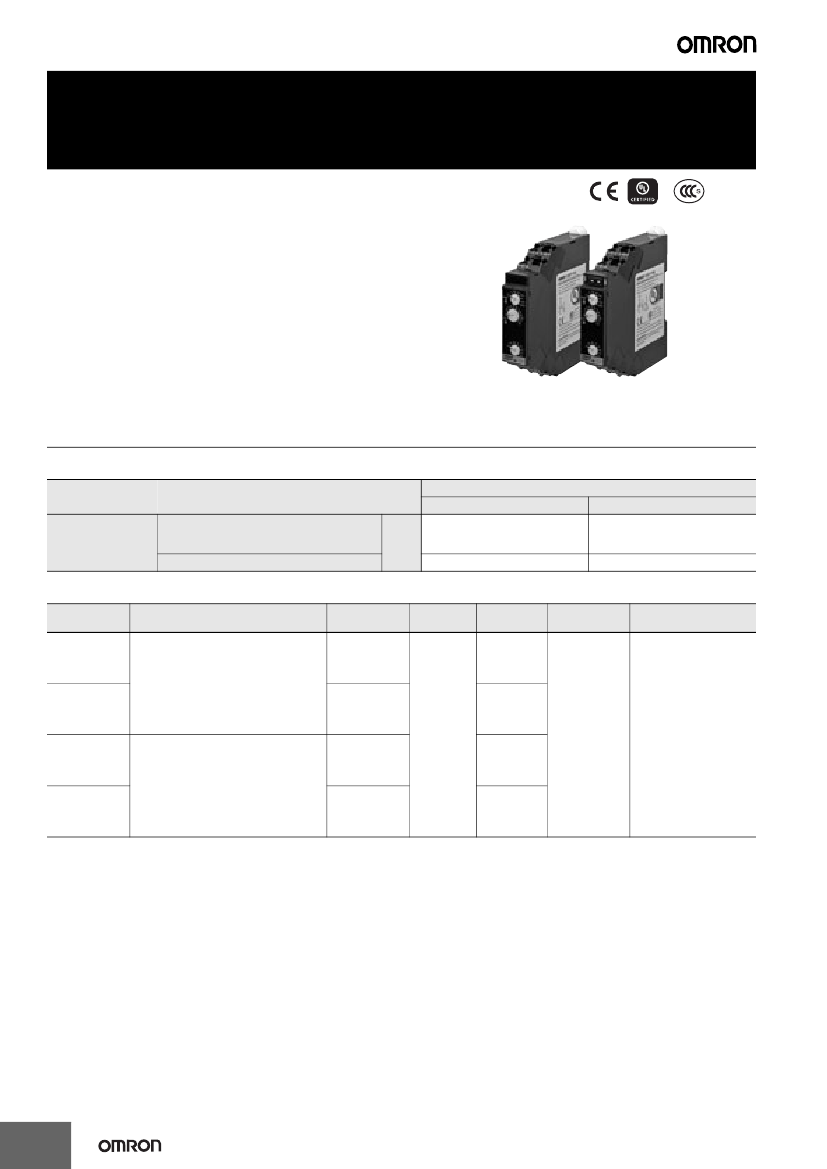

Ordering Information
List of Models
H3DT-N/H3DT-L
Supply voltage
Control output
Contact output, DPDT (time-limit DPDT, or time-
limit SPDT + instantaneous SPDT)
Model
Changed using a switch.
Contact output, SPDT (time-limit SPDT)
Standard Eight-mode Timer
H3DT-N2
H3DT-N1
Expansion Eight-mode Timer
H3DT-L2
H3DT-L1
24 to 240 VAC/DC
Model Structure
Model
Operating modes
A2: ON Delay (Power ON Delay)
B3: Flicker OFF Start (Power ON Start)
B4: Flicker ON Start (Power ON Start)
D: Signal OFF Delay
E2: Interval (Power ON Start)
E3: Signal OFF Interval
F2: Cumulative (ON Delay)
F3: Cumulative (Interval)
A: ON Delay (Signal ON Delay)
B: Flicker OFF Start (Signal Start)
B2: Flicker ON Start (Signal Start)
C: Signal ON/OFF Delay
E: Interval (Signal Start)
G: Signal ON/OFF Delay
J: One-shot Output (Signal Start)
J2: One-shot Output (Power ON Start)
Terminal block
Input type
Output type
Mounting
method
Safety standards
H3DT-N2
10 terminals
Relay, DPDT
H3DT-N1
8 terminals
Voltage input
Relay, SPDT
DIN Track
mounting
Relay, DPDT
H3DT-L2
10 terminals
cULus
(UL 508 CSA C22.2 No.14)
CCC
LR
DNV GL
*
EN 61812-1
IEC 60664-1 4 kV/2
H3DT-L1
8 terminals
Relay, SPDT
*
Certification is pending for DNV GL.
2
H3DT-N/H3DT-L
Specifications
Time Ranges
Time range setting
Set time range
Scale numbers
0.1 s
0.1 to 1.2 s
1s
1 to 12 s
10 s
10 to 120 s
1 min
1 to 12 min
12
10 min
10 to 120 min
1h
1 to 12 h
10 h
10 to 120 h
100 h
100 to 1,200 h
Ratings
Power supply voltage
*1
Allowable voltage fluctuation
range
Power reset
Reset voltage
Voltage input
*3
Power
consumption
H3DT-N2/-L2
H3DT-N1/-L1
24 to 240 VAC/DC, 50/60 Hz
*2
85% to 110% of rated voltage
Minimum power-OFF time: 0.1 s
10% of rated voltage
24 to 240 VAC/DC
High level: 20.4 to 264 VAC/DC, Low level: 0 to 2.4 VAC/DC
At 240 VAC: 2.3 VA max., at 240 VDC: 1.0 W max.,
at 24 VDC: 0.3 W max.
At 240 VAC: 2.0 VA max., at 240 VDC: 0.9 W max.,
at 24 VDC: 0.3 W max.
250 VAC
Contact output: 5 A at 250 VAC with resistive load (cosφ = 1),
5 A at 30 VDC with resistive load
*5,
0.15 A max. at 125 VDC with resistive load,
0.1A max. at 125 VDC with L/R of 7 ms.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Contact materials : Ag-alloy + Gold plating
(Recommended fuse: BLN5 (Littelfuse) or 0216005MXEP)
−20
to 60°C (with no icing)
−40
to 70°C (with no icing)
25% to 85%
Rated Insulation Voltage
Control output
Ambient operating
temperature
Storage temperature
Surrounding air operating
humidity
*1.
When using a 24-VDC power supply voltage,
there will be an inrush current of approximately
0.5 A. Allow for this inrush current when
turning ON and OFF the power supply to the
Timer with device with a solid-state output,
such as a sensor.
*2.
DC ripple: 20% max.
*3.
The power consumption is for after the Timer
times out in mode F2 for the H3DT-N and
mode A for the H3DT-L.
The maximum power consumption is given,
including the current consumed by the input
circuit.
3
H3DT-N/H3DT-L
Characteristics
Accuracy of operating
time
Setting error
Minimum input signal
width
Influence of voltage
Influence of
temperature
Insulation resistance
±1%
of FS max. (±1%
±10
ms max. at 1.2-s range)
±10%
of FS
±0.05
s max.
50 ms (start input)
±0.5%
of FS max. (±0.5%
±10
ms max. at 1.2-s range)
±2%
of FS max. (±2%
±10
ms max. at 1.2-s range)
100 MΩ min. at 500 VDC
Between charged metal part and operating section: 2,900 VAC 50/60 Hz for 1
min.
Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz for
1 min.
Between contacts not located next to each other: 1,000 VAC 50/60 Hz for 1 min.
5 kV between power terminals, 7.4 kV between conductor terminal and
operating section
Square-wave noise generated by noise simulator (pulse width: 100 ns/1
μs,
1-ns rise):
±1.5
kV
Malfunction: 4 kV, Destruction: 8 kV
0.75-mm single amplitude at 10 to 55 Hz for 2 h each in 3 directions
0.5-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions
1,000 m/s
2
3 times each in 6 directions
100 m/s
2
3 times each in 6 directions
10 million operations min. (under no load at 1,800 operations/h)
100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)
IP30 (Terminal block: IP20)
Approx. 100 g
0
5
10
15
20
25
30
Relation between H3DT Ambient
Temperature and Mounting
Interval (Reference Values)
The relation between the ambient temperature
and mounting interval is shown in the following
graph.
If the Timer is used at 55°C or higher with a
mounting interval that is smaller than that
shown in the following diagram, the
temperature inside the Timer will increase,
reducing the life expectancy of internal parts.
Ambient temperature (°C)
80
70
60
50
40
30
20
10
Dielectric strength
Impulse withstand
test voltage
Noise immunity
Static immunity
Vibration
resistance
Shock
resistance
Life
expectancy
Destruction
Malfunction
Destruction
Malfunction
Mechanical
Electrical
Degree of protection
Weight
Mounting interval (mm)
Testing Method
Tested Timer: H3DT-N/-L
Applied voltage: 240 VAC
Installation pitch: 0 and 10 mm
Load current: 5 A
Applicable standards
Safety
standards
cULus: UL 508/CSA C22.2 No. 14
EN 61812-1: Pollution degree 2, Overvoltage category III
CCC: Pollution degree 2, Overvoltage category II, section GB 14048.5
LR: Category ENV1.2
DNV GL
*
(EMI)
EN 61812-1
Radiated Emissions:
EN 55011 class B
Emission AC Mains:
EN 55011 class B
Harmonic Current:
EN 61000-3-2
Voltage Fluctuations and Flicker:
EN 61000-3-3
(EMS)
EN 61812-1
Immunity ESD:
EN 61000-4-2
Immunity RF-interference:
EN 61000-4-3
Immunity Burst:
EN 61000-4-4
Immunity Surge:
EN 61000-4-5
Immunity Conducted Disturbance: EN 61000-4-6
Immunity Voltage Dip/Interruption: EN 61000-4-11
Test
timer
1
Test
timer
2
Test
timer
3
Test
timer
4
Test
timer
5
DIN Track
Timer installation pitch: d
EMC
*
Certification is pending for DNV GL.
I/O
Item
Input
Output
Model
Start
Control output
H3DT-N/L
Functions to start timing.
The output is turned ON/OFF according to the operating
mode when the value that is set on the dial is reached.
*
*
If the INST/TIME switch on the front of the Timer is set to INST, relay R2 will operate as instantaneous contacts and will turn ON/OFF in
synchronization with the power supply.
4
H3DT-N/H3DT-L
Connections
Block Diagrams
H3DT-N/L
AC (DC) input
Time setting
detection circuit
Time specification
switches
Operating mode
switch
ROM
Power supply circuit
RAM
Clock
Output circuit
One-chip microcomputer
Start input
Input circuit
Indicator circuit
Power
indicator
Output
indicator
Terminal Arrangement
H3DT-N1/L1
*2
H3DT-N2/L2
*2
A1
B1
A2
A1
B1
A2
Start
Start
*1
R1
15
R1
15
R2
25/21
18
16
18
16 28/24 26/22
25/21
16
18
*
1. The
28/24
16
15
26/22
18
15
relay R2 can be set to either instantaneous or time-limit contacts using the switch on the front of the Timer.
*
2. The power supply terminals do not have polarity.
(DIN notation)
(DIN notation)
(21)
25
A1
A2
B1
15
A1
A2
B1
15
16 18
16 18 26 28
(22) (24)
5
