HWS150024/ME datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> HWS150024/ME

HWS150024/ME: DescriptionAC/DC CONVERTER 24V 1500W; CategoryPower/power management; File Size97KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

HWS150024/ME Overview

AC/DC CONVERTER 24V 1500W

HWS150024/ME Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	85 ~ 265 VAC
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	65A
Power (W)	1500W
application	Medical type
Voltage - Isolation	3kV
efficiency	88%
Operating temperature	-10°C ~ 70°C (with derating)
characteristic	Adjustable output, DC input capability, PFC, remote switch, telemetry, universal input
Installation type	Base installation
size/dimensions	11.00" long x 5.00" wide x 3.25" high (279.4mm x 127.0mm x 82.6mm)
Minimum load required	-
Approval	CE

Preview

Download Datasheet

View All

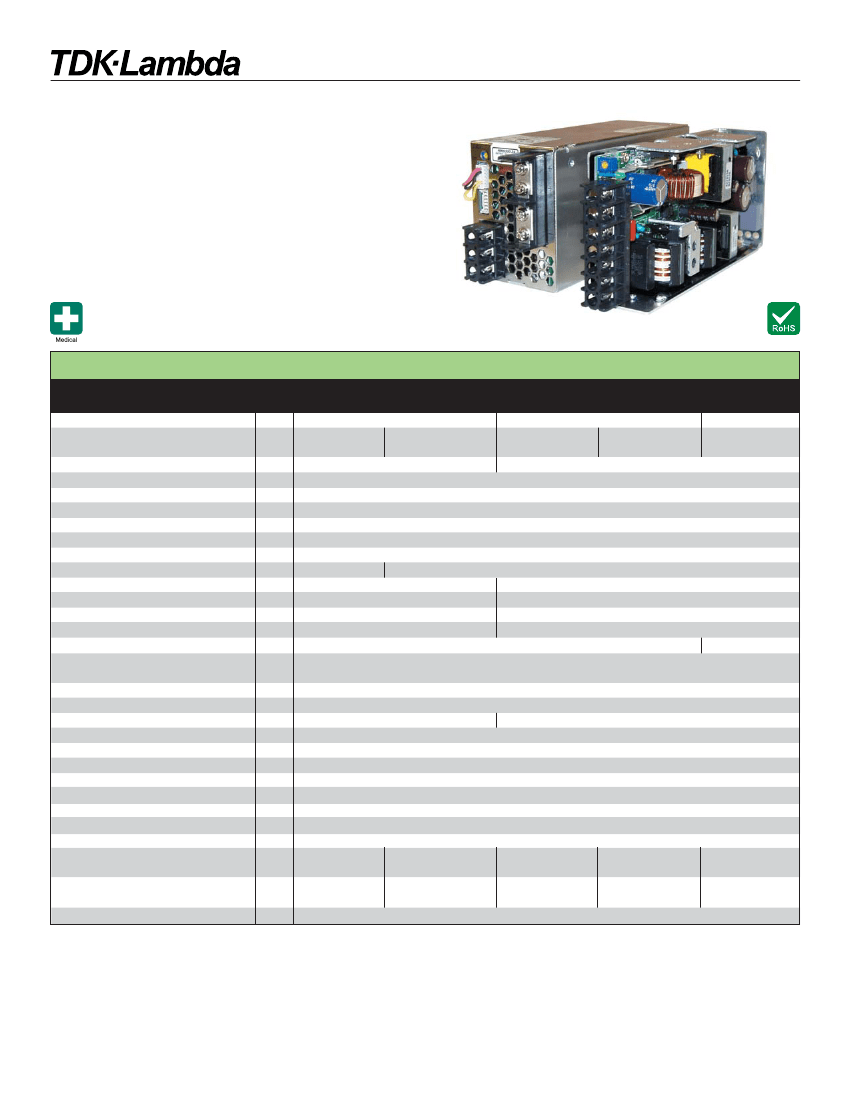

HWS30-1500/ME Series

Single Output Industrial Power Supplies

Features



Limited Lifetime Warranty



Medical Approvals



Universal Input (85 - 265VAC)



High Efﬁciency



Broad 30W to 1500W product range



Wide range AC Input

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range (47-63Hz) (2)

Input Current (Typ)

(1)

Inrush Current

(1)

Power Factor / Flicker

Temperature Coefﬁcient

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Current (60Hz)

Remote Sense

Indicator

Remote On/Off

Parallel operation

DC Good

Voltage Programming

Operating Temperature & Derating

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock (in packaging)

Safety Agency Approvals

Line Dip

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

HWS30

HWS100

HWS300

HWS600

HWS1500

HWS50

HWS150

85 - 265VAC or 120 - 370VDC

85 - 265VAC or 120 - 330VDC

85 - 265VAC

0.8 / 0.4

1.3 / 0.65

4.1 / 2.1

8.1 / 3.9

19 / 10

0.7 / 0.35

1.9 / 0.95

14 / 28

20 / 40

Meets EN61000-3-2, EN61000-3-3

<0.02%/°C

>104%

Yes (See table on page 2)

<0.5mA

Yes

Green LED = ON

Yes (Isolated from output)

Single wire connection (5 units max)

Yes

°C

HWS30-150: -10°C to +70°C, (-10 - +50°C: 100%, +60°C: 60%, +70°C: 20%)

HWS300-1500: -10°C to +70°C, (-10 - +50°C: 100%, derate linearly to 50% load from +50 to +70°C)

°C

-30 to +85°C

Operating: 30 - 90%RH (10 -90% on HWS300-1500), Non operating 10 - 95%RH

Convection

Internal fan

I/P to Grnd 2kVAC, I/P to O/P 3kVAC, O/P to Grnd 500VAC, O/P to Remote On/Off 100VAC for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC, >10M Output to remote on/off 100VDC

10 - 55Hz (1 min sweep), 19.6m/s

constant, X, Y, Z axis, one hour each

< 196.1m/s

UL60601-1, EN60601, CSA-C22.2 No601.1-M90 (C-UL) (basic insulation), CE Mark

Complies with SEMI F47 (200VAC line only)

EN55011 / EN55022-B, FCC-B, VCCI-B (HWS600 & 1500 Class A)

IEC61000-4-2 (Level 2,3), -3, -4, -6, (Level 3), -5 (Level 3,4), -8 (Level 4), -11

220

450

1000

1600

3800

280

500

in 1.04x3.23x3.74

1.1x3.23x6.3

2.4x3.23x6.5

3.94x3.23x6.5 4.98x3.23x11.02

1.04x3.23x4.72

1.46x3.23x6.3

yrs

Limited lifetime warranty (See TDK-Lambda’s terms & conditions)

(3) HWS300-600 2.5kVAC Input to ground

(3)

(2)

(1) 100/200VAC input

(2) See conditions of accep[tability and clause 19.5DV.2 of UL60601 for

equipment in proximity of patient

H W S30 - 150/M E N o t r e c o m m e n d e d fo r n e w d esi gns , s ee HW S -A webp a ge

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
