Snap/Clip-Lock Environmentally Sealed - Circular
Engineering Quick Reference Selection Guide

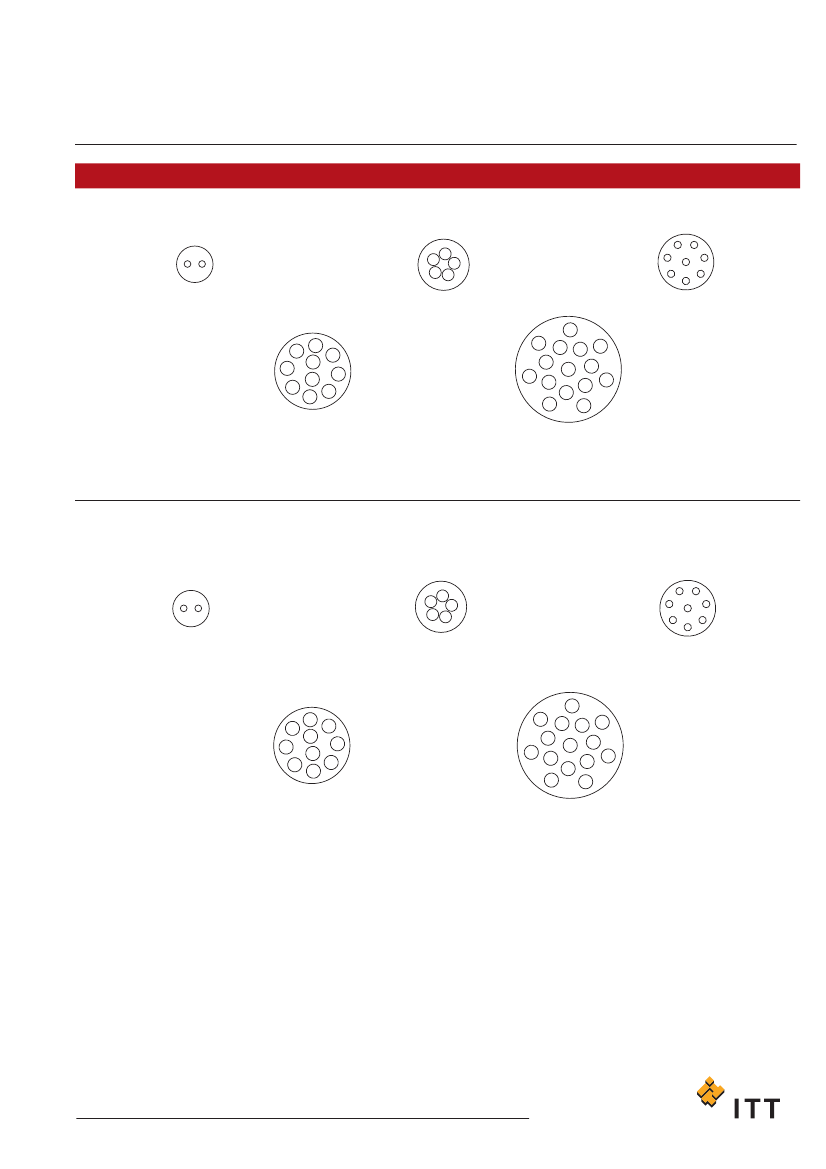

2 Position
Plug
Receptacle
4 Position
Plug
5 Position
Receptacle
Contact
Arrangement
1
2
2
1
Contact
Cannon
2
1
5
4
3
3
4
2
1
5
Inline
Features
Clip Lock
Feed Thru
Inline
PCB
Inline
Clip Lock
Clip Lock
Snap Lock
Snap Lock
Specifications
CS-216
CS-216
CS-216
CS-206
CS-206
Plug
086-0066-000 w/Wedgelock
086-0058-000 Standard
086-0058-000 Standard
Contact
Cannon
098532-0000 (5 A)
098532-001 (13 A)
098532-0000 (5 A)
098532-001 (13 A)
Receptacle
086-0061-000 w/Wedgelock
083-0242-000
Contact
Cannon
098531-0000 (5 A)
098531-0001 (13 A)
098530-0000 (5 A)
098530-0001 (13 A)
Terminals
See page 14
See page 14
Contact Cannon
See page 14
See page 14
How to Order
SLC
Series Prefix
Size/Configuration
Connector Type
Contact Termination
Material/Finish Modifier
Mechanical Modifier
5
T
13
0
0
Series Prefix
SLC - Snap-Lock Circular
Size/Configuration
5-5 Cavity Housing
8-8 Cavity Housing
10-10 Cavity Housing
15-15 Cavity Housing
Contact Termination
5-5A
13 - 13 A
Material/Finish Modifier
0 -Standard Assembly (Silicone Elastomer)
1 -Fluorosilicone Elastomer
Mechanical Modifier
Connector Type
0 -Standard Assembly
P - Plug, In-line (Cable-to-Cable)*
R - Receptacle, In-line (Cable-to-Cable)
T - Receptacle, Snap-thru
B - Receptacle, PCB
*Note: In-line Plug mates with all 3 receptacle types (In-line, Snap-thru, and PCB.)

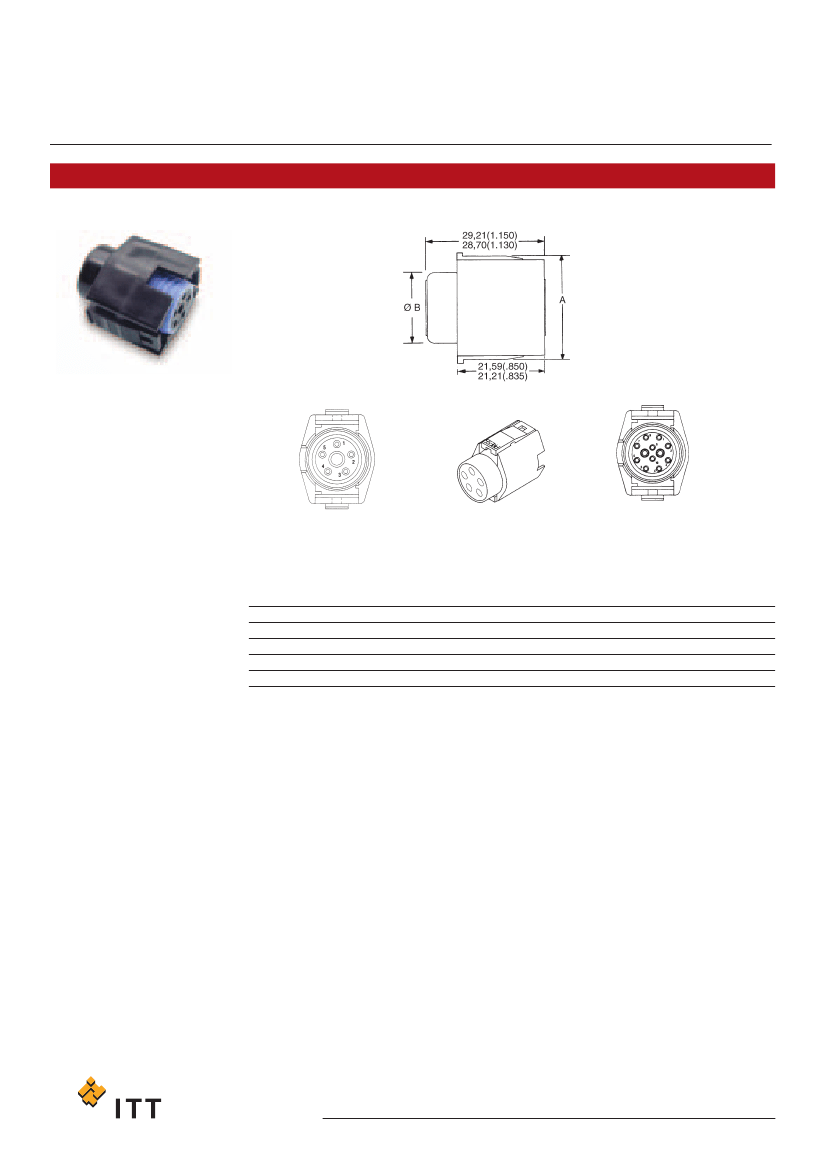

Dimensions shown in mm
Specifications and dimensions subject to change
4
www.ittcannon.com
Snap/Clip-Lock Environmentally Sealed - Circular
Cannon SLC/SLC-T/CLC

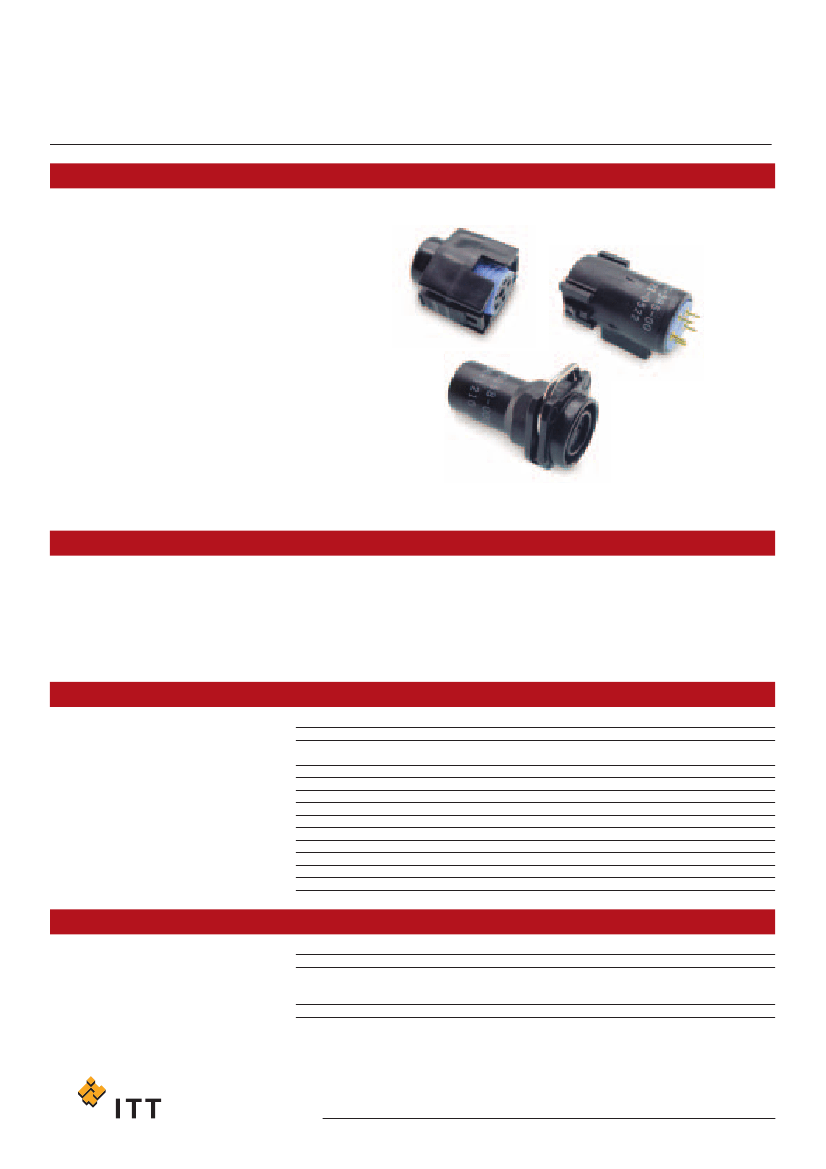

The Snap Lock Environmental Series is
environmentally sealed connector created for printed
circuit board, black box, cable-to-cable or bulkhead
applications.
When your under-the-hood requirements call for
tough performance, the SLC "snaps" into a tightly
sealed connection that can withstand heat, shock and
vibration. The connector is designed to preserve the
integrity of the solid state package, while protecting
against contaminants - even when unmated.
Gold, tin/lead plated stamped contacts add durability.
A rugged, thermoplastic receptacle body maximizes
performance by withstanding temperature variances
from -40°C to +150°C (material rating).
The SLC series is available in 2, 5, 8, 10, 15 contact
cavity configurations. It can also be adapted to
robotics assembly. Should you requirement demand
higher density configurations, consult Customer
Service.
Product Features and Benefits
· Superior environmental sealing
· Material rating: -40°C to +150°C continuous
operation at rated current
· Available in sizes 2, 5, 8, 10, 15 contacts
· Crimp stamped gold, tin/lead plated contacts
· Hand insertable/removable contacts
· Current rating 5 A and 13 A versions
· Low millivolt drop
· Low contact resistance
· Small footprint on P.C. board and low profile
· Adaptable to robotics assembly
· Latch with tactile and audible feedback
· Increases durability and provides for minimum
installation
· Low installed cost
· Requires less PCB space
Performance Specifications
Contact Resistance
Insulation Resistance
Current Rating
Dielectric Withstanding Voltage
Applicable Cannon Specification
Material Rating Operating Temperature
Crimp Contacts
Wire Size
Wire Insulation Sealing Range
Contact Insertion
Contact Extraction
Contact Retention
Wire Strip Length
10mΩ maximum
20MΩ minimum (USCAR)
5 A signal continuous at 150°C all contacts, 2 position
13 A power continuous at 150°C all contacts, 5 position and 10 position only
1000 Vrms AC at sea level
SLC (CS-206) SLCT 5 & 10 (210) SLCT8 (216) SLCT 15 (206)
-40°C to +150°C
Semi-automatic or hand crimpable or fully automatic
20 - 16 AWG
1,98 (.078) to 3,30 (.130) dia.
No tool required. Suitable for automation.
Rear Removable
20 lbs. Minimum per contact
5,59 (.220) to 5,33 (.210)
Materials and Finishes
Connector Housing
Contacts
Finish
High temperature thermoplastic
Copper alloy
Engaging area: Gold over nickel
Crimp/P.C. tail area: Tin/lead over nickel - standard offering
Tin/Lead over nickel - Option #2 all over
High temperature silicone elastomer
Environmental Seal
Dimensions shown in mm
Specifications and dimensions subject to change
6
www.ittcannon.com
