51730-189LF: DescriptionPWRBLADE R/A LF HDR; CategoryThe connector The connector; File Size271KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51730-189LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51730-189LF	-	-	View	Buy Now

51730-189LF Overview

PWRBLADE R/A LF HDR

51730-189LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS : 6.35 MM
body width	0.574 inch
subject depth	0.93 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51730
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

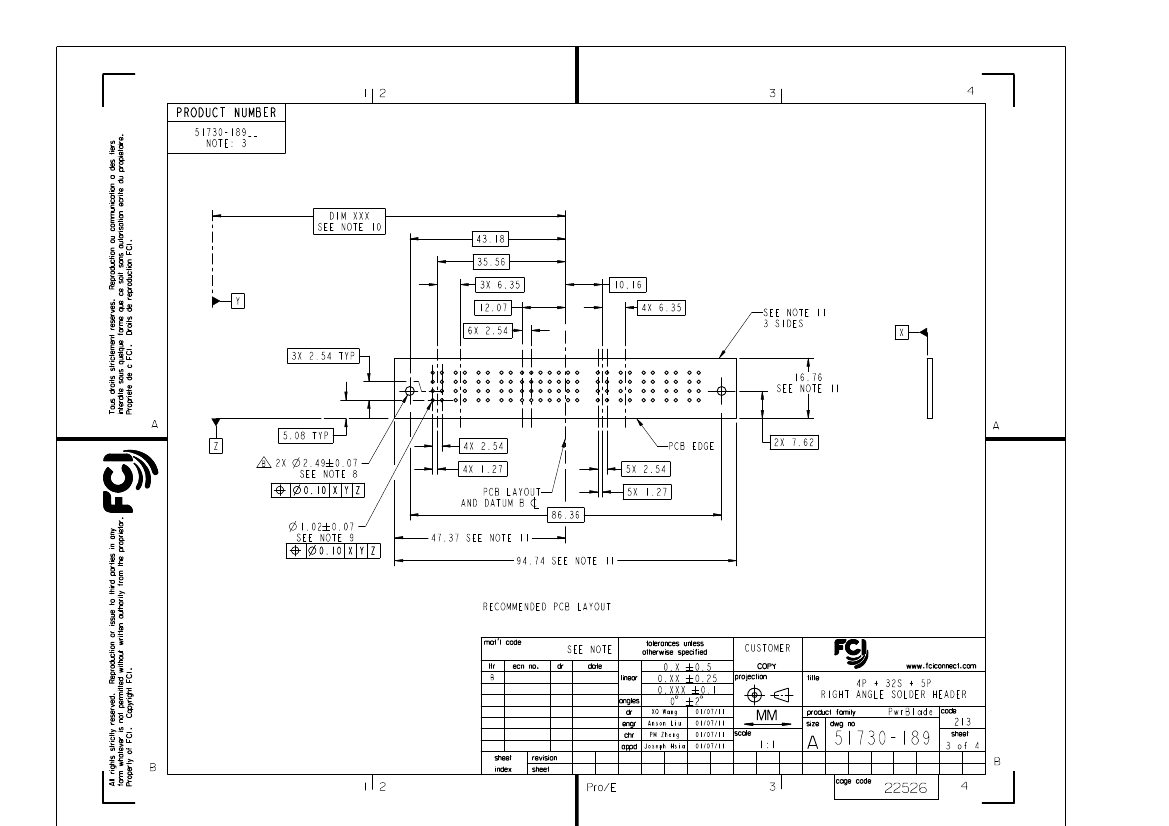

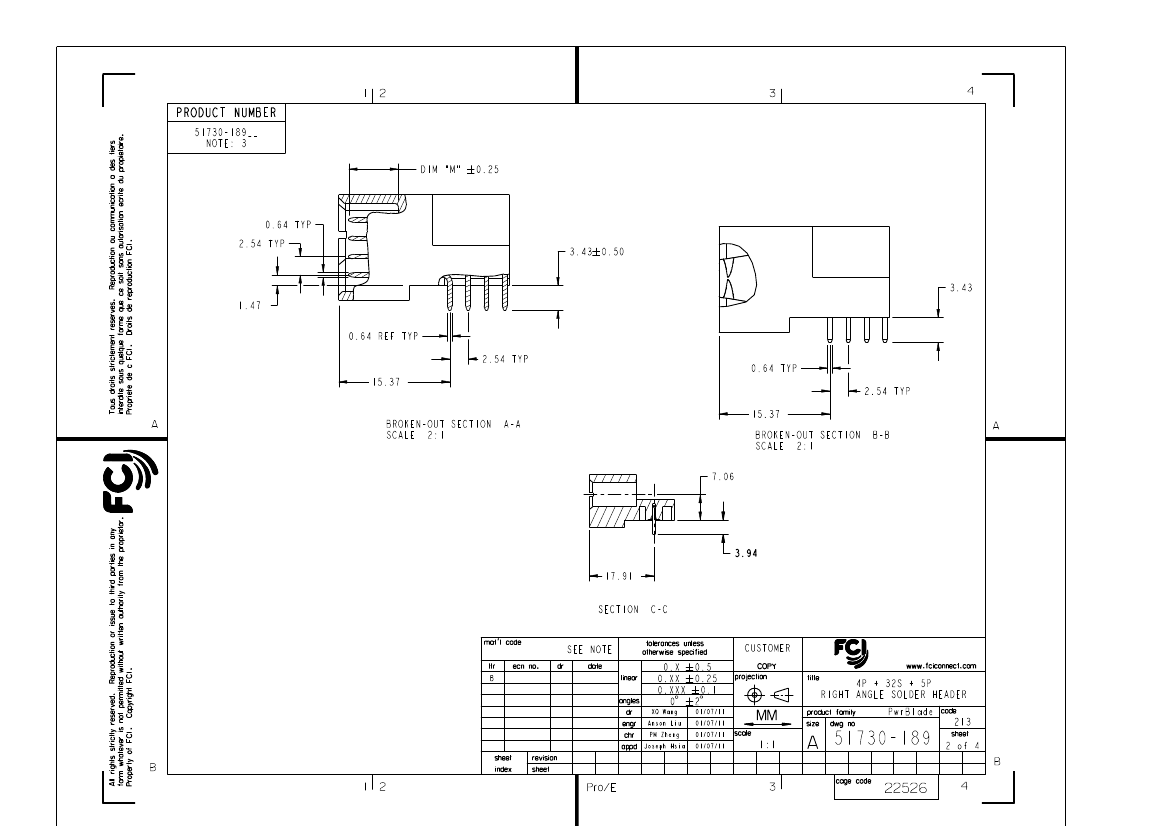

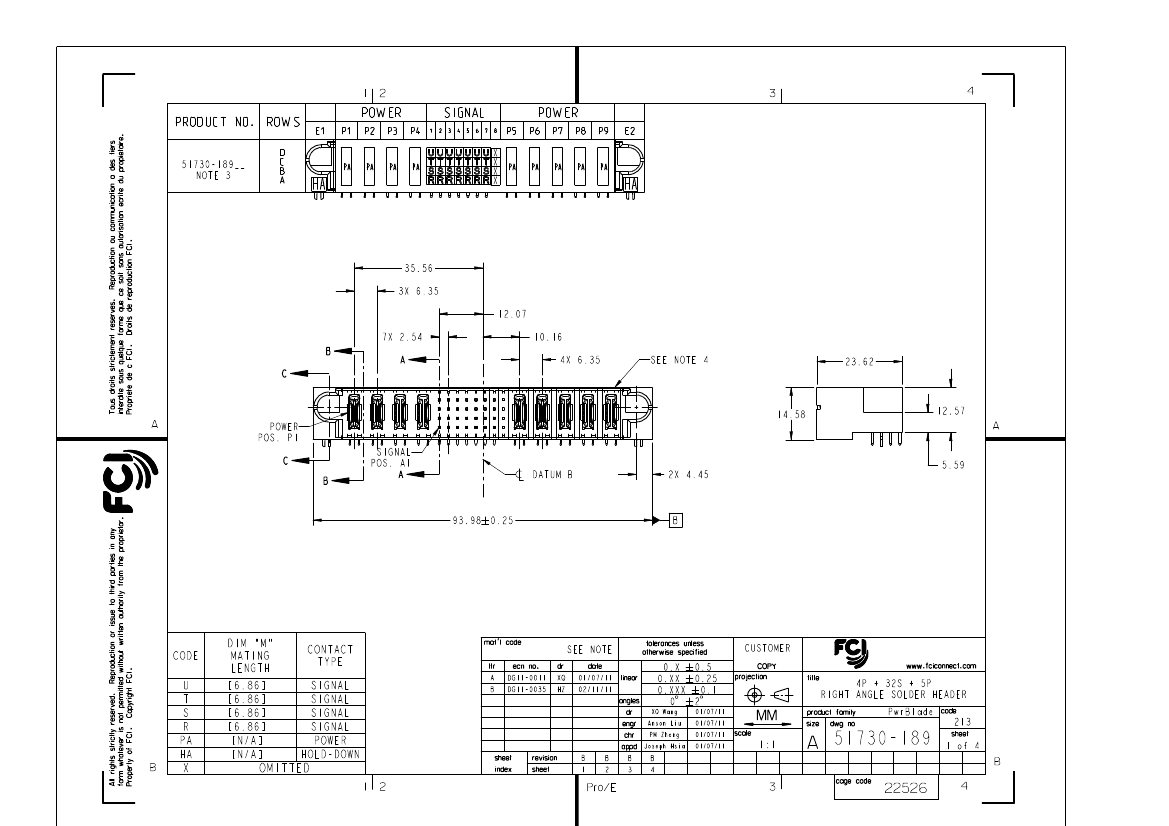

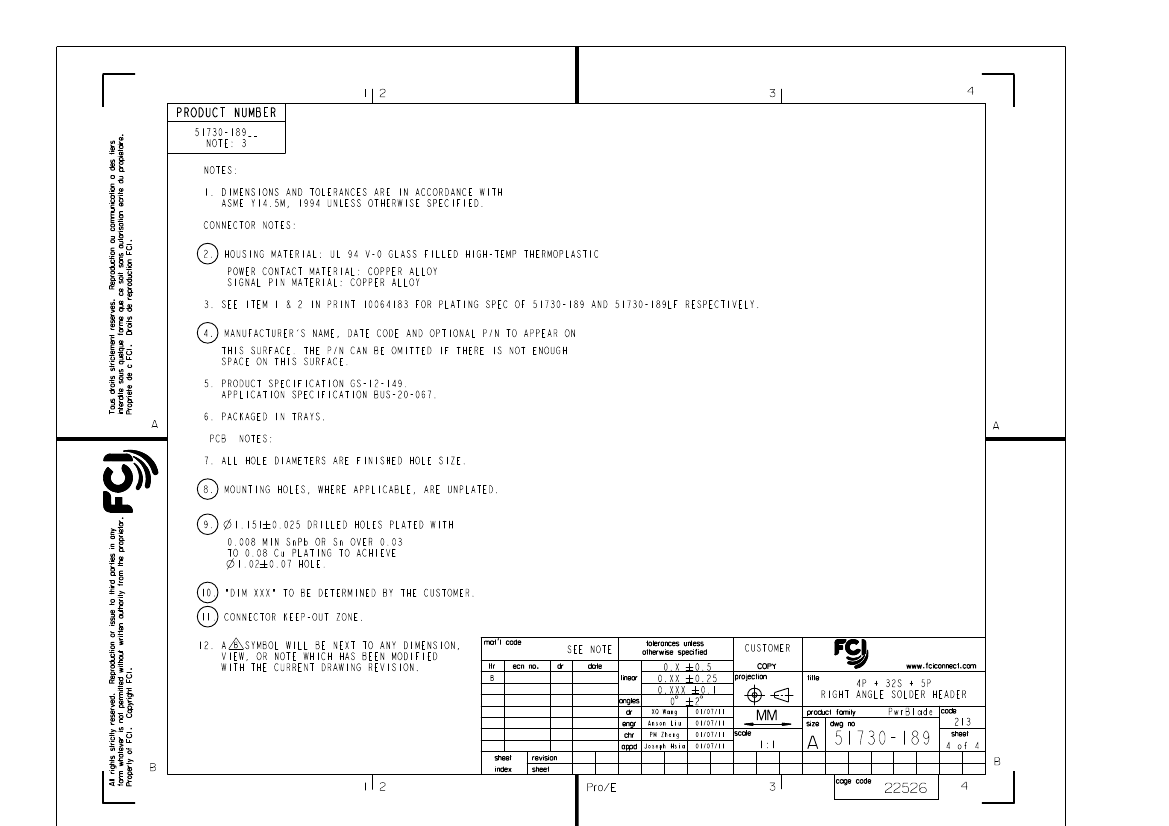

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Feb 12, 2011

.

51730-189LF Related Products

	51730-189LF	51730-189
Description	PWRBLADE R/A LF HDR	Board Connector, 37 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compli
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS : 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS : 6.35 MM
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	3.7 inch	3.7 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	51730	51730
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	37	37
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
