TM

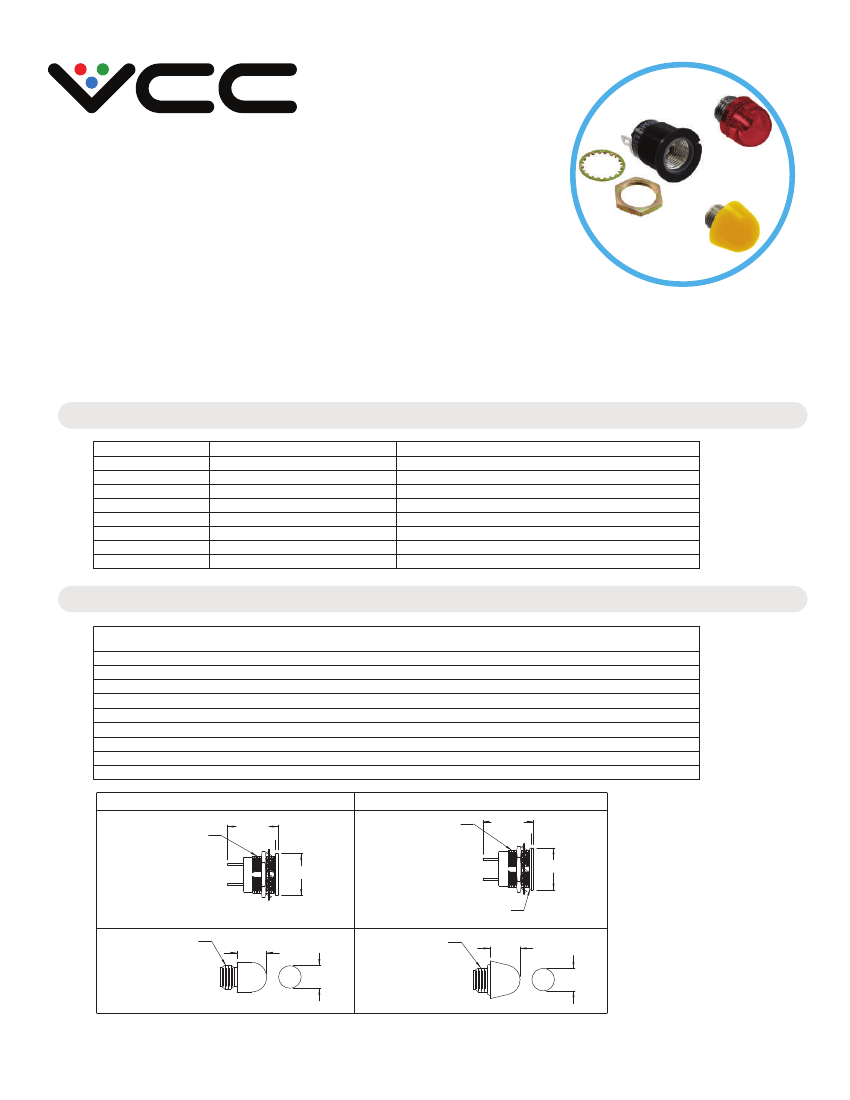

CLIPLITE Midget Flange
Relampable Indicator Lights
Midget Flange Indicator Lights are versatile, industry standard, front panel indicator
lights capable of accepting any T-1 3/4 midget flange base lamp. These high quality indicators provide reliable
service in a vast array of commercial and military applications (conforming to MIL-L-3661). Lamps are easily
replaced from the front panel. These indicator lights are available in both a standard configuration and a watertight
configuration providing reliable status indication in the most demanding of environments. The lamp is not included
with this indicator light; please order the required lamp separately.
Lens Specifications
Standard
131A-303R
131A-303A
131A-303G
131A-303C
131A-304R
131A-304Y
131A-304G
131A-304W
Watertight
139A-403R
139A-403A
-
139A-403C
139A-404R
139A-404Y
139A-404G
139A-404W
Description
Transparent Red
Transparent Amber
Translucent Dark Green
Transparent Clear
Translucent Red
Translucent Yellow
Translucent Light Green
Translucent White
Panel Mount Indicator Specifications
.484”, 5131 Type has a keyed flange anti-rotation feature,
5139 Type features a flat "D" hole mounting
.750”
Mounting Centers:
Maximum Panel Thickness:
5131 type: .265”, 5139 type: .188”
Black anodized aluminum (suffix -038). Clear anodized aluminum (suffix -032)
Housing/Material:
Lugs:
Brass, center contact terminal marked +
Hex Nut:
Cadmium plated steel
Lockwasher:
Cadmium plated steel
Lens:
Lexan
Lens Shank:
Nickel plated brass
Electrical rating:
30 Volts, up to 1.26 Watt, 0.5A max. current.
Standard
15/32-32 THD.
.77
15/32-32 THD.
Mounting Hole:
Watertight
.781
Ø.55
Ø.650
5131-0XX
5/16-32 THD.
5139-038
5/16-32 THD.
O-RING
.421
Ø.438
.438
Ø.578
131A-30XX
139A-40XX
All dimension
in inches.
your first call for illuminated components
www.vcclite.com
1
1.800.522.5546
09/17 Rev 1
