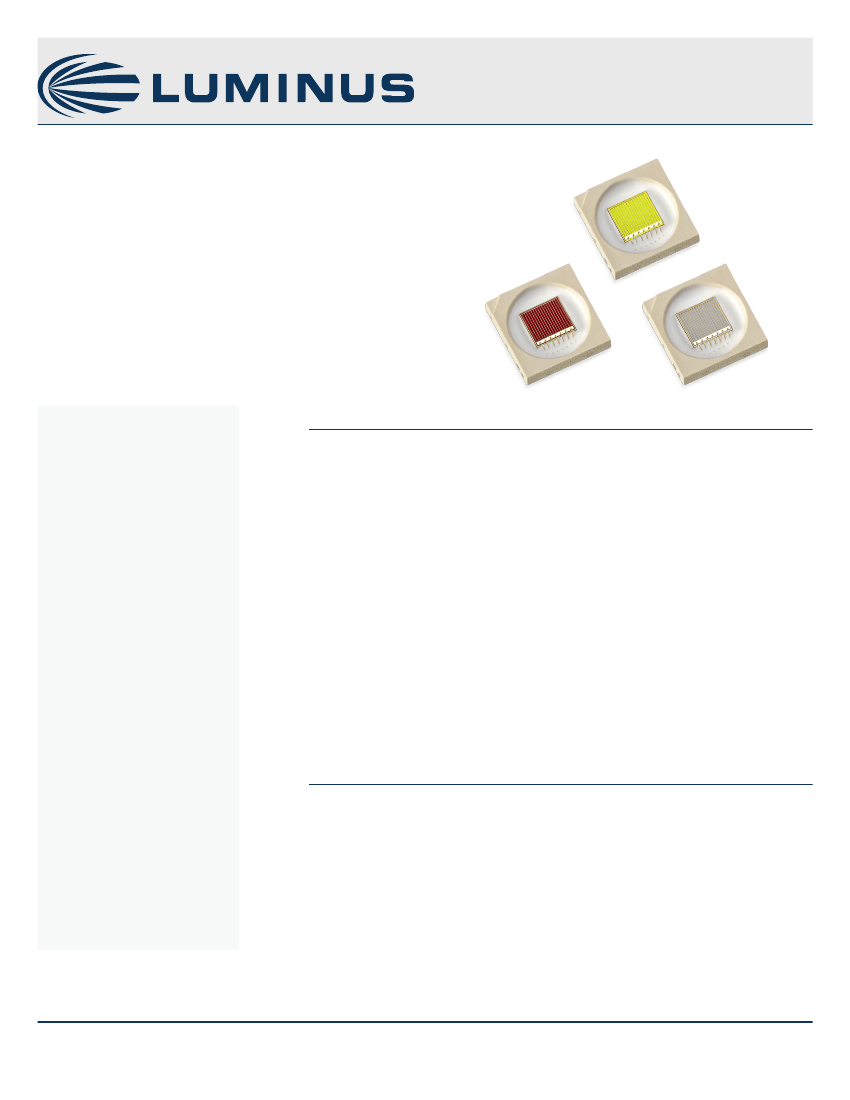

3.5mm high-performance package with directional indicator.
Converted Green consisting of a 2.0 mm
2
die die mounted on a small
3.5 x 3.5mm high-performance package. Includes directional indica-
tor.
Blue LED consisting of a 2.0 mm
2
die mounted on a small 3.5 x
3.5mm high-performance package with directional indicator.

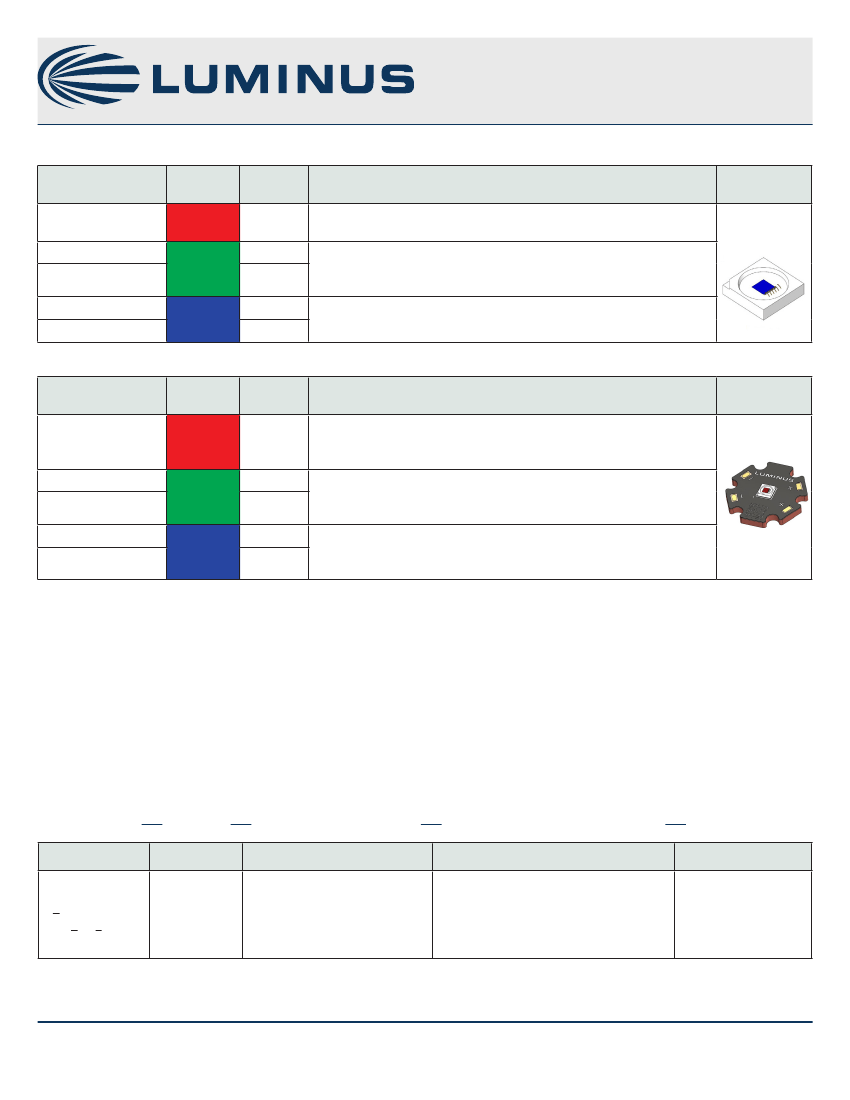

Configuration
Converted
Green
SFT-20-CG-F35-MPC
SFT-20-B-F35-EPB
SFT-20-B-F35-EPC
Blue

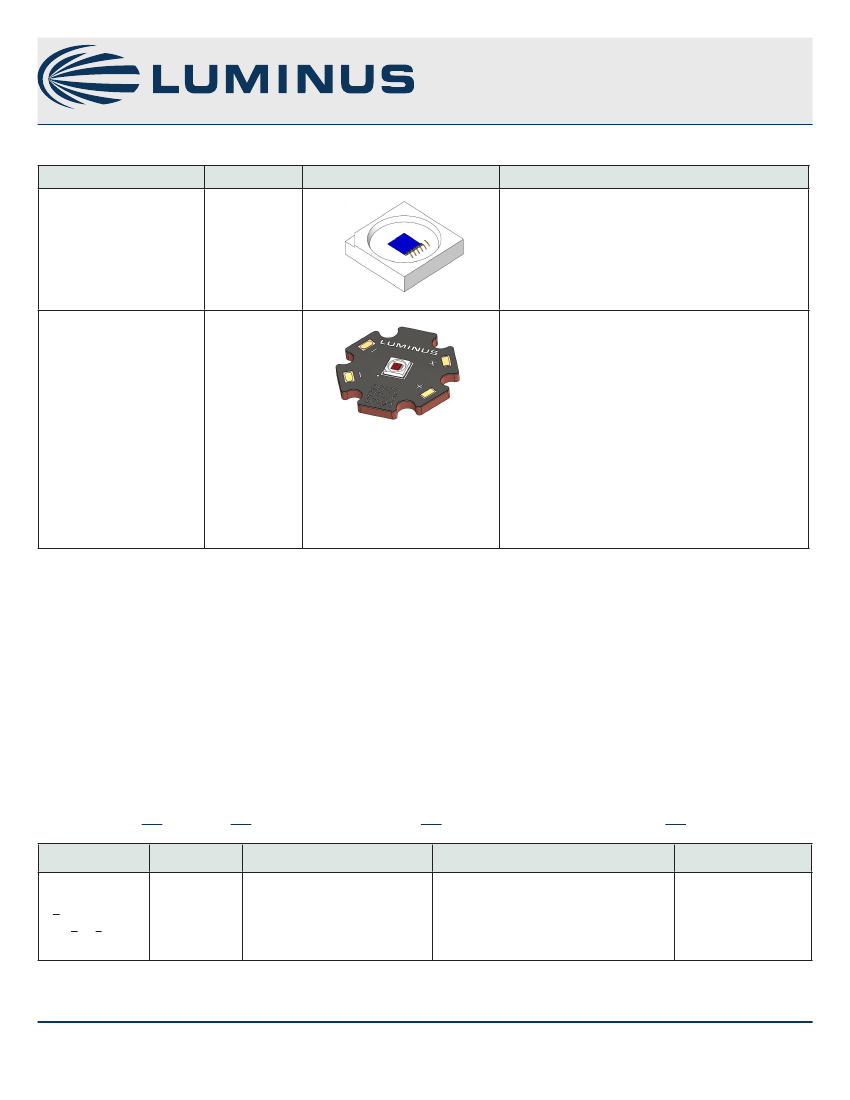

Ordering Information (Starboard Configuration)
1, 2, 3
Ordering Part
Number
SFT-20-RA-R35-MPA
SFT-20-CG-R35-MPB
Color
Red
Amber
Min Flux
Bin
1A
2B
2C
4B
Description
Red-Amber LED consisting of a 2.0 mm
2
die in a small 3.5 x 3.5mm
package mounted on a thermally efficient and pedestal, common
cathode designed starboard.
Converted Green LED consisting of a 2.0 mm
2
die with Green Phos-
phor Platelet in a small 3.5 x 3.5mm package mounted on a thermal-
ly efficient and pedestal, common cathode designed starboard.
Configuration
Converted
Green
SFT-20-CG-R35-MPC
SFT-20-B-R35-EPB
Blue LED consisting of a 2.0 mm
2
die in a small 3.5 x 3.5mm package
Blue
mounted on a thermally efficient and pedestal, common cathode
SFT-20-B-R35-EPC
4C
designed starboard.
Note 1: Ordering part numbers represent bin kits (group of bins that are shippable for a given ordering part number)
Note 2: Bin Kits are defined by a group of flux or power bins. Only one flux / power bin will be shipped in each individual pack or reel.
Each shipment will contain reels of different allowed bins for a specific orderable part number (See page 5).
Indivdiual Flux or Power bins are not orderable.
Note 3: Starboard Configuration are available for sample quantity only. For additional quantity, contact Luminus representitive.
Ordering Part Number Nomenclature
SFT
Product Family
SFT:
Surfacemount
Flat-Top
Windowless
Note 1:
nn
Chip Area
XXXX
Color
RA = Red - Amber
CG= Converted Green
B= Blue
XXX
Package Configuration
F35: 3.5mm x 3.5mm
See Mechanical Drawing section
R35: SFT-20 mounted on Starboard
Starboard only in sample quantity
XYZ
Bin Kit
1
See page 5 for bin kit
definition
20: 2.0 mm
2
A Bin Kit represents a group of individual flux or power bins that are shippable for a given ordering part number. Individual flux bins are not orderable.
EXAMPLES: SFT-20-CG-F35-MPC is comprised of Converted Green Flux Bins 2C through 2F.
The packaging configuration must be specified within the orderable part number.
If not specified, or invalid, the order may be rejected or default to the “F35” (Standard) configuation.
Ordering Part Number Nomenclature
SFT
Product Family
SFT:
Surfacemount
Flat-Top
Windowless
Note 1:
nn
Chip Area
XXXX
Color
RA = Red - Amber
CG= Converted Green
B= Blue
XXX
Package Configuration
F35: 3.5mm x 3.5mm
See Mechanical Drawing section
R35: SFT-20 mounted on Starboard
Starboard only in sample quantity
XYZ
Bin Kit
1
See page 5 for bin kit
definition
20: 2.0 mm
2
A Bin Kit represents a group of individual flux or power bins that are shippable for a given ordering part number. Individual flux bins are not orderable.
EXAMPLES: SFT-20-CG-F35-MPC is comprised of Converted Green Flux Bins 2C through 2F.
