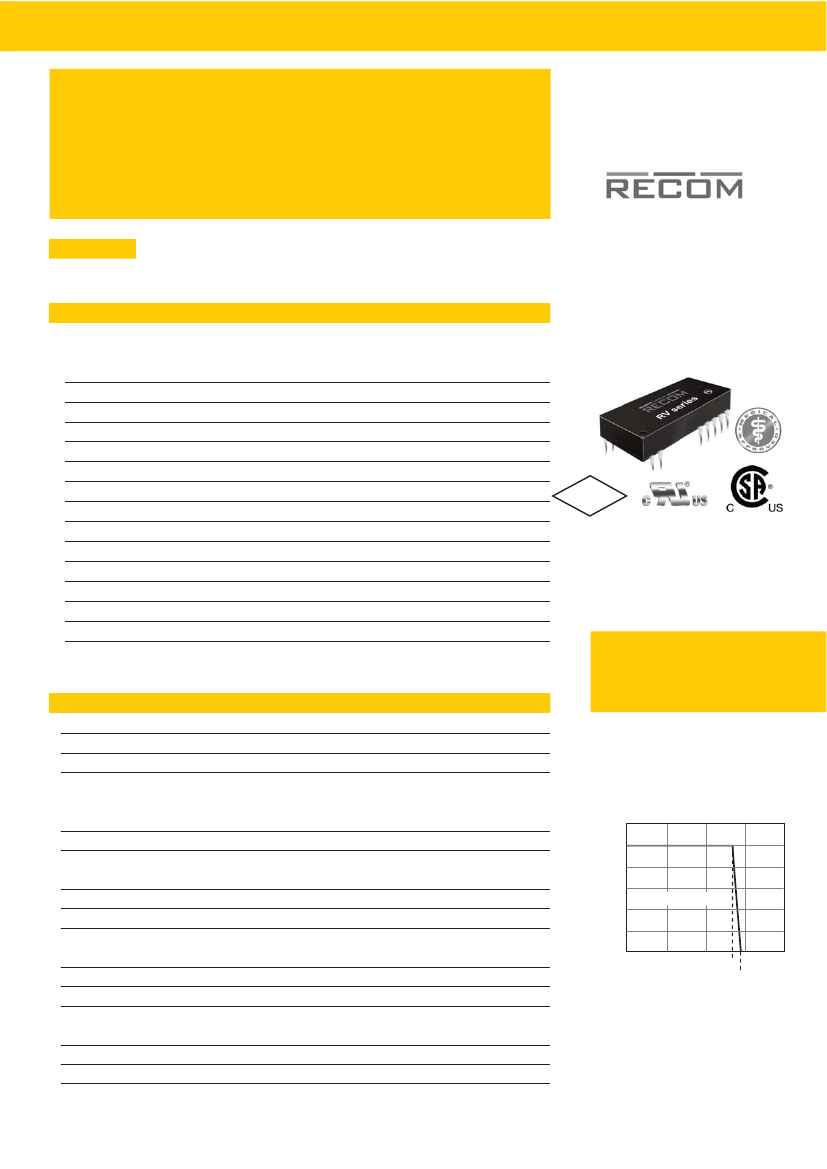

Features
Unregulated
Converters
●
●
●
●
●
●
●
●
UL/CSA and EN-60950-1 Safety certified
EN-60601 for Medical Applications
6kVDC Isolation
Optional Continuous Short Circuit Protection
Efficiency up to 82%
Space Saving „Skinny DIP“ Package
Very Low Isolation Capacitance
Suitable for IGBT Applications
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
Very high isolation in a small size are the main features of this miniature DIP24 converter,
ideal for highly sophisticated industrial, test and measurement and medical designs where
board space is at a premium.
Selection Guide
Part
Number
SIP 7
RV-xx3.3S*
RV-xx05S*
RV-xx09S*
RV-xx12S*
RV-xx15S*
RV-xx24S*
RV-xx3.3D*
RV-xx05D*
RV-xx09D*
RV-xx12D*
RV-xx15D*
RV-xx24D*
RV-xx1509D
Input
Voltage
(VDC)
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
5, 12, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
24
±3.3
±5
±9
±12
±15
±24
+15/-9
Output
Current
(mA)
600
400
222
167
132
83
±300
±200
±111
±85
±66
±42
+67/-111
Efficiency
Std
(%)
70
70-75
70-75
70-75
75-80
75-80
70
70-75
70-75
70-75
75-80
75-80
70-82
Max
Capacitive
Load
(1)
3300µF
1200µF
1200µF
680µF
680µF
220µF
±1500µF
±470µF
±470µF
±220µF
±220µF
±100µF
±330µF
2 Watt DIP24
Miniature
Single
&
Dual
Output
2011/65/EU
6/6
RoHS
E358085
EN-60950-1 Certified
IEC/EN-60601-1 Certified*
UL/CSA 60950-1 Certified*
* +15/-9 Version excluded
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RV-0505S/P, RV-0505D/P
RV
±10%
±5%
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
RV-xx1509D
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection, without derating)
Storage Temperature Range
(tested for 1 second)
(rated for 1 minute**)
3.3V output types
5V output type
9V, 12V, 15V, 24V output types, RV-xx1509D
1.2%/1% of Vin typ.
20% max.
15% max.
10% max.
200mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
20kHz min. / 47kHz typ.
Derating-Graph
(Ambient Temperature)
100
80
Output Power (%)
70% min. / 75% typ.
Specifications valid for 10% minimum load only.
6000VDC
3000VAC / 60Hz
2pF min. / 12pF max.
15 GΩ min.
1 Second
Continuous
-40°C to +90°C (see Graph)
-55°C to +125°C
continued on next page
60
40
20
0
Safe Operating Area
90 100
95
Operating Temperature °C
-40
0
50
150
**Any data referred to in this datasheet are of indicative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
Refer to Application Notes
www.recom-power.com
REV: 0/2015
E-109
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up))
Relative Humidity
Package Weight
Packing Quantity
MTBF (+25°C)
Detailed Information see
(+85°C)
Application Notes chapter "MTBF"
RV
Series
95% RH
9g
15 pcs per Tube
using MIL-HDBK 217F
using MIL-HDBK 217F
Report: SPCLVD1109103
Report: SPCMDD1205098-4
1154 x 10
3
hours
168 x 10
3
hours
UL 60950-1 2nd Ed.
EN60950-1:2006 + A12: 2011
IEC/EN60601-1:2006, 3rd Edition
}
Certifications
UL/cUL General Safety Report: E358085
EN General Safety
EN Medical Safety
Notes
Note 1
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Tolerance Envelope
+10%
+6%
V Nom.
Output Voltage
Typica
l
Load
Line
+5%
2.5%
5%
10%
50%
100%
Output Load Current (%)
Typical Characteristics
RV-xx05S
Efficiency / Load
100
Deviation / Load
1205
Deviation from Nominal (%)
25.000
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
RV
80
60
40
0505
0505
Efficiency %
20
0
1205
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
RV-xx12S
Efficiency / Load
100
25.000
Deviation / Load
1212
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
80
60
40
0512
0512
Efficiency %
20
0
1212
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
E-110
REV: 0/2015
www.recom-power.com
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm)
24 PIN DIP Miniature Package Style
2.54 x 11=27.94
14.70
Single & Dual Output, RV-xx1509D
RV
Series
24 23
17 16 15 14 13
11.10
0.40
0.60
2.2
15.24
4.10
0.25
0.50±0.05
16.95 max.
1 2
RECOM
RV-0505S
****
8 9 10 11 12
Recommended Footprint Details
32.35
1 2
16.10
24 23
8 9 10 11 12
Bottom View
17 16 15 14 13
Top View
2.54
1.0ø+0.15/0
2.54
Pin Connections
Pin #
1
2
8, 9, 11, 14
10, 15
12 & 13
Pin Connections
Single
+Vin
-Vin
NC
-Vout
+Vout
NC
Pin #
1
2
8, 17
9, 11, 14,16, 23, 24
10 & 15
12, 13
NC = No Connection
Dual
+Vin
-Vin
-Vout
NC
Com
+Vout
RV
16, 17, 23, 24
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
E-112
REV: 0/2015
www.recom-power.com
