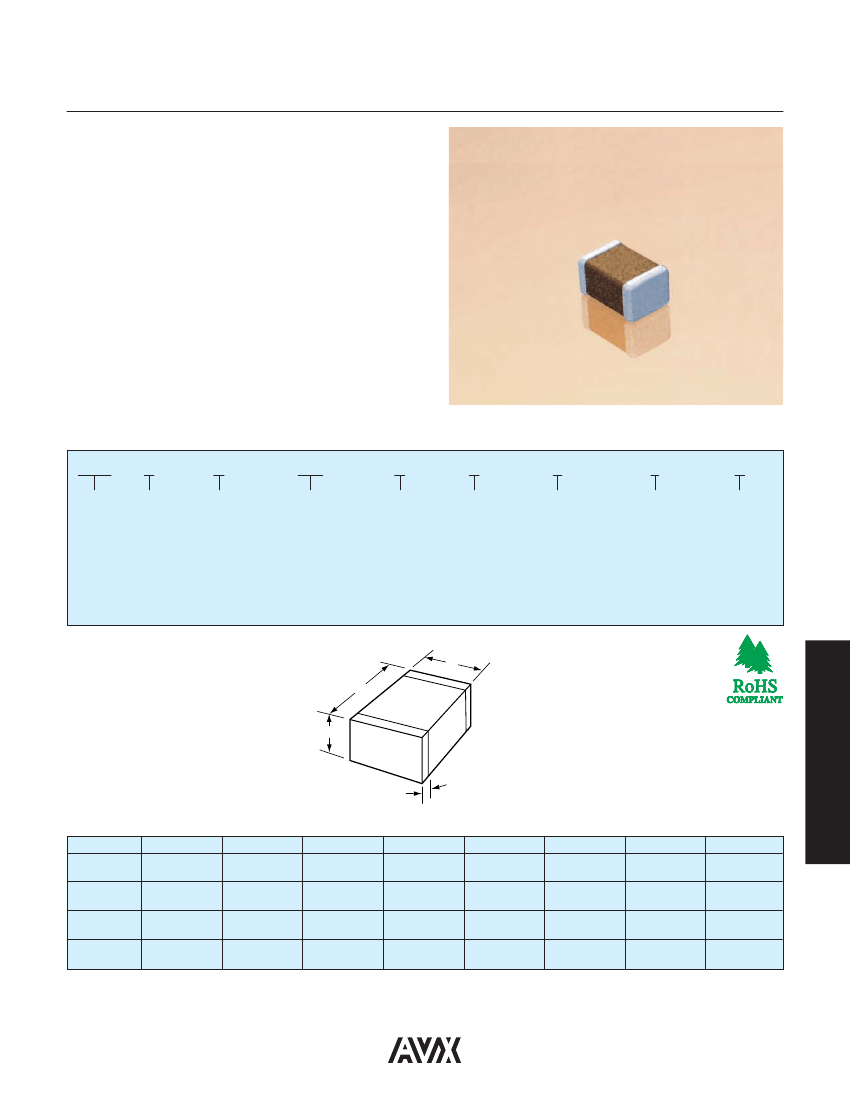

Tip & Ring
Multilayer Ceramic Chip Capacitors
AVX “Tip & Ring” or “ring detector” Multilayer Ceramic Chip
Capacitors are designed as a standard telecom filter
to block -48 Volts DC telephone line voltage and pass
subscriber’s AC signal pulse (16 to 25Hz, 70 to 90Vrms).
The typical ringing signal is seen on figure on page 132. The
ringer capacitors replace large leaded film capacitors and
are ideal for telecom/modem applications. Using AVX “Tip &
Ring” capacitors not only saves valuable real estate on the
board and reduces the weight of overall product, but also
features standard surface mounting capabilities, so critical to
new and compact designs.
The AVX “Tip & Ring” capacitors are offered in standard
EIA sizes and standard values. They offer excellent high
frequency performance, low ESR and improved temperature
performance over film capacitors.
HOW TO ORDER
1812
AVX
Style
0805
1206
1210
1808
1812
1825
2220
2225
P
Voltage
250 VDC
Telco
Rating
C
Temperature
Coefficient
X7R
104
Capacitance Code
(2 significant digits
+ no. of zeros)
Examples:
1,000 pF = 102
22,000 pF = 223
220,000 pF = 224
1 µF = 105
K
Capacitance
Tolerance
K = ±10%
M = ±20%
A
T
1
A
Special Code
A = Standard
Termination
Test
Packaging
T = Plated
Level
1 or 2 = 7" Reel
Ni and Sn
A = Standard
3 or 4 = 13" Reel
(RoHS Compliant) 9 = Bulk
Z = FLEXITERM
®
100% Tin
(RoHS Compliant)
Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.
W
L
T
t
DIMENSIONS
Style
(L) Length
(W)Width
(T) Thickness
(t) terminal
millimeters (inches)
1206
1210*
1808*
1812*
1825*
2220*
2225*
0805
2.01 ± 0.20
3.20 ± 0.20
3.2 ± 0.20
4.57 ± 0.25
4.50 ± 0.30
4.50 ± 0.30
5.60 ± 0.30
5.60 ± 0.25
(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.220 ± 0.012) (0.220 ± 0.010)
1.25 ± 0.20
1.60 ± 0.20
2.50 ± 0.20
2.03 ± 0.25
3.2 ± 0.20
6.34 ± 0.30
5.10 ± 0.40
6.35 ± 0.25
(0.049 ± 0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.200 ± 0.016) (0.250 ± 0.010)
1.30 max.
(0.051 max.)
1.50 max.
(0.059 max.)
1.78 max.
(0.070 max.)
1.78 max.
(0.070 max.)
2.00 max.
(0.080 max.)
2.00max.
(0.080 max.)
2.00 max.
(0.080 max.)
2.00 max.
(0.080 max.)
0.50 ± 0.25
0.50 ± 0.25
0.50 ± 0.25
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
(0.020 ± 0.010) (0.020 ± 0.010) (0.020 ± 0.010) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015)
*Reflow Soldering Only
062216
131
Tip & Ring
Multilayer Ceramic Chip Capacitors
CAPACITANCE RANGE (µF)
Size
min.
max.
0805
0.0010
0.027
1206
0.0010
0.082
1210
0.0010
0.22
1808
0.010
0.27
1812
0.10
0.47
1825
0.33
1.0
2220
0.47
1.0
2225
0.47
1.2
“TIP & RING” GRAPH
250V
Tip & Ring
0
-48V
-250V
-400ms
200ms/div
1.6s
PERFORMANCE CHARACTERISTICS
Capacitance Range
Capacitance Tolerances
Dissipation Factor
Operating Temperature Range
Temperature Characteristic
Voltage Rating
Insulation Resistance
Dielectric Strength
1000 pF to 1.2 µF
±10%, ±20%
2.5% max. (25°C, 1.0 ±0.2 Vrms at 1kHz)
-55°C to +125°C
X7R ±15% (0 VDC)
250 VDC Telco rating
1000 megohm-microfarad min.
Minimum 200% rated voltage for 5 seconds at 50 mA max. current
(25°C, 1.0 ±0.2 Vrms at 1kHz)
132
062216
