4304H Series
Solid State LED Lamps
T-1 3/4 (5mm)
Key Features
• Low power consumption
• T-1 3/4 diameter package
• 4 colors available: red, amber, green and
yellow
• Long life - solid state reliability
• Reliable and rugged

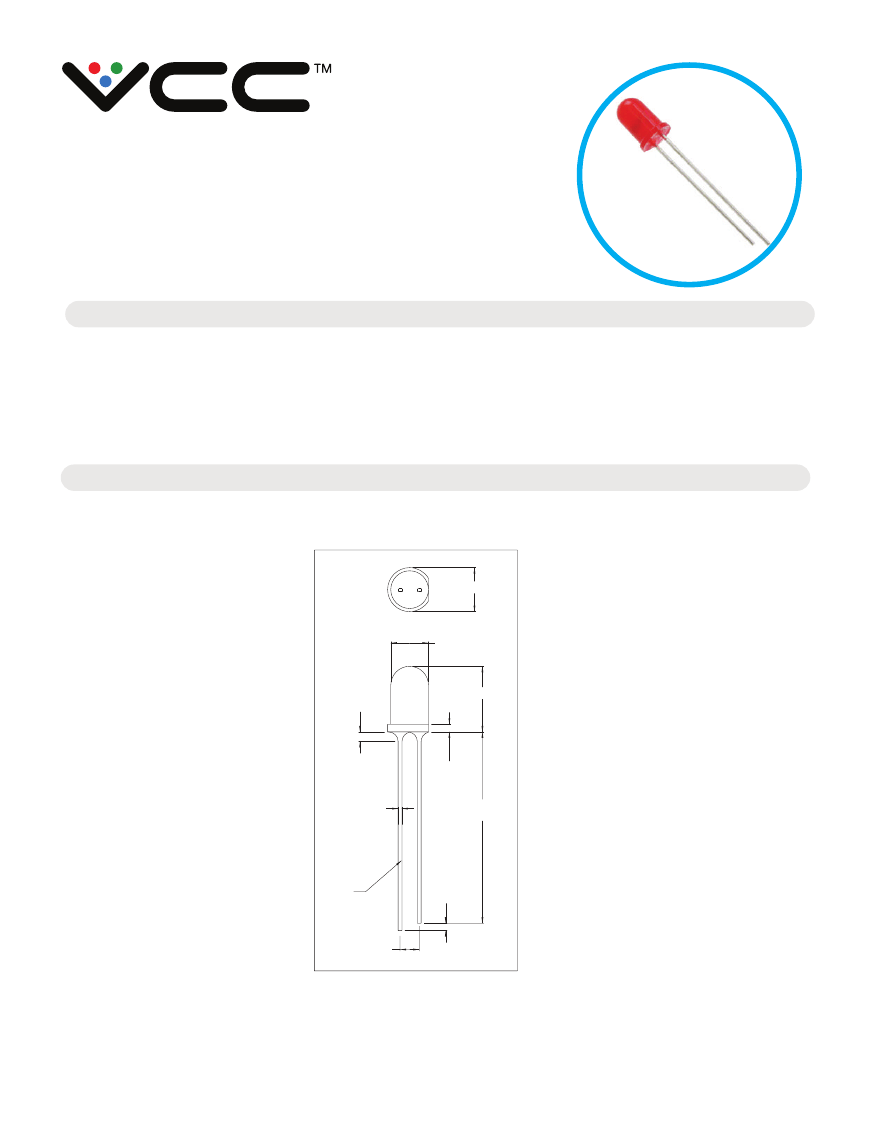

Product Dimensions
All dimensions
in inches.
Ø.224/.248
Ø.189/.205
.039
MAX.
.331/.354
.039
.020
S Q.T Y P .
.945
MIN.
ANODE
.059/.138
MIN.
.098
the first call for illuminated components
www.vcclite.com
1.800.522.5546
03/16 Rev 1
CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.
Product Specifications
P AR T NUMB E R
Output C olor
Di
usion
P ackage C olor
T est C urrent (mA)
F orward Voltage Typ. (V)
Luminous Intensity Min. (mcd)
Luminous Intensity T yp. (mcd)
Luminous Intensity M a x . (mcd)
D o m i n a n t Wavelength (nm)
Viewing Angle 20 1/2 (degrees)
P ower Dissipation (mW)
R everse Voltage (V)
4304H1
R ed
Di used
R ed
10
2.0
3.6
10
-
630
40
60
3
4304H3
Amber
Di used
Amber
10
1.9
3.8
-
9.7
602
60
135
5
4304H5
G reen
Di used
G reen
10
2.1
5.6
16
-
572
40
75
3
4304H7
Y ellow
Di used
Y ellow
10
2.1
5.6
16
-
585
40
60
3

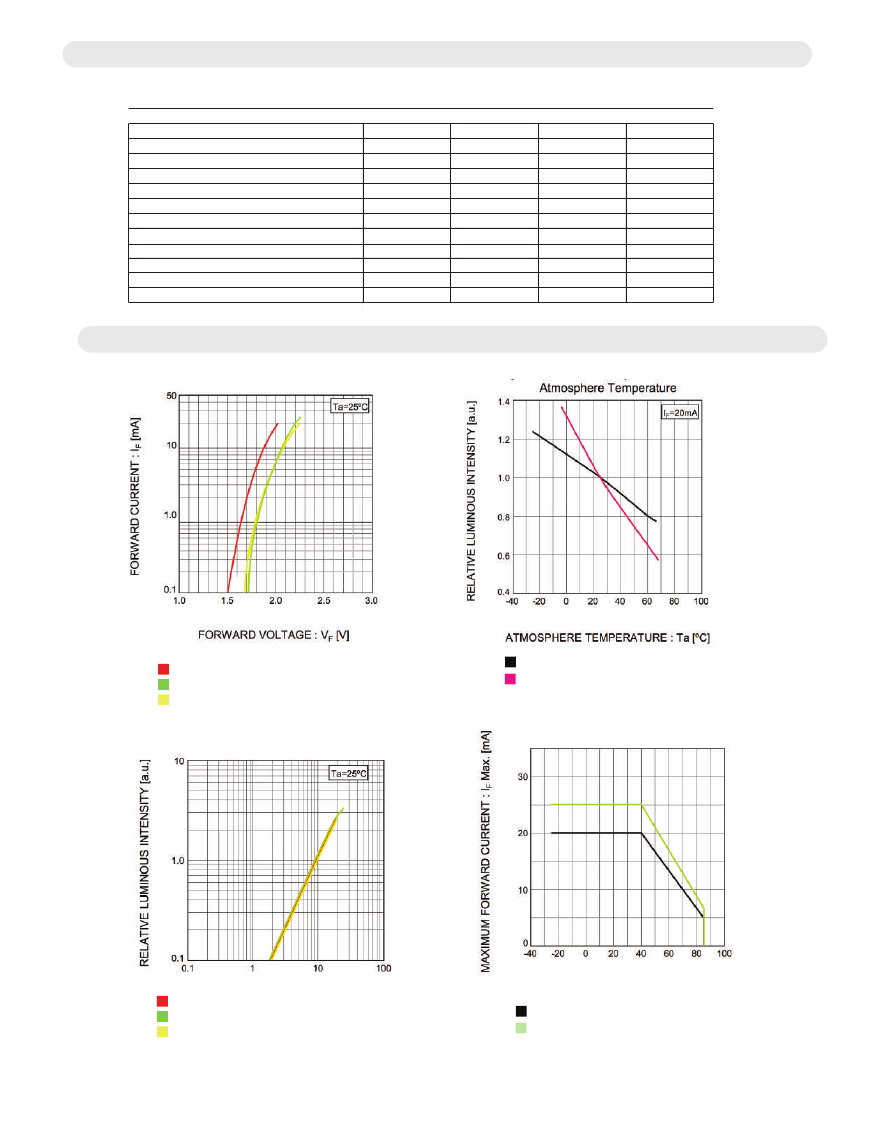

Electrical Characteristics Curves
Forward current vs. forward voltage
Luminous Intensity vs. Atmosphere Temperature
4304H1
4304H5
4304H7
4304H1,4304H5
4304H7
Luminous Intensity vs. Forward Current
Derating
FORWARD CURRENT: I
F
[mA]
4304H1
4304H5
4304H7
AMBIENT TEMPERATURE: Ta [
o
C]
4304H1,4304H7
4304H5
the first call for illuminated components
www.vcclite.com
1.800.522.5546
03/16 Rev 1
CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

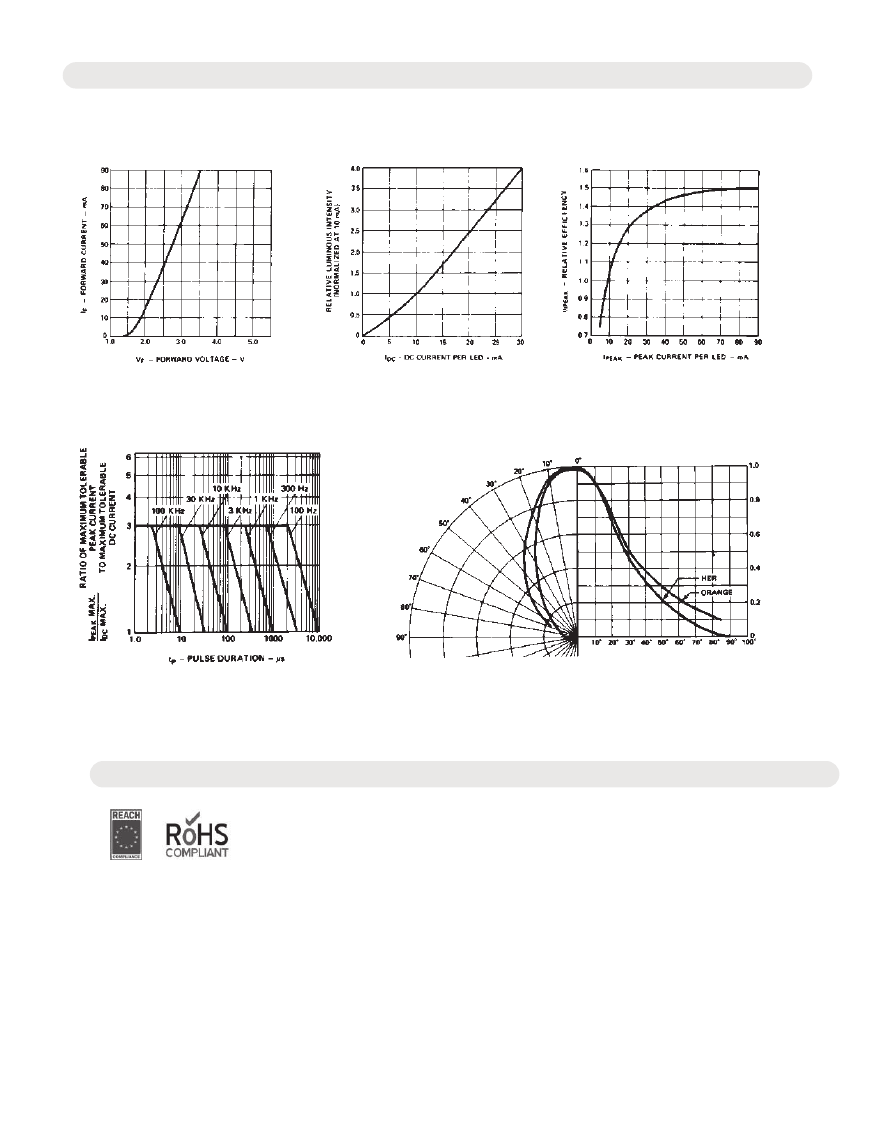

Electrical Characteristics Curves
Color: Amber (4304H3)
Forward current vs. forward voltage
characteristics
Relative luminous intensity vs.
DC forward current
Relative efficiency (luminous intensity per
unit current) vs. peak LED current
Maximum tolerable peak current vs.
pulse duration.(I
DC
MAX as per MAX ratings)
Relative luminous intensity vs. angular displacement
Compliances and Approvals
