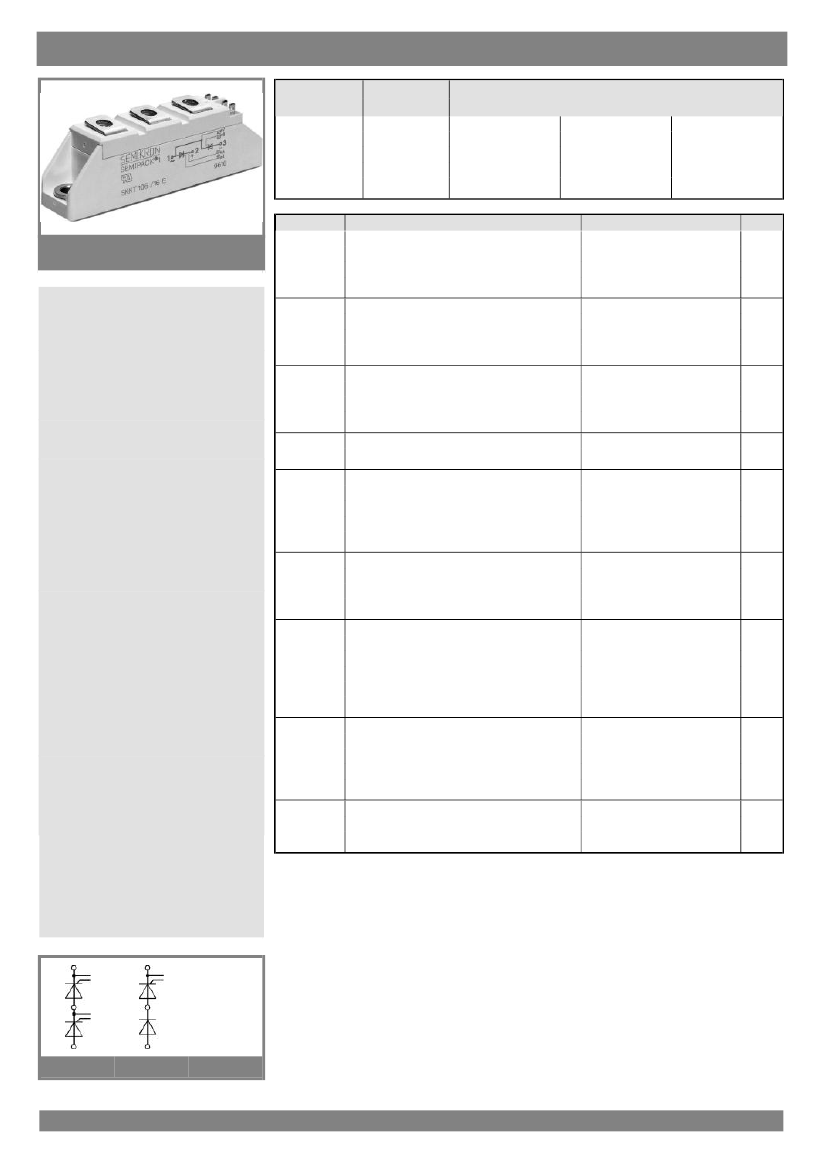

Thyristor / Diode Modules

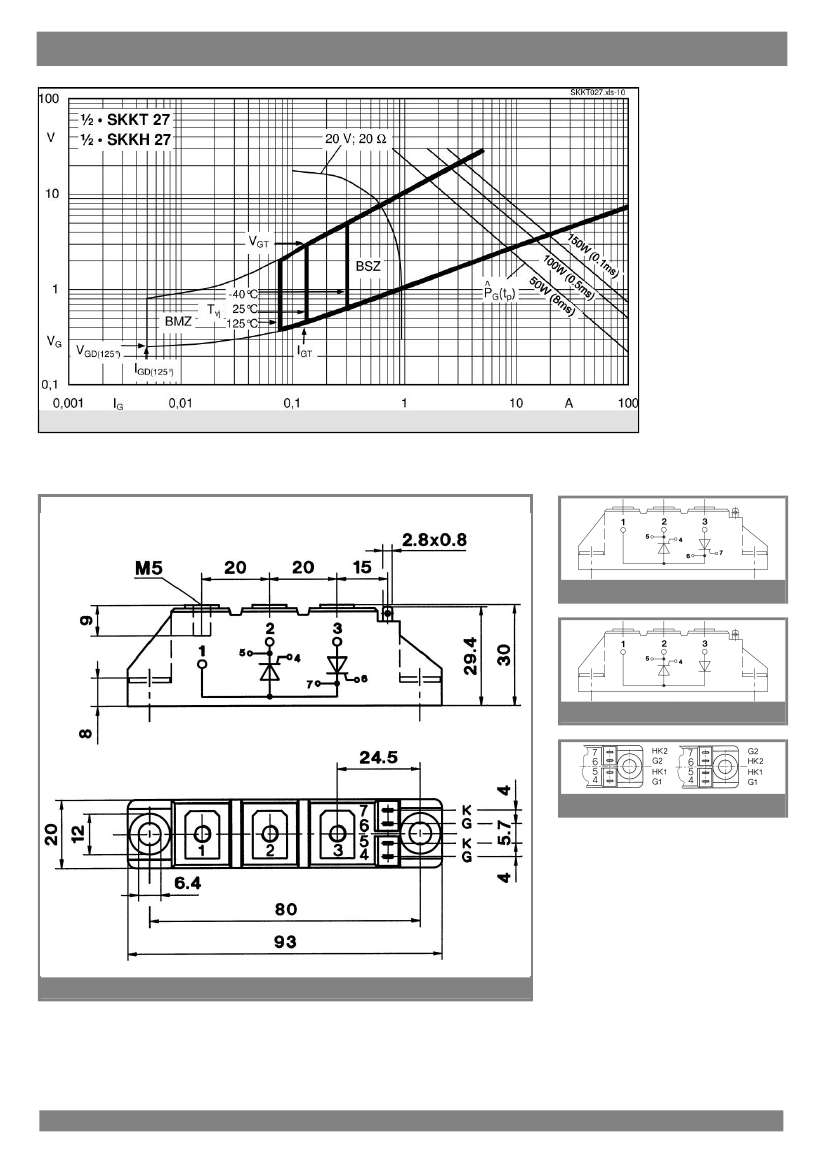

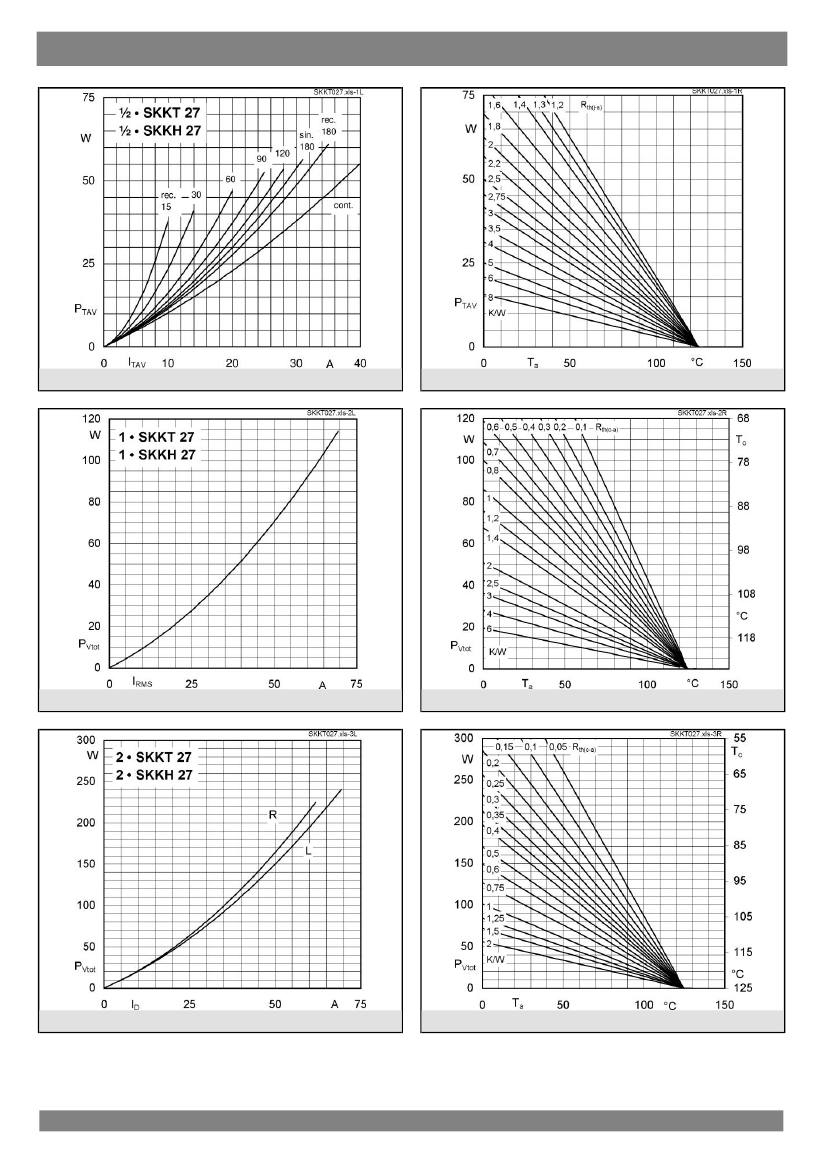

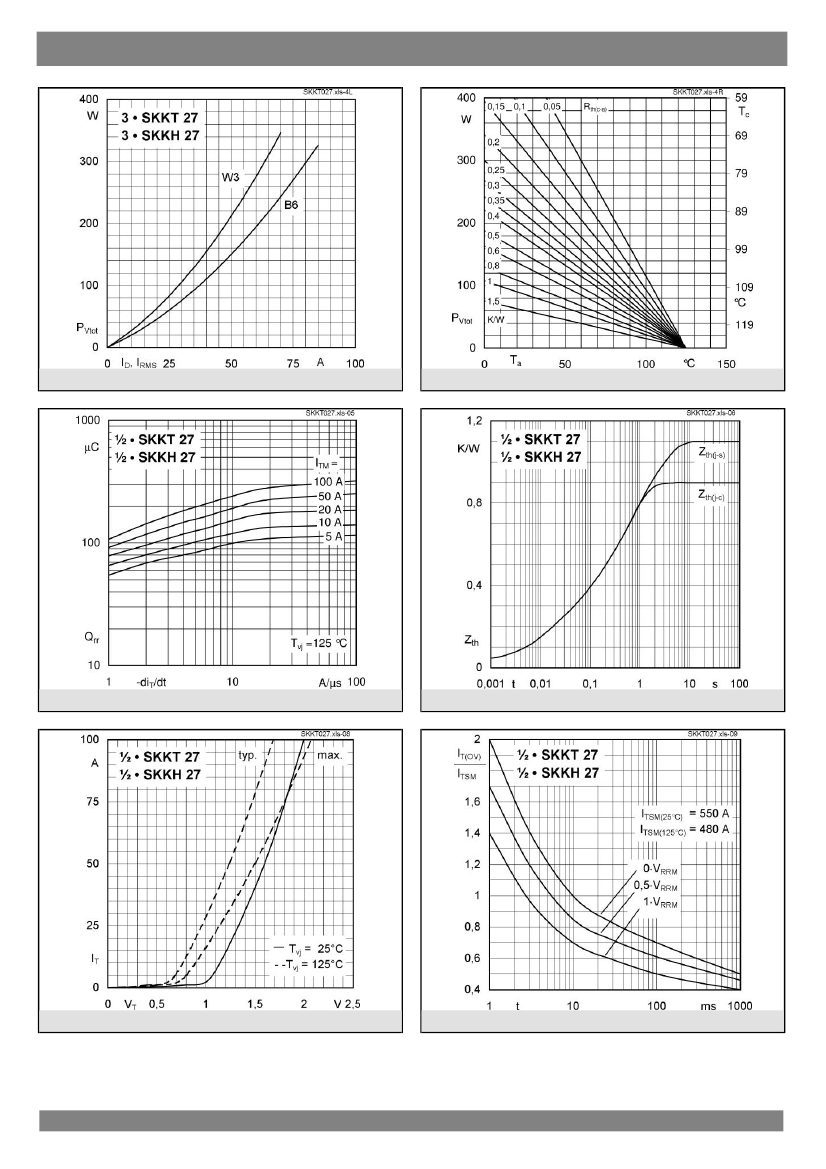

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | TO-240 |
| package instruction | FLANGE MOUNT, R-XUFM-X7 |
| Contacts | 3 |
| Manufacturer packaging code | CASE A 48 |
| Reach Compliance Code | compli |
| Other features | HIGH RELIABILITY, UL RECOGNIZED |
| Shell connection | ISOLATED |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Maximum DC gate trigger current | 150 mA |
| Maximum DC gate trigger voltage | 3 V |
| Quick connection description | 2G-2GR |
| Description of screw terminals | A-K-AK |
| Maximum holding current | 200 mA |
| JESD-30 code | R-XUFM-X7 |
| JESD-609 code | e2 |
| Maximum leakage current | 10 mA |
| On-state non-repetitive peak current | 550 A |
| Number of components | 2 |
| Number of terminals | 7 |
| Maximum on-state current | 25000 A |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 50 A |
| Off-state repetitive peak voltage | 800 V |
| Repeated peak reverse voltage | 800 V |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| Base Number Matches | 1 |
