REV.
DESCRIPTION
DATE
APPROVED
C
D
E
F
Engineering Update w/o Changes
Updated Model
Added Other Available Colors, 2nd Page
Added Notes 4, 5, 6 & Color Options Sheet #2
02/24/04
02/24/09
05/10/11
05/16/16
M. C.
T. Y.
T. Y.
J. C.
1.13 [28.6mm]
0.375 [9.5mm]
0.250 [6.4mm]
0.250 [6.4mm]
SLOT THICKNESS
0.25 [6.4mm]
0.14 [3.6mm]
2.6° MAX.
Ø.093 [Ø2.4mm]
45° x 0.25 [6.4mm]
CHAMFER
0.45 [11.3mm]
0.50 [12.7mm]
0.64 [16.3mm]
0.30 [7.6mm]
MIN.
PART NO.
CP-06 NT
CP-06 WE
CP-06 XX
CP-09 NT
CP-09 WE
CP-09 XX
COLOR
NATURAL
WHITE
SEE S.#2
NATURAL
WHITE
SEE S.#2
ROLL PIN
RP-250
RP-250
RP-250
RP-250
RP-250
RP-250
SLOT THICK.
±.005
0.071
CARD
THICK.
0.24 [6.1mm]
1/16"(1.6mm)
0.25 [6.4mm]
0.093
3/32"(2.4mm)
0.50 [12.7mm]
0.25 [6.4mm]
Ø.109 [Ø2.8mm]
Recommended Application Layout
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
®
5. PRE-ASSEMBLED ROLL PINS AVAILABLE UPON REQUEST.
4. ROLL PINS INCLUDED. PACKAGED SEPARATELY.
3. MATERIAL: NYLON 6/6, 94V-2, WHITE.
2. MATERIAL: NYLON 6/6, 94V-2, NATURAL.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.
DECIMALS
ANGULAR
.X
.XX
.XXX
DESIGNED:
± .1
± .01
± .005
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:

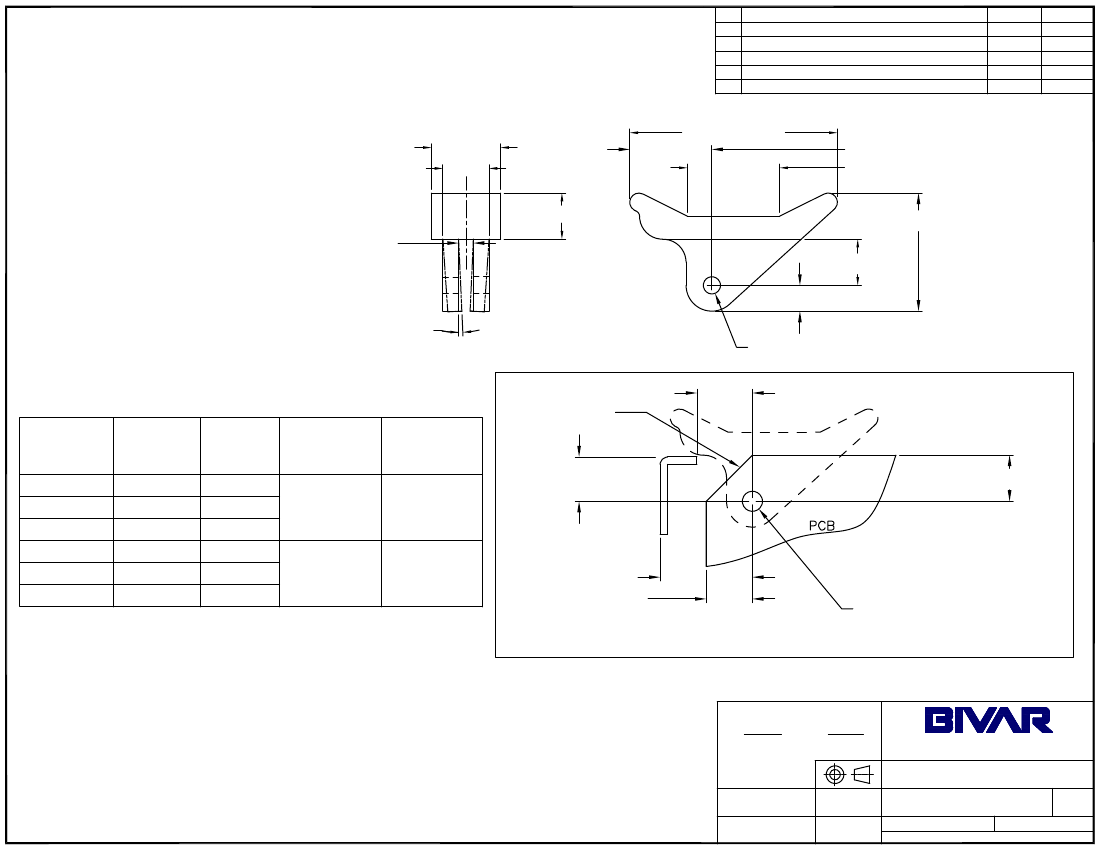

CIRCUIT BOARD CARD EJECTOR
DATE:
PART NO:
REVISION:
S. Irving
CHECKED:
09/15/98
DATE:
CP-0X
F
CAGE CODE : 32559
SHEET #
1
OF
2
M. Chen
09/23/03
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
OTHER AVAILABLE COLORS
* SEE TABLE FOR ORDERING INFORMATION
SEE SHEET #1
CP- 0_
CP SERIES
CP-06
CP-09
ORDER CODE
COLOR
AQUA
AA
BK
BLACK
BLUE
BE
BN
BROWN
FG
FOREST GREEN
GY
GRAY
GN
GREEN
LE
LIME
OE
ORANGE
PK
PINK
RD
RED
VT
VIOLET
YW
YELLOW
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
CIRCUIT BOARD CARD EJECTOR
DESIGNED:
DATE:
PART NO:
REVISION:
S. Irving
09/15/98
DATE:
CP-0X
F
6. PARTS ARE DYED TO COLOR UPON REQUEST.
CHECKED:
CAGE CODE : 32559
SHEET #
2
OF
2
M. Chen
09/23/03
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
