ND06P00682J--

Description
THERM NTC 6.8KOHM 4220K DISC
CategoryThe sensor
File Size217KB,10 Pages
ManufacturerAVX
Download Datasheet Parametric View All

ND06P00682J-- Overview

THERM NTC 6.8KOHM 4220K DISC

ND06P00682J-- Parametric

Parameter NameAttribute value
Ohmic resistance at 25°C6.8k
Resistor tolerance±5%
B value tolerance±2%
B0/50-
B25/50-
B25/75-
B25/854220K
B25/100-
Operating temperature-55°C ~ 150°C
Power - Max710mW
Length - Lead1.38"(35.00mm)
Installation typeThrough hole
Package/casingDisc type, 6.3mm diameter x 4.0mm width

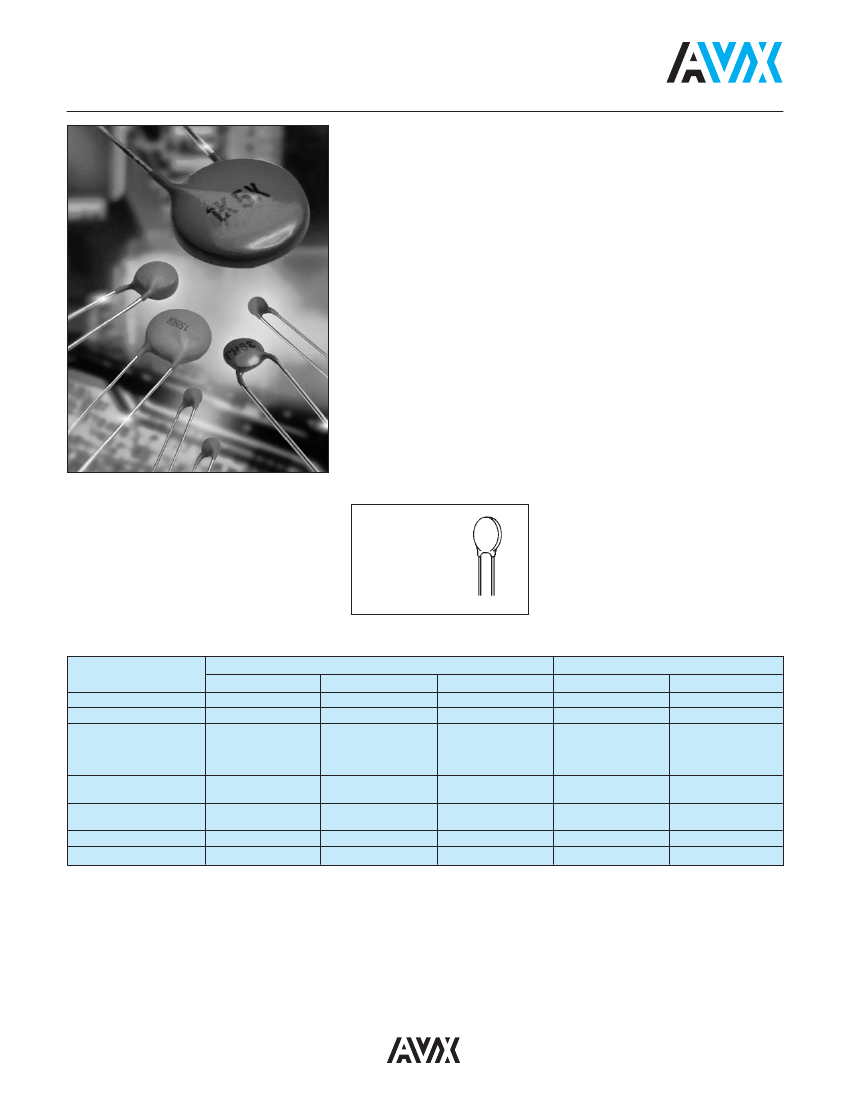

NTC Disc Thermistors
ND 03/06/09 • NE 03/06/09 • NV 06/09
APPLICATIONS
• ND or NE: Commerical, Industrial and Automotive Applications
AEC-Q200 Qualified
NV: Professional Applicationsl
• Alarm and temperature measurement application
• Temperature regulation application
• Level detection application
• Compensation application and more
TECHNOLOGY
• ND: epoxy-phenolic resin coating
NE: epoxy resin coating (recommended for severe
mounting conditions)
NV: epoxy varnish coating
• Leads: Radial copper wire tinned
• Marking: on package only for ND03 & NE03
ND/NE 06/09:Nominal resistance and tolerance for ±5%, ±10%
NV06/09:
Nominal resistance and tolerance
• Delivery Mode: Bulk, reeled or ammopacked
Leaded Discs
N.03
N.06
N.09
PERFORMANCE CHARACTERISTICS
Types
ND03 or NE03
Climatic category
Operating Temperature
Tolerance on Rn
(25°C)
–55 to +150°C
330Ω to 1MΩ : ±
±3*, 5, 10, 20%
1500Ω to 150 kΩ : ±
3%
0.25 W
5 mW/°C
10 s
< 3s
General purpose
ND06 or NE06
–55 to +150°C
±3*, 5, 10, ±20%
Professional
ND09 or NE09
–55 to +150°C
±3*, 5, 10, ±20%
NV06
55/125/56-434
–55 to +150°C
±2, 3, 5, ±10%
NV09
55/125/56-434
–55 to +150°C
±2, 3, 5, ±10%
Maximum dissipation
at 25°C
Thermal dissipation
factor
Thermal time constant
Response time
0.71 W
7.1 mW/°C
22 s
0.9 W
9 mW/°C
30 s
0.69 W
6.9 mW/°C
18 s
0.85 W
8.5 mW/°C
30 s
STANDARDIZATION
NV range : approved by NFC 93271
Type: TN115 A for NV06
TN116 for NV09
List: GAM-T1
List: LNZ
* Optional tolerance, please contact factory
OPTIONS
Consult factory for availability of options:
• other nominal resistance values
• other tolerances
• alternative lead materials or lengths
• controlled dimensions
1
010617
