SKKD380/20H4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SKKD380/20H4

SKKD380/20H4: Description380 A, 2200 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size563KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKD380/20H4 Overview

380 A, 2200 V, SILICON, RECTIFIER DIODE

SKKD380/20H4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	CASE A 78B, SEMIPACK 3, 3 PIN
Contacts	3
Manufacturer packaging code	CASE A 78B
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED, HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-XUFM-X3
JESD-609 code	e2
Maximum non-repetitive peak forward current	10000 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	380 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	2000 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

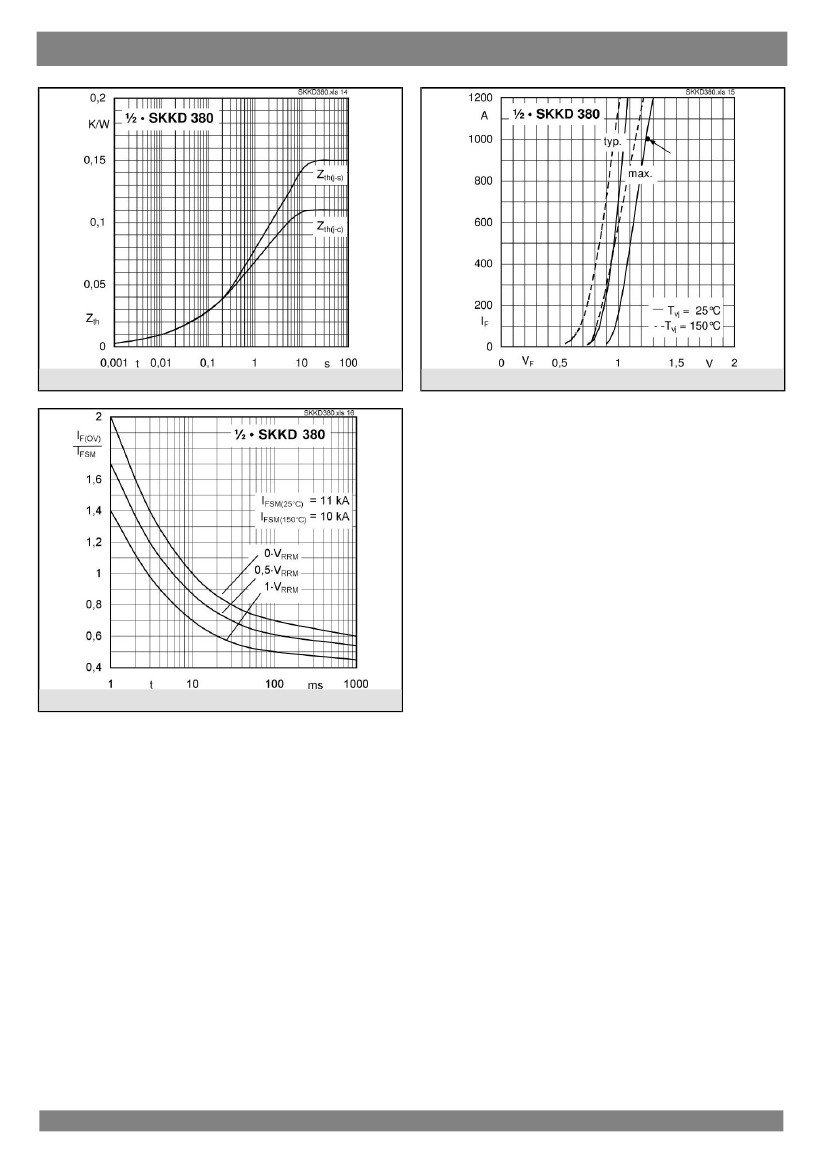

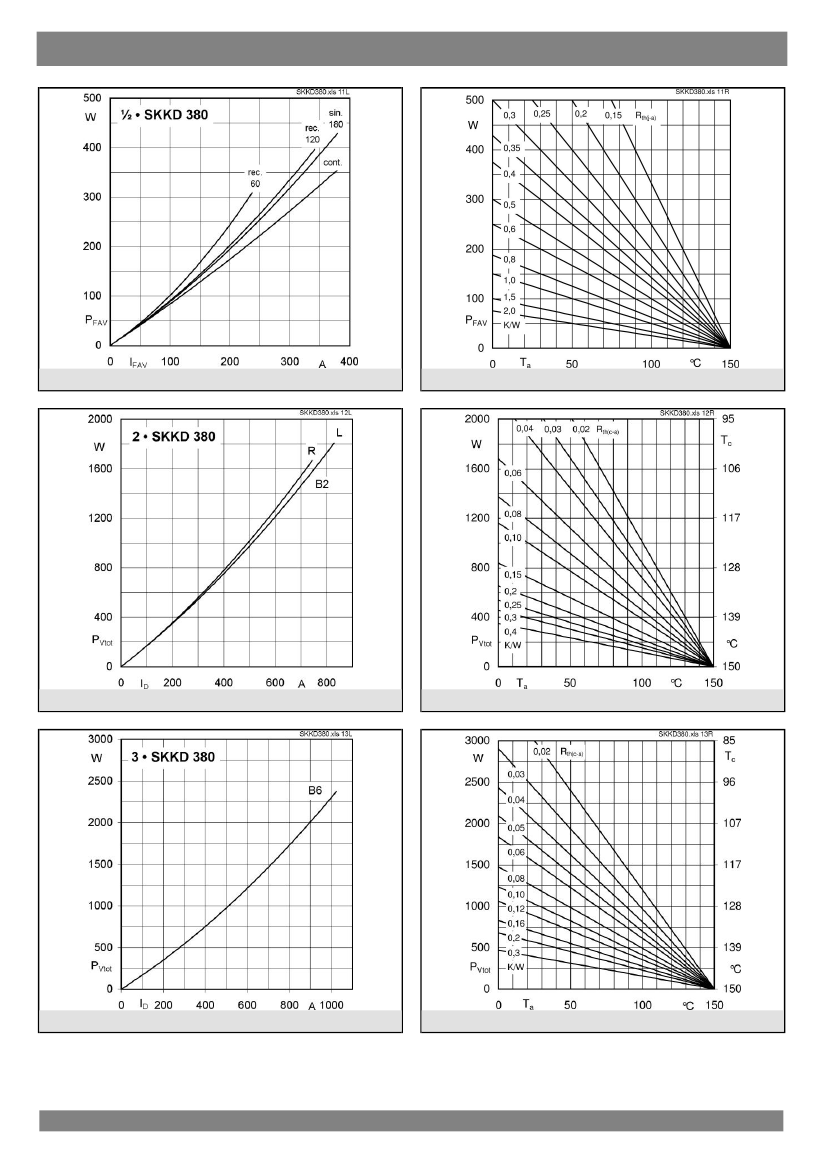

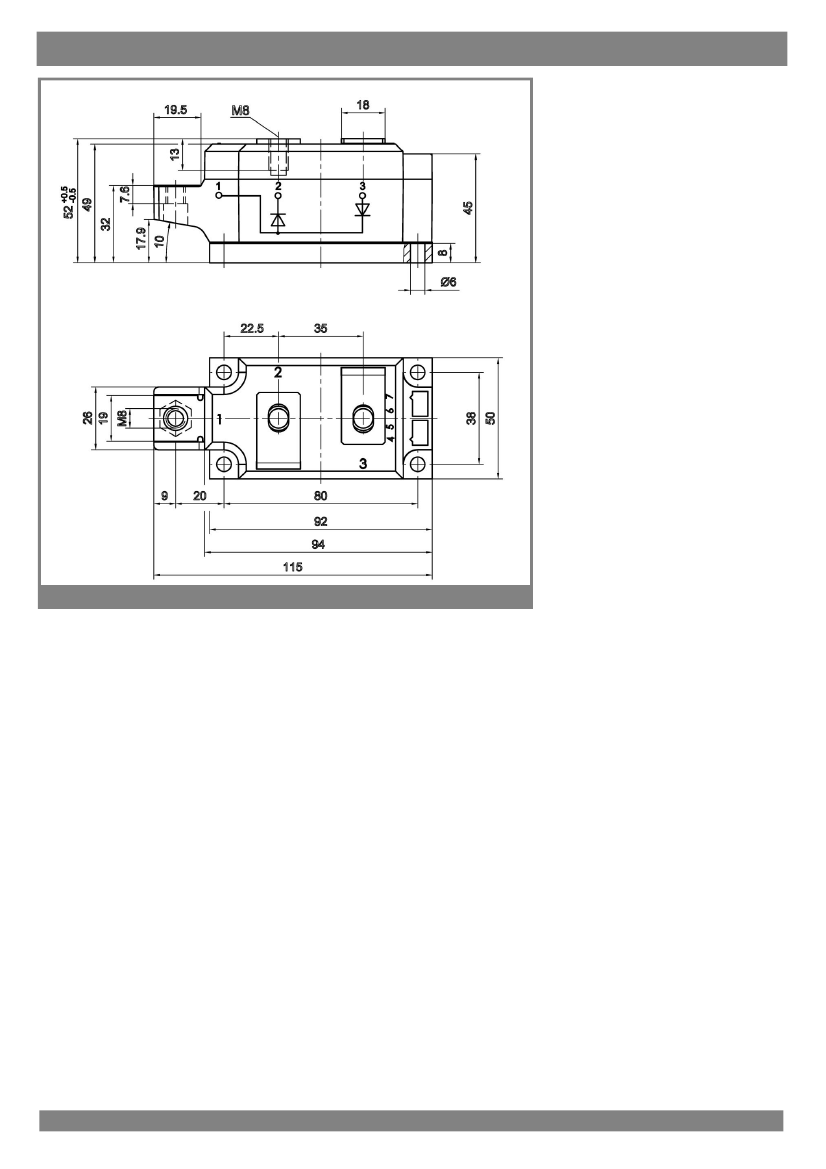

Preview

Download Datasheet

View All

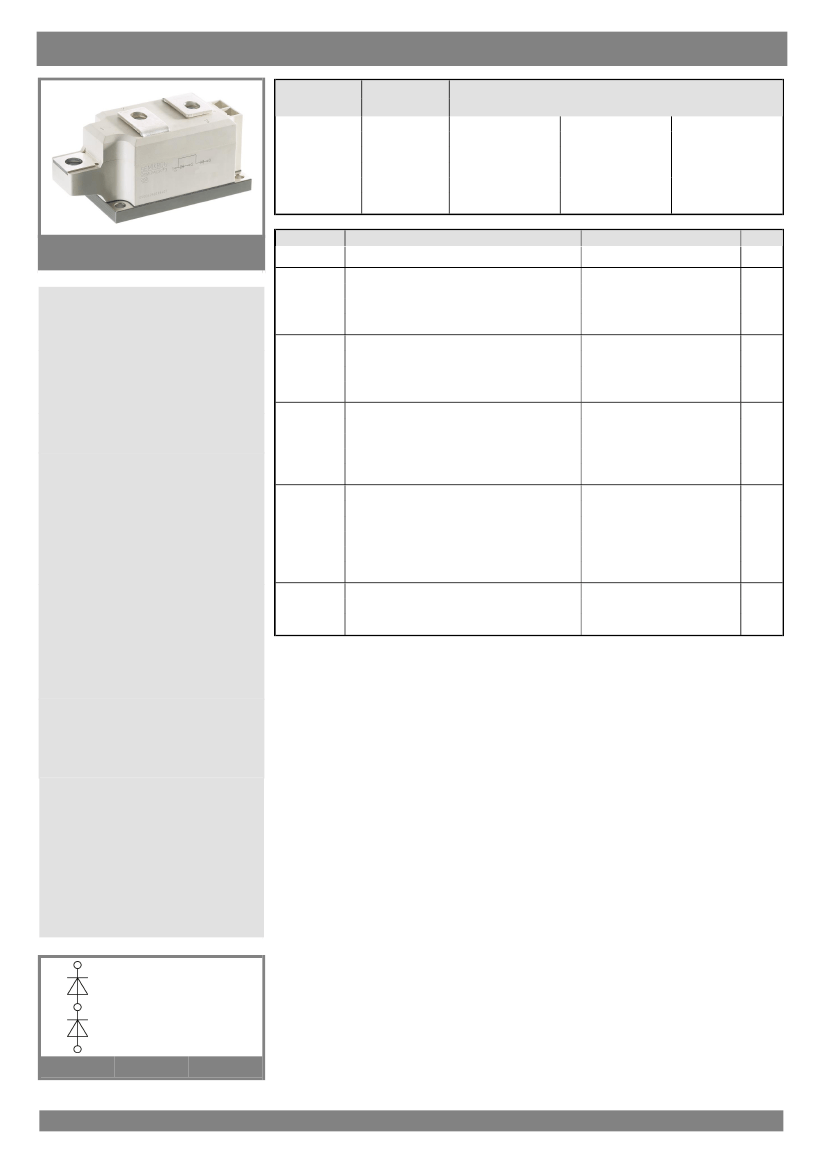

SKKD 380

THYRISTOR BRIDGE,SCR,BRIDGE

SEMIPACK 3

Rectifier Diode Modules

SKKD 380

Symbol

Conditions

Values

Units

Features

Typical Applications

SKKD

05-04-2007 NOS

SKKD380/20H4 Related Products

	SKKD380/20H4	SKKD380/08	SKKD380/12	SKKD380_07	SKKD380/22H4	SKKD380/16	SKKD380/18
Description	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE	380 A, 2200 V, SILICON, RECTIFIER DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	isolation	ISOLATED	ISOLATED	ISOLATED
Diode component materials	SILICON	SILICON	SILICON	silicon	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	rectifier diode	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum non-repetitive peak forward current	10000 A	10000 A	10000 A	10000 A	10000 A	10000 A	10000 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum repetitive peak reverse voltage	2000 V	800 V	1200 V	2200 V	2200 V	1600 V	1800 V
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	CASE A 78B, SEMIPACK 3, 3 PIN	CASE A 78B, SEMIPACK 3, 3 PIN	CASE A 78B, SEMIPACK 3, 3 PIN	-	CASE A 78B, SEMIPACK 3, 3 PIN	CASE A 78B, SEMIPACK 3, 3 PIN	CASE A 78B, SEMIPACK 3, 3 PIN
Contacts	3	3	3	-	3	3	3
Manufacturer packaging code	CASE A 78B	CASE A 78B	CASE A 78B	-	CASE A 78B	CASE A 78B	CASE A 78B
Reach Compliance Code	compli	compliant	compli	-	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Is Samacsys	N	-	N	-	N	N	N
Other features	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	-	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY
Configuration	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	-	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	-	1.25 V	1.25 V	1.25 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	-	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
JESD-609 code	e2	e2	e2	-	e2	e2	e2
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Maximum output current	380 A	380 A	380 A	-	380 A	380 A	380 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	-	1	1	1
