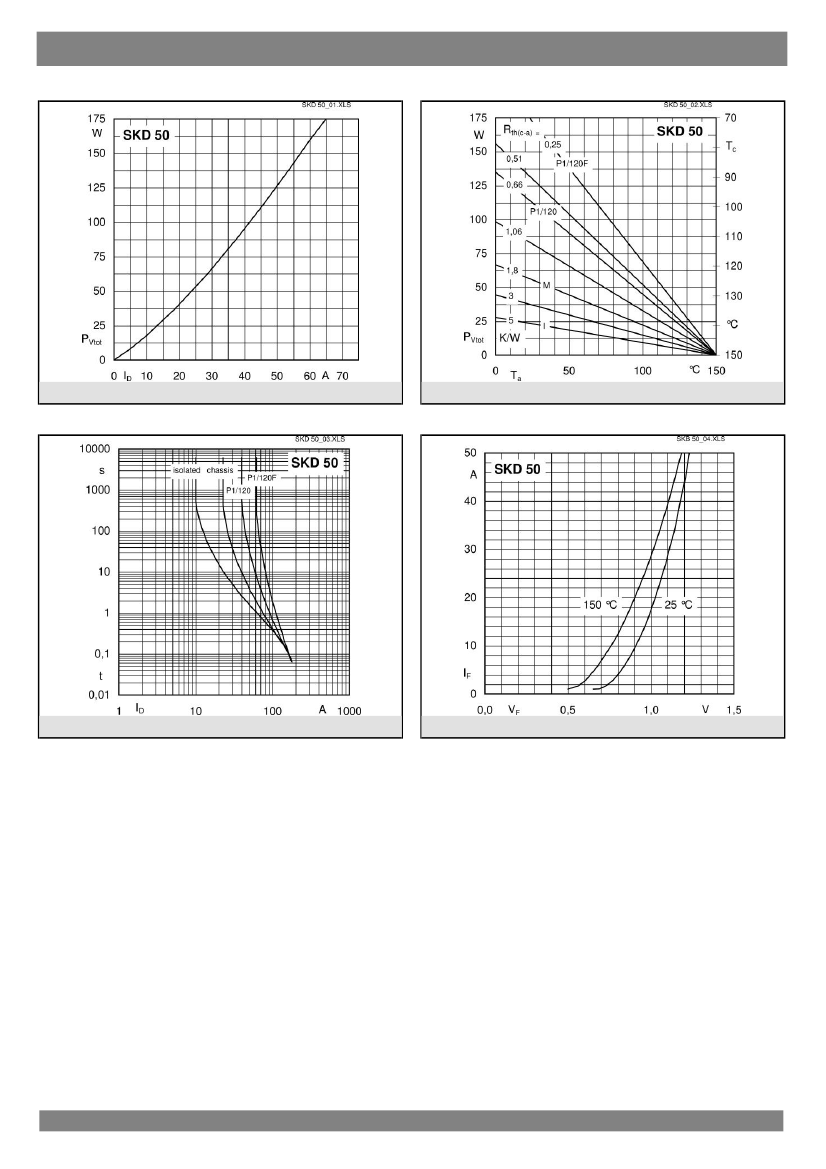

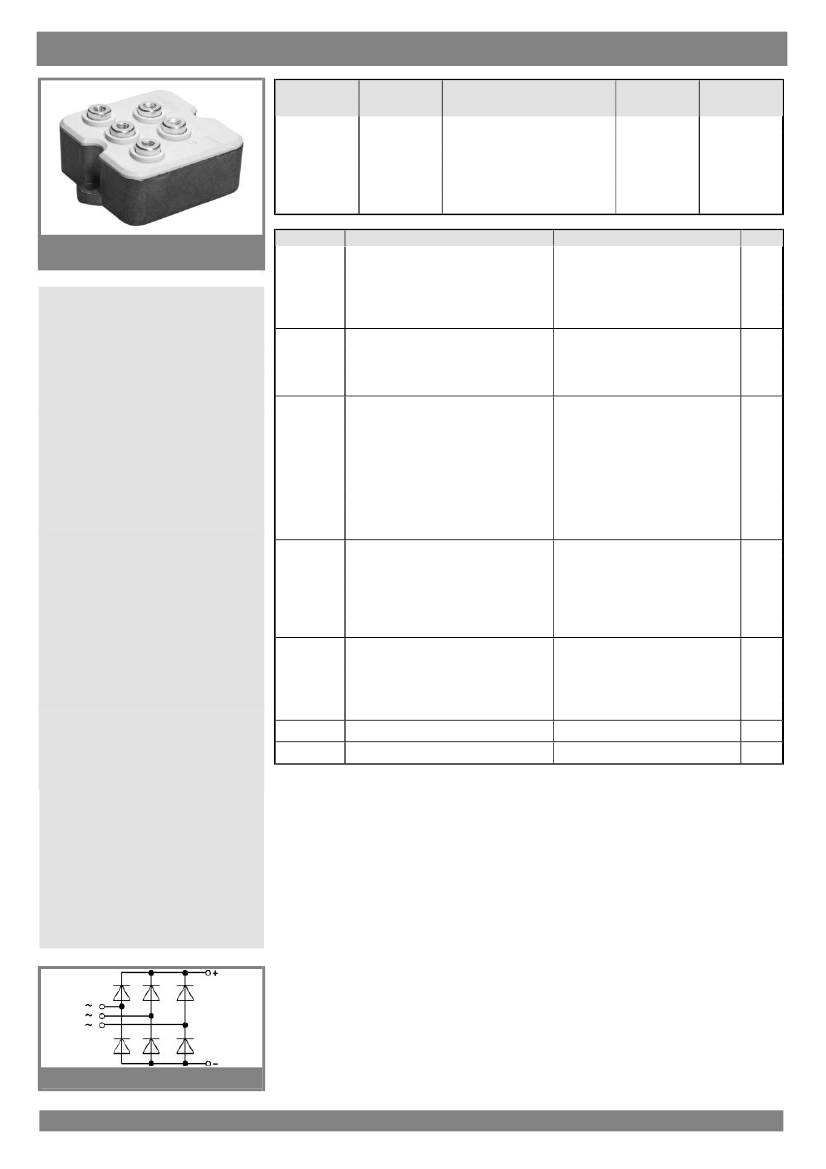

Power Bridge Rectifiers

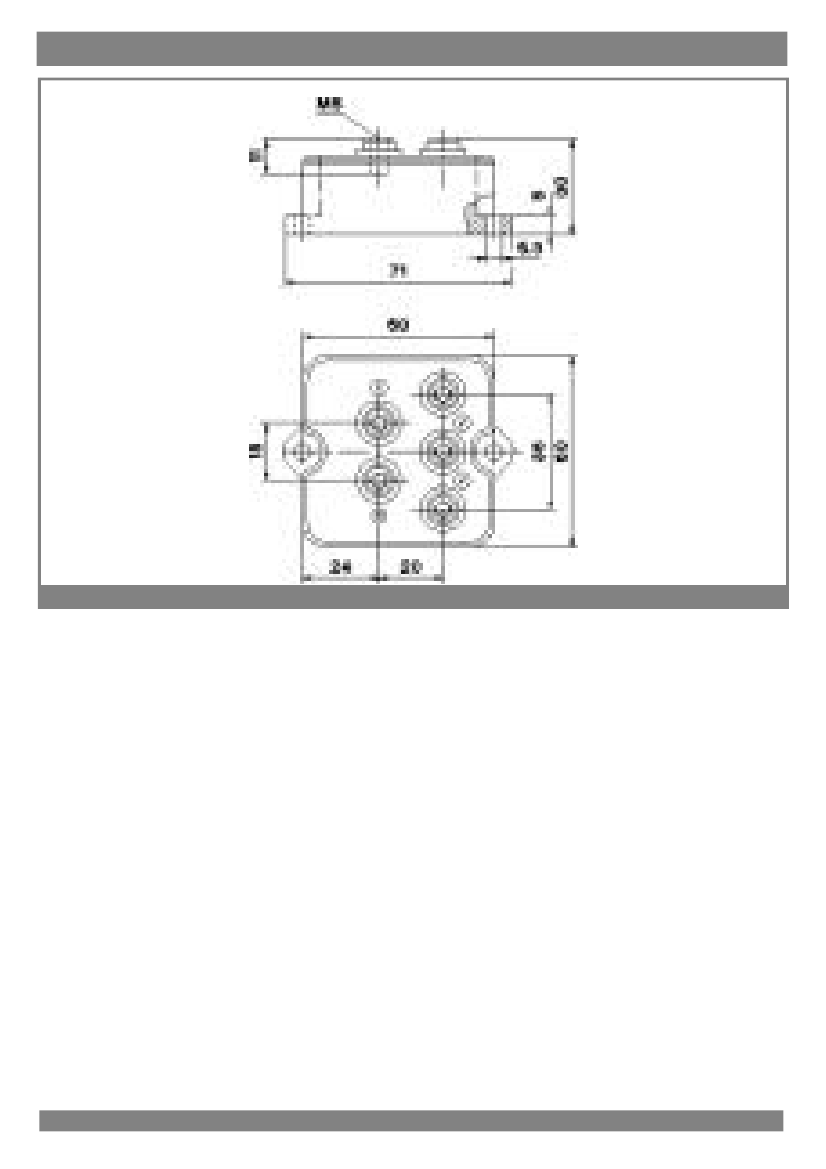

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| package instruction | S-MUFM-X5 |
| Contacts | 5 |
| Manufacturer packaging code | CASE G 15 |
| Reach Compliance Code | unknow |
| Other features | SNUBBER DIODE |
| Shell connection | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.6 V |
| JESD-30 code | S-MUFM-X5 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 600 A |
| Number of components | 6 |
| Phase | 3 |
| Number of terminals | 5 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 10 A |
| Package body material | METAL |
| Package shape | SQUARE |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 1200 V |
| Maximum reverse current | 0.001 µA |
| Maximum reverse recovery time | 10 µs |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SKD50/12A3 | SKD50 | SKD50/02A3 | SKD50/08A3 | SKD50/04A3 | SKD50/16A3 | SKD50/14A3 | |
|---|---|---|---|---|---|---|---|
| Description | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers |
| Is it Rohs certified? | conform to | - | - | conform to | - | conform to | conform to |
| Maker | SEMIKRON | - | - | SEMIKRON | - | SEMIKRON | SEMIKRON |
| package instruction | S-MUFM-X5 | - | - | S-MUFM-X5 | - | S-MUFM-X5 | S-MUFM-X5 |
| Contacts | 5 | - | - | 5 | - | 5 | 5 |
| Manufacturer packaging code | CASE G 15 | - | - | CASE G 15 | - | CASE G 15 | CASE G 15 |
| Reach Compliance Code | unknow | - | - | unknow | - | unknow | unknow |
| Other features | SNUBBER DIODE | - | - | SNUBBER DIODE | - | SNUBBER DIODE | SNUBBER DIODE |
| Shell connection | ISOLATED | - | - | ISOLATED | - | ISOLATED | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS | - | - | BRIDGE, 6 ELEMENTS | - | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON | - | - | SILICON | - | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | - | - | BRIDGE RECTIFIER DIODE | - | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.6 V | - | - | 1.6 V | - | 1.6 V | 1.6 V |
| JESD-30 code | S-MUFM-X5 | - | - | S-MUFM-X5 | - | S-MUFM-X5 | S-MUFM-X5 |
| JESD-609 code | e2 | - | - | e2 | - | e2 | e2 |
| Maximum non-repetitive peak forward current | 600 A | - | - | 600 A | - | 600 A | 600 A |
| Number of components | 6 | - | - | 6 | - | 6 | 6 |
| Phase | 3 | - | - | 3 | - | 3 | 3 |
| Number of terminals | 5 | - | - | 5 | - | 5 | 5 |
| Maximum operating temperature | 150 °C | - | - | 150 °C | - | 150 °C | 150 °C |
| Maximum output current | 10 A | - | - | 10 A | - | 10 A | 10 A |
| Package body material | METAL | - | - | METAL | - | METAL | METAL |
| Package shape | SQUARE | - | - | SQUARE | - | SQUARE | SQUARE |
| Package form | FLANGE MOUNT | - | - | FLANGE MOUNT | - | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | - | Not Qualified | - | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 1200 V | - | - | 800 V | - | 1600 V | 1400 V |
| surface mount | NO | - | - | NO | - | NO | NO |
| Terminal surface | Tin/Silver (Sn/Ag) | - | - | Tin/Silver (Sn/Ag) | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED | - | - | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED |
| Terminal location | UPPER | - | - | UPPER | - | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
