SK35 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SK35

SK35: Description3 A, 50 V, SILICON, RECTIFIER DIODE, DO-214AB; CategoryDiscrete semiconductor diode; File Size141KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SK35 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SK35	-	-	View	Buy Now

SK35 Overview

3 A, 50 V, SILICON, RECTIFIER DIODE, DO-214AB

SK35 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

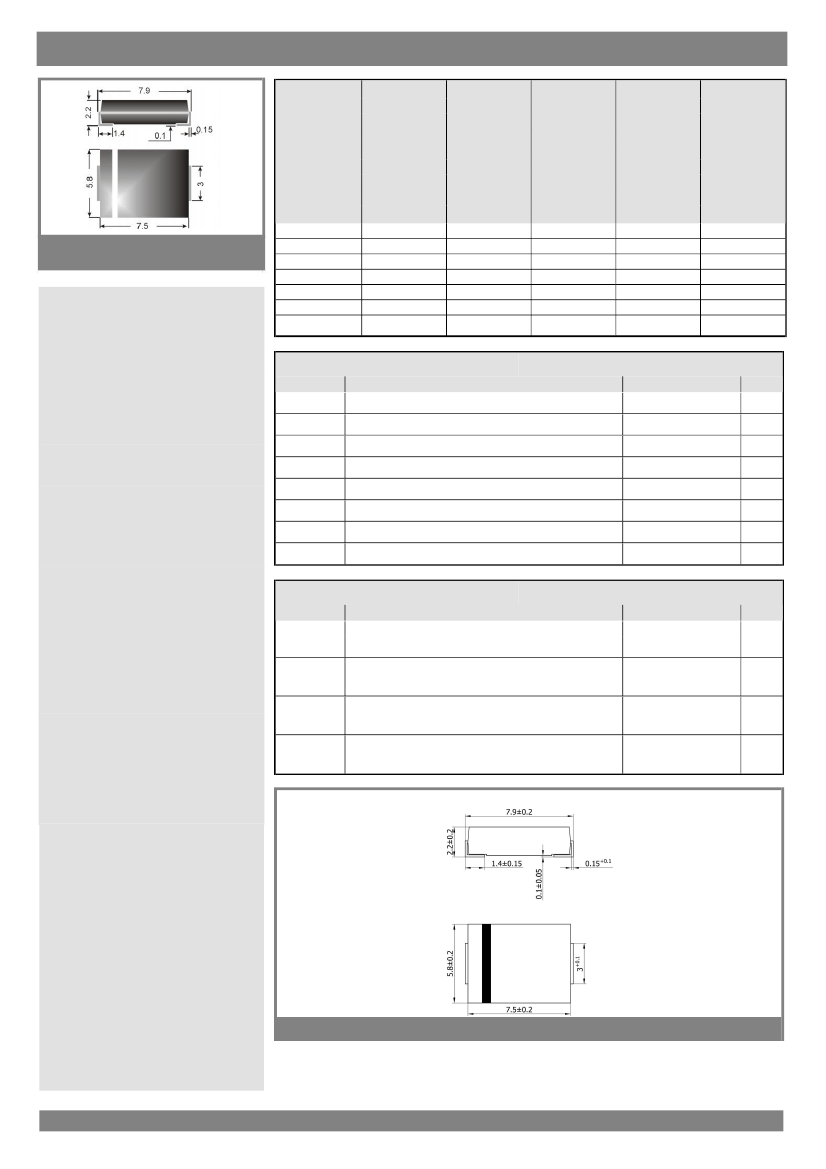

Preview

Download Datasheet

View All

SK 32 ... SK 310

Surface mount diode

Schottky barrier rectifiers

diodes

SK 32...SK 310

Forward Current: 3 A

Reverse Voltage: 20 to 100 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

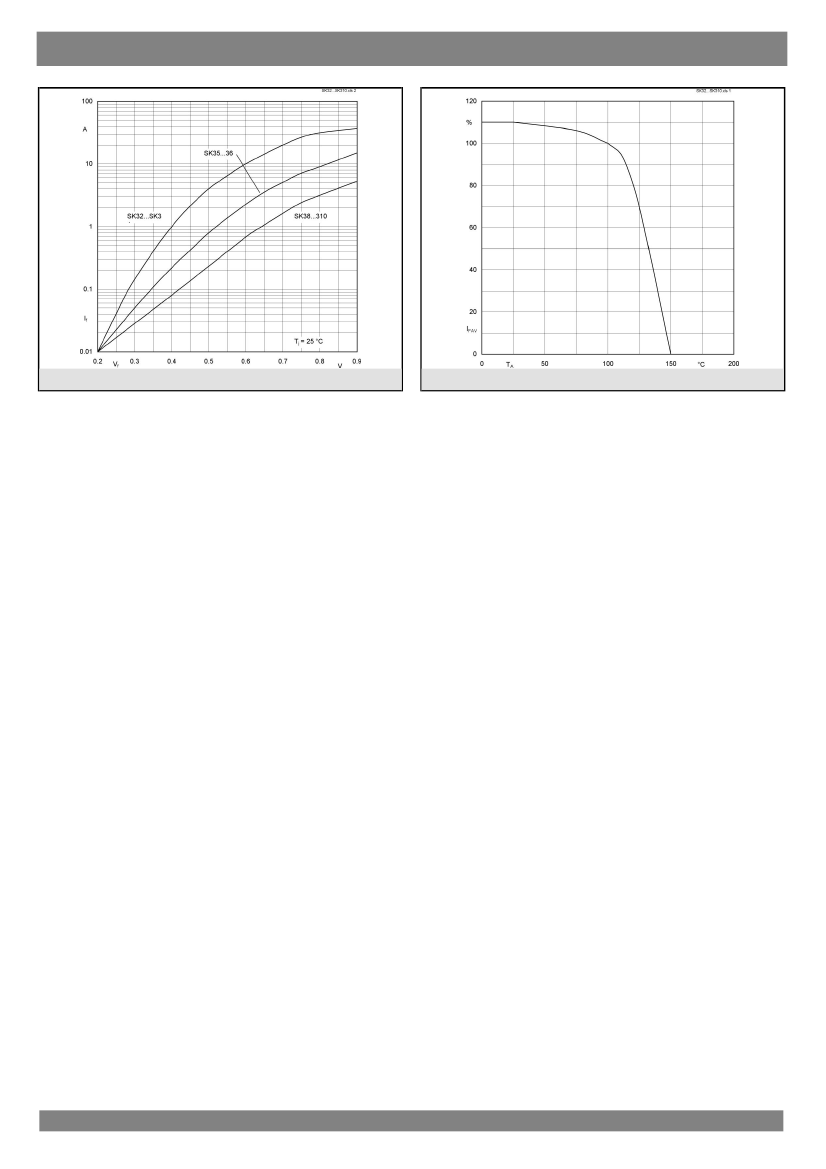

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

08-03-2007 MAM

SK35 Related Products

	SK35	SK32_07	SK38	SK36	SK310
Description	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-214AB	3 A, 80 V, SILICON, RECTIFIER DIODE, DO-214AB	3 A, 80 V, SILICON, RECTIFIER DIODE, DO-214AB	3 A, 60 V, SILICON, RECTIFIER DIODE, DO-214AB	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-214AA
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	DO-214AB	-	DO-214AB	DO-214AB	DO-214AB
package instruction	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	PLASTIC, SMC, 2 PIN
Contacts	2	-	2	2	2
Reach Compliance Code	compli	-	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V	-	-	0.75 V	1.2 V
JEDEC-95 code	DO-214AB	-	DO-214AB	DO-214AB	DO-214AB
JESD-30 code	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e2	-	e2	e2	e2
Maximum non-repetitive peak forward current	100 A	-	100 A	100 A	100 A
Number of components	1	-	1	1	1
Phase	1	-	1	1	1
Number of terminals	2	-	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-	-50 °C	-50 °C	-50 °C
Maximum output current	3 A	-	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	-	80 V	60 V	100 V
surface mount	YES	-	YES	YES	YES
technology	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	C BEND	-	C BEND	C BEND	C BEND
Terminal location	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
