L-59EGW/CA: DescriptionT-1 3/4 DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, 5 mm, ROHS COMPLIANT PACKAGE-3; Categoryphotoelectric; File Size170KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-59EGW/CA Overview

T-1 3/4 DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, 5 mm, ROHS COMPLIANT PACKAGE-3

L-59EGW/CA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-3
Reach Compliance Code	unknown
Is Samacsys	N
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	HIGH EFFICIENCY RED/GREEN
Configuration	COMMON ANODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	627/565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	NOT SPECIFIED
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

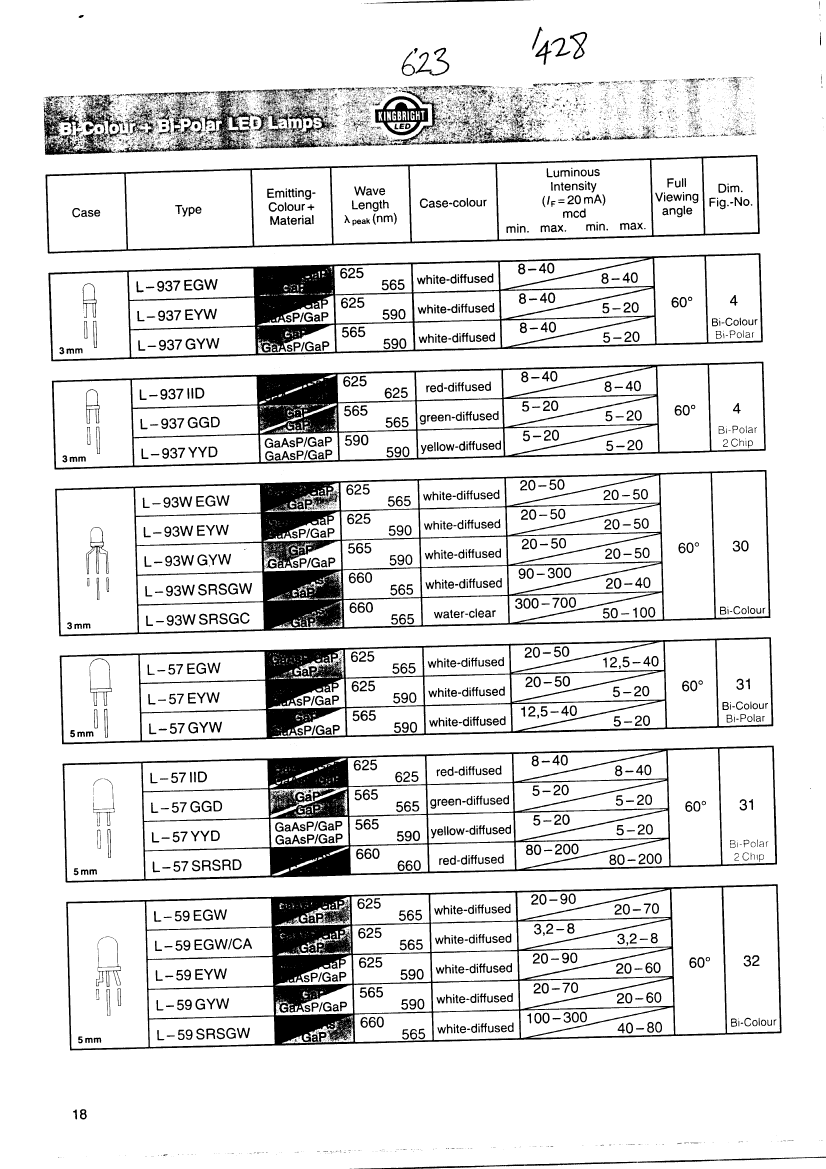

Preview

Download Datasheet

View All

L-59EGW/CA Related Products

	L-59EGW/CA	L-937IID	L-937GYW	L-59GYW	L-937GGD	L-93WSRSGW	L-59SRSGW
Description	T-1 3/4 DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, 5 mm, ROHS COMPLIANT PACKAGE-3	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Dual Color LED, Yellow/green, Diffused White, T-1, 3mm,	Dual Color LED, Yellow/green, Diffused White, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-3	Single Color LED, Green, Diffused Green, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	DUAL COLOR LED, HYPER RED/SUPER GREEN, 2.8mm,	Dual Color LED, Hyper Red/super Green, White Diffused, 5mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compli	compli	compliant	compliant	compliant	compliant
color	HIGH EFFICIENCY RED/GREEN	HIGH EFFICIENCY RED	YELLOW/GREEN	YELLOW/GREEN	GREEN	HYPER RED/SUPER GREEN	HYPER RED/SUPER GREEN
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A
Lens type	DIFFUSED WHITE	DIFFUSED RED	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED GREEN	WHITE DIFFUSED	WHITE DIFFUSED
Nominal luminous intensity	5.0 mcd	20.0 mcd	7.0/16.0 mcd	40.0/50.0 mcd	15.0 mcd	395/30 mcd	200/60 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	3	2	2	3	2	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	DUAL COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	8.6 mm	4.6 mm	4.6 mm	8.6 mm	4.6 mm	4.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	627/565 nm	627 nm	590/565 nm	590/565 nm	565 nm	660/565 nm	660/565 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	3 mm	3 mm	5 mm	3 mm	2.8 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg
Maker	Kingbright	-	-	Kingbright	Kingbright	Kingbright	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-3	ROHS COMPLIANT PACKAGE-2	-	ROHS COMPLIANT PACKAGE-3	ROHS COMPLIANT PACKAGE-2	-	-
Other features	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	-	-
T code	T-1 3/4	T-1	T-1	T-1 3/4	T-1	-	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color@wavelength	-	Orange	Green/Yellow	Green/Yellow	Green	-	-
Maximum forward voltage	-	2.5 V	2.2 V	2.8 V	2.5 V	-	-
minimum luminous intensity	-	60 cd	100 cd	80 cd	60 cd	-	-
