CT2392A-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> CT2392A-9

CT2392A-9: DescriptionINSULATED ALLIGATOR, LARGE - WHI; CategoryTopical application Test and measurement; File Size123KB，1 Pages; ManufacturerCal Test Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

CT2392A-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CT2392A-9	-	-	View	Buy Now

CT2392A-9 Overview

INSULATED ALLIGATOR, LARGE - WHI

CT2392A-9 Parametric

Parameter Name	Attribute value
type	Short alligator clip, large
opening	0.945"（24.00mm）
Voltage - Rated	600V，1000V
Rated current	20A
Material	brass
plating	nickel
Material - Insulation	Polyamide (PA), nylon
insulation	insulation
color	White
length	3.543"（90.00mm）
Termination	Banana style, female socket (jack)
quantity	1 item
grade	CAT III 1000V，CAT IV 600V

Preview

Download Datasheet

View All

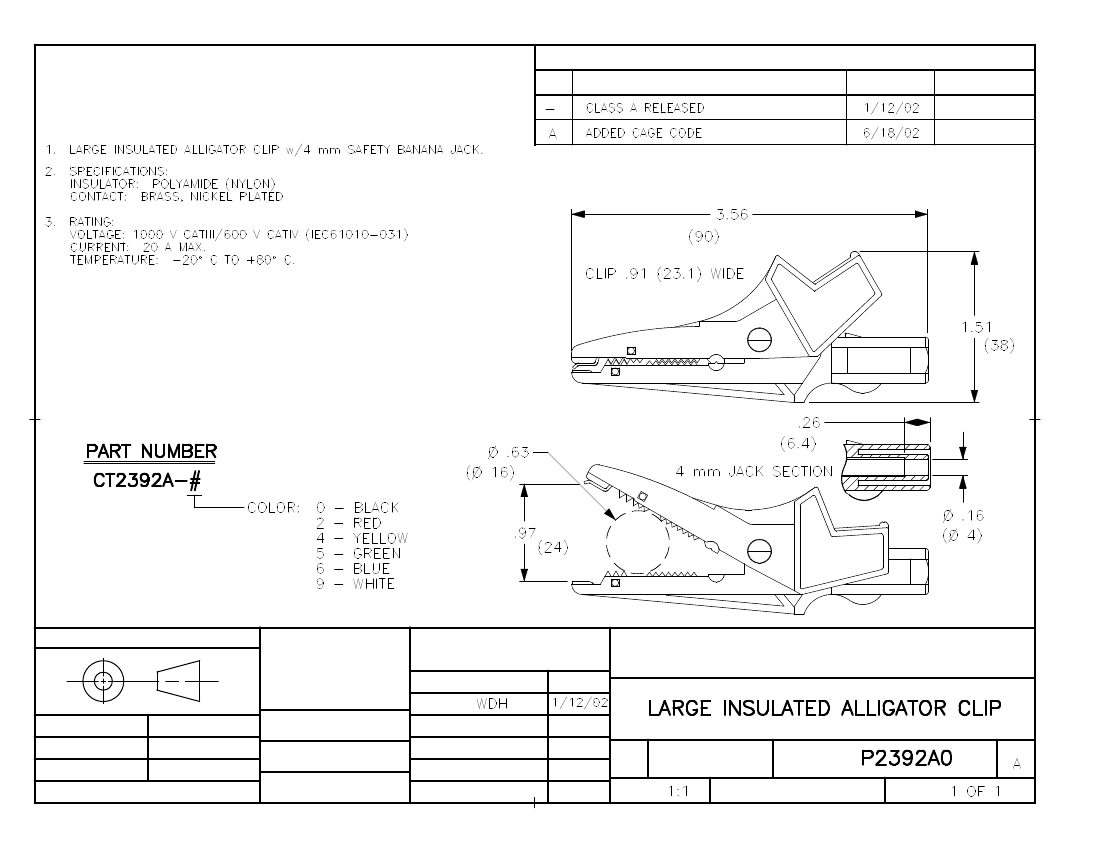

THIS IS ISSUED IN STRICT CONFIDENCE THAT

IT IS NOT USED AS A BASIS FOR

MANUFACTURE OR SALE AND THAT IT IS NOT

COPIED, REPRINTED OR DISCLOSED TO A

THIRD PARTY EITHER WHOLLY OR IN PART

WITHOUT THE PRIOR WRITTEN CONSENT OF

CAL TEST ELECTRONICS, INC.

REVISIONS

REV.

DESCRIPTIONS

DATE

APPROVED

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS

DECIMALS

± 1/32

.XX ± .02

.XXX ±.005

DO NOT SCALE DRAWING

MATERIAL

CONTRACT NO.

Cal Test Electronics

DATE

TITLE

22820 Savi Ranch Parkway

Yorba Linda, CA 92887- 4610

APPROVALS

DRAWN

CHECKED

ENGR.

DESIGN ACTIVITY

FINISH

NEXT ASSY

APPLICATION

USED ON

SIZE

CAGE CODE

43F45

DWG. NO.

REV.

SCALE

SHEET

CT2392A-9 Related Products

	CT2392A-9	CT2392A-5	CT2392A-0	CT2392A-2	CT2392A-6	CT2392A-4
Description	INSULATED ALLIGATOR, LARGE - WHI	INSULATED ALLIGATOR, LARGE - GRE	INSULATED ALLIGATOR, LARGE - BLA	INSULATED ALLIGATOR, LARGE - RED	INSULATED ALLIGATOR, LARGE - BLU	INSULATED ALLIGATOR, LARGE - YEL
type	Short alligator clip, large	Short alligator clip, large	Short alligator clip, large	Short alligator clip, large	Short alligator clip, large	Short alligator clip, large
opening	0.945"（24.00mm）	0.945"（24.00mm）	0.945"（24.00mm）	0.945"（24.00mm）	0.945"（24.00mm）	0.945"（24.00mm）
Voltage - Rated	600V，1000V	600V，1000V	600V，1000V	600V，1000V	600V，1000V	600V，1000V
Rated current	20A	20A	20A	20A	20A	20A
Material	brass	brass	brass	brass	brass	brass
plating	nickel	nickel	nickel	nickel	nickel	nickel
Material - Insulation	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
insulation	insulation	insulation	insulation	insulation	insulation	insulation
color	White	green	black	red	blue	yellow
length	3.543"（90.00mm）	3.543"（90.00mm）	3.543"（90.00mm）	3.543"（90.00mm）	3.543"（90.00mm）	3.543"（90.00mm）
Termination	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)
quantity	1 item	1 item	1 item	1 item	1 item	1 item
grade	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V
