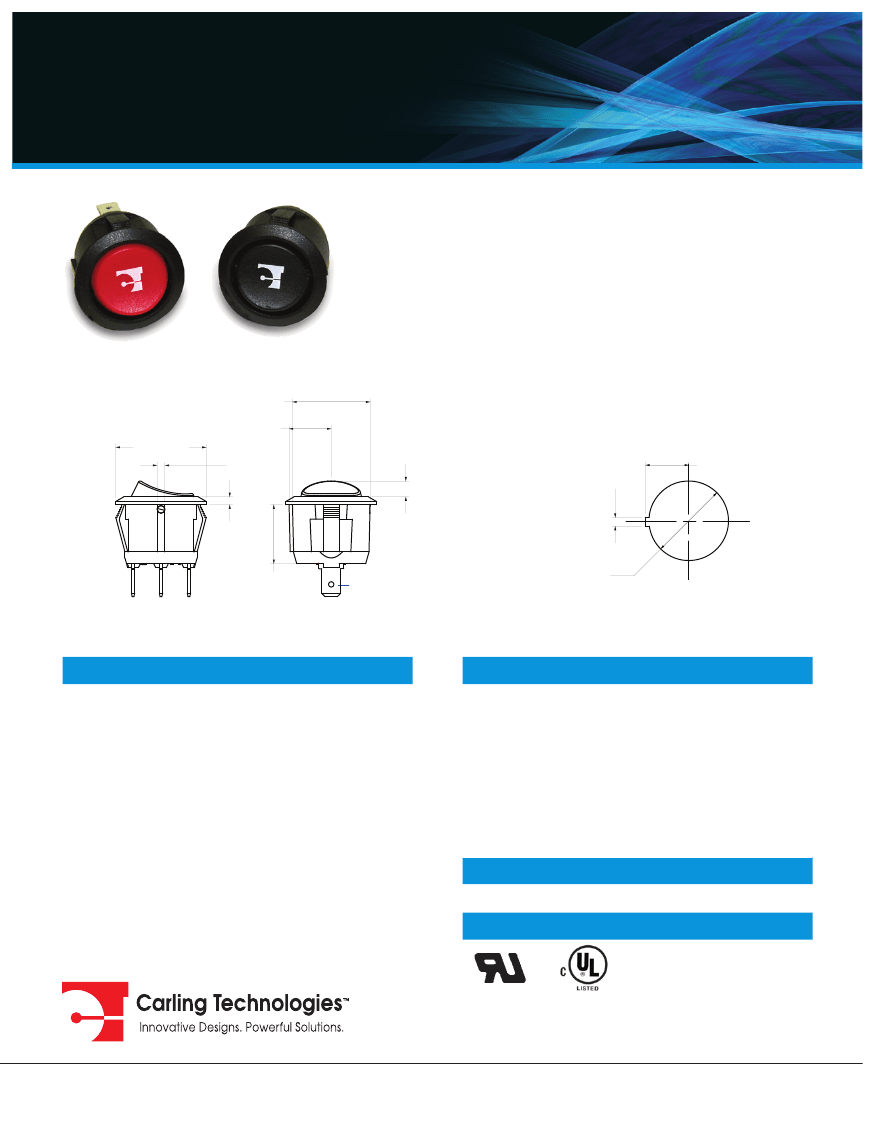

RR & LRR-Series
Round Rocker Switches
The RR and LRR-Series round rocker switches feature a unique sculpted
rocker and spherical envelope designed to easily integrate with most any
curved or circular panel.The RR-Series is available with custom imprinting,
and the lighted LRR-Series is available with dependent or independent,
neon or incandescent illumination, with red, green, amber or white translu-
cent rockers. Installation is a snap, as this switch fits industry standard
cutouts. These switches are ideal for many applications including Appliance,
Vacuum cleaners, Office Automation, Food Service, Audio Visual, and Test
and Measurement.
Dimensional Specifications in. [mm.]:
.780[19.8]
DIA
.421[10.7]
.906[23.0]
DIA
.079[2.0]
.087[11.0]
.433[11.0]
.079[2.0]
.158[4.0]
RECOMMENDED
PANEL
OPENING
.795[20.2]
PANELTHICKNESS:
.118[3.0] MAX.
.591[15.0]
General Specifications:
Electrical
.187[4.74] X
.032[.812]
.187 TAB (Q.C)
Contact Rating . . . . . . Up to 12A 125VAC,
10A 250VAC 1/4HP
Dielectric Strength . . . . 1500V live to dead metal parts
& opposite polarity
Life . . . . . . . . . . . . . . . 50,000 cycles
Contacts . . . . . . . . . . . .Butt action contact mechanism
Terminals . . . . . . . . . . . .187 Tab, copper alloy, silver
plated
Circuits . . . . . . . . . . . . .Single pole maintained and
momentary
Contact material . . . . . .AgNi 90/10
Initial Contact
Resistance . . . . . . . . . . . Less than .003 ohms
Insulation Resistance . . Greater than 2 megaohms
Operating Temperature. 0 - 85°C
Base . . . . . . . . . . . . . . Nylon 6/6
Actuator. . . . . . . . . . . . Nylon 6/6
Lighted Actuator. . . . . . Polycarbonate
Actuation Force . . . . . . 500 - 700 grams
Weight . . . . . . . . . . . . . 5 grams ± .5 grams
Lighting. . . . . . . . . . . . . Neon Lamp: 125, 250 VAC
Incandescent Lamp:
6, 12, 24 V
Mounting Hole . . . . . . . Industry standard,
20.2 mm diameter
Endurance . . . . . . . . . . . .
100,000 cycles
Physical
Mechanical
Agency Certifications
Carling Technologies, Inc., Product Bulletin #116RN • 860-793-9281 • sales@carlingtech.com •
www.carlingtech.com
RR & LRR-Series Round Rocker Switch Catalog Ordering Scheme
RR
1
Series
2
Circuit
1
3
Rating
1
4
Termination
2 - B
5
Actuator Color
6
Base Color
B - N
Black
White
1 SERIES
1 SERIES
2
2 CIRCUIT
SINGLE POLE MINIATURE ROUND ROCKER
RR
Solid Rocker
LRR
Lighted Rocker
RR-Series (Non-Illuminated)
1
ON-NONE-OFF
2
(ON)-NONE-OFF
3
ON-NONE-(OFF)
4
ON-NONE-ON
5
ON-NONE-(ON)
6
ON-OFF-ON
LRR-Series (Illuminated)
B
ON-NONE-OFF
1
3
4
5
2
10A, 125-250VAC; 12A, 125 VAC
1/4 HP 125-250VAC
6A, 24V
12A, 12V
12A, 6V
.187 Tab
6 BASE COLOR
6 BASE COLOR
B
W
N
A
B
C
J
K
7
Lamp Voltage
8
Legend
N
7 LAMP VOLTAGE
7 LAMP VOLTAGE
8 ROCKER FACE LEGEND
8 ROCKER FACE LEGEND
N
A
B
D
E
F
G
H
J
K
None (RR-Series - Non-Illuminated)
6V Incandescent
12V Incandescent
24V Incandescent
125V Neon
250V Neon
No imprinting
ON-OFF (vertical)
ON-OFF (horizontal)
I-O (horizontal)
I-O (vertical)
O (on rocker end)
II-O-I (vertical)
II-O-I (horizontal)
OFF-ON (vertical)
OFF-ON (horizontal)
3 RATING
3 RATING
4 TERMINATION
4 TERMINATION
5 ACTUATOR COLOR
5 ACTUATOR COLOR
NOTES
1 For additional rating requirements, consult factory.
2 Custom colors are available, consult factory.
RR-Series (Non-Illuminated) Solid Color
B
Black
W
White
R
Red
LRR-Series (Illuminated) Transparent Color
1
Amber
2
Red
Blue
3
4
Green
5
Clear
Warranty Policy
Carling Technologies, Inc. (Seller) warrants that goods sold hereunder shall be free of defects in material
and workmanship for one year from date of shipment.
In the event of such defects, the Sellerʼs only obligation shall be the replacement or the cost of the defec-
tion with the replacement or reinstallation of the goods. This warranty is the Sellerʼs sole obligation and
fitness for a particular purpose, whether or not purposes or specifications are described herein. This
tive goods, themselves, excluding, without limitation, labor costs, which are or may be required in connec-
excludes all other remedies or warranties, express or implied, including warranties of merchantability and
Warranty expressly excludes any and all incidental, special and/or consequential damages of any nature.
Seller further disclaims any responsibility for injury to person or damage to or loss of property or value
caused by any product which has been subjected to misuse, negligence, or accident; or misapplied, or
installed.
modified or repaired by a person or persons not authorized by the Seller or which have been improperly
Carling Technologies, Inc., Product Bulletin #116RN • 860-793-9281 • sales@carlingtech.com •
www.carlingtech.com
