Miniature FM Transmitter

200mW, 2.2-2.3 GHz

Features

•

FM transmitter with PLL, VCO and PA devices

J/F-12 certified

+3.0VDC to +3.3VDC Supply Voltage

Parallel hard-wired frequency selection

Choice of all IRIG frequency channels in S

LOWER

band

High Saturated Output Power: 23 dBm min.

Ω

Output Matched

IRIG 106-01 compliant

Up to 12Mbps operation

High shock compatible

10 k ohm modulation input impedance

MA05935-XXX

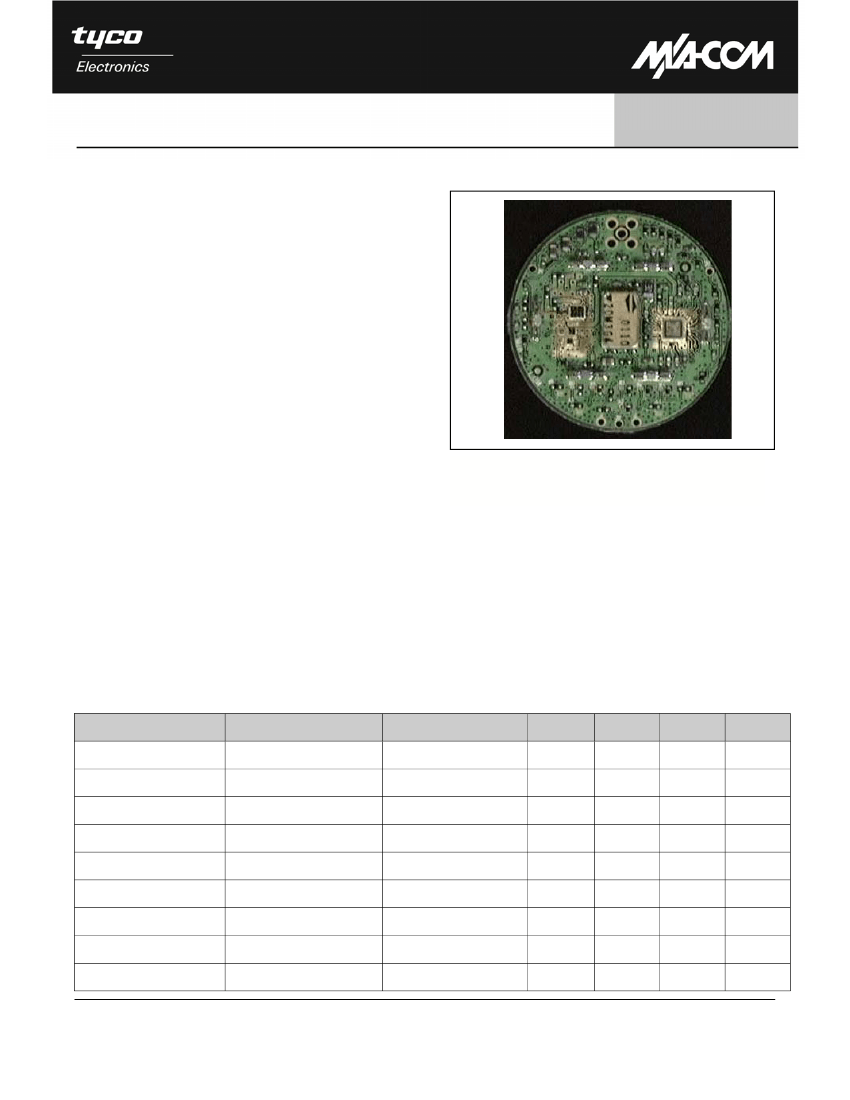

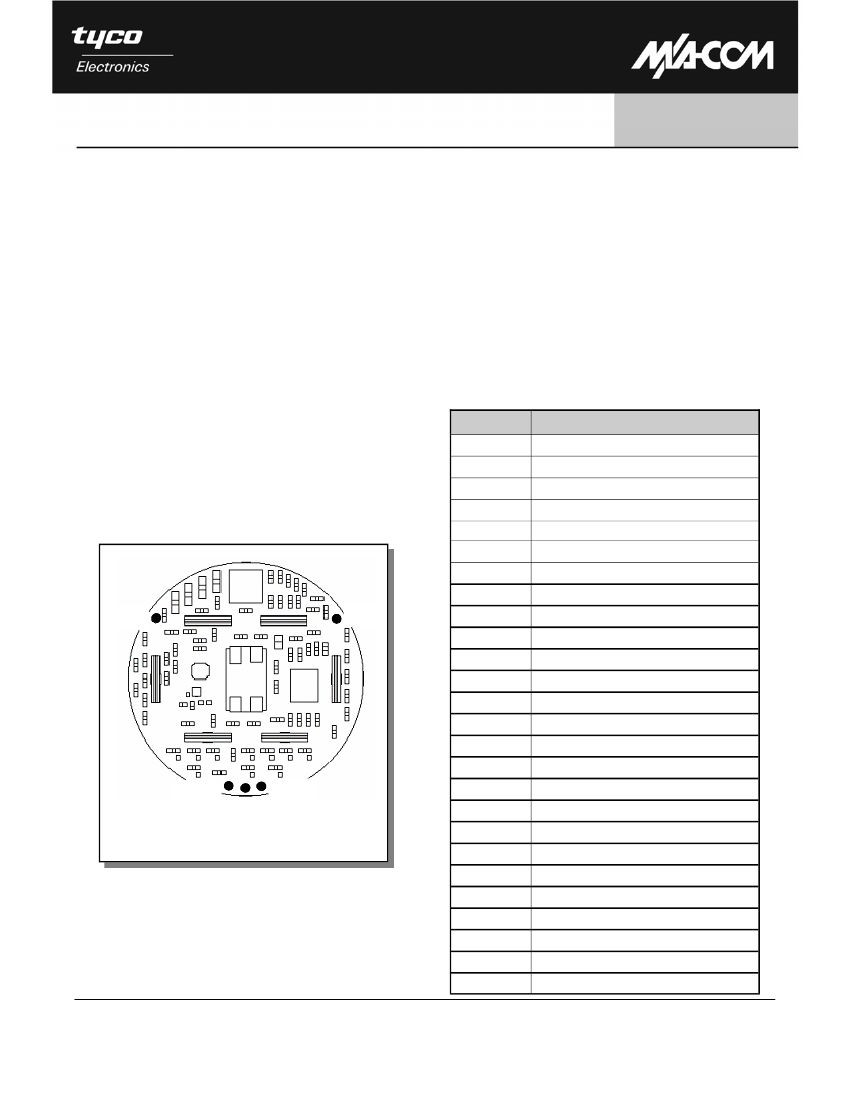

Transmitter Picture

1, 2, 3

Description

M/A-COM’s MA05935 is a 200mW miniature, phase-

locked, FM transmitter module. The MA05935 is

ideally suited for rugged telemetry systems.

The MA05935 contains a shock-hardened crystal

oscillator, a silicon on sapphire phase-locked loop,

iHBT™

VCO, and power amplifier. The module

requires only a single, regulated supply voltage of

+3.0V

or +3.3V

. The MA05935 has a fully

matched (50Ω) output network.

M/A-COM's MA05935 is fabricated on standard FR-4

PC board material, employing automatic assembly of

the hybrid technology components (silicon on sap-

phire,

iHBT™

and SMT).

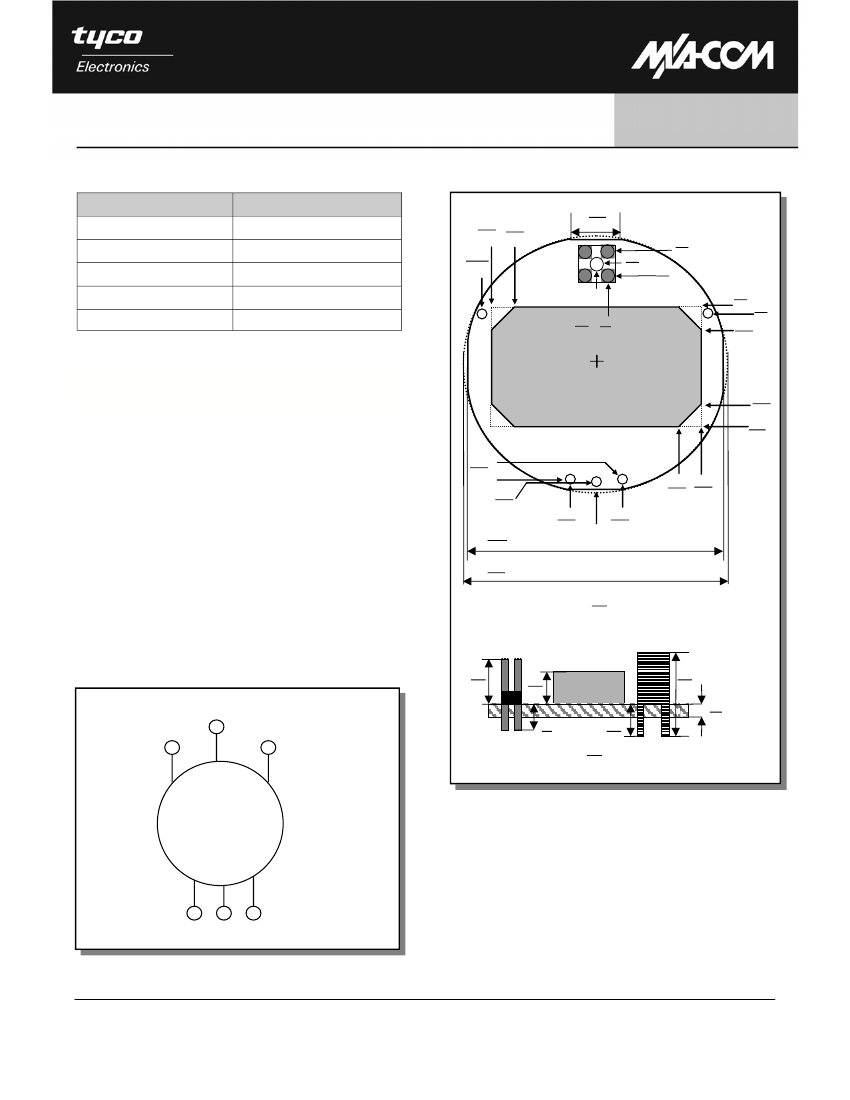

Module diameter = 1.125”

Module height = 0.2”

Module weight = 3 grams typical

When fully encapsulated, this module will easily sur-

vive high shock pulses greater than 80,000G’s. This

product is 100% RF tested to ensure compliance to

performance specifications.

Other output powers, features, and form factors

are available upon request. Additional environ-

mental screening is also available.

Electrical Specifications: T

= 25°C, Z

= 50Ω

Parameter

Supply Voltage

Supply Current

Output Power

Output VSWR

Stability

Lock Time

Harmonics

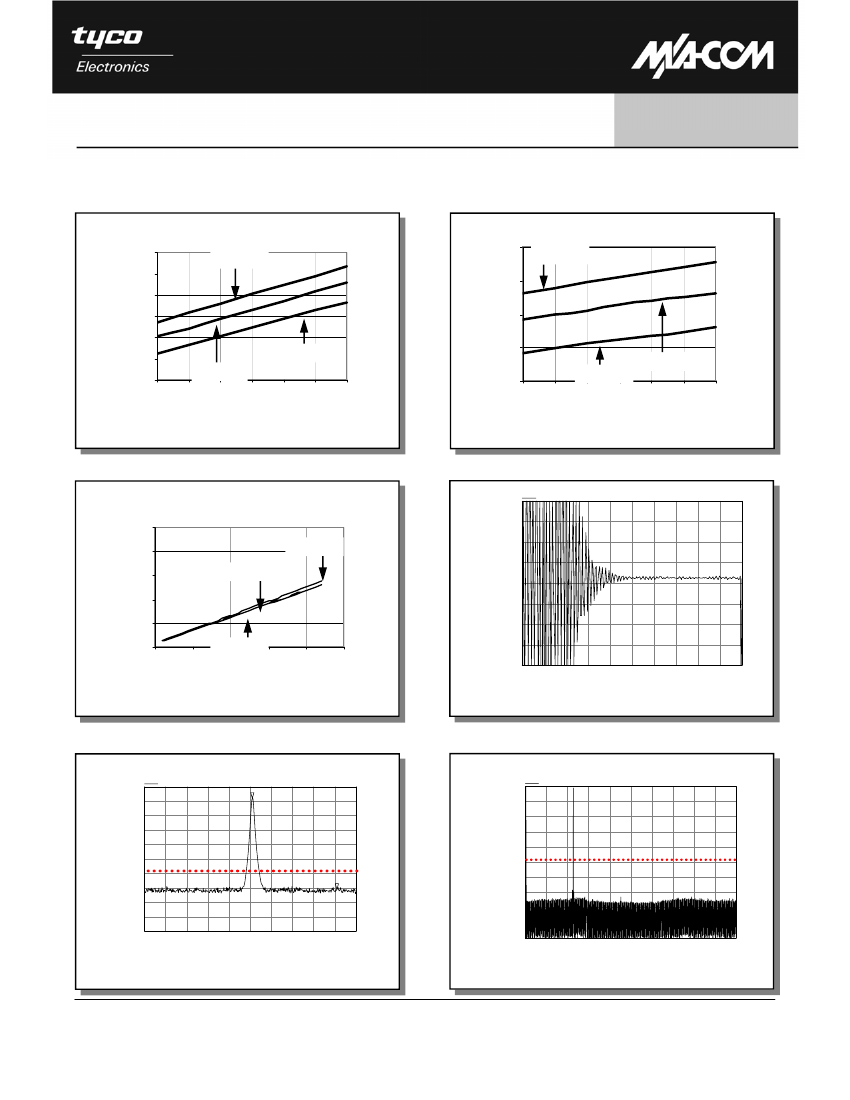

Output Power vs. Temp

Phase Noise

Test Conditions

——

-40

C to +85

——

-40

C to +85

——

Frequency

——

2.2 - 2.3 GHz

Units

volts

dBm

—

dBm

Min

3.0

—

23.0

—

-25

—

Typ

—

350

23.5

< 2:1

Max

3.3

—

24.0

—

<±

0.002

<30

—

0.6

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•
