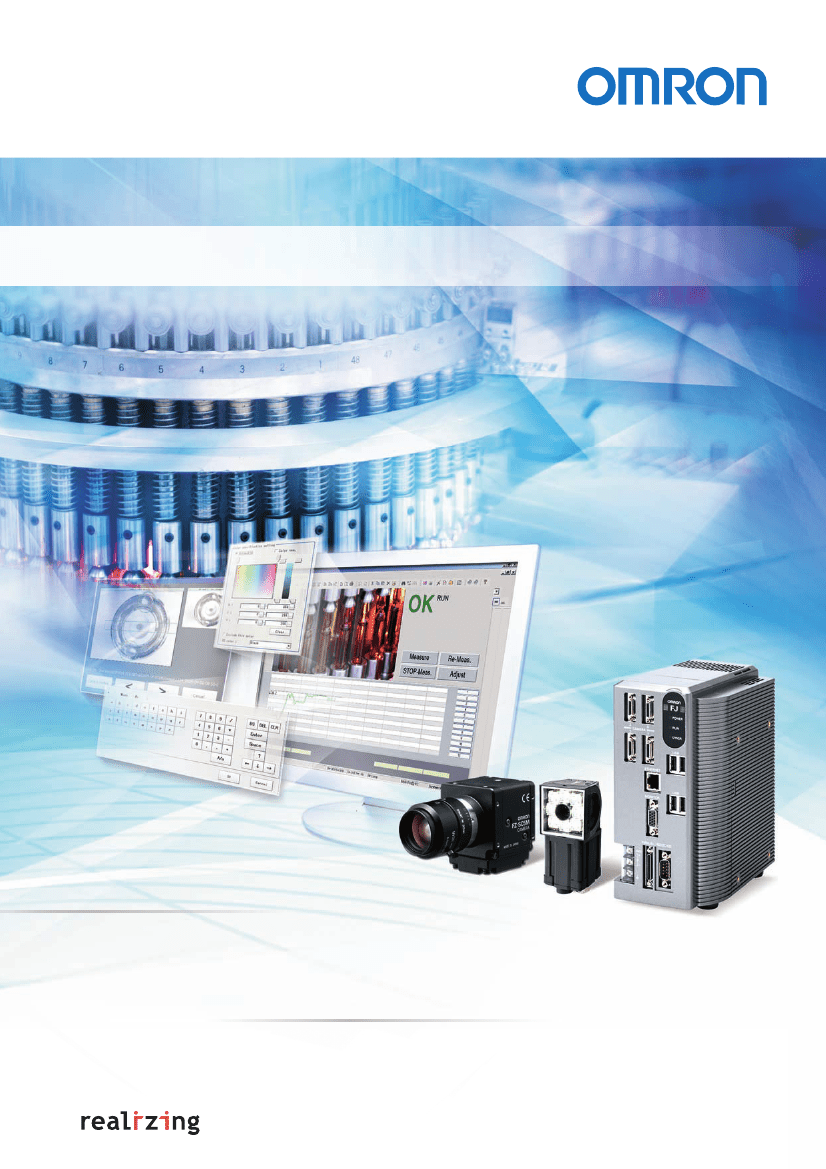

PC VISION SYSTEM – FJ SERIES
Create your ideal system
» E a sy c u s to m i s a t i o n
» Seamless hardware & sof tware integration
» Cutting-edge algorithms
2
Fast machine integration…
…easy customisation
The new customisable FJ Series Vision System
combines the benefits of a compact system with the
power and flexibility of an industrial PC platform.
The system will enable you to develop your ideal
machine vision solution quickly, no matter if you are
creating a completely new application or modifying
an exsisting one. Easy HMI creation, unique
flexibity and fast integration define this new class
of vision system. The FJ Series is available with a
range of controllers and cameras, suitable for every
application. This eliminates the time needed to
integrate components and delivers a platform with
the highest quality and reliability.
Features
Quick customisation:
•
Fast drag and drop programming
•
Choice of ready-made GUIs
•
Using existing software
Seamless integration:
•
Proven component compatibility
•
Wide selection of intelligent cameras
Stable, high-speed processing:
•
Advanced algorithms
•
HDD-less controllers
Windows embedded-based FJ Controller
Development environment Application Producer
One complete and compatible collection of all the components
you need to build your ideal machine vision system.
3
Real
Color
Highly flexible
development
Imagine how much money you could save
by reducing your current development
time by
%. With the FJ Series you can
do just that. That’s because you can build
processing flow simply by listing the
processing items for each measurement.
Other features that accelerate
development include: sample GUIs,
options to re-use existing software, built-
in touchscreens, and more.
Proven
reliability
All the hardware and software
components are completely compatible.
In addition, the controllers use flash
memory – not hard disc drives – so they
always remain highly reliable even in a
hostile factory environment.
Stable and high-speed
inspection
The Halcon library of algorithms provides
high-speed processing and
measurement. In addition, the FJ Series’
High Dynamic Range and Real Colour
sensing techniques ensure robust and
stable operation.
*HALCON is a registered trademark of MVTec Software GmbH.
4
Smart programming
Drag and drop with image processing
You can create new measurement and inspection flows quickly
and easily with our ready-made modules. Simply choose from
the
+ modules and drag and drop them to define your
required image-input, measurement and other sequences –
as well as building your processing flows. No more searching
subroutine libraries and painstakingly piecing them together.
You can immediately create new inspection functions from our
ready-made software modules.
Time-saving Macros
We also offer a wide range of Macros to further accelerate your
development process – especially for your calculation
functions. Simply drag and drop the required Macro into your
flow.
Own developed algorithms
If the item you need is not included in the new FJ Series
software suite, you can easily create your own item using
Microsoft
®
Visual Studio
®
and the “Application Producer”.
The Development Wizard and code samples ensure that
creating programs, including those for your GUI, is always
quick and simple.
*Microsoft® Visual Studio® is a registered trademark of Microsoft Corporation.
5
Easy HMI configuration
Show only the buttons you need
Choose from our library of buttons and
position them anywhere on-screen to best
support your daily operation, without
‘screen clutter”.
Add a camera image
With just one click.
Eight screen layout
Up to
screens can be stored depending on the application or
user classification.
Move windows freely
Drag and drop windows where you want.
You can also change the box size and delete.
Free HMI programming
Create the HMI to fit your needs
You can create original HMI and GUIs quickly with Visual
Studio
®
, rich customisable control units and program samples
in the FJ “Application Producer”.
Progam sample for bar graph
Zoom browser
Colour setting control
