PTS635VH39 LFS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> PTS635VH39 LFS

PTS635VH39 LFS: DescriptionSWITCH TACTILE SPST-NO 0.05A 12V; Categoryaccessories; File Size133KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

PTS635VH39 LFS Overview

SWITCH TACTILE SPST-NO 0.05A 12V

PTS635VH39 LFS Parametric

Parameter Name	Attribute value
circuit	SPST-NO
switch function	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC
Actuator type	Rectangular button
Installation type	Through hole, right angle
Actuator PCB height, vertical	-
Actuator length, right angle	3.85mm
Actuator direction	side touch
Terminal type	PC pin
shape	6.00mm x 3.50mm
illumination	Not glowing
lighting type, color	-
Lighting voltage (nominal)	-
force	200gf
Intrusion protection	-
characteristic	-
Operating temperature	-40°C ~ 60°C
Actuator material	Polyamide (PA66), Nylon 6/6
Switching stroke	-
Mechanical life	20,000 cycles

Preview

Download Datasheet

View All

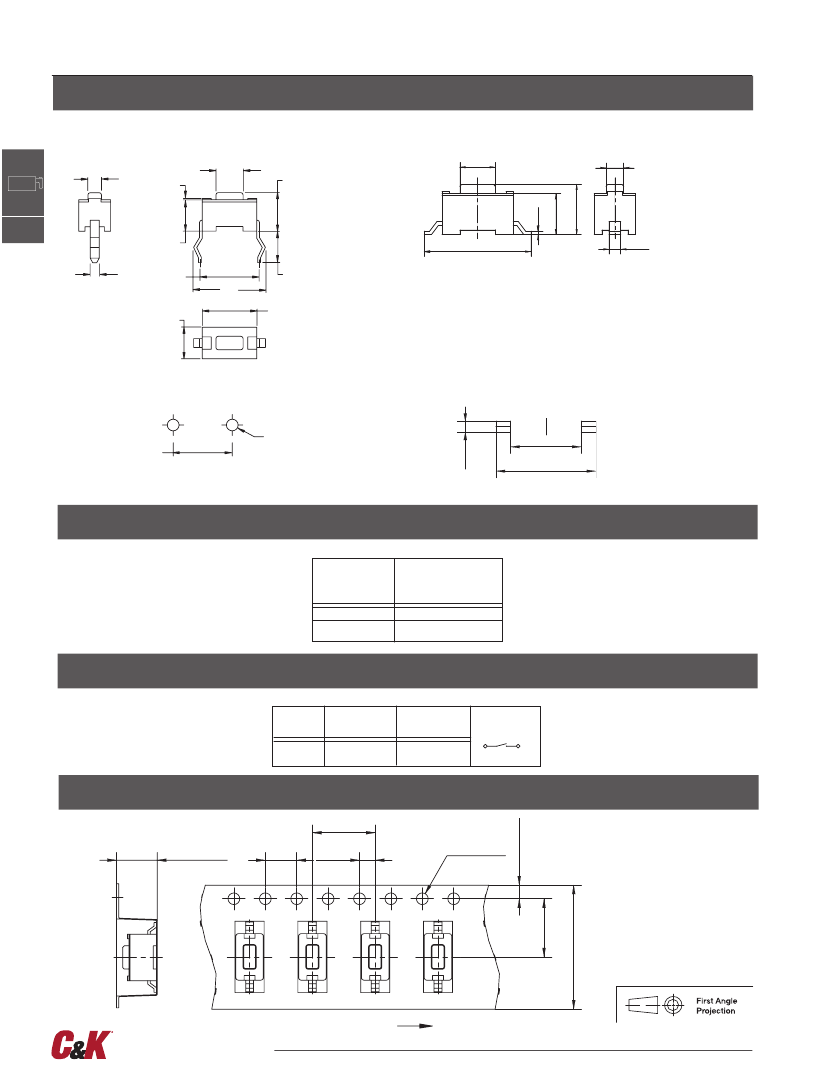

PTS635 Series

3,5 mm Tact Switches

Features/Benefits

•

Compact size 6 x 3.5 mm

•

Variety of switch heights

•

Choice of actuation force

•

RoHS compliant and compatible

Typical Applications

•

Consumer products

•

Instrumentation

•

Computer products

•

Industrial

Tactile Switches

Specification

FUNCTION: Momentary action

CONTACT ARRANGEMENT: SPST, N.O.

TERMINALS: PC pins

Process

SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux flush

with top surface of PCB; do not apply to component side of PCB

and area where terminals are located. Soldering to 255˚C for 5 sec.

max. Clean by brushing on solder surface. Do not clean switch with

solvents.

Mechanical

ACTUATION FORCE: PTS635L models: 130 grams.

PTS635H models: 200 grams.

LIFE EXPECTANCY: 20,000 operations.

Materials

BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94V-0).

ACTUATOR: 6/6 nylon or polyacetal (UL 94HB).

COVER PLATE: Tin plated stainless steel

DOME CONTACTS: Phosphor bronze, silver clad.

STATIONARY CONTACTS: Brass, silver plated.

TERMINALS: Brass, silver plated. Insert molded.

Electrical

CONTACT RATING: 50 mA @ 12 V DC.

DIELECTRIC STRENGTH: 250 V AC min.

CONTACT RESISTANCE: 100 mΩ max. initial.

INSULATION RESISTANCE: 10

Ω min.

Packaging

Bulk packaging.

Tape & reel for:

PTS635Sx43SMTR, 1700 pcs per reel

Environmental

OPERATING TEMPERATURE: -40˚C to 60˚C

NOTE:

Specifications listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Termination

Straight

Actuation Force

130 grams

200 grams

Insertion Type*

NONE

Thru hole

SMTR

Surface mount, tape & reel

RoHS compliant and

compatible.

Silver plated.

Actuator Height to PCB / Ground Pin

4,3 (.169), Thru-hole and SMT

5,0 (.197), Thru-hole

* SMTR only available with PTS635 43 Actuator Height options.

Dimensions are shown: mm

Specifications and dimensions subject to change

26 jan 17

B–93

www.ckswitches.com
