PAH75D24-3325/PV datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> PAH75D24-3325/PV

PAH75D24-3325/PV: DescriptionDC DC CONVERTER 3.3V 2.5V 75W; CategoryPower/power management The power supply circuit; File Size417KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

PAH75D24-3325/PV Overview

DC DC CONVERTER 3.3V 2.5V 75W

PAH75D24-3325/PV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
package instruction	ROHS COMPLIANT, HALF BRICK PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL 2.5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDFM-P10
Number of functions	1
Output times	2
Number of terminals	10
Maximum output current	15 A
Maximum output voltage	3.63 V
Minimum output voltage	2.97 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,10LEAD,1.9
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	60 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

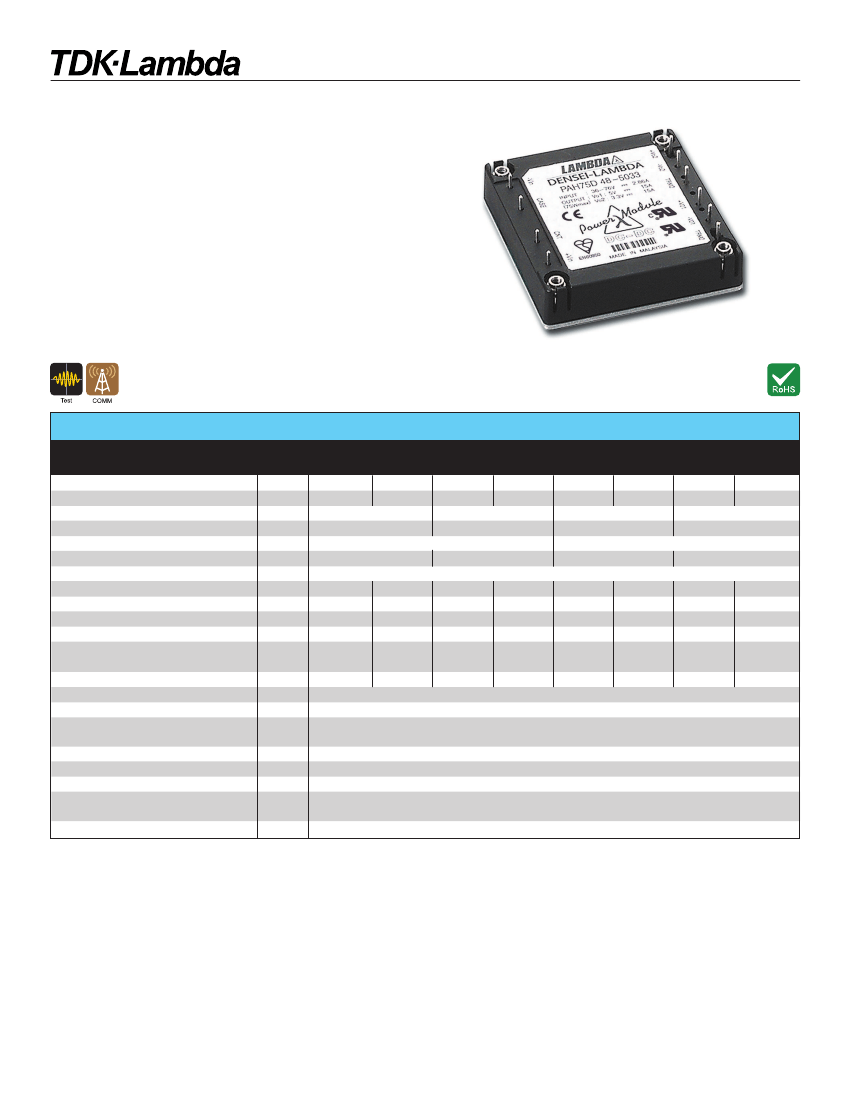

PAH75D Series

Dual Output Half-Brick DC-DC Converters

Features

Industry Standard Footprint & Pinouts

Telecom Approvals & Compliance

Zero Pre-load Current

24 or 48VDC input

Level B EMI with External Filtering

Remote On / Off

ASIC Design

No-preload requirements

No potting materials used

Key Market Segments & Applications

Speciﬁcations

2518

Model

Nominal Output Voltage

Output Current (Max)

Total Output Power (Max)

Efﬁciency (Typ at 48VDC input)

Input Voltage Range

Input Current (Typ) 24/48Vnom

Output Voltage Accuracy

Output Voltage Adjustment

Max Ripple & Noise

Max Line Regulation

Max Load Regulation

Over Current Protection

(1)

Over Voltage Protection

Operating Temperature

Cooling

Isolation Voltage

Shock

Safety Agency Approvals

Weight (Typ.)

Vibration

Size (W×H×D)

m/s

Vo1

2.5

36 ~ 76VDC

-/1.06

-/1.33

Vo2

1.8

Vo1

3.3

3318

Vo2

1.8

Vo1

3.3

3325

Vo2

2.5

Vo1

5.0

5033

Vo2

3.3

18 ~ 36VDC or 36 ~76VDC

2.71/1.33

3.91/1.91

±2

2.5 ~ 2.75 1.8 ~ 1.98 2.97 ~ 3.63 1.8 ~ 1.98 2.97~ 3.63 2.25 ~ 2.75 4.5 ~ 5.5 2.97~ 3.63

100

±6.6

±10

±6.6

±16.5

±25

±16.5

105-165 105-165 105-165 105-165 105-165 105-165 105-165 105-165

Vo2@0A Vo1@5A Vo2@0A Vo1@5A Vo2@0A Vo1@5A Vo2@0A Vo1@5A

115-140 115-150 115-140 115-150 115-140 115-140 125-145 115-140

-40ºC ~ +100ºC (Baseplate)

Conduction cooled

Input-Output : 1.5kVDC, Input-Baseplate:1.5kVDC (20mA) for 1 min

Output-Baseplate: 500VDC for 1 min

196.1

UL60950-1, CSA60950-1, EN60950-1, CE Marking (48V input only)

Non Operating, 10-55Hz (Sweep for 1min.)

Amplitude 0.825mm Constant (Maximum 49.0m/s

) X, Y, Z 1 hour each

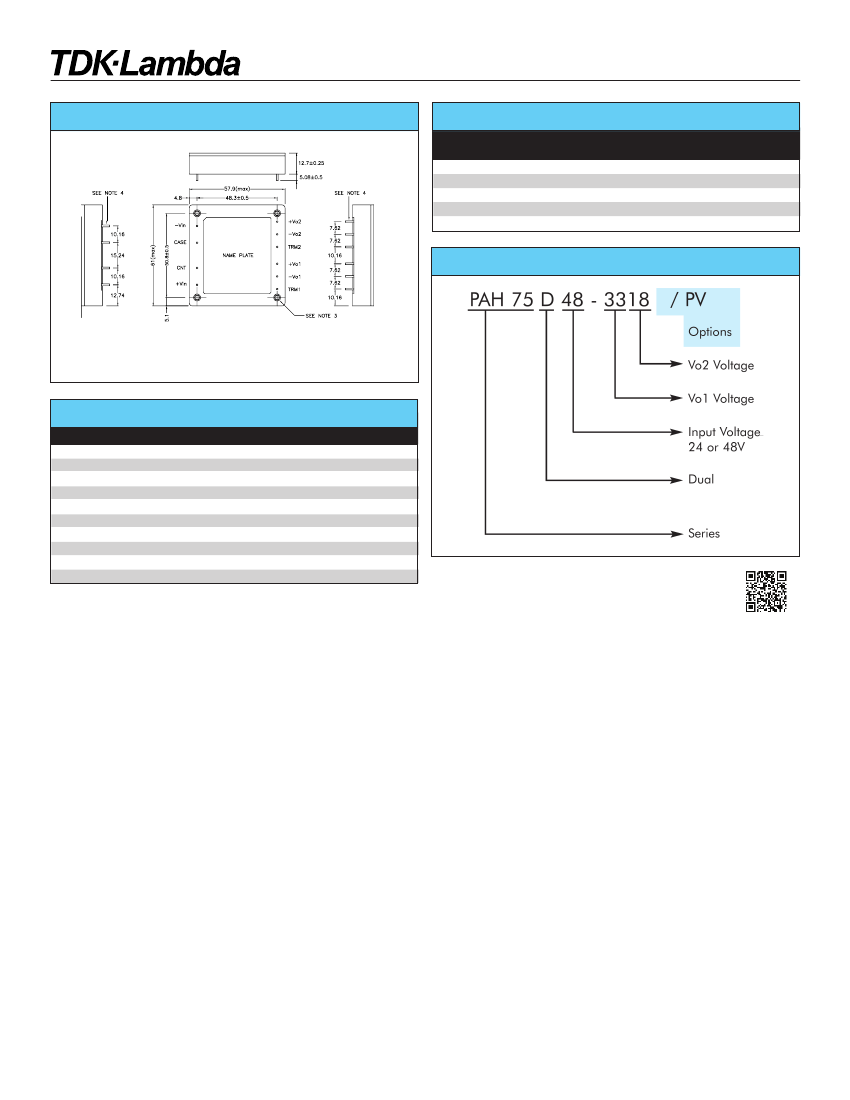

57.9 x 12.7 x 61 (Refer to outline drawing)

(1) Other channel at output current speciﬁed.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
