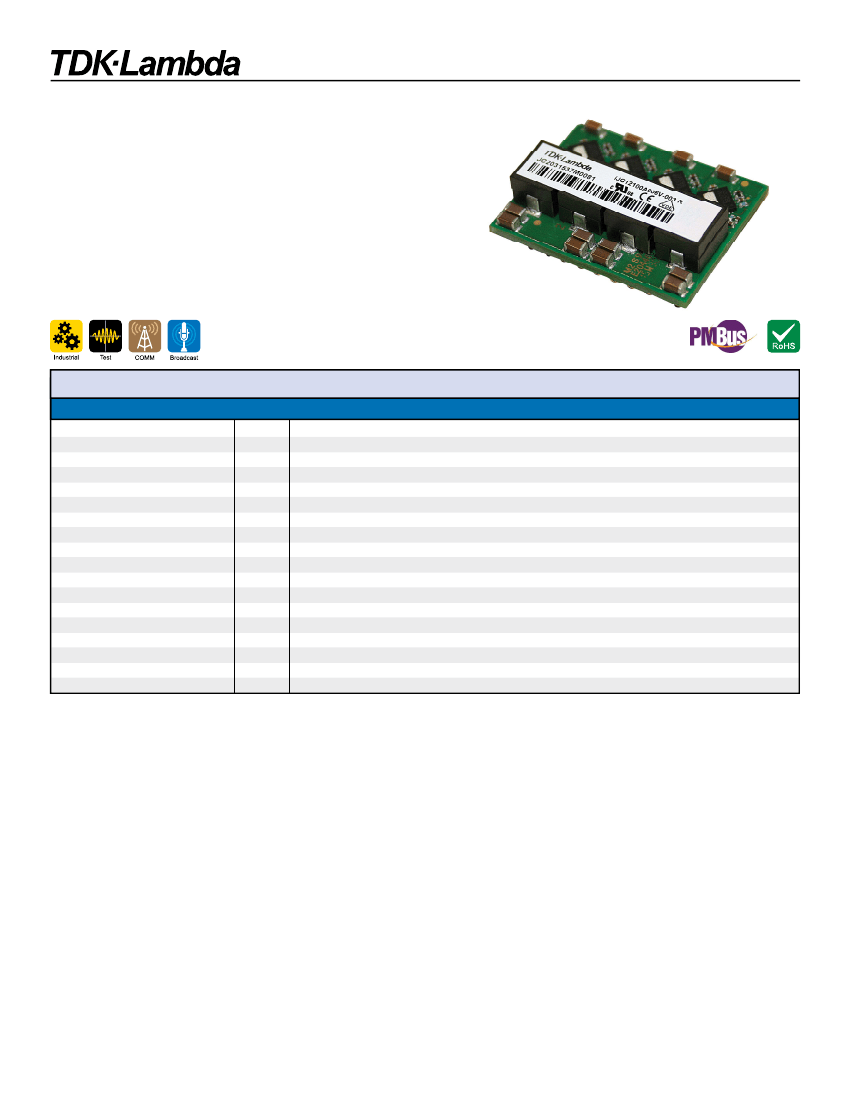

iJC Series
150W, 100A Non-isolated SMT Point of Load with PMBus™
Features
Only 1.5 in
2
Board Space
PMBus Compliant (Read & Write)
Surface Mountable
Digital Adaptive Control
Parallel Operation with Current Sharing
Configurable Sequence & Fault Management
Key Market Segments & Applications
Specifications
Model
DC Output Voltage
DC Output Power (max)
DC Input Voltage
Efficiency
Output Voltage Tolerance
Line Regulation
Load Regulation
External Load Capacitance
Output Ripple and Noise
Overcurrent Protection
Remote On / Off
Remote Sense
Operating Temperature
Storage Temperature
Safety Agency Certifications
Weight
Size (LxWxH)
Warranty
V
W
V
%
%
mV
mV
uF
mVpp
A
-
-
°C
°C
-
g / oz
mm / in.
yrs
iJC
0.6 - 1.5V
150W
8 - 14V
86.5 - 91.5%
±1.5%
8 (Typical)
8 (Typical)
1000 - 5000
15
>105A
Negative Logic or Positive Logic (See model selector)
Yes
-40 to 120 (see thermal data on website)
-55 to 125
IEC/EN/UL/CSA 60950-1, CE Mark
20g / 0.7 oz
28.0 x 35.0 x 10.0mm / 1.10 x 1.37 x 0.39”
3 years
1-800-526-2324 • www.us.tdk-lambda.com/lp/
216
Disclaimer: us.tdk-lambda.com/lp/legal.htm
iJC Series
Model Selector
Model
iJC12100A006V-002-R
iJC12100A006V-003-R
Preferred
Input
Voltage (V)
8 - 14
8 - 14
Output
Current (A)
100
100
Output
Voltage (V)
0.6 - 1.5
0.6 - 1.5
Remote
On/Off
Positive
Negative
Pinout
PIN
1
2
3
4
5
6
7
8
9
10
Function
Power Ground (0V)
Power Ground (0V)
+V Input
+V Input
Power Ground (0V)
Power Ground (0V)
+V Input
+V Input
Power Ground (0V)
Power Ground (0V)
PIN
Function
PIN
11
Signal Ground (0V)
21
12
Not Connected
22
13
Output Trim
23
14
PMBus Address
24
15
Not Connected
25
16 Set Parallel Operation (PSET) 26
17
+ Remote Sense
27
18
- Remote Sense
28
19
Power Ground (0V)
29
20
Power Ground (0V)
30
Function
+V Output
+V Output
+V Output
Power Ground (0V)
Power Ground (0V)
+V Output
+V Output
+V Output
Power Ground (0V)
Power Ground (0V)
PIN
31
32
33
34
35
36
37
38
Function
PMBus Clock
PMBus Data
PMBus Alert / Fault
Remote On/Off
Fault Mgmt
Power Good
Current Share
Synchronize

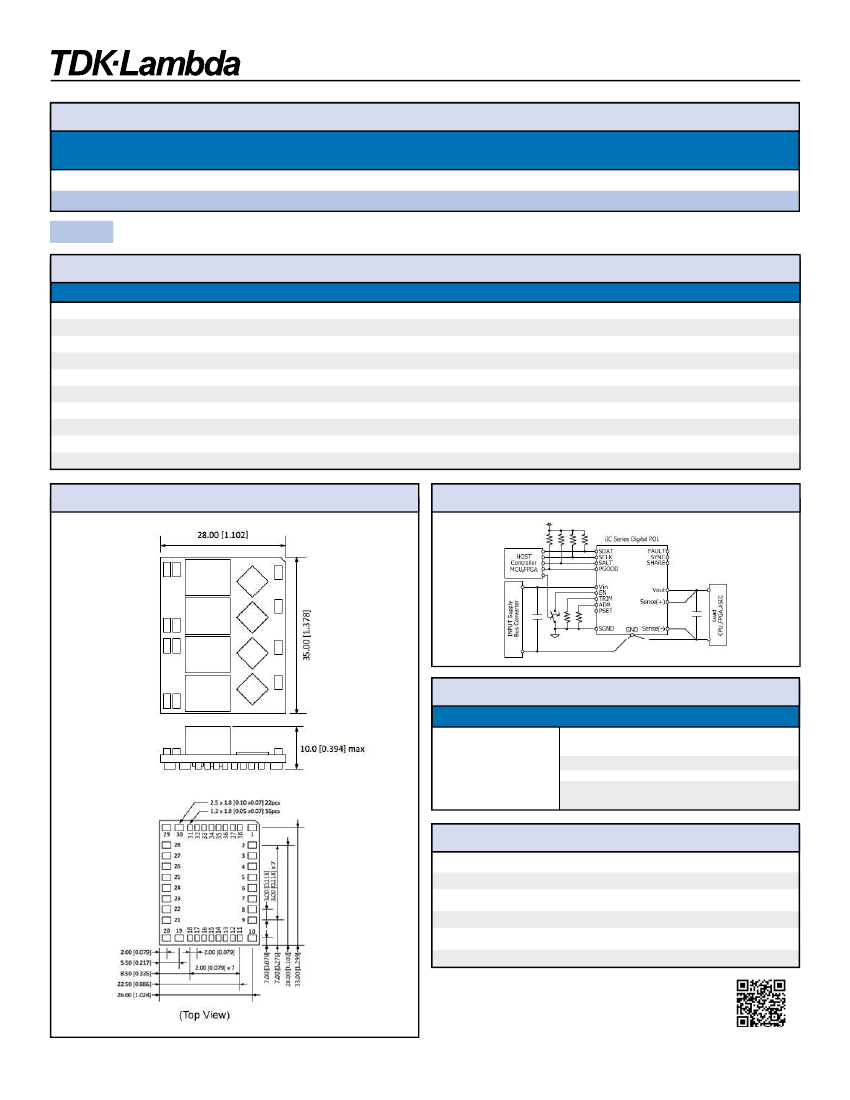

Outline Drawings
Typical Application Circuit
Evaluation Board
Evaluation kit part #
iJC100A-003-EVKIT-S1
Contents
Evaluation board with one piece of
iJC12100A006V-003-R
PMBus Dongle Board & USB cable
CD ROM
User manual available at iJx series technical
file in our website
Other Industrial Products
CC-E
PX
iJA, iJB, iJC
iQE, iQL, iQG
iEH
1.5 - 30W 5, 12, 24 or 48V input isolated DC-DC converters
10 - 60W 12, 24 or 48V input isolated DC-DC converters
35 - 100A non isolated DC-DC converters with PMBus
96 - 400W Quarter bricks
300W Eighth brick
iAF, iBF, iCF, iCG 3 - 20A DOSA2 non isolated DC-DC converters
For Additional Information, please visit
us.tdk-lambda.com/lp/products/ijb-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
217
Revision A1: Dec 2017
