AC-DC Power Supplies Enclosed Type
Ordering information
PJA100F
PJ
1
2
A
3
100
4
F
5
-O
6
-O
R
Example recommended EMI/EMC filter
NAC-04-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*6
C : with Coating
R : Remote on/off
(Required external
power source)
J : EP (Tyco Electronics)
connector type
J1 : VH (J.S.T.)
connector type
T : Vertical terminal block
N2 : with DIN rail
See 5.1 in Instruction Manual.
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.

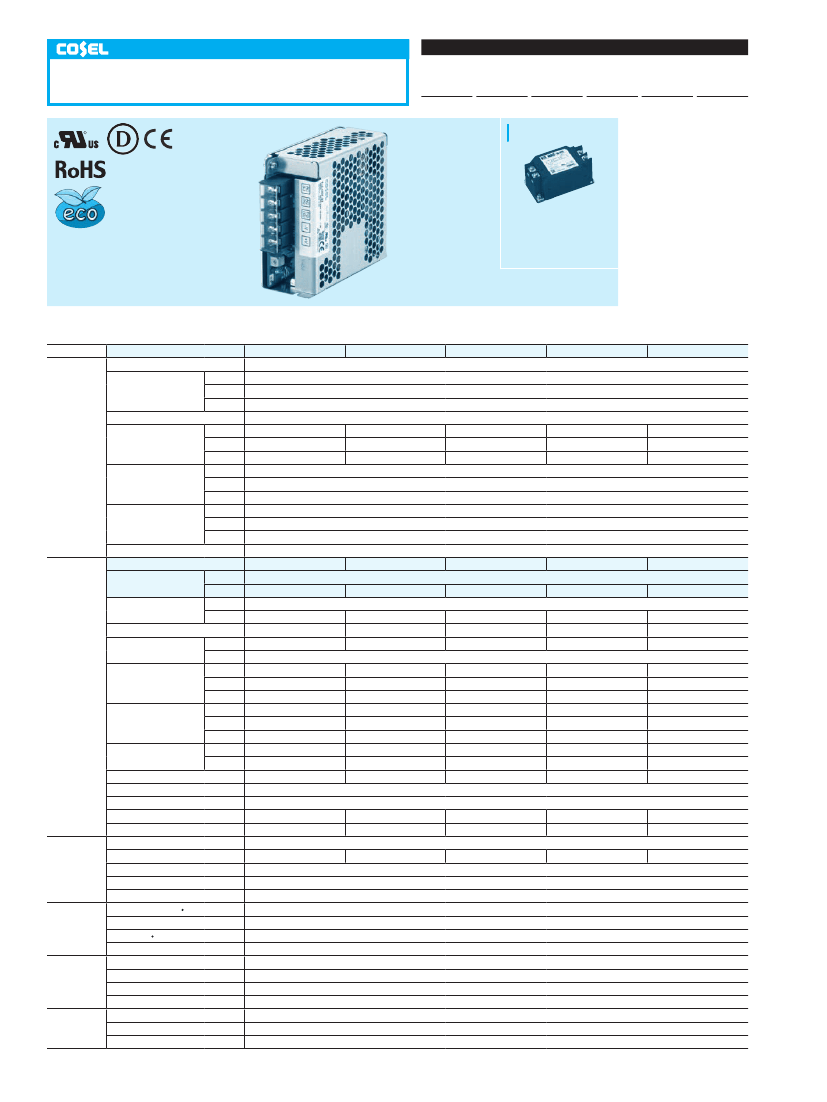

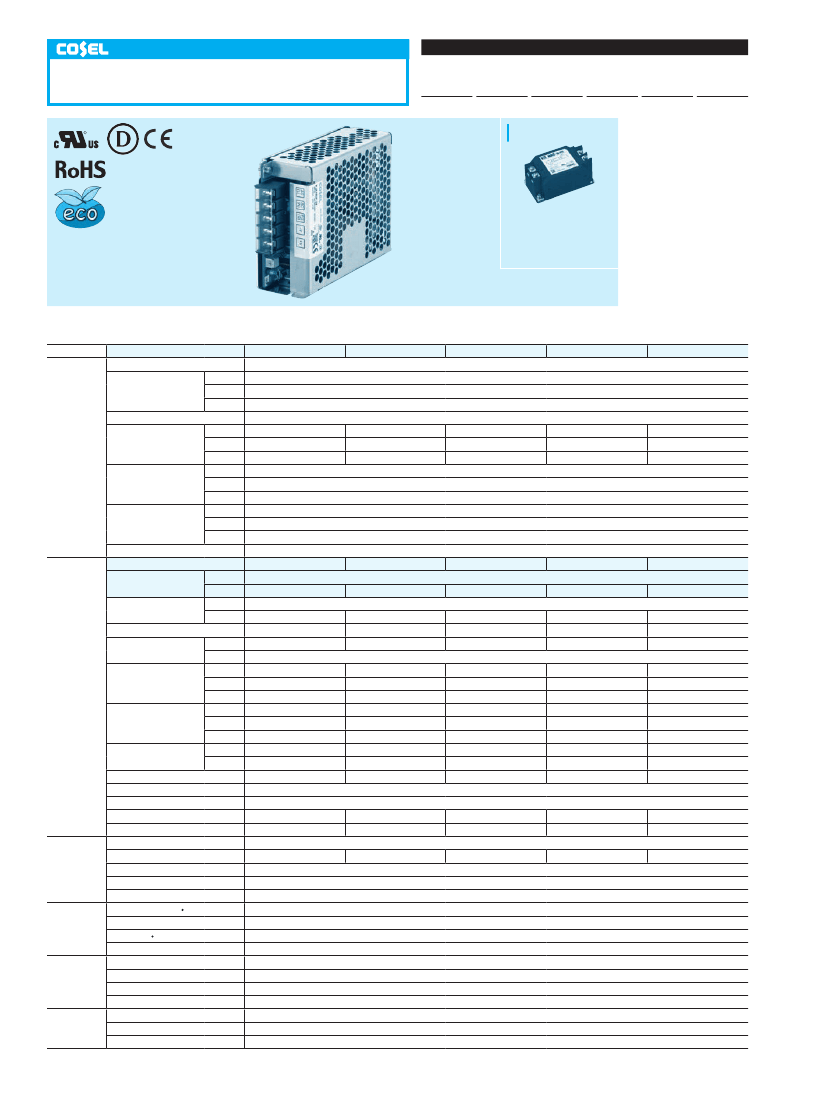

SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
ACIN 100V
ACIN 115V
ACIN 230V
INPUT
ACIN 100V
POWER FACTOR
ACIN 115V
ACIN 230V
ACIN 100V
INRUSH CURRENT[A] ACIN 115V
ACIN 230V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 85-115V
CURRENT[A]
ACIN 115V-264V
ACIN 85-115V
WATTAGE[W]
ACIN 115V-264V
*3
LINE REGULATION[mV]
LOAD REGULATION Io=30 to 100%
*3
Io=0 to 30%
[mV]
0 to +40C
RIPPLE[mVp-p]
*1
-10 to 0C
Io: load factor
Io=0 to 30%
OUTPUT
0 to +40C
RIPPLE NOISE[mVp-p]
*1
-10 to 0C
Io: load factor
Io=0 to 30%
0 to +40C
TEMPERATURE REGULATION[mV]
-10 to +40C
*2
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
PROTECTION OVERVOLTAGE PROTECTION[V]
CIRCUIT AND OPERATING INDICATION
OTHERS
REMOTE SENSING
REMOTE ON/OFF
*8
INPUT-OUTPUT RC
INPUT-FG
ISOLATION
*8
OUTPUT RC-FG
*8
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*4
STORAGE TEMP.,HUMID.AND ALTITUDE
ENVIRONMENT
VIBRATION
IMPACT
AGENCY APPROVALS
SAFETY AND
NOISE
CONDUCTED NOISE
REGULATIONS HARMONIC ATTENUATOR
*7
EFFICIENCY[%]
ACIN 100V
ACIN 115V
ACIN 230V
*
Please consider "PBA100F-5-N" about 5V output with case cover.
PJA100F-12
PJA100F-15
PJA100F-24
PJA100F-36
PJA100F-48
AC85 - 264 1f (Output derating is required at AC85V - 115V. See 1.1 and 3.2 in Instruction Manual)
1.2typ (Io=90%)
1.1typ (Io=100%)
0.6typ (Io=100%)
50 / 60 (47 - 63)
82typ (Io=90%)
83typ (Io=90%)
85typ (Io=90%)
86typ (Io=90%)
86typ (Io=90%)
82typ (Io=100%)
83typ (Io=100%)
85typ (Io=100%)
86typ (Io=100%)
86typ (Io=100%)
85typ (Io=100%)
86typ (Io=100%)
88typ (Io=100%)
89typ (Io=100%)
89typ (Io=100%)
0.98typ (Io=90%)
0.98typ (Io=100%)
0.90typ (Io=100%)
*
Power factor correction is stopped at AC250V or more.
16typ (Io=90%) Ta=25C at cold start
16typ (Io=100%) Ta=25C at cold start
32typ (Io=100%) Ta=25C at cold start
0.75max (ACIN 240V, 60Hz, Io=100%, According to IEC62368-1 and DEN-AN)
12
15
24
36
48
Output derating is required at ACIN 115V or less (refer to instruction manual 3.2)
8.4
6.7
4.3
2.8
2.1
Output derating is required at ACIN 115V or less (refer to instruction manual 3.2)
100.8
100.5
103.2
100.8
100.8
48max
60max
96max
144max
192max
100max
120max
150max
150max
300max
Burst operation (Please contact us about detail)
120max
120max
120max
150max
150max
160max
160max
160max
200max
400max
500max
500max
500max
500max
500max
150max
150max
150max
200max
200max
180max
180max
180max
240max
500max
600max
600max
600max
600max
600max
120max
150max
240max
360max
480max
180max
180max
290max
440max
600max
48max
60max
96max
144max
192max
500typ (ACIN 115V, Io=100%) Ta=25C
20typ (ACIN 115V, Io=100%)
10.80 to 13.20
13.50 to 16.50
21.60 to 26.40
32.40 to 39.60
43.20 to 52.80
12.00 to 12.48
15.00 to 15.60
24.00 to 24.96
36.00 to 37.44
48.00 to 49.92
Works over 105% of rating and recovers automatically
13.80 to 16.80
17.25 to 21.00
27.60 to 33.60
41.40 to 50.40
54.00 to 67.20
LED (Green)
Not provided
Optional (Required external power source. Option -R)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
-20 to +70C (Output derating is required), 20 - 90%RH (Non condensing), 3,000m (10,000 feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000 feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axes
196.1m/s
2
(20G), 11ms, once each X, Y and Z axes
UL62368-1, C-UL (CSA62368-1), EN62368-1, UL508 (Except option -J, -J1) Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 class A
PJA-2
PJA100F
SPECIFICATIONS
CASE SIZE/WEIGHT
COOLING METHOD
WARRANTY WARRANTY
OTHERS
*5
41X97X109mm [1.61X3.82X4.29 inches] (Excluding terminal block and screw) (WXHXD) / 500g max
Convection
5 years (subject to the operating conditions)
hour warm-up at 25C.
*3
Consult us about dynamic load and input response. Measure the output
voltage by using the average mode of the tester to deal with the burst
operation at 30% load or less.
*4
Output power derating is required. See 3.2 in Instruction Manual.
*5
See 3.3 in Instruction Manual for more details.
*6
Consult us about safety agency approvals for the models with optional functions.
*7
Consult us about other classes.
*8
The RC terminal is added to option –R models. The RC terminal is isolated
*
from input, output, and FG.
Do not use the power supply in overcurrent conditions or in unspecified
input voltage ranges. Otherwise the internal components may be
damaged.
Parallel operation is not possible with this mode.
Sound noise may be heard from the power supply when used for
pulse load.
*1
This is the result of measurement of the testing board with
capacitors of 22mF and 0.1mF placed at 150 mm from the
output terminals by a 20 MHz oscilloscope or a ripple-noise meter
equivalent to Keisoku-Giken RM103.
See 1.6 of Instruction Manual for more details.
When the load factor is 0 - 30%, the switching power loss is
reduced by burst operation, which will cause ripple and ripple
noise to go beyond the specifications.
*2
Drift is the change in DC output for an eight hour period after a half-
*
*
Features
- Compact design (Depth: 109mm 4.29inches)
- High efficiency (88%typ PJA100F-24, AC230Vin, 100% load)
- Low power consumption (1.5W typ AC240Vin, no load at standard model)
- UL508 approved (Except option -J, -J1), and complies with SEMI F47 (see instruction manual 1.1)
- Various connection interface options (vertical terminal [-T], AMP connector [-J], [-J1])

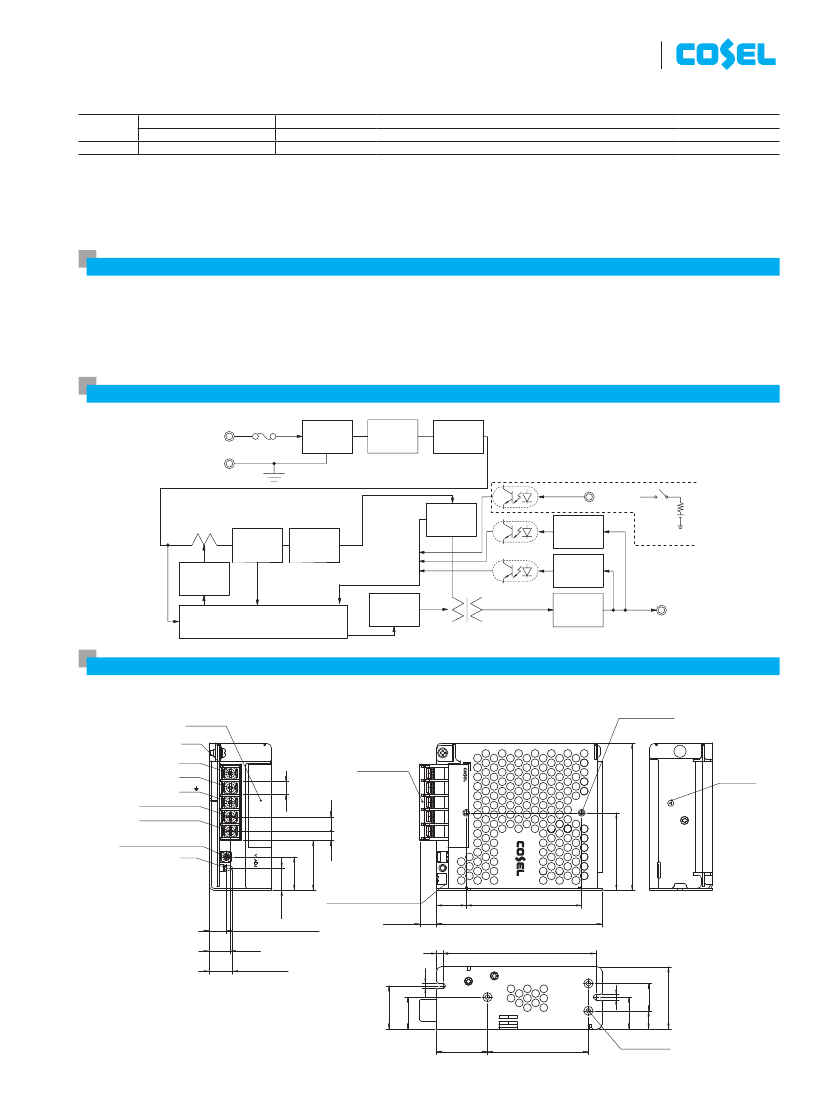

Block diagram
FUSE
250V 3.15A
AC IN 85 - 264V
FG
NOISE
FILTER
RECTIFIER
INRUSH
CURRENT
LIMIT
RC(-R)
BOOSTER
INDUCTOR
CURRENT
SENSING
INVERTER
CURRENT
SENSING
RECTIFIER
AND
FILTER
CONTROL
EXTERNAL
SOURCE
OVER VOLTAGE
PROTECTION
RECTIFIER
AND
FILTER
INVERTER
CONTROL
DC OUT
External view
The external size of –R option, –J option, –J1 option, –N2 option and –T option models is different from the standard model. See “5.
Options and Others” in Instruction Manual for more details.
Name plate
M3.5
AC(L)
AC(N)
FG( )
[0.37]
2-M3
Mounting hole
(Bottom side)
Terminal cover
Point A
8.2
9.5
Output terminal(+)
Output voltage
adjustable potentiometer
LED
[0.24]
22
±1.5
[0.87]
32.8
±1.5
[1.29]
14.6
±1.5
[0.57]
CN4
Connector for
Remote ON/OFF (option)
12.5max
[0.49]
2
1
19.5
[0.77]
11.2
±1.5
(potentiometer)
[0.44]
109
101
76
±0.5
[2.99]
[4.29]
14
±1.5
[0.55]
15.3
±1.5
(LED)
¶
Tolerance :
±1
[±0.04]
[0.6]
¶
Weight : 500g max
¶
PCB Material/thickness : FR-4 / 1.6mm [0.06inches]
¶
Chassis material : Aluminum
¶
Cover material : Galvanizing steel
¶
Dimensions in mm, [ ]=inches
¶
Mounting torque : 0.49N
-
m max
¶
Screw tightening torque : M3.5 1.0N-m max
¶
Connect the input FG to safety earth ground.
4
[0.16]
[0.14]
[3.98]
3.5
[2.01]
6.2
51
12 18
±0.5
[3.82]
[0.71]
[0.47]
Output terminal(–)
[0.32]
97
3.5
21
[0.14]
[1.12]
28.5
[0.83]
21
33.5
[1.32]
66.5
±0.5
[2.62]
3-M3
Mounting hole
[0.83]
[1.61]
41
PJA-3
AC-DC Power Supplies Enclosed Type
Ordering information
PJA150F
PJ
1
2
A
3
150
4
F
5
-O
6
-O
R
Example recommended EMI/EMC filter
NAC-04-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*6
C : with Coating
R : Remote on/off
(Required external
power source)
J : EP (Tyco Electronics)
connector type
J1 : VH (J.S.T.)
connector type
T : Vertical terminal block
N2 : with DIN rail
See 5.1 in Instruction Manual.
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
ACIN 100V
ACIN 115V
ACIN 230V
INPUT
ACIN 100V
POWER FACTOR
ACIN 115V
ACIN 230V
ACIN 100V
INRUSH CURRENT[A] ACIN 115V
ACIN 230V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 85-115V
CURRENT[A]
ACIN 115V-264V
ACIN 85-115V
WATTAGE[W]
ACIN 115V-264V
*3
LINE REGULATION[mV]
LOAD REGULATION Io=30 to 100%
*3
Io=0 to 30%
[mV]
0 to +40C
RIPPLE[mVp-p]
*1
-10 to 0C
Io: load factor
Io=0 to 30%
OUTPUT
0 to +40C
RIPPLE NOISE[mVp-p]
*1
-10 to 0C
Io: load factor
Io=0 to 30%
0 to +40C
TEMPERATURE REGULATION[mV]
-10 to +40C
*2
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
PROTECTION OVERVOLTAGE PROTECTION[V]
CIRCUIT AND OPERATING INDICATION
OTHERS
REMOTE SENSING
REMOTE ON/OFF
*8
INPUT-OUTPUT RC
INPUT-FG
ISOLATION
*8
OUTPUT RC-FG
*8
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*4
STORAGE TEMP.,HUMID.AND ALTITUDE
ENVIRONMENT
VIBRATION
IMPACT
AGENCY APPROVALS
SAFETY AND
NOISE
CONDUCTED NOISE
REGULATIONS HARMONIC ATTENUATOR
*7
EFFICIENCY[%]
ACIN 100V
ACIN 115V
ACIN 230V
*
Please consider "PBA150F-5-N" about 5V output with case cover.
PJA150F-12
PJA150F-15
PJA150F-24
PJA150F-36
PJA150F-48
AC85 - 264 1f (Output derating is required at AC85V - 115V. See 1.1 and 3.2 in Instruction Manual)
1.7typ (Io=90%)
1.6typ (Io=100%)
0.8typ (Io=100%)
50 / 60 (47 - 63)
84typ (Io=90%)
84typ (Io=90%)
87typ (Io=90%)
87typ (Io=90%)
87typ (Io=90%)
84typ (Io=100%)
84typ (Io=100%)
87typ (Io=100%)
87typ (Io=100%)
87typ (Io=100%)
87typ (Io=100%)
87typ (Io=100%)
90typ (Io=100%)
90typ (Io=100%)
90typ (Io=100%)
0.98typ (Io=90%)
0.98typ (Io=100%)
0.93typ (Io=100%)
*
Power factor correction is stopped at AC250V or more.
16typ (Io=90%) Ta=25C at cold start
16typ (Io=100%) Ta=25C at cold start
32typ (Io=100%) Ta=25C at cold start
0.75max (ACIN 240V, 60Hz, Io=100%, According to IEC62368-1 and DEN-AN)
12
15
24
36
48
Output derating is required at ACIN 115V or less (refer to instruction manual 3.2)
12.5
10
6.4
4.2
3.2
Output derating is required at ACIN 115V or less (refer to instruction manual 3.2)
150.0
150.0
153.6
151.2
153.6
48max
60max
96max
144max
192max
100max
120max
150max
150max
300max
Burst operation (Please contact us about detail)
120max
120max
120max
150max
150max
160max
160max
160max
200max
400max
500max
500max
500max
500max
500max
150max
150max
150max
200max
200max
180max
180max
180max
240max
500max
600max
600max
600max
600max
600max
120max
150max
240max
360max
480max
180max
180max
290max
440max
600max
48max
60max
96max
144max
192max
500typ (ACIN 115V, Io=100%) Ta=25C
20typ (ACIN 115V, Io=100%)
10.80 to 13.20
13.50 to 16.50
21.60 to 26.40
32.40 to 39.60
43.20 to 52.80
12.00 to 12.48
15.00 to 15.60
24.00 to 24.96
36.00 to 37.44
48.00 to 49.92
Works over 105% of rating and recovers automatically
13.80 to 16.80
17.25 to 21.00
27.60 to 33.60
41.40 to 50.40
54.00 to 67.20
LED (Green)
Not provided
Optional (Required external power source. Option -R)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
-20 to +70C (Output derating is required), 20 - 90%RH (Non condensing), 3,000m (10,000 feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000 feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axes
196.1m/s
2
(20G), 11ms, once each X, Y and Z axes
UL62368-1, C-UL (CSA62368-1), EN62368-1, UL508 (Except option -J, -J1) Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 class A
PJA-4

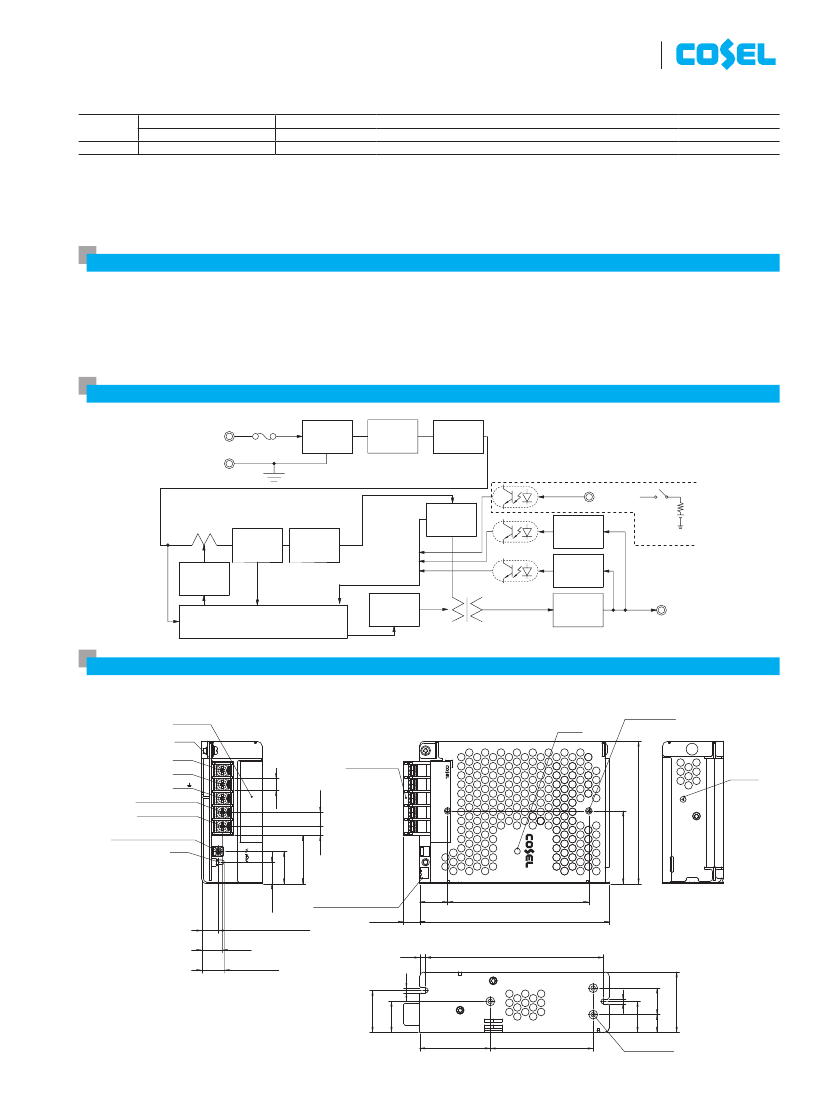

PJA150F
SPECIFICATIONS
CASE SIZE/WEIGHT
COOLING METHOD
WARRANTY WARRANTY
OTHERS
*5
41X97X129mm [1.61X3.82X5.08 inches] (Excluding terminal block and screw) (WXHXD) / 600g max
Convection
5 years (subject to the operating conditions)
hour warm-up at 25C.
*3
Consult us about dynamic load and input response. Measure the output
voltage by using the average mode of the tester to deal with the burst
operation at 30% load or less.
*4
Output power derating is required. See 3.2 in Instruction Manual.
*5
See 3.3 in Instruction Manual for more details.
*6
Consult us about safety agency approvals for the models with optional functions.
*7
Consult us about other classes.
*8
The RC terminal is added to option –R models. The RC terminal is
*
isolated from input, output, and FG.
Do not use the power supply in overcurrent conditions or in unspecified
input voltage ranges. Otherwise the internal components may be
damaged.
Parallel operation is not possible with this mode.
Sound noise may be heard from the power supply when used for
pulse load.
*1
This is the result of measurement of the testing board with capacitors of
22mF and 0.1mF placed at 150 mm from the output terminals by a 20
MHz oscilloscope or a ripple-noise meter equivalent to Keisoku-Giken
RM103.
See 1.6 of Instruction Manual for more details.
When the load factor is 0 - 30%, the switching power loss is reduced by
burst operation, which will cause ripple and ripple noise to go beyond
the specifications.
*2
Drift is the change in DC output for an eight hour period after a half-
*
*
Features
- Compact design (Depth: 129mm 5.08inches)
- High efficiency (90%typ PJA150F-24, AC230Vin, 100% load)
- Low power consumption (1.5W typ AC240Vin, no load at standard model)
- UL508 approved (Except option -J, -J1), and complies with SEMI F47 (see instruction manual 1.1)
- Various connection interface options (vertical terminal [-T], AMP connector [-J], [-J1])
Block diagram
FUSE
250V 4A
AC IN 85 - 264V
FG
NOISE
FILTER
RECTIFIER
INRUSH
CURRENT
LIMIT
RC(-R)
BOOSTER
INDUCTOR
CURRENT
SENSING
INVERTER
CURRENT
SENSING
RECTIFIER
AND
FILTER
CONTROL
EXTERNAL
SOURCE
OVER VOLTAGE
PROTECTION
RECTIFIER
AND
FILTER
INVERTER
CONTROL
DC OUT
External view
The external size of –R option, –J option, –J1 option, –N2 option and –T option models is different from the standard model. See “5.
Options and Others” in Instruction Manual for more details.
Name plate
M3.5
AC(L)
AC(N)
FG( )
[0.32]
[0.37]
Point B
2-M3
Mounting hole
(Bottom side)
Terminal cover
Point A
[3.82]
8.2
9.5
Output terminal(–)
Output terminal(+)
Output voltage
adjustable potentiometer
[0.24]
32.8
±1.5
[1.29]
6.2
LED
22
±1.5
[0.87]
2
1
14.6
±1.5
[0.57]
CN4
Connector for
Remote ON/OFF (option)
12.5max
[0.49]
[0.75]
19
96
±0.5
[3.78]
129
[5.08]
11.2
±1.5
(potentiometer)
[0.44]
14
±1.5
[0.55]
¶
Tolerance :
±1
[±0.04]
[0.6]
¶
Weight : 600g max
¶
PCB Material/thickness : FR-4 / 1.6mm [0.06inches]
¶
Chassis material : Aluminum
¶
Cover material : Galvanizing steel
¶
Dimensions in mm, [ ]=inches
¶
Mounting torque : 0.49N
-
m max
¶
Screw tightening torque : M3.5 1.0N-m max
¶
Connect the input FG to safety earth ground.
15.3
±1.5
(LED)
4
[0.16]
[0.14]
[4.76]
121
3.5
[1.95]
49.5
97
B
12 18
±0.5
[0.47] [0.71]
48
[1.89]
70
±0.5
[2.76]
3-M3
Mounting hole
[0.83]
21
[0.14]
[1.12]
28.5
[0.83]
21
3.5
[1.61]
41
PJA-5

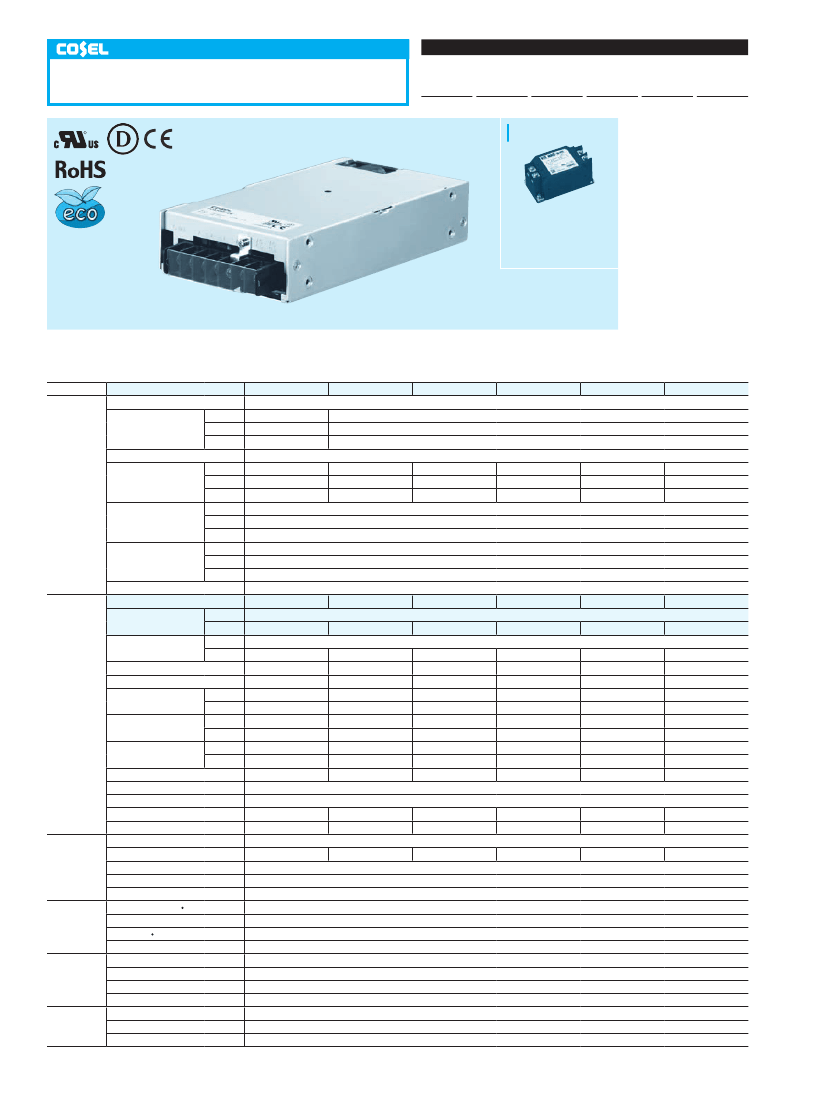

AC-DC Power Supplies Enclosed Type
Ordering information
PJA300F
PJ
1
2
A
3
300
4
F
5
-O
6
-O
R
Example recommended EMI/EMC filter
NAC-06-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*6
C : with Coating
G : Low leakage current
V : External potentiometer for
output voltage adjustment
R : Remote on/off
(Required external power source)
F4: Low speed fan
See 5.1 in Instruction Manual.
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
ACIN 100V
ACIN 115V
ACIN 230V
INPUT
ACIN 100V
POWER FACTOR
ACIN 115V
ACIN 230V
ACIN 100V
INRUSH CURRENT[A] ACIN 115V
ACIN 230V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 85-100V
CURRENT[A]
ACIN 100V-264V
ACIN 85-100V
WATTAGE[W]
ACIN 100V-264V
*3
LINE REGULATION[mV]
LOAD REGULATION[mV]
*3
0 to +50C
RIPPLE[mVp-p]
*1
-10 to 0C
OUTPUT
0 to +50C
RIPPLE NOISE[mVp-p]
*1
-10 to 0C
0 to +50C
TEMPERATURE REGULATION[mV]
-10 to +50C
*2
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
PROTECTION OVERVOLTAGE PROTECTION[V]
CIRCUIT AND OPERATING INDICATION
OTHERS
REMOTE SENSING
REMOTE ON/OFF
*9
INPUT-OUTPUT RC
INPUT-FG
ISOLATION
*9
OUTPUT RC-FG
*9
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*4
STORAGE TEMP.,HUMID.AND ALTITUDE
ENVIRONMENT
VIBRATION
IMPACT
AGENCY APPROVALS
SAFETY AND
NOISE
CONDUCTED NOISE
REGULATIONS HARMONIC ATTENUATOR
*8
EFFICIENCY[%]
ACIN 100V
ACIN 115V
ACIN 230V
PJA300F-5
PJA300F-12
PJA300F-15
PJA300F-24
PJA300F-36
AC85 - 264 1f (Output derating is required at AC85V - 100V. See 1.1 and 3.2 in Instruction Manual)
3.5typ (Io=100%) 3.9typ (Io=100%)
3.0typ (Io=100%) 3.3typ (Io=100%)
1.5typ (Io=100%) 1.7typ (Io=100%)
50 / 60 (47 - 63)
73typ (Io=100%)
79typ (Io=100%)
81typ (Io=100%)
82typ (Io=100%)
83typ (Io=100%)
74typ (Io=100%)
80typ (Io=100%)
82typ (Io=100%)
83typ (Io=100%)
83typ (Io=100%)
77typ (Io=100%)
82typ (Io=100%)
84typ (Io=100%)
86typ (Io=100%)
87typ (Io=100%)
0.99typ (Io=100%)
0.98typ (Io=100%)
0.95typ (Io=100%)
20typ (Io=100%) Ta=25C at cold start
20typ (Io=100%) Ta=25C at cold start
40typ (Io=100%) Ta=25C at cold start
0.75max (ACIN 240V, 60Hz, Io=100%, According to IEC62368-1 and DEN-AN)
5
12
15
24
36
Output derating is required at ACIN 100V or less (refer to instruction manual 3.2)
50
25
20
12.5
8.4
Output derating is required at ACIN 100V or less (refer to instruction manual 3.2)
250
300
300
300
302.4
20max
48max
60max
96max
144max
40max
100max
120max
150max
150max
80max
120max
120max
120max
150max
140max
160max
160max
160max
160max
120max
150max
150max
150max
200max
160max
180max
180max
180max
240max
50max
120max
150max
240max
360max
75max
180max
180max
290max
440max
20max
48max
60max
96max
144max
300typ (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
4.50 to 5.50
10.80 to 13.20
13.50 to 16.50
21.60 to 26.40
32.40 to 39.60
5.00 to 5.15
12.00 to 12.48
15.00 to 15.60
24.00 to 24.96
36.00 to 37.44
Works over 105% of rating and recovers automatically
5.75 to 7.00
13.80 to 16.80
17.25 to 21.00
27.60 to 33.60
41.40 to 50.40
LED (Green)
Not provided
Optional (Required external power source. Option -R)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)
-20 to +70C (Output derating is required), 20 - 90%RH (Non condensing), 3,000m (10,000 feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000 feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axes
196.1m/s
2
(20G), 11ms, once each X, Y and Z axes
UL62368-1, C-UL (CSA62368-1), EN62368-1 Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 class A
PJA300F-48
82typ (Io=100%)
83typ (Io=100%)
86typ (Io=100%)
48
6.3
302.4
192max
300max
150max
400max
200max
500max
480max
600max
192max
43.20 to 52.80
48.00 to 49.92
55.20 to 67.20
PJA-6
京公网安备 11010802033920号
EEWORLD
