Product Data Sheet
HOUR
UP
TO
Fire Protection
Meets Optional
L Requirements
3M
™

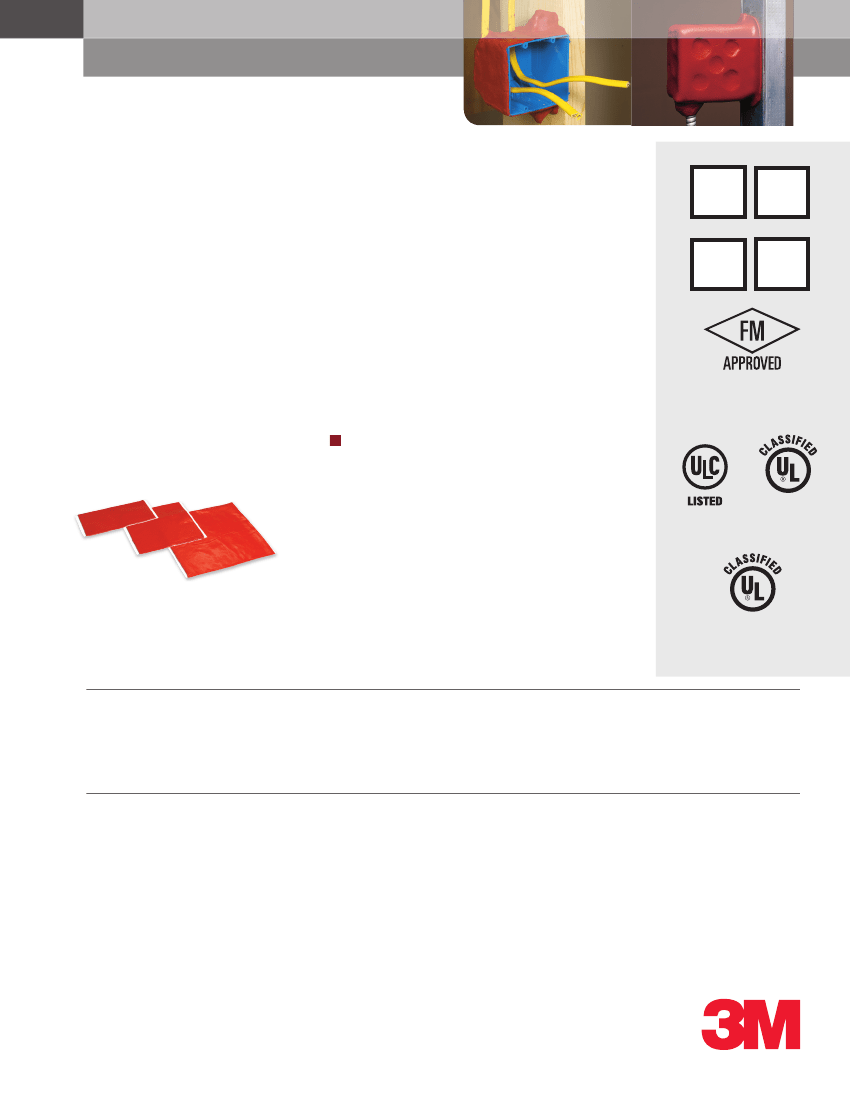

Fire Barrier Moldable Putty Pads MPP+ are a one-part, ready-to-use, intumescent wall-opening protective. When
properly applied to the back of electrical outlet boxes, 3M
™
Fire Barrier Moldable Putty Pads MPP+ help control the spread
of fire, smoke and noxious gases through fire-restive walls and partitions. Installed in accordance with the UL wall-opening
protective listing (UL Category CLIV), the product helps achieve up to 2-hour ratings in a variety of wall constructions.
3M
™
Fire Barrier Moldable Putty Pads MPP+ can effectively provide protection for back-to-back electrical boxes.
3M
™
Fire Barrier Moldable Putty Pads MPP+ are also used as a firestop material in through-penetration firestop systems.
3M
™
Fire Barrier Moldable Putty Pads MPP+ help to maintain a firestop penetration seal for up to 4 hours. 3M
™
Fire
Barrier Moldable Putty Pads MPP+ exhibit excellent adhesion to a full range of construction substrates and penetrants. The
pads are easily molded by hand (no mixing required). In addition to its fire-resistant properties, the 1/10th in. (2.54mm)
thick pads have airborne sound reduction characteristics which helps minimize sound transmission through assemblies
requiring an STC rating.
HOUR
UP
TO
Fire Protection
SUBJECT TO THE CONDITIONS OF APPROVAL
AS A WALL & FLOOR PENETRATION
FIRESTOP WHEN INSTALLED AS DESCRIBED
IN THE CURRENT EDITION OF THE FMRC
APROVAL GUIDE
Color:
Dark Red
• Excellent adhesion
• Re-enterable/repairable
• Halogen-free and solvent-free
• Excellent aging properties
• Low VOC
• Will not dry out or crumble
• Red color widely recognized as
a fire protective product
Product Features
• Firestop tested up to 4 hours in
accordance with ASTM E 814
(UL 1479) & CAN/ULC-S115
• Wall opening protective tested up to
2 hours in accordance with UL 263
• Provides draft and cold smoke seal
• Pliable and conformable—molds
easily into required shape
• Helps reduce noise transfer*
4 in. x 8 in. (101.6mm x 203.3mm),
7 in. x 7 in. (177.8mm x 177.8mm) and
9.5 in. x 9.5 in. (241.2mm x 241.3mm)
pad sizes available.
WALL OPENING PROTECTIVE
FILL, VOID OR CAVITY MATERIAL FIRE RESISTANCE
CLASSIFICATION SEE UL FIRE
MATERIALS
RESISTANCE DIRECTORY
90G9
90G9
Meets the intent of LEED
®
VOC regulations—helps reduce the quantity of indoor air
contaminants that may be odorous, irritating and harmful to the comfort and well-being
of the installers and occupants.
*Minimizes noise transfer—STC-Rating of 52 when tested in STC 53-rated wall assembly.
FILL, VOID, OR CAVITY
FOR USE IN THROUGH-PENETRATION
FIRESTOP SYSTEMS
SEE UL FIRE RESISTANCE DIRECTORY
90G9
4 in. x 8 in. (101.6mm x 203mm) 3M
™
Fire Barrier Moldable Putty Pads MPP+ are typically used as a wall opening
protective to meet building requirements, for protection of membrane penetrations made by listed steel or non-metallic electrical boxes. It is also used to seal gaps
between cables in multiple penetrations (including fiber optic inner duct) and to firestop cable bundles, insulated pipe, electrical conduit and metal pipe. Larger
sized pads, 7 in. x 7 in. and 9.5 in x 9.5 in. (177.8mm x 177.8mm and 241.2mm x 241.2mm) are widely used to firestop metallic and non-metallic electrical outlet
boxes up to 14 in. x 4.5 in. by 2-1/2 in. (355.6mm x 114.3mm x 63.5mm) deep. For larger applications, pads can be molded together by hand.
3M
™
Fire Barrier Moldable Putty Pads
MPP+ shall be a one component, ready-to-use, intumescent elastomer capable of
expanding a minimum of 3 times at 1000°F. The material shall be thixotropic and shall
be applicable to overhead, vertical and horizontal firestops. Under normal conditions,
3M
™
Fire Barrier Moldable Putty Pads MPP+ shall be noncorrosive to metal and
compatible with synthetic cable jackets. The putty shall be listed by independent test
agencies such as UL, Intertek or FM. 3M
™
Fire Barrier Moldable Putty Pads MPP+
shall be tested to and pass the criteria of ASTM E 814 (UL 1479) Standard Test Method
for Fire Tests of Penetration Firestop Systems and CAN/ULC S115 Standard Method of
Fire Tests of Firestop Systems. 3M
™
Fire Barrier Moldable Putty Pads MPP+ meets the
requirements of the IBC, NFPA 5000, NEC (NFPA 70), NFPA 101 and NCB (Canada)
Building Codes.
2. Applications
3. Specifications
Typically Specified MasterFormat (2004)
Section 07 84 00 – Firestopping
Related Sections
Section 07 84 16 – Annular Space Protection
Section 07 86 00 – Smoke Seals
Section 07 87 00 – Smoke Containment Barriers
Section 07 27 00 – Thermal and Moisture Protection Firestopping
Section 21 00 00 – Fire Suppression
Section 26 00 00 – Electrical
For technical support relating to 3M
™
Fire Protection Products and Systems, call: 1-800-328-1687
For more information on 3M
™
Fire Protection Products, visit: www.3M.com/firestop
STC
1. Product Description
WALL OPENING SOUND BARRIER
2
In STC 53-Rated
Wall Assembly
52
RATED
3M
™
Fire Barrier Moldable Putty Pads MPP+
FIRE BARRIER
SMOKE SEAL
4
L
4. Performance & Typical Physical Properties
Color:
Nominal Density:
Nominal Thickness:
Surface Burning
(ASTM E 84):
Heat Expansion:
Dark Red
10–12 lbs./gal. (1.2–1.45kg/L)
1/10 in. (2.54mm)
Flame Spread 0, Smoke Development 0
Begins at 350°F (177°C)
Significant at 400°F (204°C)
Free Expansion is Nominal 3 times
52 when tested on back-to-back
electrical boxes
< 250g/L
Dimensions:
4 in. x 8 in. x 1/10 in. (101.6mm x 203.2mm x 2.5mm)
Unit Volume:
2.52 in.
3
(41.4cm
3
)
Unit Weight:
2.7 oz (76g)
Dimensions:
7 in. x 7 in. x 1/10 in. (177.8mm x 177.8mm x 2.5mm)
Unit Volume:
4.63 in.
3
(76.0cm
3
)
Unit Weight:
4.1 oz (116g)
Dimensions:
9.5 in. x 9.5 in. x 1/10 in. (241.3mm x 241.3mm x 2.5mm)
Unit Volume:
6.1 in.
3
(139.8cm
3
)
Unit Weight:
7.6 oz (215g)
STC
(ASTM E 90 and ASTM E 413):
Tested in STC 53 rated wall assembly
VOC Less H
2
O and Exempt Solvents:
5. Packaging, Storage, Shelf Life
Packaging:
Storage:
Shelf Life:
Corrugated cardboard box with liner between individual pads.
3M
™
Fire Barrier Moldable Putty Pads MPP+ should be stored indoors in dry conditions.
3M
™
Fire Barrier Moldable Putty Pads MPP+ shelf life is indefinite in original unopened containers. Product will not dry or crumble in opened
containers. Normal stock and stock rotation practices are recommended.
Consult a 3M Authorized Fire Protection Products Distributor / Dealer or Sales Representative for
Applicable UL, Intertek or other third-party drawings and system details.
6. Installation Techniques
Preparatory Work:
Installation Details:
The surface of the electrical box, or opening and any penetrating items should be cleaned (i.e. free of dust, grease, oil, loose materials, rust or
other substances) to allow for the proper adhesion of the 3M
™
Fire Barrier Moldable Putty+ Pad. Ensure that the surface of the substrates are not
wet and are frost-free.
Electrical boxes must be firestopped under the following conditions: boxes larger than 16 sq. in. (103 sq. cm), if horizontal spacing between
boxes is less than 24 in. (609.6mm), when multiple boxes are located in one stud cavity or if the aggregate of all boxes exceeds 100 sq. in.
per 100 sq. ft. (645 sq. cm. per 9.29 sq. m) — refer to listed system details and applicable local building code requirements. For electrical box
installations, a minimum of 1/10 in. (2.5mm) thick putty application is required. 3M
™
Fire Barrier Moldable Putty Pads MPP+ are to be installed
to completely cover the exterior of the outlet box (except for the side against the stud). To firestop penetrations, install the applicable depth of
backing material (if required), remove the desired amount of putty from the pad, form (if necessary) and install as detailed within the listed
system. Make sure that putty is in complete contact with the substrate and penetrating item(s).
Note: Partial pads can be pieced together and the seams between partial pads should overlap a minimum of 1/8 in. with the seams
worked with the fingertips to create adhesion at the seam.
Limitations:
Over application (i.e., using excessive amount of material) of product to vertical surfaces may cause sagging, follow system details. Product is
not impaired by freezing but should be warmed to 32°F (0°C) before applying.
No maintenance is expected when installed in accordance with the applicable UL, Intertek, FM or other third-party listed system.
Once installed, if any section of the 3M
™
Fire Barrier Moldable Putty Pad MPP+ is damaged, the following procedure will apply: remove damaged putty, clean the
affected area and install the proper thickness of putty, ensuring it bonds to the substrate and adjacent putty (product from damaged area can be reused if it is free from
contaminants). Putty can be molded together at new/existing putty overlap.
7. Maintenance
8. Availability
™
3M
™
Fire Barrier Moldable Putty Pads MPP+ are available from 3M Authorized Fire Protection Products Distributors and Dealers.
3M Fire Barrier Moldable Putty Pads MPP+ are available in the following sizes: (10 pads/pack, 10 packs/case) 4 in. x 8 in. x 1/10 in. (101.6mm x 203.2mm x 2.5mm),
(20 pads/case) 7 in. x 7 in. 1/10 in. (177.8mm x 177.8mm x 2.5mm), (20 pads/case) 9.5 in. x 9.5 in. 1/10 in. (241.3mm x 241.3mm x 2.5mm); red-colored firestop material.
For additional technical and purchasing information regarding this and other 3M Fire Protection Products, please call: 1-800-328-1687 or visit www.3M.com/firestop.
9. Safe Handling Information
Consult product's Material Safety Data Sheet (MSDS) from country-of-use prior to handling and disposal.
3M Center, Building 225-3S-06
St. Paul, MN 55144-1000
800-328-1687
877-369-2923 (Fax)
www.3M.com/firestop
Industrial Adhesives
and Tapes Division
Important Notice to User:
Technical Information:
The technical information, recommendations and other statements contained in this document are based upon tests or experience that 3M believes are
reliable, but the accuracy or completeness of such information is not guaranteed.
Product Use:
Many factors beyond 3M’s control and uniquely within user’s knowledge and
control can affect the use and performance of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product,
user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user’s method of application.
Warranty
and Limited Remedy:
3M warrants that each 3M Fire Protection Product will be free from defects in material and manufacture for 90 days from the date of purchase from
3M’s authorized distributor. 3M MAKES NO OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. If a 3M product does not conform to this warranty, the sole and exclusive remedy is, at 3M’s option, replacement of the 3M product or refund of the
purchase price.
Limitation of Liability:
Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product, whether direct, indirect, special,
incidental or consequential, regardless of the legal theory asserted.
3M is a trademark of 3M Company. Used under license in Canada. LEED is a trademark of U.S. Green Building Council Non-Profit Corporation.
All other trademarks are the property of their respective owners.
Please Recycle. Printed in U.S.A. © 3M 2015. All rights reserved. Reference Number 98-0213-4620-4 RevB
