5-6610049-1 datasheet, PDF - EEWORLD Datasheet

5-6610049-1: DescriptionCONN MAGJACK 4PORT 100 BASE-T; CategoryThe connector; File Size391KB，2 Pages; ManufacturerTRP Connector (Bel Fuse); Environmental Compliance

Download Datasheet Parametric Compare View All

5-6610049-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6610049-1	-	-	View	Buy Now

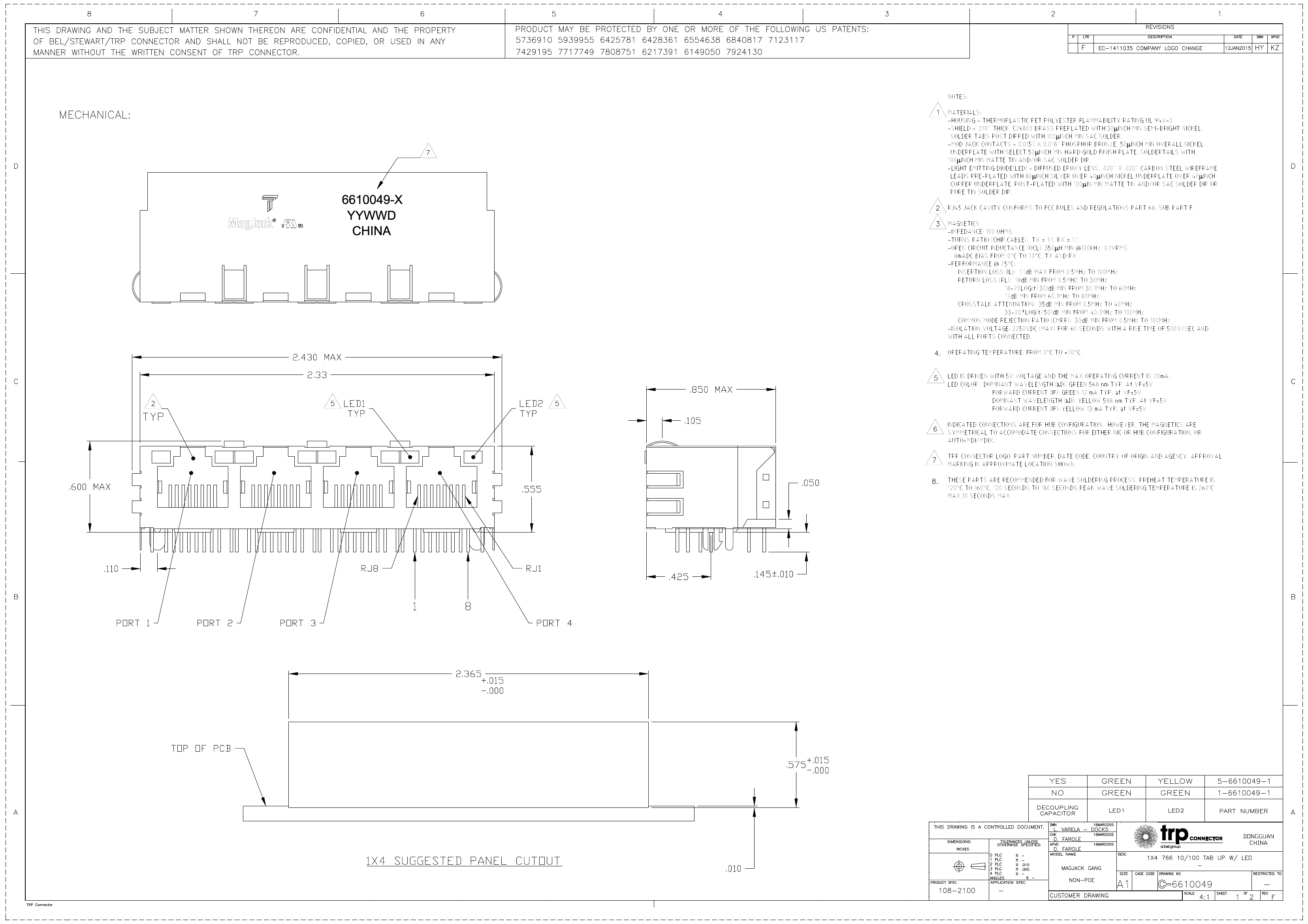

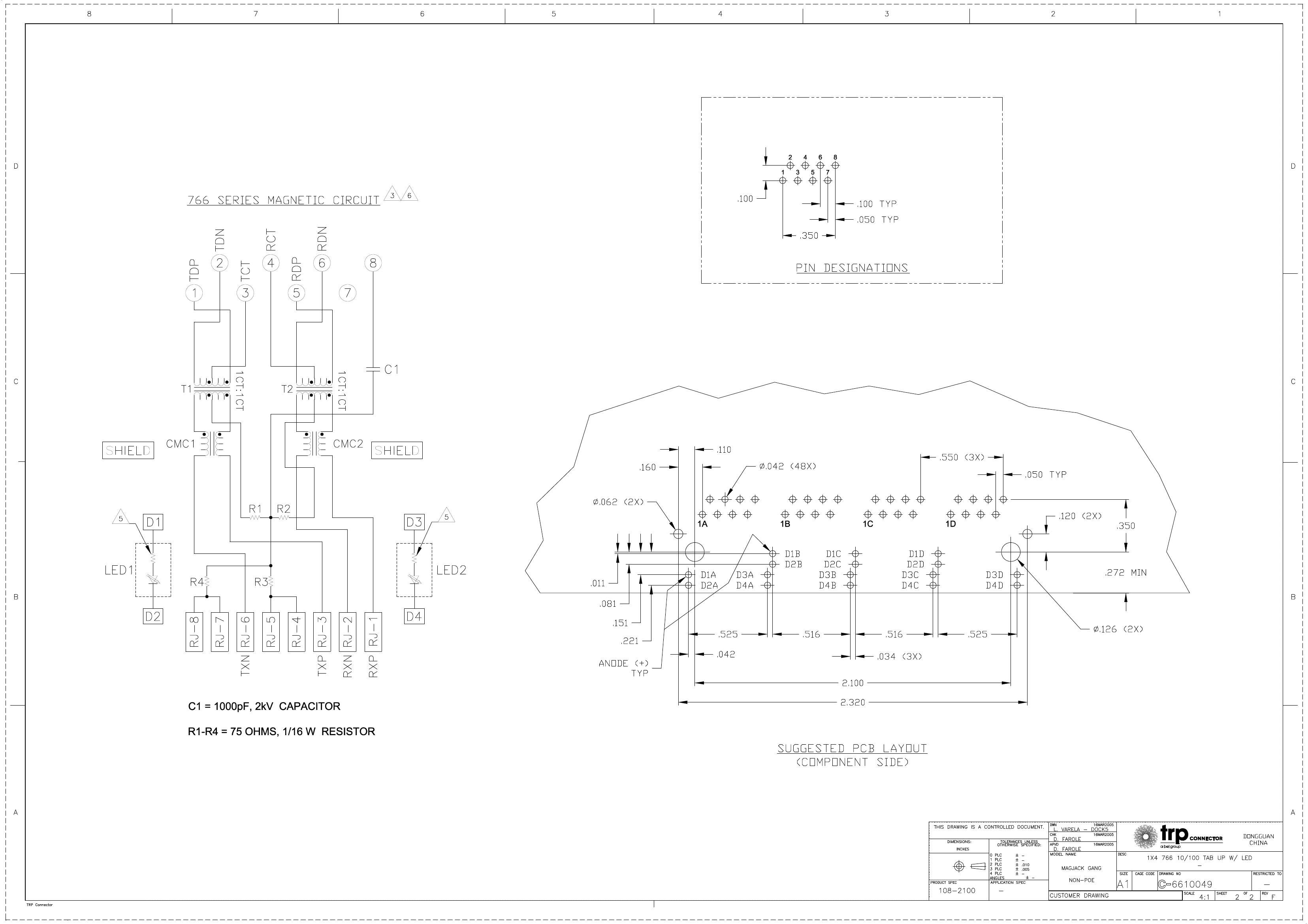

CONN MAGJACK 4PORT 100 BASE-T

Parameter Name	Attribute value
Connector type	RJ45
Number of ports	4
Number of rows	1
application	10/100 Base-T，AutoMDIX
Installation type	Through hole
towards	90° angle (right angle)
Termination	welding
board height	0.555"（14.10mm）
LED color	green-yellow
Number of cores per jack	4
shield	Shielded, EMI refers
characteristic	Board lock, decoupling capacitor
tab direction	superior
Contact material	Phosphor bronze
Contact plating	gold
Operating temperature	0°C ~ 70°C
Contact plating thickness	50.0µin（1.27µm）
shielding material	brass
Shell material	Polyethylene terephthalate (PET), polyester

	5-6610049-1	1-6610049-1
Description	CONN MAGJACK 4PORT 100 BASE-T	CONN MAGJACK 4PORT 100 BASE-T
Connector type	RJ45	RJ45
Number of ports	4	4
Number of rows	1	1
application	10/100 Base-T，AutoMDIX	10/100 Base-T，AutoMDIX
Installation type	Through hole	Through hole
towards	90° angle (right angle)	90° angle (right angle)
Termination	welding	welding
board height	0.555"（14.10mm）	0.555"（14.10mm）
LED color	green-yellow	green - green
Number of cores per jack	4	4
shield	Shielded, EMI refers	Shielded, EMI refers
characteristic	Board lock, decoupling capacitor	plate lock
tab direction	superior	superior
Contact material	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold
Operating temperature	0°C ~ 70°C	0°C ~ 70°C
Contact plating thickness	50.0µin（1.27µm）	50.0µin（1.27µm）
shielding material	brass	brass
Shell material	Polyethylene terephthalate (PET), polyester	Polyethylene terephthalate (PET), polyester
