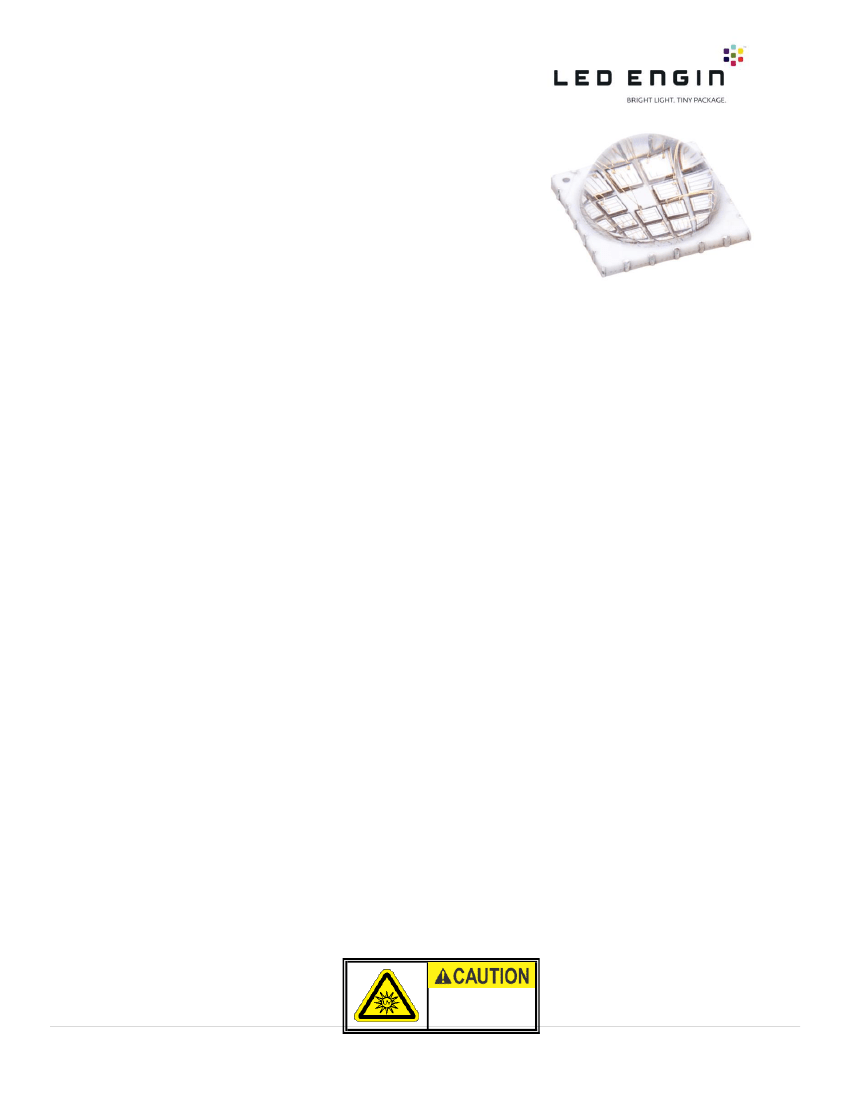

High Radiant Flux Density
400nm Violet LED Emitter
LZP-00UA00
Key Features
Ultra-bright, compact 24-die, 400nm Violet LED
Very high Radiant Flux density
Small high density foot print, 12.0mm x 12.0mm package
Surface mount ceramic package with integrated glass lens
Exceptionally low Thermal Resistance (0.6°C/W)
Electrically neutral thermal slug
Autoclave complaint (JEDEC JESD22-A102-C)
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Copper core MCPCB option with emitter thermal slug directly soldered to the copper core
Typical Applications
Curing
Sterilization
Medical
Currency Verification
Fluorescence Microscopy
Inspection of dyes, rodent and animal contamination,
Leak detection
Forensics
Description
The LZP-series emitter is rated for 90W power handling in an ultra compact package. With a small 12.0mm x
12.0mm footprint, this package provides exceptional radiant flux density. The patented design has unparalleled
thermal and optical performance. The high quality materials used in the package are chosen to optimize Radiant
Flux and minimize stresses which results in monumental reliability and radiant flux maintenance. The robust
product design thrives in outdoor applications with high ambient temperatures and high humidity.
UV RADIATION
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
Avoid exposure to the beam
Wear protective eyewear
LZP-00UA00 (6.3 - 7/24/17)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Part number options
Base part number
Part number
LZP-00UA00-xxxx
LZP-D0UA00-xxxx
Description
LZP emitter
LZP emitter on 5 channel 4x6+1 Star MCPCB
Bin kit option codes
Single wavelength bin (5nm range)
Kit number suffix
00U4
00U5
00U6
00U7
00U8
Min flux Bin
Z
Z
Z
Z
Z
Color Bin Range
U4
U5
U6
U7
U8
Description
Z minimum flux; wavelength U4 bin only
Z minimum flux; wavelength U5 bin only
Z minimum flux; wavelength U6 bin only
Z minimum flux; wavelength U7 bin only
Z minimum flux; wavelength U8 bin only
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
2
LZP-00UA00 (6.3 - 7/24/17)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Radiant Flux Bins
Table 1:
Bin Code
Minimum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(W)
15.0
20.0
Maximum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(W)
20.0
25.0
Z
C2
Notes for Table 1:
1.
Radiant flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Future products will have even higher levels of radiant flux performance. Contact LED Engin Sales for updated information.
Peak Wavelength Bins
Table 2:
Bin Code
Minimum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
385
390
395
400
405
Maximum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
390
395
400
405
410
U4
U5
U6
U7
U8
Notes for Table 2:
1.
LED Engin maintains a tolerance of ± 2.0nm on peak wavelength measurements.
Forward Voltage Bins
Table 3:
Bin Code
Minimum
Forward Voltage (V
F
/Ch)
@ I
F
= 700mA
[1,2]
(V)
20.64
Maximum
Forward Voltage (V
F
/Ch)
@ I
F
= 700mA
[1,2]
(V)
23.52
0
Notes for Table 3:
1.
LED Engin maintains a tolerance of ± 0.24V for forward voltage measurements.
2.
Forward Voltage is binned with 6 LED dies connected in series. The LED is configured with 4 Channels of 6 dies in series each.
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
3
LZP-00UA00 (6.3 - 7/24/17)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Absolute Maximum Ratings
Table 4:
Parameter
DC Forward Current
Peak Pulsed Forward Current
[2]
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
[4]
Allowable Reflow Cycles
ESD Sensitivity
[5]
[1]
Symbol
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
1000 /Channel
1000 /Channel
See Note 3
-40 ~ +150
125
260
6
> 2,000 V HBM
Class 2B JESD22-A114-D
Unit
mA
mA
V
°C
°C
°C
Notes for Table 4:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2.
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
Solder conditions per JEDEC 020D. See Reflow Soldering Profile Figure 3.
5.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZP-00UA00
in an electrostatic protected area (EPA). An EPA may be adequately protected by ESD controls as outlined in
ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 5:
Typical
Parameter
Radiant Flux (@ I
F
= 700mA)
Radiant Flux (@ I
F
= 1000mA)
Peak Wavelength
[1]
Viewing Angle
[2]
Symbol
Φ
Φ
λ
P
2Θ
1/2
Θ
0.9V
385-390nm
16.20
22.60
385
390-400nm
19.30
27.00
395
115
135
400-410nm
21.50
30.1
405
Unit
W
W
nm
Degrees
Degrees
Total Included Angle
[3]
Notes for Table 5:
1.
When operating the VIOLET LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
2.
Viewing Angle is the off axis angle from emitter centerline where the Radiant intensity is ½ of the peak value.
3.
Total Included Angle is the total angle that includes 90% of the total Radiant flux.
Electrical Characteristics @ T
C
= 25°C
Table 6:
Parameter
Forward Voltage (@ I
F
= 700mA)
[1]
Temperature Coefficient
of Forward Voltage
[1]
Thermal Resistance
(Junction to Case)
Symbol
V
F
ΔV
F
/ΔT
J
RΘ
J-C
Typical
22.0 /Channel
-14.2
0.6
Unit
V
mV/°C
°C/W
Notes for Table 6:
1.
Forward Voltage is measured for a single string of 6 dies connected in series. The LED is configured with 4 Channels of 6 dies in series each.
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
4
LZP-00UA00 (6.3 - 7/24/17)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
IPC/JEDEC Moisture Sensitivity Level
Table 7 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Soak Requirements
Floor Life
Level
1
Time
Unlimited
Conditions
≤ 30°C/
85% RH
168
+5/-0
Standard
Time (hrs)
Conditions
85°C/
85% RH
Accelerated
Time (hrs)
n/a
Conditions
n/a
Notes for Table 7:
1.
The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time (MET) between bake and bag and
includes the maximum time allowed out of the bag at the distributor’s facility.
Average Radiant Flux Maintenance Projections
Lumen maintenance generally describes the ability of an emitter to retain its output over time. The useful lifetime
for power LEDs is also defined as Radiant Flux Maintenance, with the percentage of the original light output
remaining at a defined time period.
Based on long-term WHTOL testing, LED Engin projects that the LZ Series will deliver, on average, 70% Radiant Flux
Maintenance (RP70%) at 20,000 hours of operation at a forward current of 700 mA per die. This projection is
based on constant current operation with junction temperature maintained at or below 80°C.
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
5
LZP-00UA00 (6.3 - 7/24/17)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
