Datasheet> All Categories > Microcontrollers and processors> ICS5300-3V44

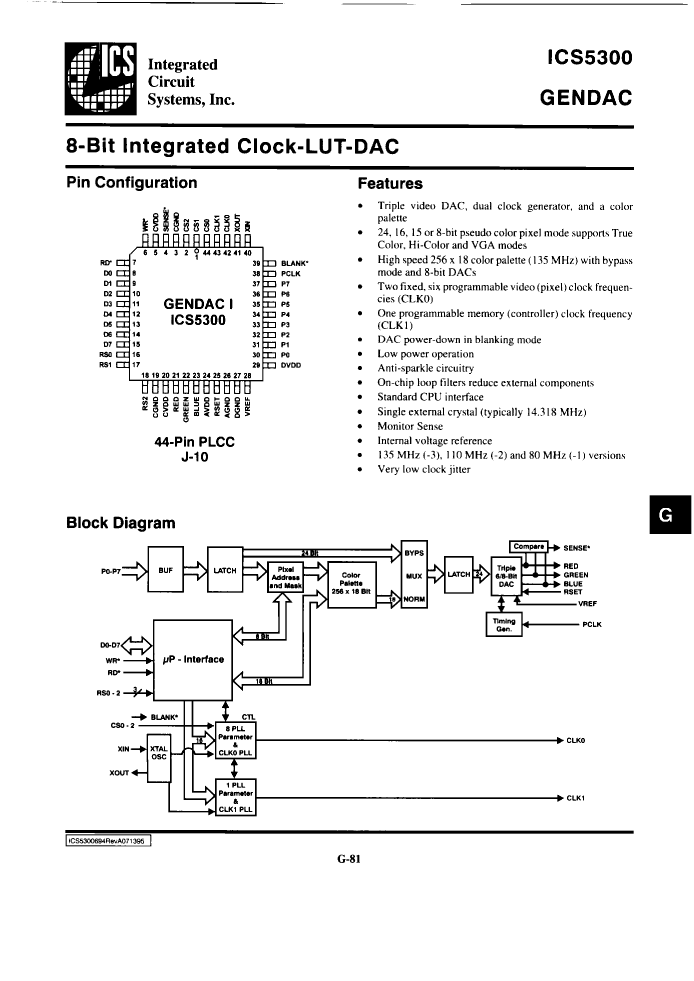

Preview

ICS5300-3V44: DescriptionPalette DAC, MOS, PQCC44, PLASTIC, LCC-44; CategoryMicrocontrollers and processors; File Size27KB，1 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

ICS5300-3V44 Overview

Palette DAC, MOS, PQCC44, PLASTIC, LCC-44

ICS5300-3V44 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	compliant
Is Samacsys	N
Address bus width	3
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.51 mm
Number of terminals	44
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.1148 mm
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC
Base Number Matches	1

Preview

Download Datasheet

View All

ICS5300-3V44 Related Products

	ICS5300-3V44	ICS5300-3V44-LF	ICS5300-2V44	ICS5300-2V44-LF	ICS5300-1V44-LF
Description	Palette DAC, MOS, PQCC44, PLASTIC, LCC-44	Palette DAC, MOS, PQCC44, PLASTIC, LCC-44	Palette DAC, MOS, PQCC44, PLASTIC, LCC-44	Palette DAC, MOS, PQCC44, PLASTIC, LCC-44	Palette DAC, MOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	LCC	LCC	LCC	LCC	LCC
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	44	44	44	44	44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Address bus width	3	3	3	3	3
External data bus width	8	8	8	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e3	e0	e3	e3
length	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm
Number of terminals	44	44	44	44	44
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.1148 mm	4.1148 mm	4.1148 mm	4.1148 mm	4.1148 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	MOS	MOS	MOS	MOS	MOS
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30	NOT SPECIFIED	30	30
width	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
