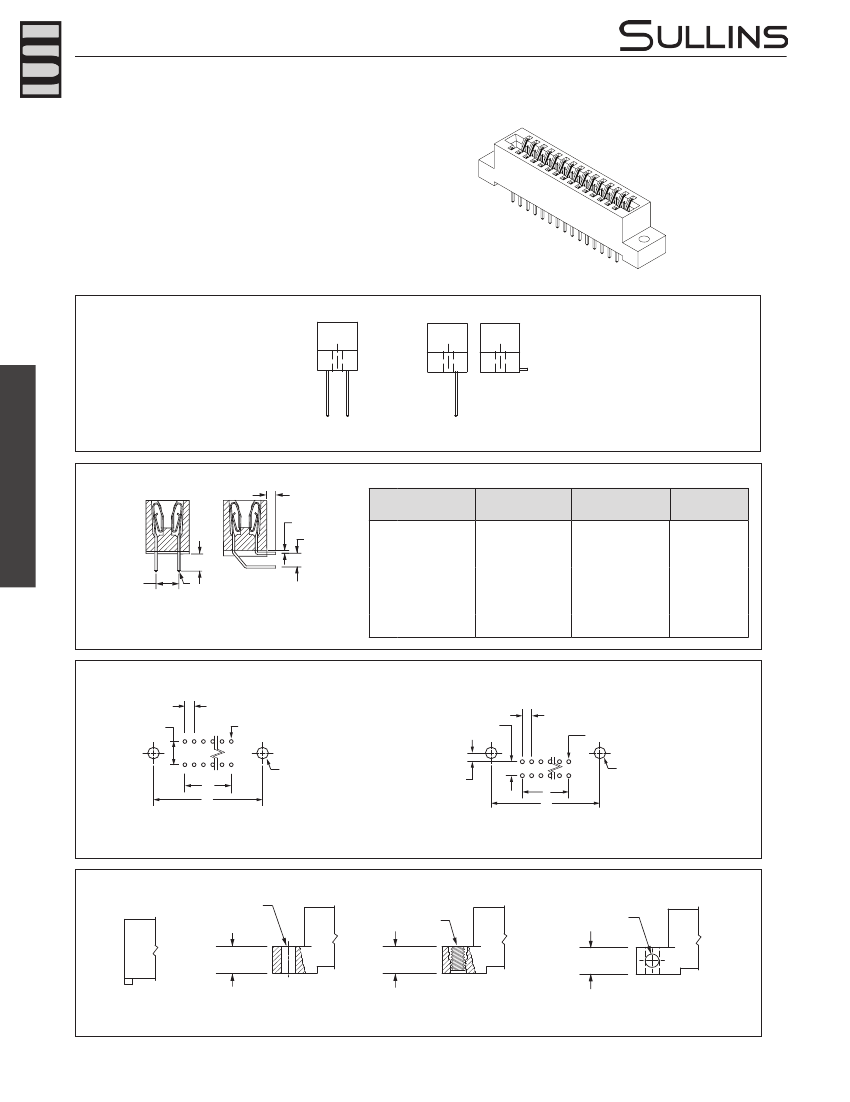

Female Card Edge
.125” [3.18 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
Dip Solder/Wire Wrap/Right Angle for .093” [2.36 mm] or .125” [3.18 mm] Mating PCB
SPECIFICATIONS
• Accommodates .093” ± .008” [2.36 mm 0.20 mm] PC board
or .125” ± .008” [3.18 mm ± 0.20 mm] mating PCB
• PBT, PPS or PA9T insulator
• Molded-in key available
• 3 Amps current rating for one contact energized
• 30 milli Ohms maximum at rated current
• UL Flammability Rating: 94V-0
READOUT
Female Card Edge
DUAL (D)
HALF LOADED (H)
TERMINATION TYPE
L
.030” [0.76]
.150” [3.81]
L
.250” [6.35]
K
LOOP
BELLOWS
(RS, RM)
RIGHT ANGLE
DIP SOLDER
(TA, TB, TM)
TERMINATION TYPE
RS
DIP SOLDER
RM
WIRE WRAP
TA
RIGHT ANGLE
TB
RIGHT ANGLE
TM
RIGHT ANGLE
POST CROSS
SECTION (K)
.025ʺ [0.64] SQ.
.025ʺ [0.64] SQ.
.025ʺ [0.64] SQ.
.025ʺ [0.64] SQ.
.025ʺ [0.64] SQ.
POST LENGTH
L ± .025”ʺ [0.64]
.190ʺ [4.83]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
FITS MIN.
HOLE SIZE
.040ʺ [1.02]
.040ʺ [1.02]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
PCB LAYOUT
.125” [3.18] TYP.
.250” [6.35]
Ø .040” [1.02]
2X Ø .125” [3.18]
FOR (D) OR (T)
MOUNTING
COMPONENT SIDE
.150” [3.81]
.125” [3.18] TYP.
Ø .043” [1.09]
2X Ø .125” [3.18]
FOR (Z) MOUNTING
A
D
.095” [2.41]
A
D
STRAIGHT PIN TERMINATIONS
(RS, RM)
RIGHT ANGLE TERMINATIONS
(TA, TB, TM)
MOUNTING STYLE
Ø.125” [3.18]
#4-40
.250” [6.35]
.250” [6.35]
Ø.125” [3.18]
.250” [6.35]
NO MOUNTING EARS
(N)
FLUSH MOUNTING
(D)
FLUSH MOUNTING WITH
THREADED INSERT
(T)
FLUSH MOUNTING WITH SIDE HOLES
(Z)
66
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Female Card Edge
.125” [3.18 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
Dip Solder/Wire Wrap/Right Angle for .093” [2.36 mm] or .125” [3.18 mm] Mating PCB
PART NUMBER OPTIONS
MATERIALS (INSULATOR/CONTACT)
E =
PBT/Phosphor Bronze(Standard)
R
=
PPS/Phosphor Bronze
G
=
PA9T/Phosphor Bronze
H =
PBT & Beryllium Copper
A =
PPS & Beryllium Copper
J =
PA9T & Beryllium Copper
(Consult factory for other materials.)
Refer to Page 7 for Operating/Processing Temperatures
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
E B A 50 D RM D - S273
MODIFICATION CODE
(Consult Factory)
-S273
=
FOR .093” ± .008” [2.36 mm ± 0.20 mm]
THICK MATING PCB
-S664
=
FOR .125” ± .008” [3.18 mm ± 0.20 mm]
THICK MATING PCB
MOUNTING STYLE (Opposite Page)
N =
No Mounting
D =
Flush Mounting
T
=
Flush Mounting With Threaded Inserts
Z =
Flush Mounting With Side Holes
TERMINATION TYPE (Opposite Page)
RS
=
.025” [0.64 mm] Square Dip Solder
RM
=
.025” [0.64 mm] Square Wire Wrap
TA, TB, TM
=
.025” [0.64 mm] Square Right Angle
READOUT (Opposite Page)
D =
Dual
H =
Half Loaded
NUMBER OF CONTACT POSITIONS
See Chart Below
B
C
G
Y
=
=
=
=
S
=
M =
E =
Contact Surface
.000010” Gold
.000030” Gold
.000010” Gold
.000030” Gold
Contact Surface
.000010” Gold
.000030” Gold
.000100” Pure Tin, Matte
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
.000100” Pure Tin, Matte
Female Card Edge
CONTACT CENTERS
A =
.125” [3.18 mm]
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
REFER TO MOUNTING STYLE
.297 [7.54] INSERTION DEPTH
C
.360
[9.14]
.610
[15.49]
A
B
D
C
.060
[1.52]
.470 [11.94]
.125 [3.18] TYP.
F
REFER TO
TERMINATION TYPE,
SEE OPPOSITE PAGE
Tolerances on non-critical dimensions may very slightly due to shrinkage differential per insulator material; Consult factory.
POSITIONS/
CONTACTS
06/12*
08/16*
10/20*
14/28*
15/30*
18/36*
22/44*
24/48*
25/50
28/56*
30/60
31/62*
32/64
35/70*
36/72
40/80*
43/86*
44/88*
49/98*
50/100
INCHES
A±.008
0.625
0.875
1.125
1.625
1.750
2.125
2.625
2.875
3.000
3.375
3.625
3.750
3.875
4.250
4.375
4.875
5.250
5.375
6.000
6.125
MILLIMETERS
E±.020
1.555
1.805
2.055
2.555
2.680
3.055
3.555
3.805
3.930
4.305
4.555
4.680
4.805
5.180
5.305
5.805
6.180
6.305
6.930
7.055
B±.008
0.875
1.125
1.375
1.875
2.000
2.375
2.875
3.125
3.250
3.625
3.875
4.000
4.125
4.500
4.625
5.125
5.500
5.625
6.250
6.375
C±.015
1.035
1.285
1.535
2.035
2.160
2.535
3.035
3.285
3.410
3.785
4.035
4.160
4.285
4.660
4.785
5.285
5.660
5.785
6.410
6.535
D±.010
1.295
1.545
1.795
2.295
2.420
2.795
3.295
3.545
3.670
4.045
4.295
4.420
4.545
4.920
5.045
5.545
5.920
6.045
6.670
6.795
F±.015
0.915
1.165
1.415
1.915
2.040
2.415
2.915
3.165
3.290
3.665
3.915
4.040
4.165
4.540
4.665
5.165
5.540
5.665
6.290
6.415
A±0.20
15.88
22.23
28.58
41.28
44.45
53.98
66.68
73.03
76.20
85.73
92.08
95.25
98.43
107.95
111.13
123.83
133.35
136.53
152.40
155.58
B±0.20
22.23
28.58
34.93
47.63
50.80
60.33
73.03
79.38
82.55
92.08
98.43
101.60
104.78
114.30
117.48
130.18
139.70
142.88
158.75
161.93
C±0.38
26.29
32.64
38.99
51.69
54.86
64.39
77.09
83.44
86.61
96.14
102.49
105.66
108.84
118.36
121.54
134.24
143.76
146.94
162.81
165.99
D±0.25
32.89
39.24
45.59
58.29
61.47
70.99
83.69
90.04
93.22
102.74
109.09
112.27
115.44
124.97
128.14
140.84
150.37
153.54
169.42
172.59
E±0.51
39.50
45.85
52.20
64.90
68.07
77.60
90.30
96.65
99.82
109.35
115.70
118.87
122.05
131.57
134.75
147.45
156.97
160.15
176.02
179.20
F±0.38
23.24
29.59
35.94
48.64
51.82
61.34
74.04
80.39
83.57
93.09
99.44
102.62
105.79
115.32
118.49
131.19
140.72
143.89
159.77
162.94
* Consult factory for availability.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
67
