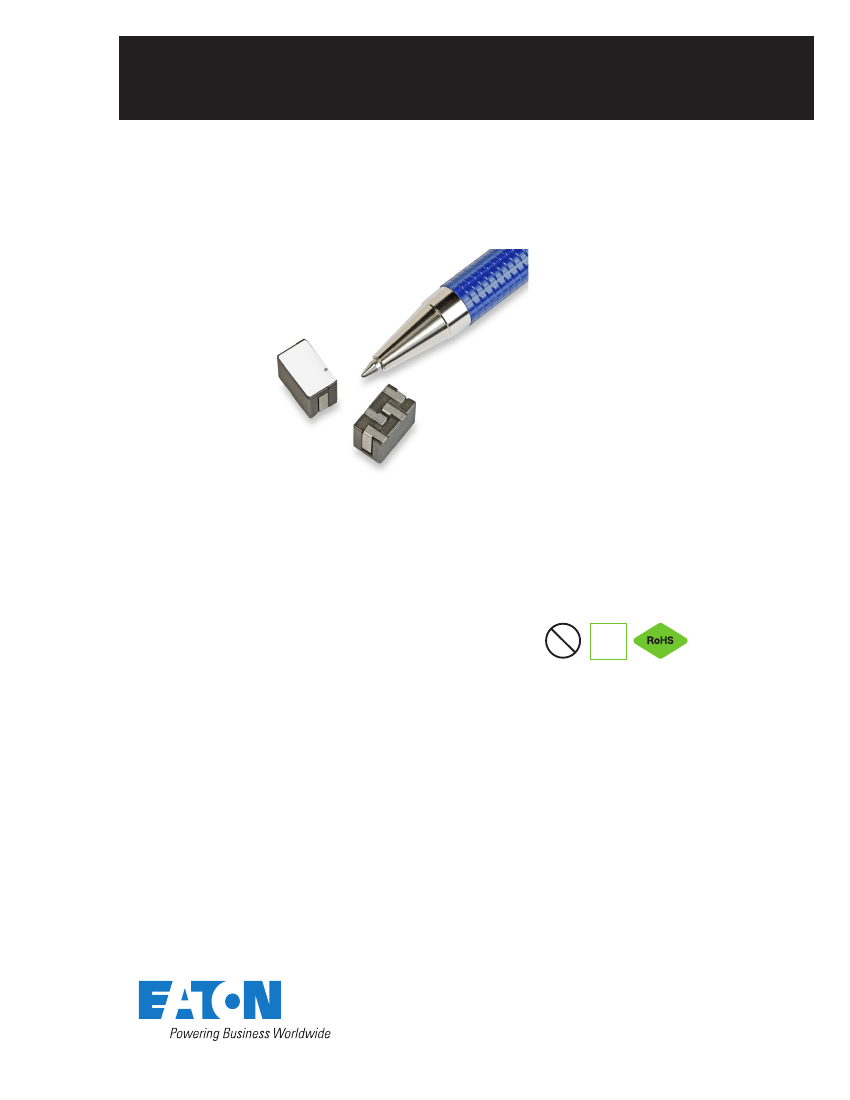

Technical Data
10578
Effective December 2016
CL0608
Multi-phase power inductors
Product specifications
Inductor
Phases
OCL
1
(nH) ±20%
FLL
2
(nH) minimum
I
sat
1
2
(A)
DCR (mΩ)
±10%
@ 20 °C
SCL
3
(nH) ±20%
I
sat
2
4
(A)
Part Number
5
CL0608- 2- 100TR-R
2
380
300
15
0.89
100
38
1. Open Circuit Inductance (OCL) Test Parameters: 1.0 MHz, 0.1 V
rms
, 0.0 Adc, +25 °C
2. Full Load Inductance (FLL) Test Parameters: 1.0 MHz, 0.1 V
rms
, I
sat
1, +25 °C
3. Short Circuit Inductance (SCL) Test Parameters: 1.0 MHz, 0.1 V
rms
, 0.0 Adc, +25 °C
CL0608-2-100TR-R short (1 & 4), measure (2 & 3), and divide by 2.
4. I
sat
2: Peak current where SCL drops approximately 20% @ +25 °C
8. Part Number Definition: CL0608-x-100TR-R
CL0608 = Product code and size
x = Number of phases
100 = Inductance value per phase in nH
TR = Tape and reel packaging
-R suffix = RoHS compliant
Note: This device is licensed for use only when incorporated within a voltage regulator
employing power regulating devices manufactured by Maxim Integrated Devices, Inc.
No license is granted expressly or by implication to use this device with power
regulating devices manufactured by any company other than Maxim.

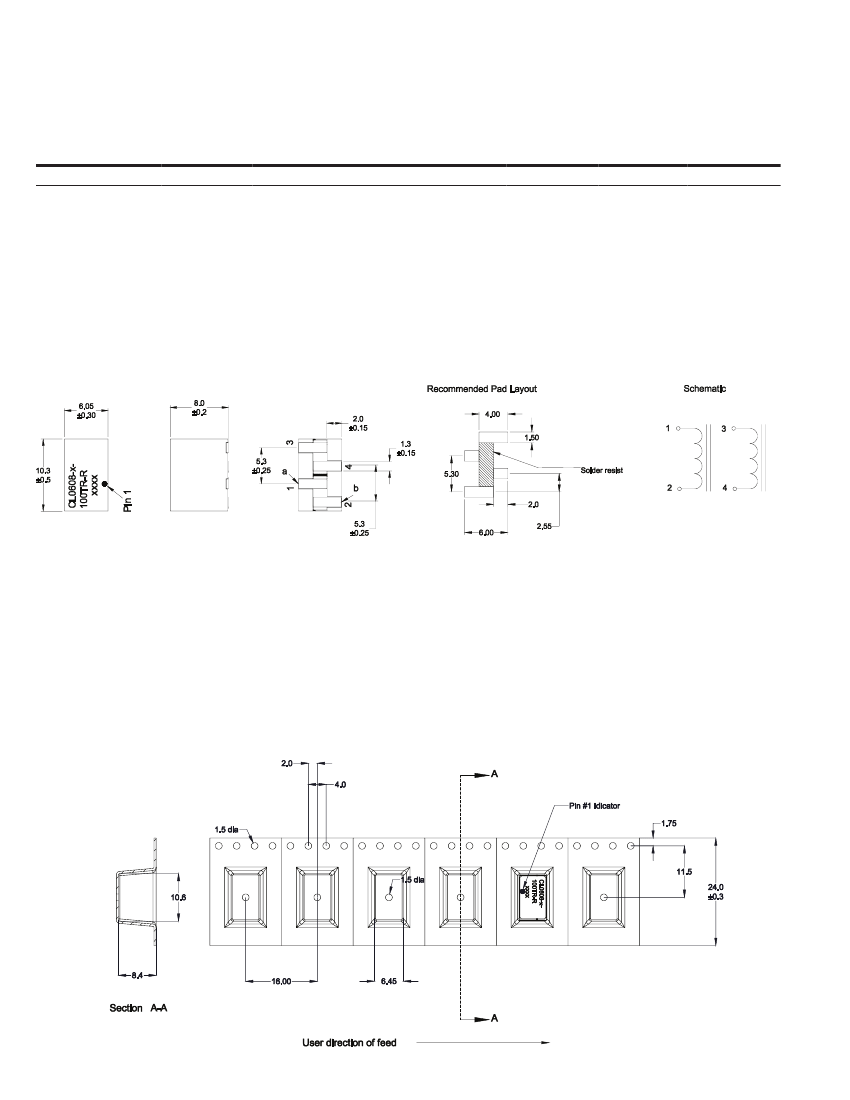

Dimensions (mm)
Part marking: CL0608-x-100TR-R (x = number of phases), xxxx = lot code
Tolerances are ±0.25 millimeters unless stated otherwise
All soldering surfaces to be coplanar within 0.13 millimeters
PCB tolerances are ±0.1 millimeters unless stated otherwise
DCR measured from point “a” to point “b”
Do not route traces or vias underneath the inductor
Packaging information (mm)
Supplied in tape and reel packaging , 500 parts per 13” diameter reel
Drawing not to scale
2
www.eaton.com/electronics
CL0608
Multi-phase power inductors
Inductance characteristics – SCL vs. current
CL0608-2-100TR-R
120
Technical Data
10578
Effective December 2016
100
80
SCL (nH)
60
40
+25 °
C
+105 °
C
20
+125 °
C
0
0
5
10
15
20
I
dc
(A)
25
30
35
40
45
50
Inductance characteristics – OCL vs. current
CL0608-2-100TR-R
450
400
350
300
OCL (nH)
250
200
150
+25 °
C
100
50
0
+105 °
C
+125 °
C
0
2
4
6
8
10
I
dc
(A)
12
14
16
18
20
22
24
www.eaton.com/electronics
3
Technical Data
10578
Effective December 2016
CL0608
Multi-phase power inductors
Solder reflow profile
T
P
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
T
L
Preheat
A
t
t
P
T
C
-5°C
Table 1 - Standard SnPb Solder (Tc)
Package
Thickness
Volume
mm
3
<350
Volume
mm
3
≥350
<2.5mm)
≥2.5mm
T
smax
235 °C
220 °C
220 °C
220 °C
Temperature
Table 2 - Lead (Pb) Free Solder (Tc)
T
smin
t
s
Package
Thickness
Volume
mm
3
<350
Volume
mm
3
350 - 2000
Volume
mm
3
>2000
<1.6mm
1.6 – 2.5mm
>2.5mm
25°C
Time 25°C to Peak
260 °C
260 °C
250 °C
260 °C
250 °C
245 °C
260 °C
245 °C
245 °C
Time
Reference JDEC J-STD-020
Profile Feature
Standard SnPb Solder
Lead (Pb) Free Solder
Preheat and Soak
• Temperature min. (Tsmin)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
100 °C
150 °C
60-120 Seconds
3 °C/ Second Max.
183°C
60-150 Seconds
Table 1
20 Seconds**
6 °C/ Second Max.
6 Minutes Max.
150 °C
200 °C
60-120 Seconds
3 °C/ Second Max.
217°C
60-150 Seconds
Table 2
30 Seconds**
6 °C/ Second Max.
8 Minutes Max.
Average ramp up rate Tsmax to Tp
Liquidous temperature (T
l
)
Time at liquidous (tL)
Peak package body temperature (TP)*
Time (tp)** within 5 °C of the specified classification temperature (Tc)
Average ramp-down rate (Tp to Tsmax)
Time 25 °C to Peak Temperature
* Tolerance for peak profile temperature (Tp) is defined as a supplier minimum and a user maximum.
** Tolerance for time at peak profile temperature (tp) is defined as a supplier minimum and a user maximum.
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
