IBM37RGB640CB22 datasheet, PDF

IBM37RGB640CB22: DescriptionPalette DAC, 1600 X 1280 Pixels, CMOS, PBGA303, CBGA-304; CategoryMicrocontrollers and processors; File Size151KB，7 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

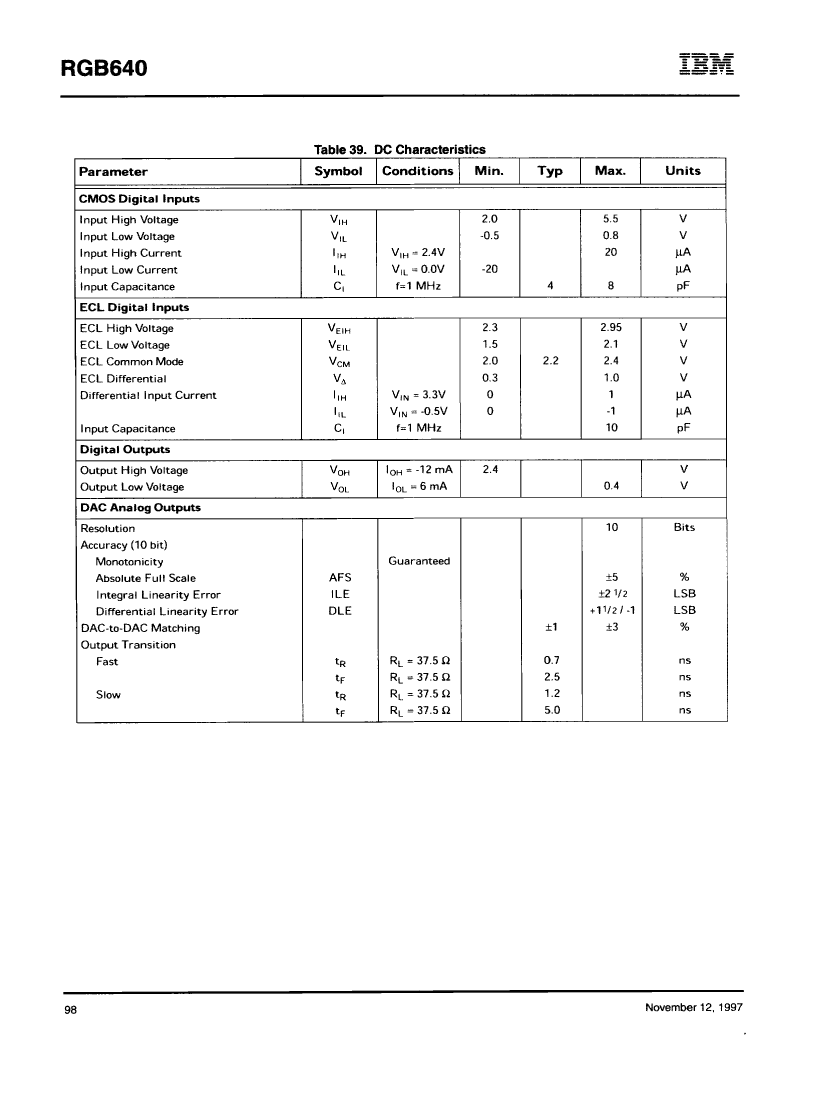

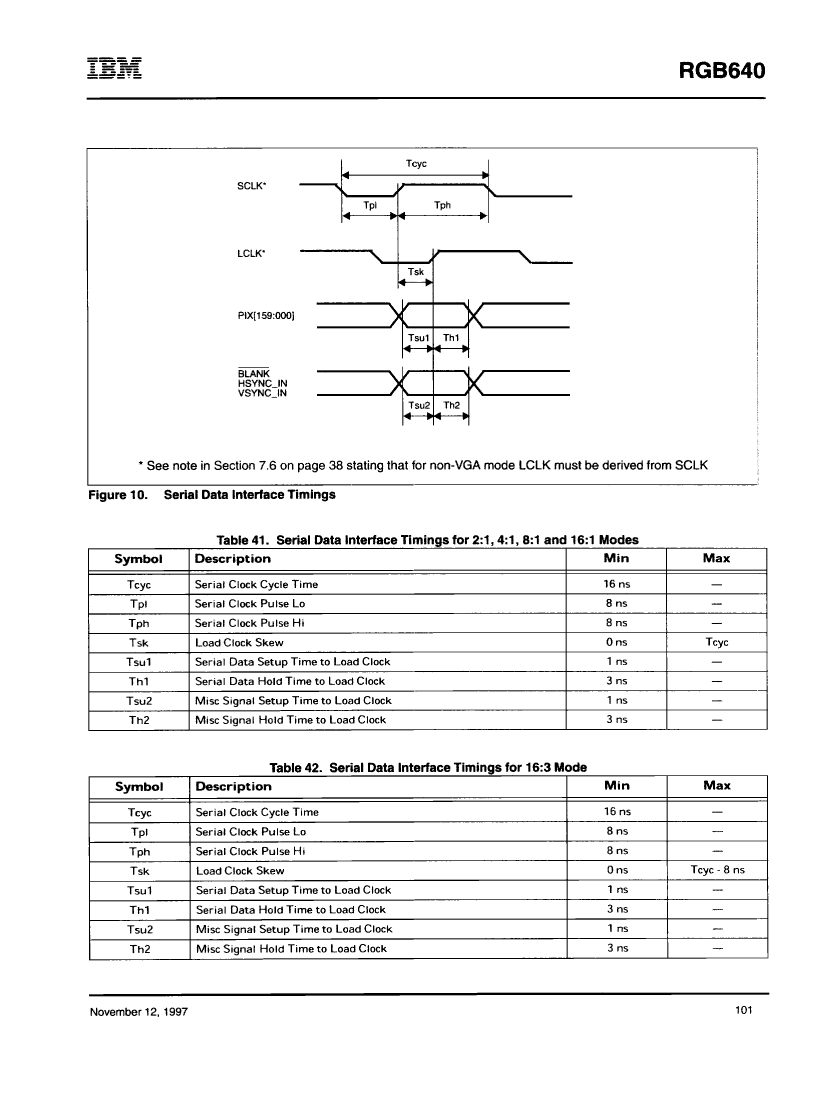

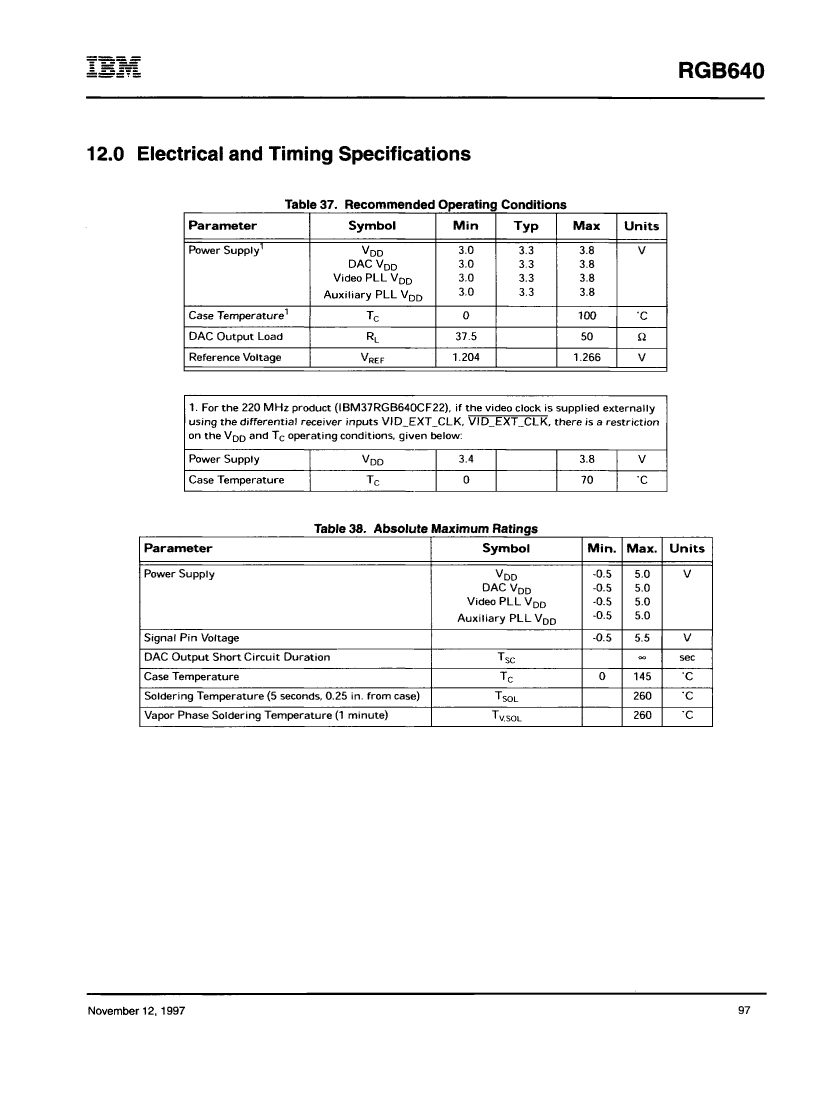

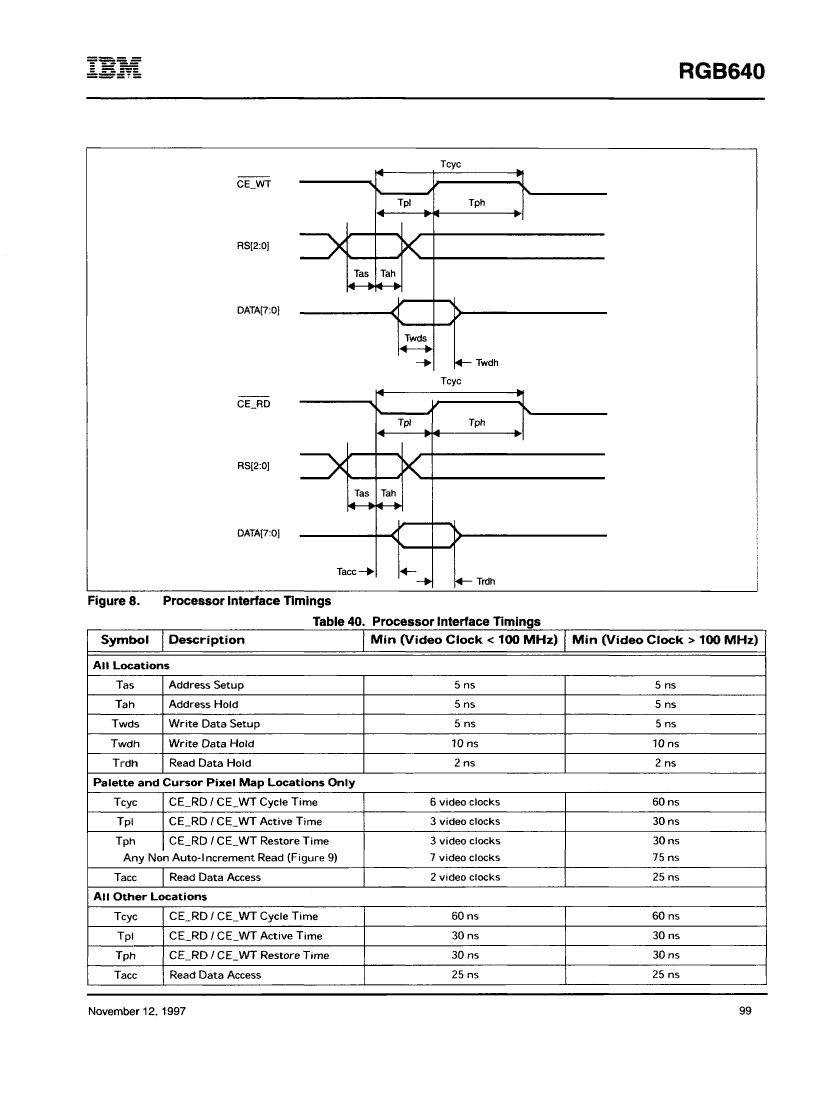

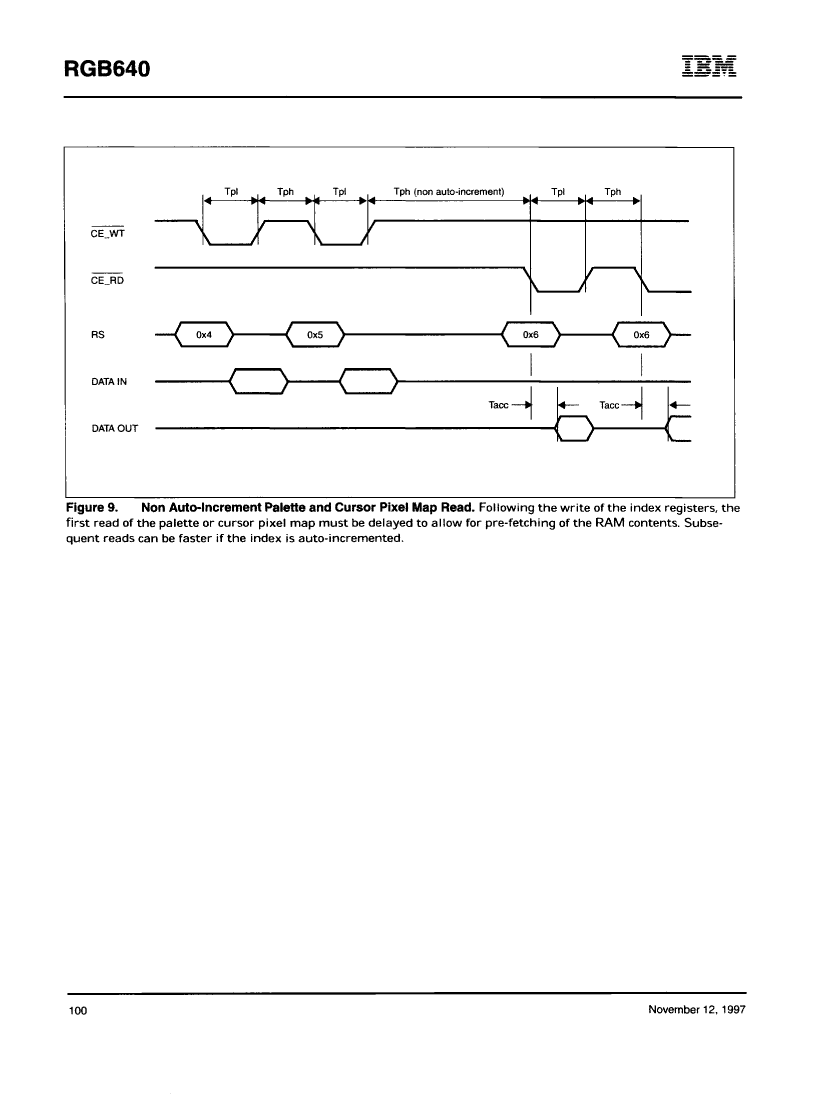

IBM37RGB640CB22 Overview

Palette DAC, 1600 X 1280 Pixels, CMOS, PBGA303, CBGA-304

Parameter Name	Attribute value
Maker	IBM
Parts packaging code	BGA
package instruction	BGA,
Contacts	303
Reach Compliance Code	unknown
Is Samacsys	N
Address bus width	3
show configuration	1600 X 1280 PIXELS
External data bus width	8
JESD-30 code	R-PBGA-B303
length	24.7 mm
Number of terminals	303
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum supply voltage	3.8 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	20.95 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC
Base Number Matches	1

	IBM37RGB640CB22	IBM37RGB640CF22	IBM37RGB640CB17
Description	Palette DAC, 1600 X 1280 Pixels, CMOS, PBGA303, CBGA-304	Palette DAC, 1600 X 1280 Pixels, CMOS, PQFP272, QFP-272	Palette DAC, 1600 X 1280 Pixels, CMOS, PBGA303, CBGA-304
Maker	IBM	IBM	IBM
Parts packaging code	BGA	QFP	BGA
package instruction	BGA,	FQFP,	BGA,
Contacts	303	272	303
Reach Compliance Code	unknown	unknown	unknown
Address bus width	3	3	3
show configuration	1600 X 1280 PIXELS	1600 X 1280 PIXELS	1600 X 1280 PIXELS
External data bus width	8	8	8
JESD-30 code	R-PBGA-B303	S-PQFP-G272	R-PBGA-B303
length	24.7 mm	36 mm	24.7 mm
Number of terminals	303	272	303
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	FQFP	BGA
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	GRID ARRAY	FLATPACK, FINE PITCH	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	3.8 V	3.8 V	3.8 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	BALL	GULL WING	BALL
Terminal pitch	1.27 mm	0.5 mm	1.27 mm
Terminal location	BOTTOM	QUAD	BOTTOM
width	20.95 mm	36 mm	20.95 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
Maximum operating temperature	70 °C	70 °C	-
Temperature level	COMMERCIAL	COMMERCIAL	-
Base Number Matches	1	1	-
