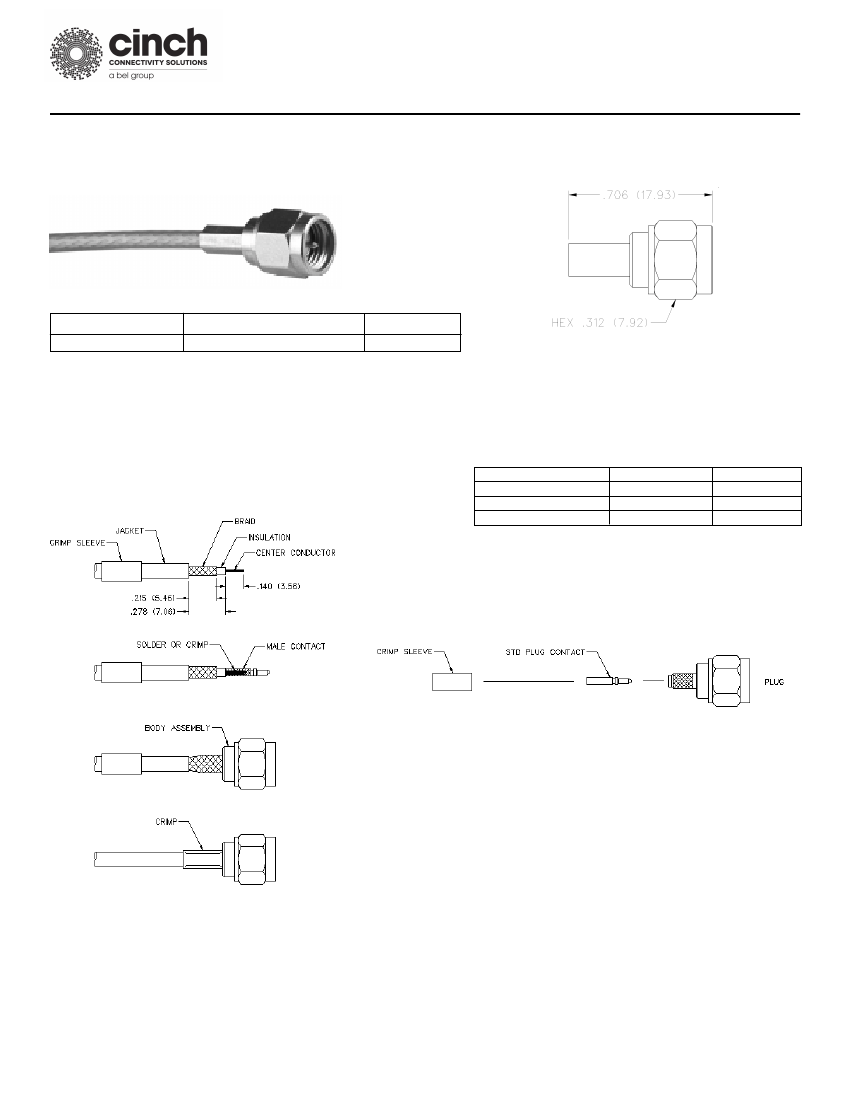

SMA Non-Magnetic RF Connectors
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
For Flexible Cable
Straight Crimp Type Plug (3-piece) - Captivated Contact
CABLE TYPE
RG-316/u, 188, 174
VSWR & FREQ. RANGE
1.15 + .02f (GHz)
0-12.4 GHz
GOLD PLATED
142-9403-011
CABLE GROUP
RG-316/u, 188, 174
RG-316 DS, 188 DS
RG-58/u, 141
PART NUMBER
142-9403-011
142-9404-011
142-9407-011
CRIMP HEX
.128 (3.25)
.151 (3.83)
.213 (5.41)
1.
Identify connector parts. (3 piece parts)
2.
Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center con-
ductor if contact will be solder attached. Do not tin center conductor if contact is to be
crimp attached. When stripping LMR-100 low loss cable, remove foil back to where cable
jacket is stripped. A wire stripper of correct size is recommended for this step. Slide heat
shrink (as applicable) and crimp sleeve onto jacket of cable.
3.
Assemble contact onto cable as shown.
Solder Attachment:
Solder contact to center conductor through solder hole using .020
(0.51) diameter solder. Use a minimum amount of solder for a good joint.
Crimp Attachment:
Crimp contact to center conductor using Johnson Components
TM
Hand Tool 144-0000-910, setting #2, with positioner 141-0000-907. Crimp location should
be centered between end of contact and X-hole. Crimp attachment to solid center con-
ductor cables is not recommended.
4.
Flare braid and slide body assembly over contact and under braid. Then seat body as-
sembly firmly onto contact. The cable may have to be held in a clamping fixture. Arrange
braid uniformly around crimp stem. Slide crimp sleeve forward and crimp using recom-
mended crimp tool. Slide heat shrink forward and shrink (as applicable).
Cinch Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 USA • 800.247.8256 • +1 507 833 8822 • cinchconnectivity.com
1
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
SPECIFICATIONS
ELECTRICAL RATINGS
Impedance:
50 ohms
Frequency Range:
Flexible cable connectors .......................... 0-12.4 GHz
Uncabled receptacles ................................ 0-18.0 GHz
VSWR:
(f = GHz)
Straight Cabled Connectors RA Cabled Connectors
RG-316 ......................................................... 1.15 + .02f
1.15 + .03f
RG-58 ........................................................... 1.15 + .01f
1.15 + .02f
Uncabled receptacles ........................................................................................................ N/A
Working Voltage:
(Vrms maximum)
Connectors for Cable Type
Sea Level
70K Feet
RG-316 .............................................................................................. 250
65
RG-58, uncabled receptacles ............................................................ 335
85
Dielectric Withstanding Voltage:
(VRMS minimum at sea level)
Connectors for RG-316 .................................................................................................. 750
Connectors for RG-58, uncabled receptacles .............................................................. 1000
Corona Level:
(Volts minimum at 70,000 feet)
=
Connectors for RG-316 .................................................................................................. 190
Connectors for RG-58, uncabled receptacles ................................................................ 250
Insertion Loss:
(dB maximum)
Straight flexible cable connectors ....................................... 0.06 f (GHz), tested at 6 GHz
Right angle flexible cable connectors ................................. 0.15 f (GHz), tested at 6 GHz
Uncabled receptacles ...................................................................................................... N/A
Insulation Resistance:
5000 megohms minimum
Contact Resistance:
(milliohms maximum)
After
Initial Environmental
Center contact (straight cabled connectors, uncabled receptacles) ... 3.0
4.0
Center contact (right angle cabled connectors) .................................. 4.0
6.0
Outer contact (all connectors) ............................................................. 2.0
N/A
Braid to body ....................................................................................... 0.5
N/A
RF Leakage:
(dB minimum, tested at 2.5 GHz)
Flexible cable connectors .......................................................................................... -60 dB
Uncabled receptacles ..................................................................................................... N/A
RF High Potential Withstanding Voltage:
(Vrms minimum, tested at 4 and 7 MHz)
=
Connectors for RG-316 .................................................................................................. 500
Connectors for RG-58, uncabled receptacles ................................................................ 670
MECHANICAL RATINGS
Engagement Design:
MIL-STD-348, Series SMA
Engagement/Disengagement Force:
2 inch-pounds maximum
Mating Torque:
7 to 10 inch-pounds
Coupling Proof Torque:
15 inch-pounds minimum
Coupling Nut Retention:
60 pounds minimum
Contact Retention:
6 lbs. minimum axial force (captivated contacts)
4 inch-ounce minimum torque (uncabled receptacles)
Cable Retention:
Axial Force*(lbs)
Torque (in-oz)
Connectors for RG-316 .............................................. 20
N/A
Connectors for RG-58 ................................................ 40
N/A
*Or cable breaking strength whichever is less.
Durability:
500 cycles minimum
ENVIRONMENTAL RATINGS
(Meets or exceed the applicable paragraph of MIL-C-39012)
Temperature Range:
- 65
0
C to + 165
0
C
Thermal Shock:
MIL-STD-202, Method 107, Condition B
Corrosion:
MIL-STD-202, Method 101, Condition B
Shock:
MIL-STD-202, Method 213, Condition I
Vibration:
MIL-STD-202, Method 204, Condition D
Moisture Resistance:
MIL-STD-202, Method 106
Cinch Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 USA • 800.247.8256 • +1 507 833 8822 • cinchconnectivity.com
2
