5322R5KL2.0: DescriptionPANEL POT 5 KOHM; CategoryPassive components; File Size127KB，1 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric View All

5322R5KL2.0 Overview

PANEL POT 5 KOHM

5322R5KL2.0 Parametric

Parameter Name	Attribute value
cone	Linear
Resistance (ohms)	5k
Tolerance	±20%
Number of sets	1
Built-in switch	none
Power (W)	0.25W，1/4W
Temperature Coefficient	-
Number of turns	1
rotate	240°
Adjustment type	Custom
Resistive materials	Conductive plastic
Terminal type	-
Actuator type	round
Actuator length	0.625"（15.88mm）
Actuator diameter	0.250"（6.35mm）
Bushing thread	3/8-32
Installation type	Panel mounting

Preview

Download Datasheet

View All

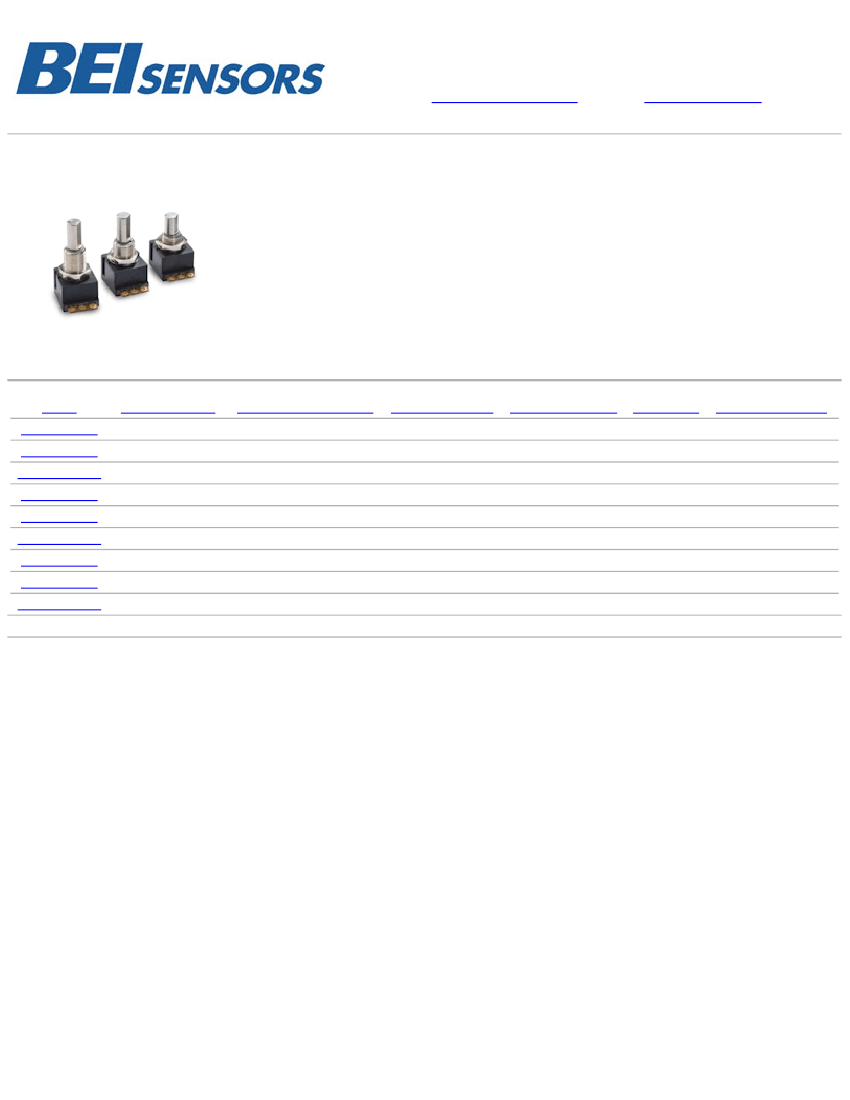

6/4/2018 | Page 1 of 1

BEI Sensors

1461 Lawrence Dr.

Thousand Oaks, CA 91320

Phone: 805-716-0322

Email:

beisales@beisensors.com

• Website:

www.beisensors.com

Rotary Potentiometer 5320 Series - Panel Controls

The 5320 Series shafted panel potentiometer is ideally suited for tight installations and provides superior

durability, long service life, and repeatable accuracy. These panel rotary potentiometers are fully sealed and

can be ordered in an array of standard and customized configurations.

Results 1 - 9 of 9

Part #

5321R1KL2.0

5321R5KL2.0

5321R10KL2.0

5322R1KL2.0

5322R5KL2.0

5322R10KL2.0

5323R1KL2.0

5323R5KL2.0

5323R10KL2.0

Results 1 - 9 of 9

Sensor Element

Conductive Plastic

Active Electrical Travel

240 º

Termination Type

Terminal Board

Mechanical Travel

250 º

Resistance

1.00 kO

5.00 kO

10.00 kO

1.00 kO

5.00 kO

10.00 kO

1.00 kO

5.00 kO

10.00 kO

Drive Shaft Length

7/8 in

5/8 in

1 in
