BNC7T-J-P-HN-ST-EM1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BNC7T-J-P-HN-ST-EM1

BNC7T-J-P-HN-ST-EM1: DescriptionCONN BNC JACK STR 75OHM EDGE MNT; CategoryThe connector The connector; File Size251KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BNC7T-J-P-HN-ST-EM1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNC7T-J-P-HN-ST-EM1	-	-	View	Buy Now

BNC7T-J-P-HN-ST-EM1 Overview

CONN BNC JACK STR 75OHM EDGE MNT

BNC7T-J-P-HN-ST-EM1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TRUE 75
body width	0.5 inch
subject depth	1.003 inch
body length	0.43 inch
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BNC7T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	1
voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

REVISION D

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

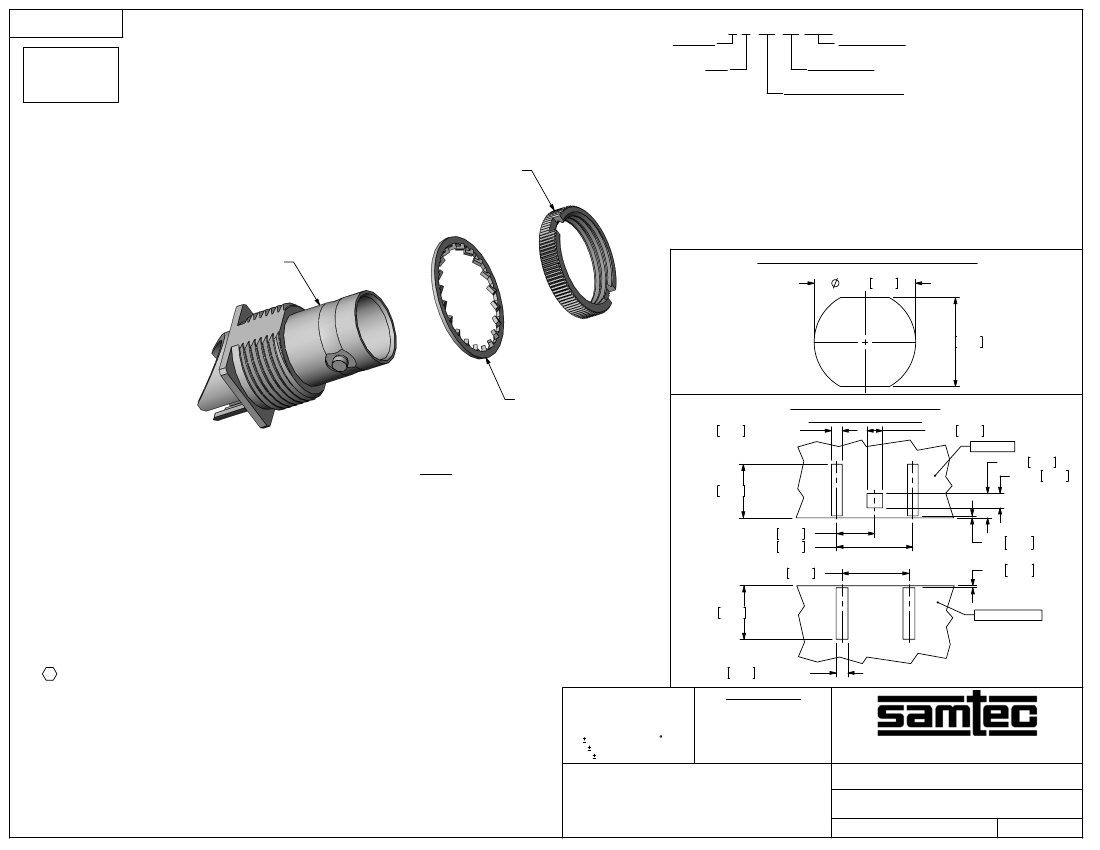

BNC7T-J-P-XX-ST-EM1

GENDER

-J: JACK

TYPE

-P: PCB

TERMINATION

-EM1: EDGE MOUNT (FOR 1.57[.062] THICK PCB)

ORIENTATION

-ST: STRAIGHT

PLATING SPECIFICATION

-HN: HEAVY GOLD/NICKEL (SEE NOTES 5 & 6)

(SUB-BNC7T-J-P-HN-ST-EM1)

(BTNC-NUT-003-N)

(BTNC-LWAS-001-N)

-GN: GOLD/NICKEL (SEE NOTES 5 & 6)

(SUB-BNC7T-J-P-GN-ST-EM1)

(BTNC-NUT-003-N)

(BTNC-LWAS-001-N)

-MN: MEDIUM GOLD/NICKEL (EXISTING CUSTOMERS ONLY)

(SUB-BNC7T-J-P-GN-ST-EM1)

(BTNC-NUT-003-N)

(BTNC-LWAS-001-N)

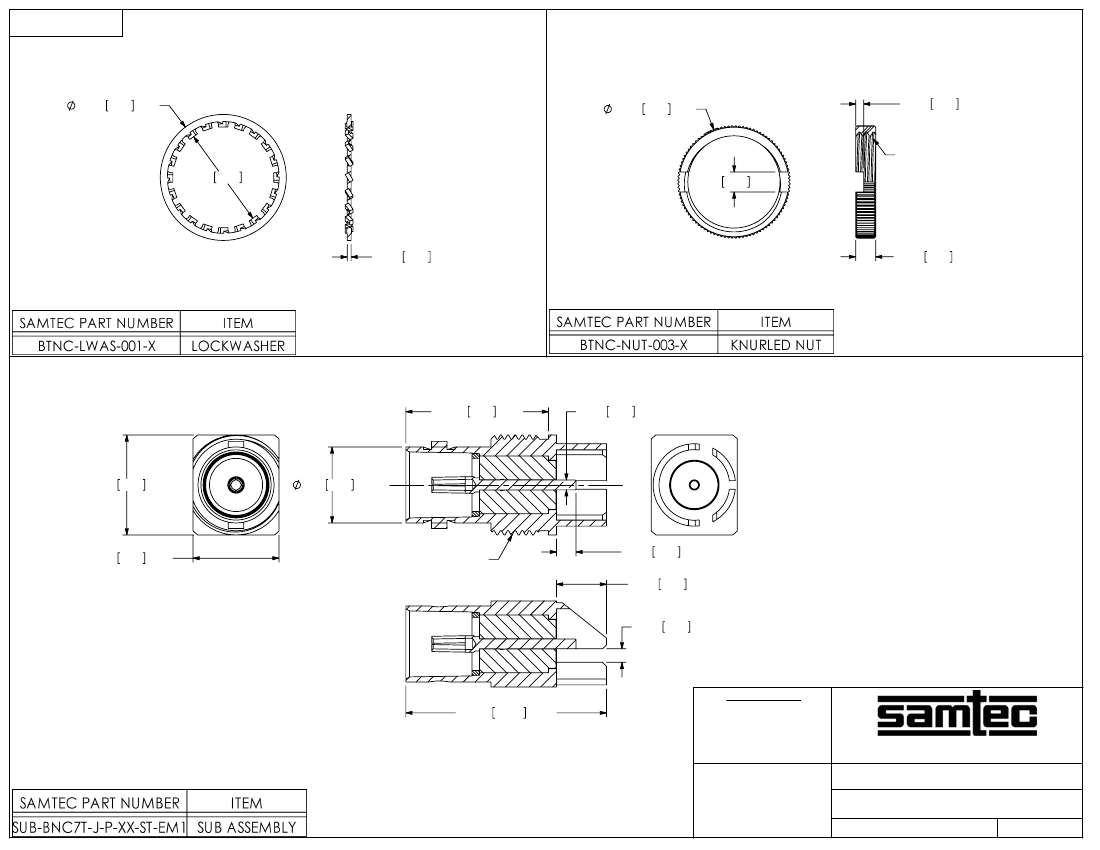

BTNC-NUT-003-X

SUB-BNC7T-J-P-XX-ST-EM1

RECOMMENDED MOUNTING HOLE

4.00[.157] MAX. PANEL THICKNESS

12.89 .507

11.30 .445

BTNC-LWAS-001-X

RECOMMENDED LAYOUT

FOR 1.57[.062] PCB

1.35 .053 (2 PLCS)

1.98 .078

PCB TOP

3.10 .122

1.83 .072

BNC7T-J-P-XX-ST-EM1 SHOWN

FIG 1

6.80 .268 (2 PLCS)

4.83 .190

9.65 .380

8.50 .335

6.80 .268 (2 PLCS)

0.25 .010 (2 PLCS)

PCB BOTTOM

NOTES:

1. C REPRESENTS A CRITICAL DIMENSION.

2. FABRICATED PARTS MUST BE FREE OF SCRATCHES, TOOL MARKS, ETC.

3. SUPPLIER TO REMOVE BURRS.

4. RoHs COMPLIANT.

5. COMPONENT PLATING DESIGNATIONS:

-H: .000030" MIN. GOLD OVER .000050. (MIN) NICKEL.

-G .000010" MIN. GOLD OVER .000050" MIN. NICKEL

-N: .000100" MIN. NICKEL.

6. ASSEMBLY PLATING DESIGNATIONS:

-HN: (CENTER CONTACT)-H

(OUTER CONTACT) -N

(REMAINING METAL PARTS) -N

-GN, MN:(CENTER CONTACT)-G

(OUTER CONTACT) -N

(REMAINING METAL PARTS) -N

1.50 .059 (2 PLCS)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

BNC7T EDGE MOUNT STRAIGHT JACK

BNC7T-J-P-XX-ST-EM1

01/04/2008

F:\DWG\MISC\MKTG\BNC7T-J-P-XX-ST-EM1-MKT.SLDDRW

BY:

G.HERMAN

SHEET

BNC7T-J-P-HN-ST-EM1 Related Products

	BNC7T-J-P-HN-ST-EM1	BNC7T-J-P-GN-ST-EM1	BNC7T-J-P-MN-ST-EM1
Description	CONN BNC JACK STR 75OHM EDGE MNT	CONN BNC JACK STR 75OHM EDGE MNT	RF BNC Connector, Female, Panel Mount, Board Mount, Surface Mount Terminal, Jack, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	JACK	JACK	JACK
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (10)	GOLD (10) OVER NICKEL
Contact completed and terminated	Gold (Au)	Gold (Au)	GOLD (10) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Factory Lead Time	2 weeks	8 weeks	-
Other features	TRUE 75	TRUE 75	-
body width	0.5 inch	0.5 inch	-
subject depth	1.003 inch	1.003 inch	-
body length	0.43 inch	0.43 inch	-
Characteristic impedance	75 Ω	75 Ω	-
Contact material	COPPER ALLOY	COPPER ALLOY	-
Contact style	COAX	COAX	-
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-
Manufacturer's serial number	BNC7T	-	BNC7T
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Installation option 1	LOCKING	LOCKING	-
Number of ports	1	1	-
Maximum operating frequency	6 GHz	6 GHz	-
reliability	COMMERCIAL	COMMERCIAL	-
Total number of contacts	1	1	-
voltage standing wave ratio	1.45	1.45	-
