IAH12040A007V-006-R datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> IAH12040A007V-006-R

IAH12040A007V-006-R: DescriptionDC DC CONVERTER 0.7-5.5V 150W; CategoryPower/power management The power supply circuit; File Size123KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

IAH12040A007V-006-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IAH12040A007V-006-R	-	-	View	Buy Now

IAH12040A007V-006-R Overview

DC DC CONVERTER 0.7-5.5V 150W

IAH12040A007V-006-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	17 V
Minimum input voltage	3.5 V
JESD-30 code	R-XXMA-X10
length	33 mm
Number of functions	1
Output times	1
Number of terminals	10
Maximum output voltage	5.5 V
Minimum output voltage	0.7 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	10.7 mm
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	150 W
Fine-tuning/adjustable output	YES
width	13.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

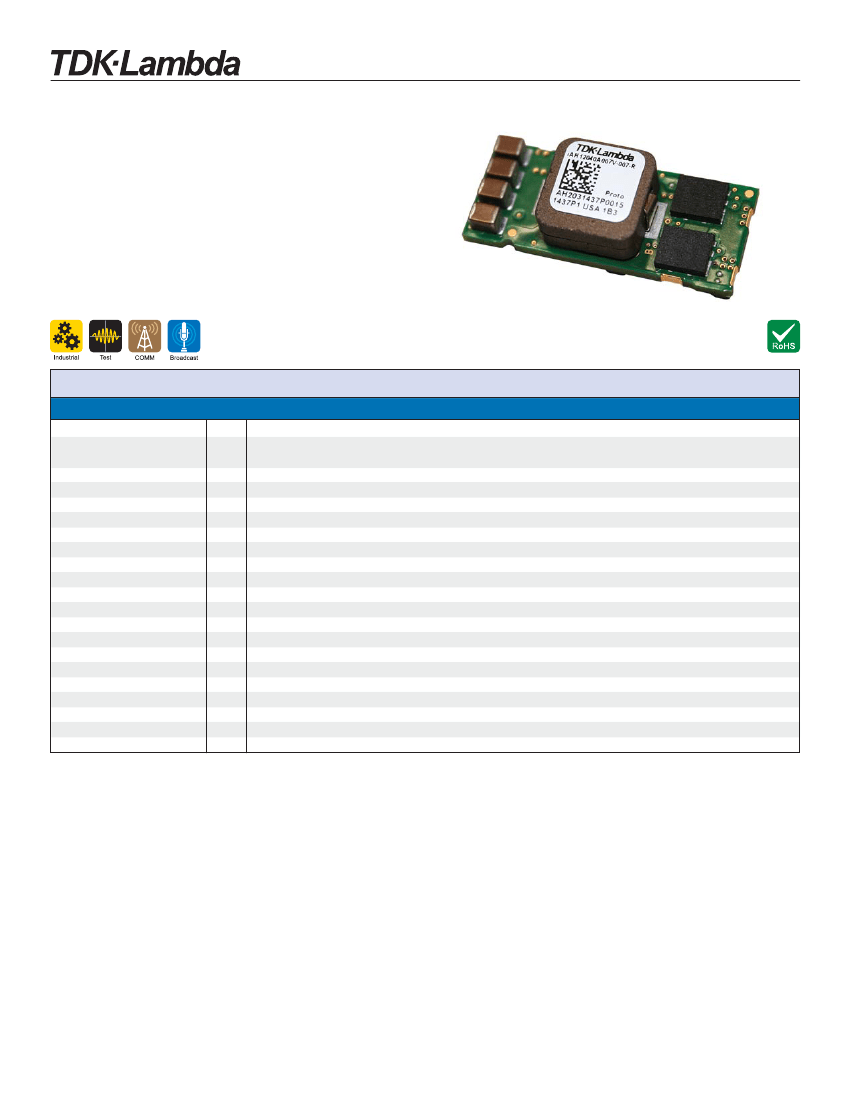

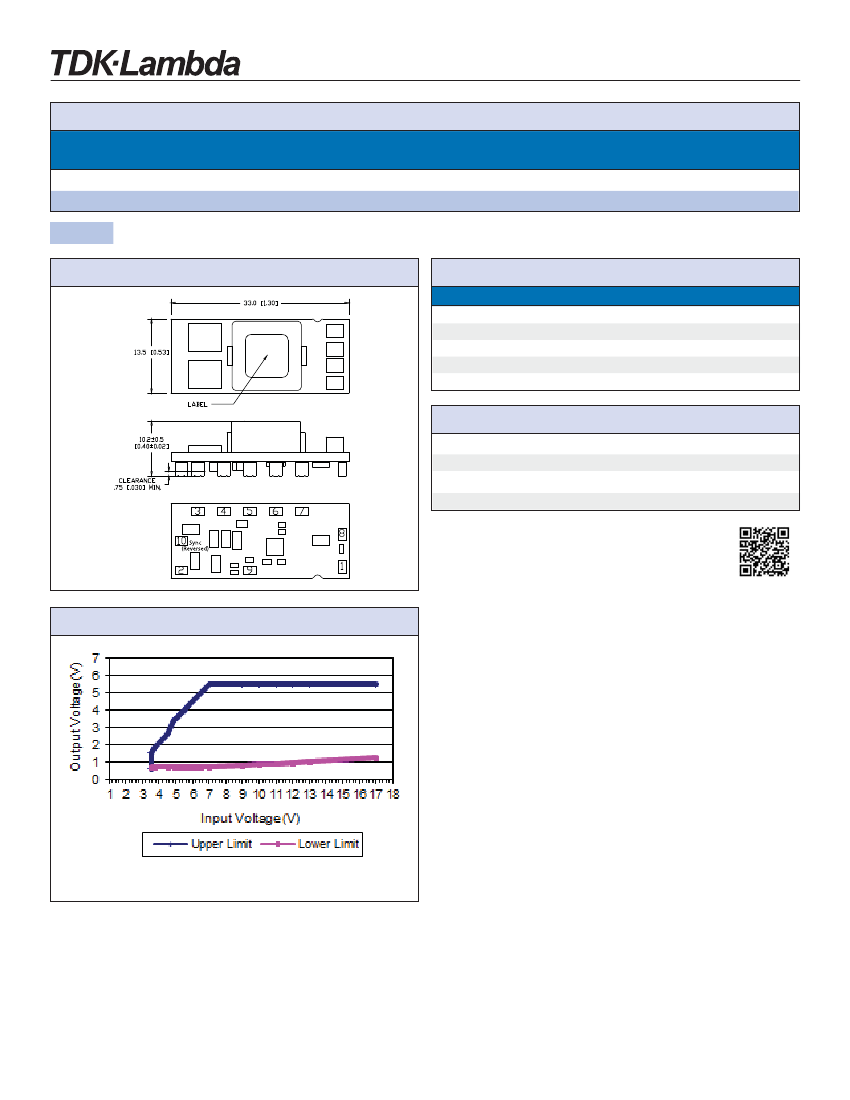

iAH Series

40A Non-isolated SMT Point of Load

Features



DOSA Compatible Footprint



Surface Mountable



Constant Switching Frequency



No external loop tuning components needed



Excellent Transient Response

Key Market Segments & Applications

Speciﬁcations

Model

DC Output Voltage

DC Output Current

iAH12

0.7 - 5.5

Vo.set <= 2.5V and Vin > 4.5V, 40A max. Observe max. power limit

Vo. set > 2.5V or Vin < 4.5V, 30A max. As Vout increases, current must decrease in order to observe max. power limit

150

3.5 - 17

84 - 96

±3

600

200 - 2000

50A typical

Yes, see model selector table

(+) Sense, compensating up to 0.5V

Yes, Low on fail

-40 to 115 (see thermal data on website)

-55 to 125

Pending

12g / 0.42 oz

33 x 13.5 x 10.2 / 1.3 x 0.53 x 0.4

3 years

DC Output Power (max)

DC Input Voltage

Efﬁciency

Output Voltage Tolerance

Switching Frequency

kHz

Line Regulation

Load Regulation

External Load Capacitance

Output Ripple and Noise

mVpp

Overcurrent Protection

Remote On / Off

Remote Sense

Power Good

Operating Temperature

°C

Storage Temperature

°C

Safety Agency Certiﬁcations

Weight

g/oz

Size (LxWxH)

mm/in.

Warranty

yrs

1-800-526-2324 • www.us.tdk-lambda.com/lp/

129

Disclaimer: us.tdk-lambda.com/lp/legal.htm
