VS811
8-Channel SDI/ASI
Multiplexer/Demultiplexer
KEY FEATURES
Single card solution for
multichannel transport
of 270Mbps signals with
network path diversity.
>>
Multichannel digital data on a single fiber
>>
Optional second optical output for network path diversity
(Mux) and optional second optical receiver for automatic swi-
tchover and network resiliance (Demux)
>>
Designed to transport 270 Mbps signals complying with
SMPTE-259M, 305M, and DVB-ASI EN-50083-9
>>
Removes timing and alignment jitter from the SDI signals at the
Demux output
>>
Selectable Test Pattern Generator for each channel: Color Bars,
PLL Pathological, Equalizer Pathological and Black Field
>>
Enable/Disable control for Mux input channels
>>
Automatic cable equalization up to 300m for Belden 8281
>>
Auxillary RS422 channel
>>
Small Formfactor Pluggable (SFP) optics available in 1310, 1550
& any ITU CWDM or DWDM wavelengths
>>
NEBS Level 3 Compliant
>>
Compatible with the VS183 Comprehensive Network
Management System that provides Remote Status, Alarms &
Configurations via SNMP & Ethernet

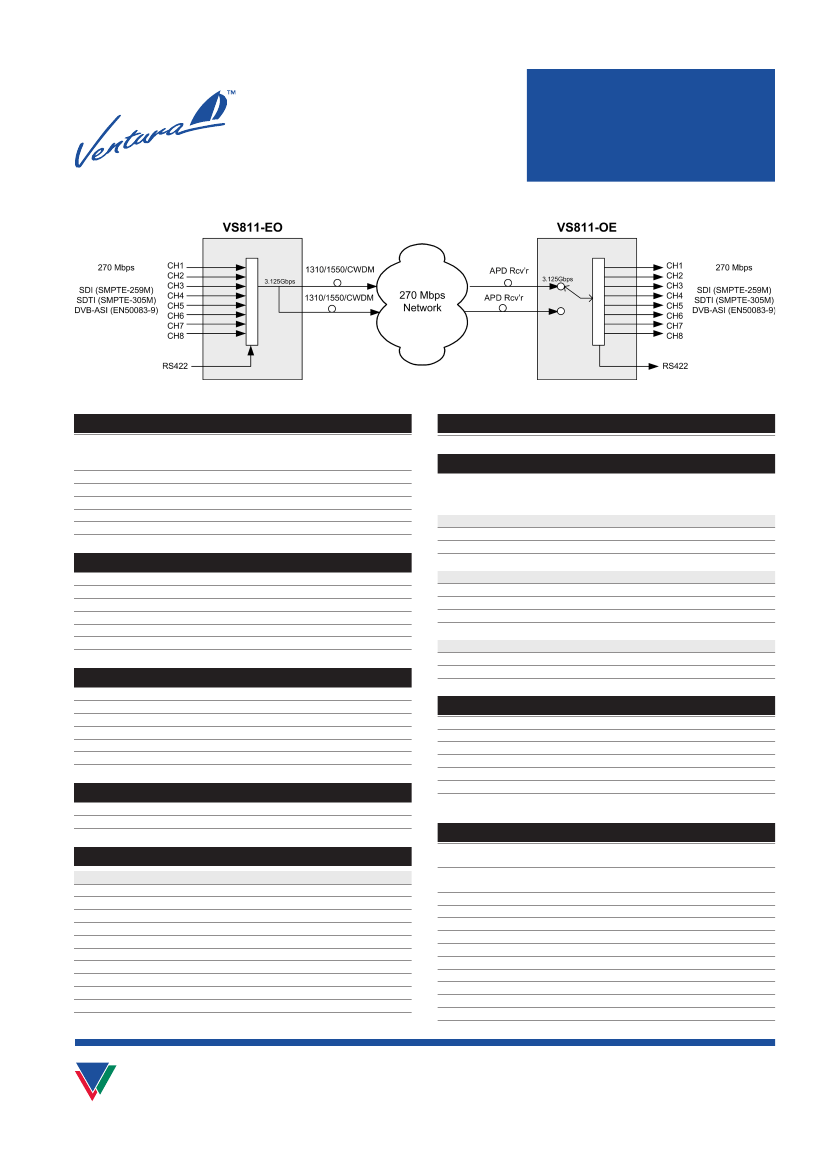

VS811
DIgITAl vIDEo
Standards:
SDI (SMPTE-259M)
SDTI (SMPTE-305M)
DVB-ASI (EN50083-9)
8 (VS811-EO)
8 (VS811-OE)
BNC
75 Ohm
270 Mbps
up to 300m w/Belden 8281
ExTERnAl AlARMS
N/C relay contact outputs for Major and Minor Alarm signals.
nETwoRK MAnAgEMEnT
Compatible with the VS183 Comprehensive Network Management System
that features SNMP & Web Browser Interfaces that provide monitoring
and/or configuration of the card’s status, alarms & controls.
Alarms
Loss of Video
Laser Transmitter Failure (VS811-EO)
Loss of Input (VS811-OE)
Status
Channels Enabled/Disabled (VS811-EO)
Selected Test Pattern
Test Pattern Generator Enabled/Disabled
Model & Serial Number
Controls
Test Pattern Generator Enable/Disable
Input Channel Enable/Disable (VS811-EO)
Laser Transmitter Enable/Disable (VS811-EO)
# of Inputs:
# of Outputs:
Connector:
Impedance:
Data Rate:
Equalization:
opTICAl TRAnSMITTER
# of Outputs:
Connector:
Data Rate:
Laser Type:
Laser Wavelengths:
Output Power Level:
Fiber Type:
2
SC/PC
3.125 Gbps
SFP
1310nm, 1550nm, CWDM, DWDM
0dBm min
Single Mode
opTICAl RECEIvER
# of Inputs:
Connector:
Receiver Type:
Input Wavelengths:
Sensitivity:
Max Input Power:
Fiber Type:
1
SC/PC
APD SFP
1260nm - 1620nm
≤-30dBm
-8dBm
Single Mode
phYSICAl AnD EnvIRonMEnTAl
Resides in a single slot of a VS101 or VS103 Ventura Series Chassis
Voltage:
+3.3V, +5V
Power Consumption:
10W max
Operating Temperature:
0˚ to 50˚C chassis ambient
Storage Temperature:
-40˚C to 85˚C ambient
Relative Humidity:
5% to 85%
Compliance:
NEBS Level 3, UL, CSA, CE,
FCC (Part 15, Class A), C-Tick
RS422
# of Channels:
Connector:
Data Rate:
1
3 pin polarized header
up to 500 Kbps
oRDERIng opTIonS
VS811-EO-SFP
Multiplexer Card w/dual SFP cages,
no optics installed
Demultiplexer Card w/dual SFP
cages, no optics installed
1310nm SFP Laser Module
1550nm SFP Laser Module
1470nm CWDM SFP Laser Module
1490nm CWDM SFP Laser Module
1510nm CWDM SFP Laser Module
1530nm CWDM SFP Laser Module
1550nm CWDM SFP Laser Module
1570nm CWDM SFP Laser Module
1590nm CWDM SFP Laser Module
1610nm CWDM SFP Laser Module
SFP APD Receiver
lED InDICAToRS
VS811-EO
Channel 1 Loss of Video
Channel 2 Loss of Video
Channel 3 Loss of Video
Channel 4 Loss of Video
Channel 5 Loss of Video
Channel 6 Loss of Video
Channel 7 Loss of Video
Channel 8 Loss of Video
SFP Primary Laser Failure
SFP Secondary Laser Failure
DC Power
VS811-OE
Channel 1 Loss of Video
Channel 2 Loss of Video
Channel 3 Loss of Video
Channel 4 Loss of Video
Channel 5 Loss of Video
Channel 6 Loss of Video
Channel 7 Loss of Video
Channel 8 Loss of Video
Loss of Primary Input
Loss of Secondary Input
DC Power
VS811-OE-SFP
SFP-TR3-1310-PIN-S
SFP-TR3-1550-APD-S
SFP-TR3-1470-APD-C
SFP-TR3-1490-APD-C
SFP-TR3-1510-APD-C
SFP-TR3-1530-APD-C
SFP-TR3-1550-APD-C
SFP-TR3-1570-APD-C
SFP-TR3-1590-APD-C
SFP-TR3-1610-APD-C
SFP-R3-APD
Video Products Group, Inc.
1380 Flynn Road
Camarillo, CA 93012
Tel: (805) 383-5500
Fax: (805) 383-5519
Video Products Group, Inc. reserves the right to make
changes without notice to equipment specification or
design. The information provided in this document is
for guidance purposes only and shall not form part of
any contract.
© 2006 Video Products Group, Inc.
All rights reserved.
VS811 RevB June 2006
http://www.vpginc.com
