SF601 thru SF609
Reverse Voltage 50 to 1000 Volts
Super Fast Rectifiers
Forward Current 6.0 Amperes
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
T
J
is 150
o
C (Max.) and T
STG
is 175
o
C (Max.) with PI glue
Mechanical Data
Case: Molded plastic DO-201AD
Epoxy: UL 94V-O rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202, Method 208
guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed:
250
o
C/10 seconds .375” (9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 0.042 ounce, 1.2 grams
Maximum Ratings and Electrical Characteristics
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
.375" (9.5mm) lead length @T
A
=55
o
C
Peak forward surge current, 8.3ms single
half sine-wave superimposed on rated load
(JEDEC Method)
Maximum instantaneous forward voltage @ 6.0A
Maximum DC reverse current
at rated DC blocking voltage
@ T
A
=25 C
@ T
A
=100
o
C
o
Symbols
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
t
rr
C
J
T
J
T
STG
SF601
50
35
50
SF602
100
70
100
SF603
150
105
150
SF604
200
140
200
SF605
300
210
300
6.0
SF606
400
280
400
SF607
600
420
600
SF608
800
560
800
SF609
1000
700
1000
Units
Volts
Volts
Volts
Amps
150.0
0.975
5.0
100
35
115
-55 to +125
-55 to +150
60
1.3
1.7
Amps
Volts
uA
uA
nS
pF
o

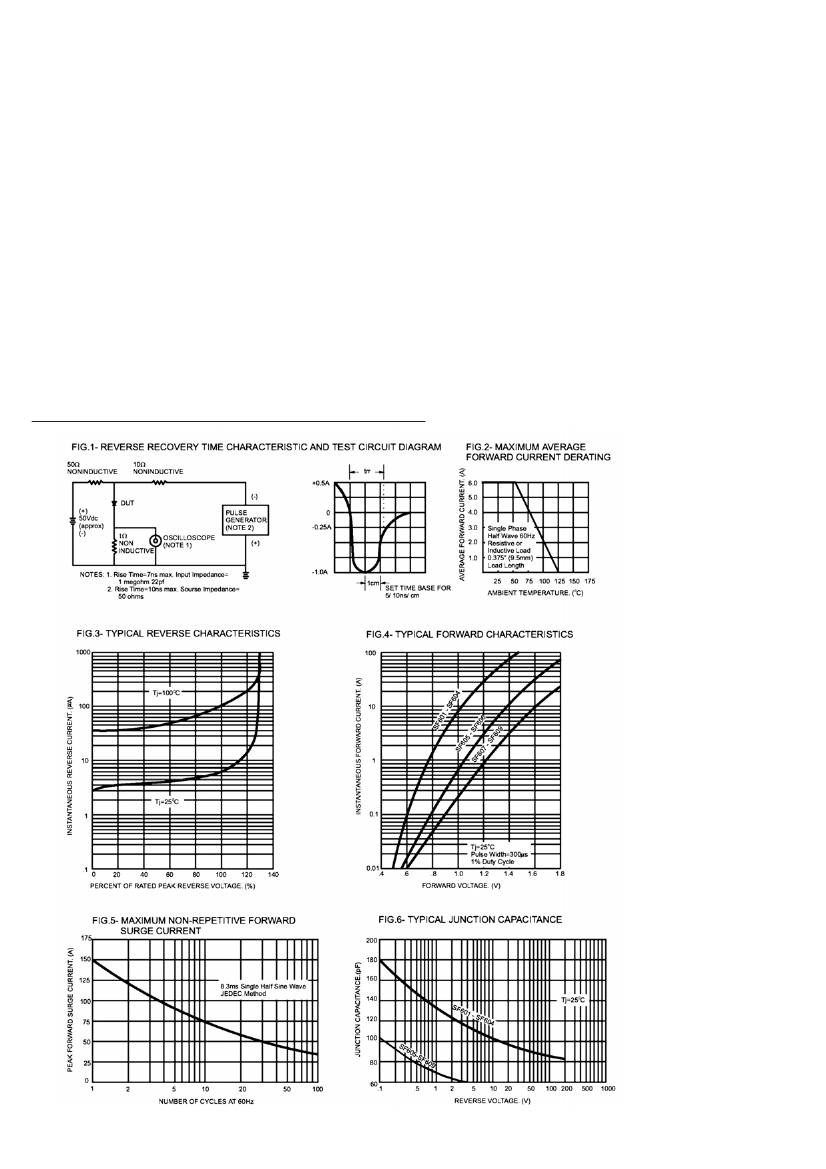

Maximum reverse recovery time (Note 1)
Typical junction capacitance (Note 2)
Operating junction temperature range
Storage temperature range
C
C
o
Notes:
1. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.
