3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD

Preview

Download Datasheet

View All

NOT RECOMMENDED FOR NEW DESIGN

SF30AG - SF30JG

3.0A SUPER-FAST GLASS PASSIVATED RECTIFIER

Features



Glass Passivated Die Construction

Diffused Junction

Super-Fast Switching for High Efficiency

Surge Overload Rating to 125A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant (Note 4)

Mechanical Data



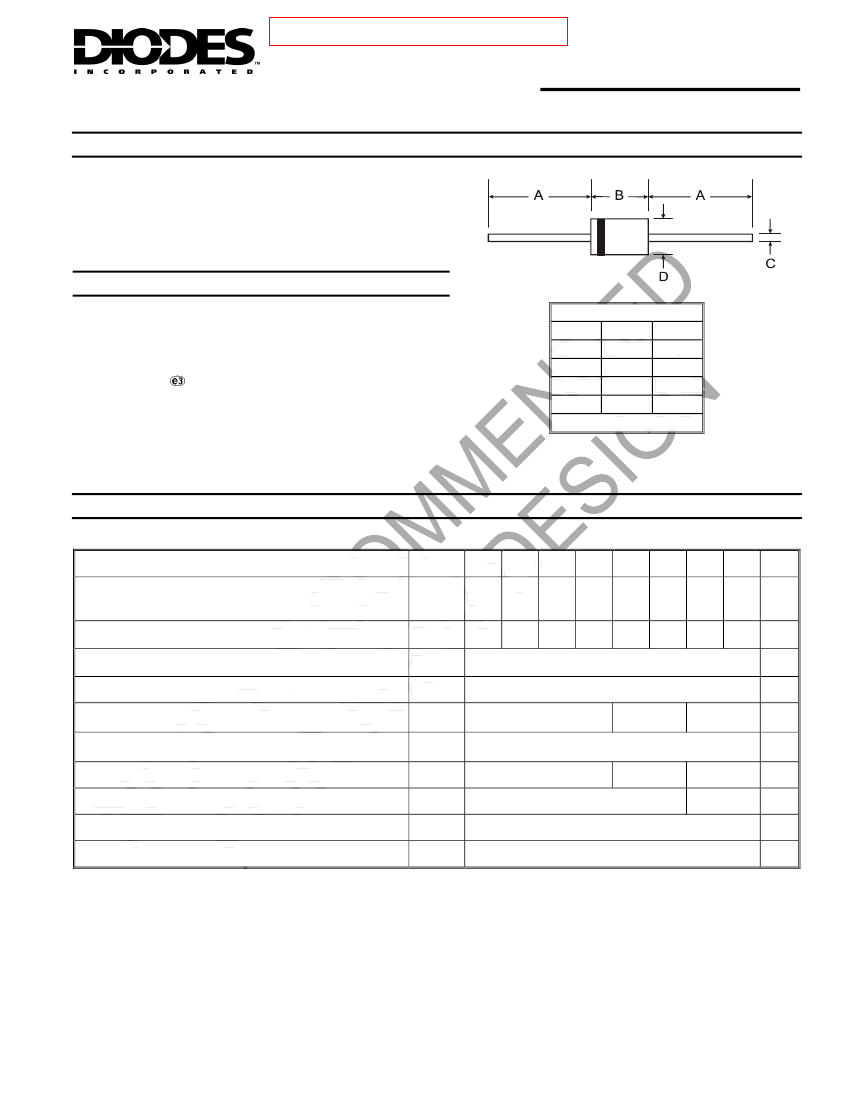

Case: DO-201AD

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Tin. Plated Leads Solderable per MIL-STD-202,

Method 208

Polarity: Cathode Band

Marking: Type Number

Ordering Information: See Page 3

Weight: 1.12 grams (approximate)

DO-201AD

Dim

Min

25.40

7.20

1.20

4.80

Max

—

9.50

1.30

5.30

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

= 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage (Note 5)

RMS Reverse Voltage

Average Rectified Output Current

(Note 1)

@ T

= 55C

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

Forward Voltage

Peak Reverse Current

at Rated DC Blocking Voltage (Note 5)

Reverse Recovery Time (Note 3)

Typical Total Capacitance (Note 2)

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Notes:

Symbol

RRM

RWM

R(RMS)

FSM



STG

SF30 SF30 SF30 SF30 SF30 SF30 SF30 SF30

100

150

100

200

140

3.0

125

0.95

5.0

100

-65 to +150

1.3

1.5

300

210

400

280

500

350

600

420

Unit

A

°C/W

C

@ I

= 3.0A

@ T

= 25C

@ T

= 100C

Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

Measured with I

= 0.5A, I

= 1.0A, I

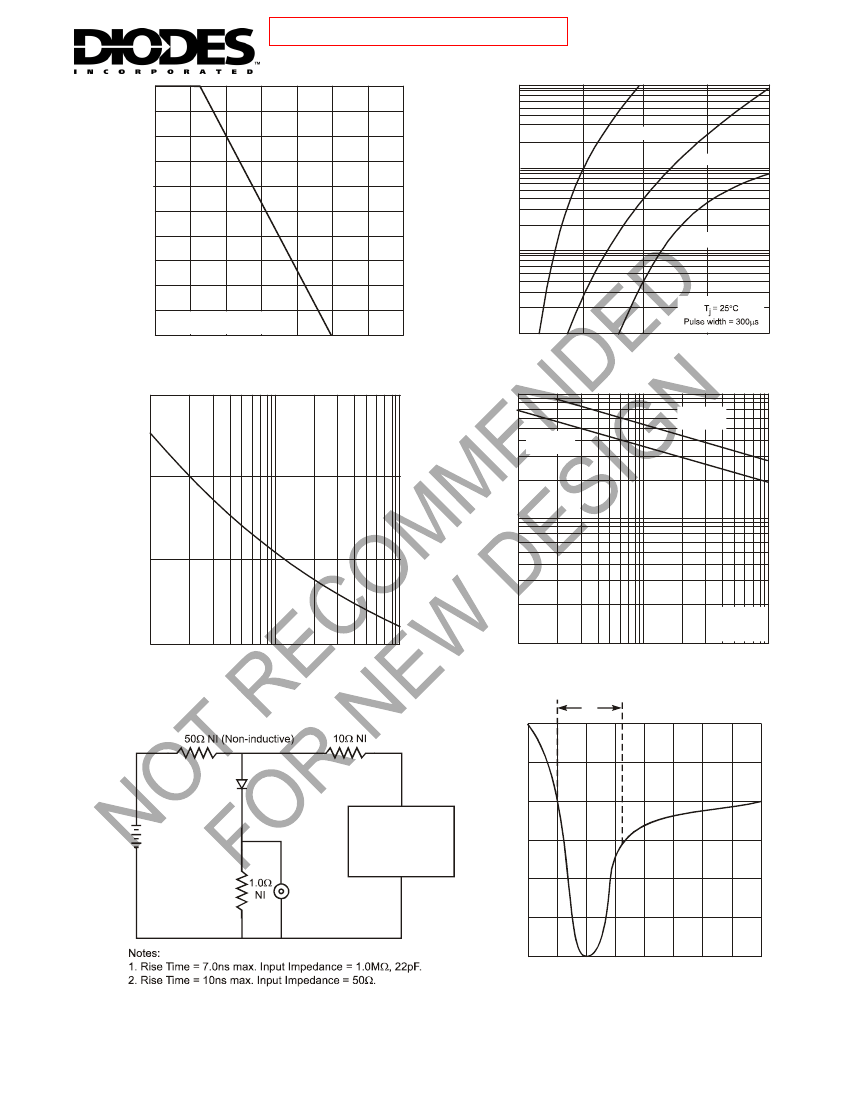

= 0.25A. See figure 5.

RoHS revision 13.2.2003. High temperature solder exemption applied, see

EU Directive Annex Notes 5 and 7.

Short duration pulse test used to minimize self-heating effect.

DS37836 Rev. 1 - 3

1 of 3

www.diodes.com

SF30AG - SF30JG

NOT RECOMMENDED FOR NEW DESIGN
