WTE
POWER SEMICONDUCTORS
SF11 – SF17
Pb
1.0A SUPERFAST DIODE
Features
!
!
!
!
!
Diffused Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability
A
B
A
Mechanical Data
!
!
!
!
!
!
!
Case: DO-41, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.34 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
D
DO-41
Dim
Min
Max
25.4
—
A
4.06
5.21
B
0.71
0.864
C
2.00
2.72
D
All Dimensions in mm
C
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@T
A
= 55°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
SF11
50
35
@T
A
=25°C unless otherwise specified
SF12
100
70
SF13
150
105
SF14
200
140
1.0
SF15
300
210
SF16
400
280
SF17
600
420
Unit
V
V
A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Operating Temperature Range
Storage Temperature Range
@I
F
= 1.0A
@T
A
= 25°C
@T
A
= 100°C
I
FSM
V
FM
I
RM
t
rr
C
j
T
j
T
STG
50
0.95
30
1.3
5.0
100
35
30
-65 to +125
-65 to +150
1.7
A
V
µA
nS
pF
°C
°C
Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case
2. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.
3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
SF11 – SF17
1 of 4
© 2006 Won-Top Electronics
I
(AV)
, AVERAGE FWD RECTIFIED CURRENT (A)
Single phase half wave
Resistive or Inductive load
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.00
10
T
j
= 25
°
C
Pulse width = 300
µ
s
0.75
SF11 - SF14
SF15 - SF16
1.0
0.50
SF17
0.1
0.25
0
0
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (
°
C)

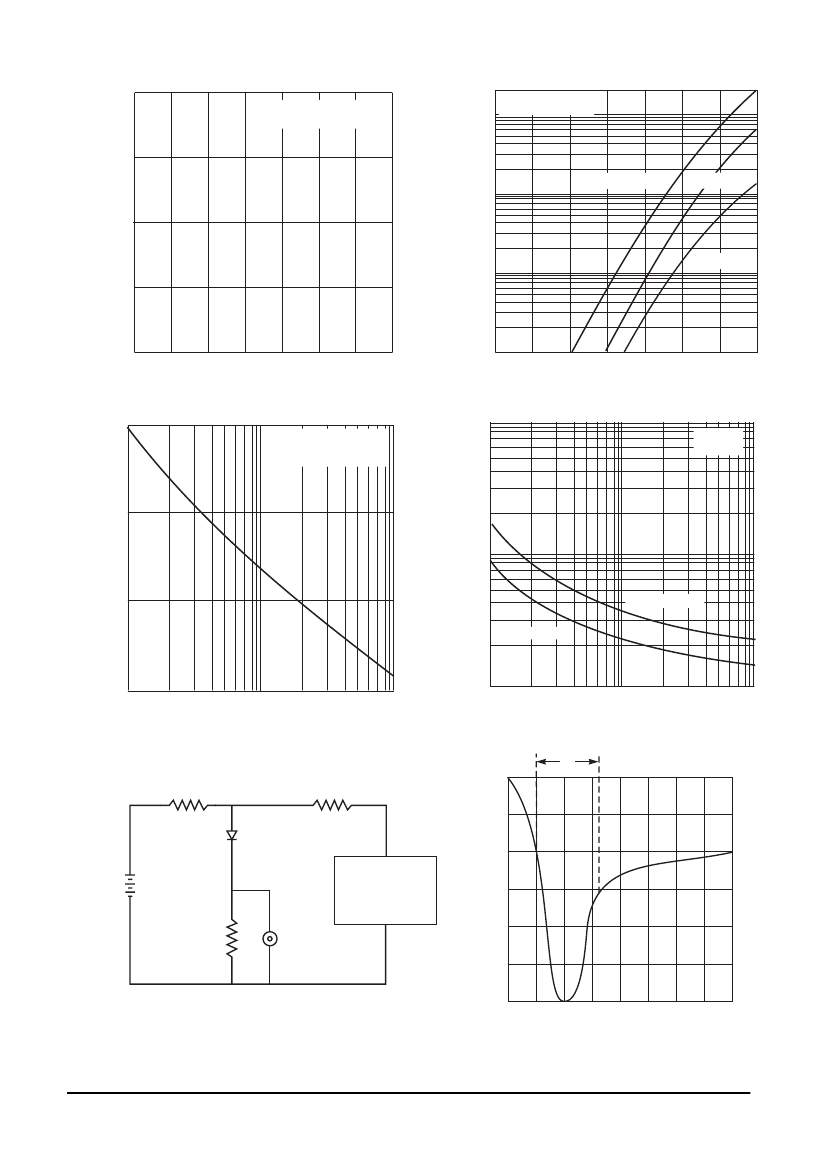

Fig. 1 Forward Current Derating Curve
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
30
Pulse width
8.3 ms single half-sine-wave
(JEDEC method)
1000
T
j
= 25
°
C
f = 1.0MHz
20
C
j
, CAPACITANCE (pF)
100
10
SF11 - SF14
SF15 - SF17
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
10
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
t
rr
+0.5A
50
Ω
NI (Non-inductive)
10
Ω
NI
100
Device
Under
Test
(-)
Pulse
Generator
(Note 2)
0A
(+)
50V DC
Approx
-0.25A
(-)
1.0
Ω
NI
Oscilloscope
(Note 1)
(+)
Notes:
1. Rise Time = 7.0ns max. Input Impedance = 1.0M
Ω
, 22pF.
2. Rise Time = 10ns max. Input Impedance = 50
Ω
.
-1.0A
Set time base for 5/10ns/cm
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
SF11 – SF17
2 of 4
© 2006 Won-Top Electronics
MARKING INFORMATION
TAPING SPECIFICATIONS
0.8mm
MAX
5mm
SF1x
WTE
Cathode
SF1x
x
WTE
= Polarity Band
= Device Number
= 1, 2, 3, 4, 5, 6 or 7
= Manufacturer’s Logo
1.2mm
MAX
6mm
52.4mm
Cathode Tape: Red
Anode Tape: White
0.8mm
MAX
PACKAGING INFORMATION
TAPE & BOX
TAPE & REEL
Product ID Label
150mm
Inspection Hole
(both ends)
330mm
255mm
75mm
BULK
80±5mm
20mm
198mm
Product ID Label
84mm
Packaging
TAPE & REEL
TAPE & BOX
BULK
Reel Diameter /
Box Size (mm)
330
255 x 75 x 150
198 x 84 x 20
Quantity
(PCS)
5,000
5,000
1,000
Carton Size
(mm)
370 x 370 x 420
400 x 273 x 415
459 x 214 x 256
Quantity
(PCS)
25,000
50,000
50,000
Approx. Gross Weight
(KG)
13.0
21.0
19.5
Note:
1. Paper reel, white or gray color. Core material: plastic or metal.
2. Components are packed in accordance with EIA standard RS-296-E.
SF11 – SF17
3 of 4
© 2006 Won-Top Electronics
ORDERING INFORMATION
Product No.
SF11-T3
SF11-TB
SF11
SF12-T3
SF12-TB
SF12
SF13-T3
SF13-TB
SF13
SF14-T3
SF14-TB
SF14
SF15-T3
SF15-TB
SF15
SF16-T3
SF16-TB
SF16
SF17-T3
SF17-TB
SF17
1.
2.
3.
Package Type
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
Shipping Quantity
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
5000/Tape & Reel
5000/Tape & Box
1000 Units/Box
Products listed in
bold
are WTE
Preferred
devices.
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF” suffix
to part number above. For example, SF11-TB-LF.
