SE25-327-2: DescriptionSmart Encoder; File Size77KB，2 Pages; ManufacturerETC

Download Datasheet View All

SE25-327-2 Overview

Smart Encoder

Preview

Download Datasheet

View All

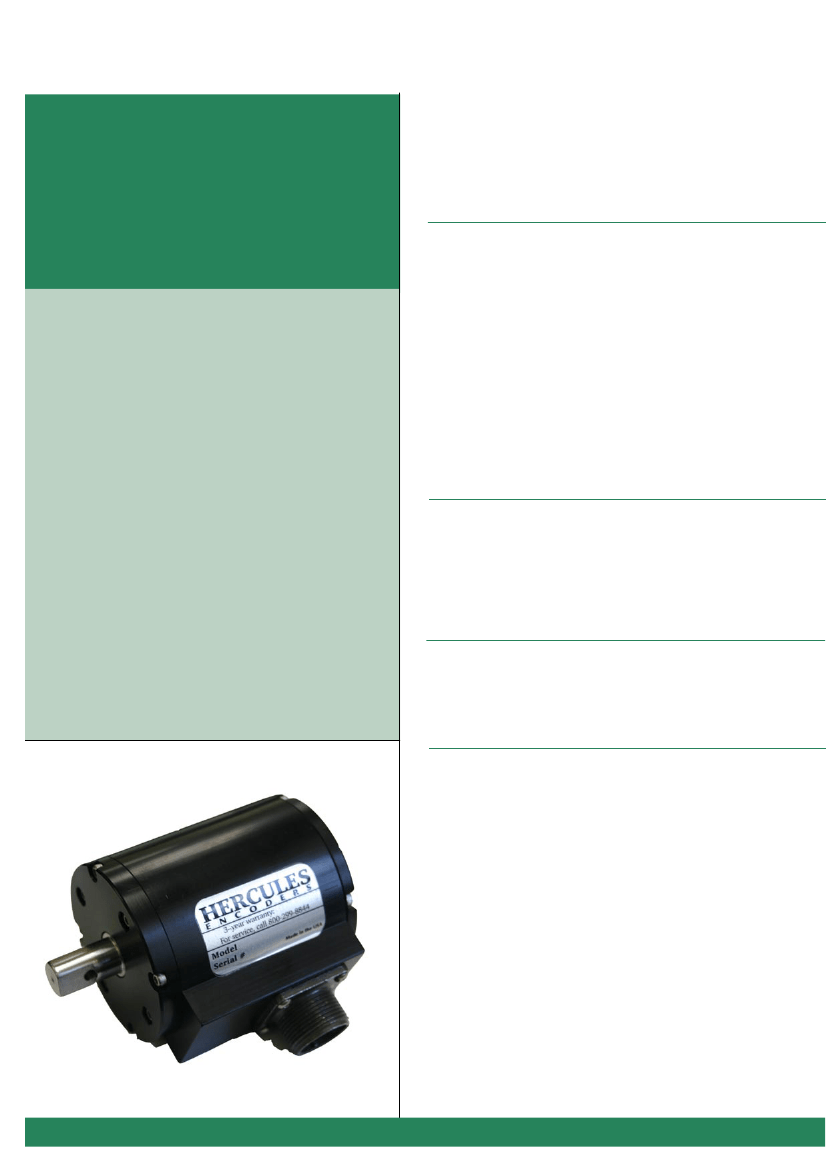

Hercules Encoders

Smart Encoder

Series SE25

• Combined Heavy Duty Encoder and Motor Con-

trol Features

• Automatically adjusts to maintain speed with

changes in motor load

• Enclosure: SE25-2.5” Dia.

NEMA 6P and IEC IP 67 type sealing

Servo, Flush or Flanged Mounting

• Shielded ABEC 5 Stainless Steel Spindle Bearings,

Standard and Self-Mounting options

• Operating Voltage Flexibility – 8 to 28 Vdc or 5

Vdc TTL Output, 5V or 8-15V with Line Driver

• Operating Temperature Rating designed for ex-

tremes, from -40° to +85°C (-40° to +185°F)

Speciﬁcations

Mechanical

Shaft Speed

Shaft Direction

Standard Shaft Sizes

Shaft Extension(s)

Shaft Seals

Mounting

Bearings

Radial Loading

Axial Loading

Accuracy

Housing

Weight

Connector

6000 RPM maximum

Bidirectional

.3747”, .4997”

Std 0.875”, .50 x .05” ﬂat

Neoprene or PTFE Options

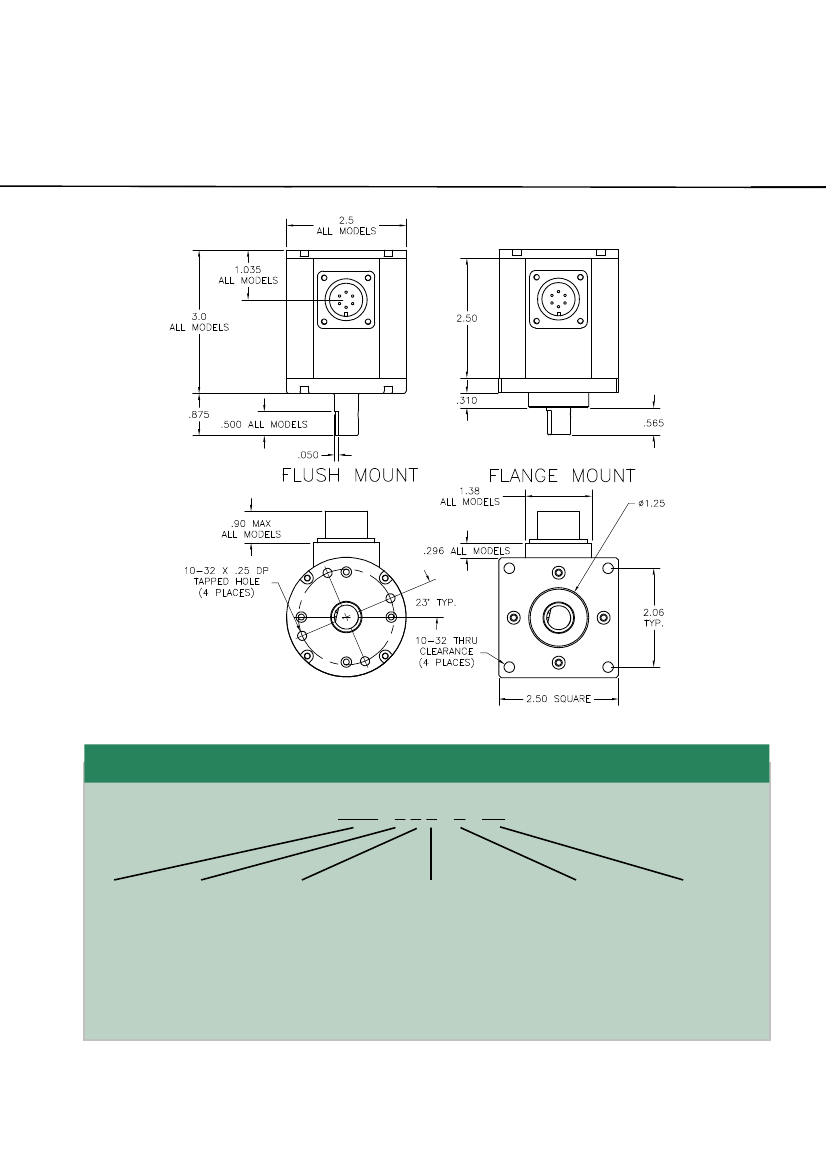

Refer to dimensional drawings

.5000” ID ABEC 5 Spindle

90 lbs. Operating

45 lbs. Operating

±0.1° of Shaft Rotation Typ.

Black Anodized Aluminum

22 oz.

6, 7, 10 Pin MS3102 or 18” Cable Out

Electrical

Supply Voltage

Supply Current

Current Sinking

Connections

8 to 28 Vdc

5 Vdc TTL output

100 mA typical., 120 mA maximum

250 mA max

Conﬁgured to Customer Requirement

Environmental

Operating Temperature

Shock

Vibration

Humidity

Enclosures (Sealed)

-40° to +85°C (-40° to +185°F)

50 g’s for 11 Milliseconds

5 to 2000 Hertz at 20 g’s

100% Relative Humidity

NEMA 6P, IEC IP 67 – Water-tight

for the latest speciﬁcations visit our website

www.herculesencoders.com

Rev. A
