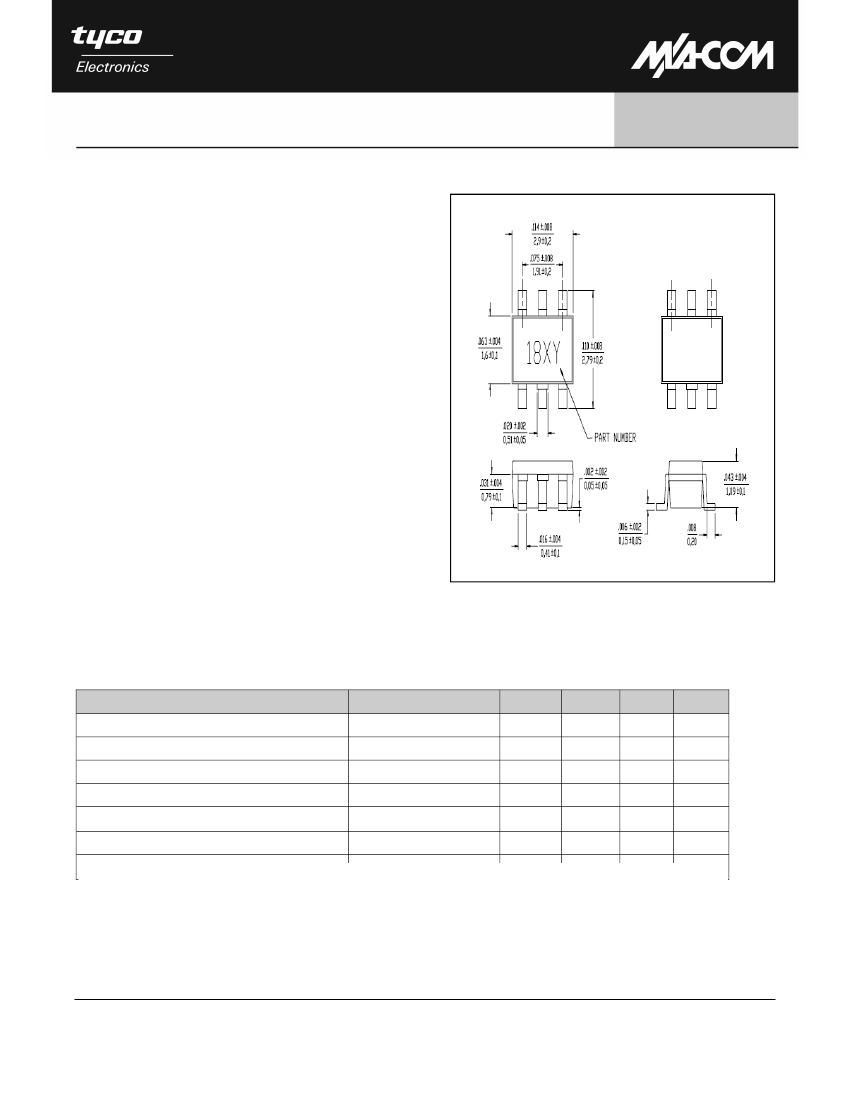

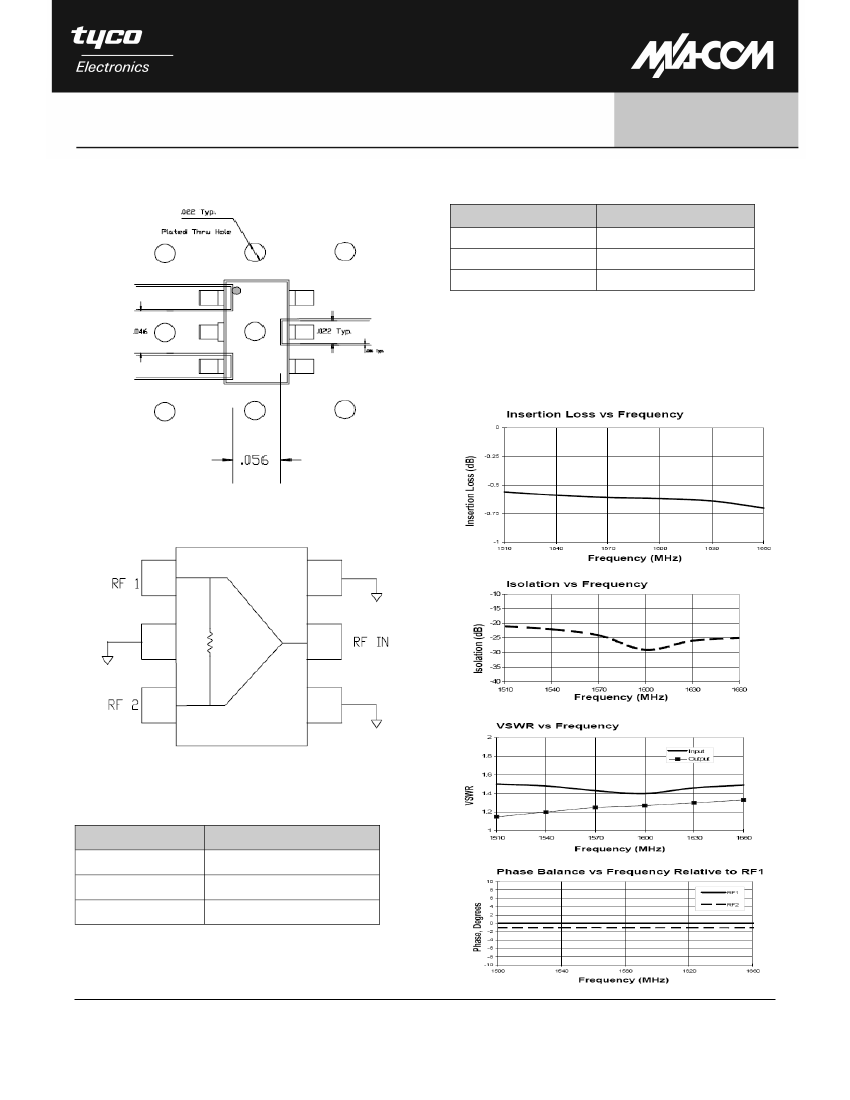

Low Cost Two-way GMIC Power Divider,

1510 - 1600 MHz

Features

•

Small Size and Low Profile

Industry Standard SOT-26 SMT Plastic Package

Typical Isertion Loss 0.6dB

Typical Amplitude Balance 0.05dB

1 Watt Power Handling

DS52-0009

SOT-26

Description

M/A-COM’s DS52-0009 is an IC-based monolithic

power divider using M/A-COM’s GMIC technology in

a low cost SOT-26 plastic package. This 2-way

power divider is ideally suited for applications where

small size, low insertion loss, superior phase/

amplitude tracking and low cost are required. Typical

applications include handsets, base station switching

networks and other communication applications

where size and PCB real estate are at a premium.

Available in Tape and Reel. The DS52-0009 is fabri-

cated using a passive-integrated circuit process. The

process features full-chip passivation for increased

performance and reliability.

Electrical Specifications

: T

= 25 °C

Parameter

Insertion Loss “above 3.0 dB theoretical loss”

Isolation

Input VSWR

Output VSWR

Amplitude Balance

Phase Balance

Frequency

1510 - 1600 MHz

Units

Ratio

deg

Min

—

Typ

0.6

1.4:1

1.1:1

0.05

Max

0.75

—

1.6:1

1.3:1

0.2

1. All specifications apply with a 50-ohm source and load impedance.

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.
