1N4935G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4935G

1N4935G: Description1 A, 200 V, SILICON, SIGNAL DIODE, DO-41; CategoryDiscrete semiconductor diode; File Size28KB，2 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/

Download Datasheet Parametric Compare View All

1N4935G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4935G	-	-	View	Buy Now

1N4935G Overview

1 A, 200 V, SILICON, SIGNAL DIODE, DO-41

1N4935G Parametric

Parameter Name	Attribute value
Maker	FORMOSA
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.12 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

1N4933

1.0 AMP FAST RECOVERY RECTIFIERS

THRU

1N4937

VOLTAGE RANGE

50 to 600 Volts

CURRENT

FEATURES

* Low forward voltage drop

* Low leakage current

* High reliability

* High current capability

1.0 Ampere

DO-41

.107(2.7)

.080(2.0)

DIA.

1.0(25.4)

MIN.

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202,

method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 0.34 grams

.034(.9)

.028(.7)

DIA.

.205(5.2)

.166(4.2)

1.0(25.4)

MIN.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

.375"(9.5mm) Lead Length at Ta=75 C

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Instantaneous Forward Voltage at 1.0A

Maximum DC Reverse Current

Ta=25 C

at Rated DC Blocking Voltage

Ta=100 C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range T

, T

STG

NOTES:

1N4933

1N4934

100

1N4935

200

140

200

1.0

1.2

5.0

100

200

-65 +150

1N4936

400

280

400

1N4937

600

420

600

UNITS

1. Reverse Recovery Time test condition:IF=1.0A, VR=30V.

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

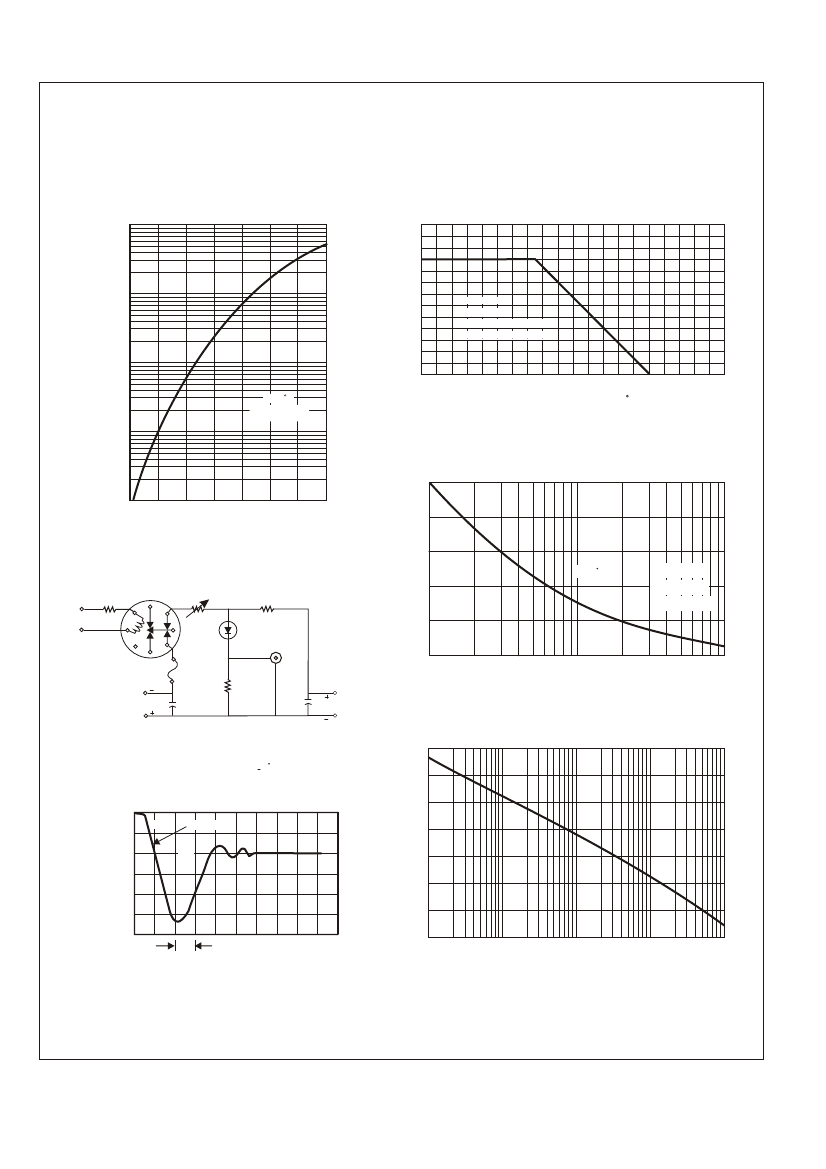

1N4935G Related Products

	1N4935G	IN4937	1N4933G	1N4934G	1N4936G	1N4937G
Description	1 A, 200 V, SILICON, SIGNAL DIODE, DO-41	SIGNAL DIODE	SIGNAL DIODE	1 A, 100 V, SILICON, SIGNAL DIODE, DO-41	1 A, 400 V, SILICON, SIGNAL DIODE, DO-41	SIGNAL DIODE
Diode type	RECTIFIER DIODE	Signal diode	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maker	FORMOSA	-	FORMOSA	FORMOSA	FORMOSA	FORMOSA
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON
Maximum forward voltage (VF)	1.2 V	-	1.2 V	1.2 V	1.2 V	1.2 V
JEDEC-95 code	DO-41	-	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	30 A	-	30 A	30 A	30 A	30 A
Number of components	1	-	1	1	1	1
Number of terminals	2	-	2	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	-	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	200 V	-	50 V	100 V	400 V	600 V
Maximum reverse recovery time	0.12 µs	-	0.12 µs	0.12 µs	0.12 µs	0.12 µs
surface mount	NO	-	NO	NO	NO	NO
Terminal form	WIRE	-	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL
package instruction	-	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
