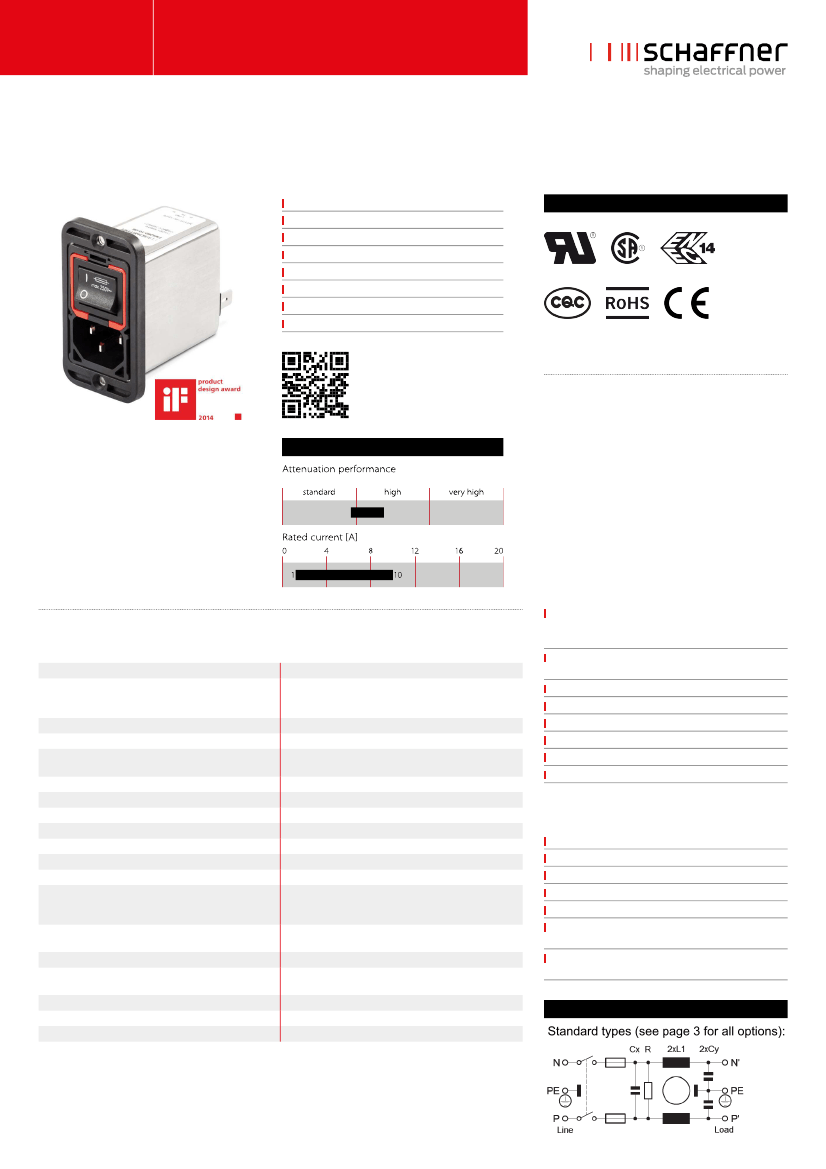

DATASHEET
IEC Inlet Filters FN 9280
Ultra Compact and Versatile Filtered Power Entry Module
Single stage filter
Ultra compact design
Rated currents up to 10 A
dual-fuse holder
Fuses Ø5x20 mm
2-pole rocker switch
Good attenuation performance
Faston or spring cage terminals
Check the video of our IEC Inlet
Filters FN 9280 and FN 9290 on
Youtube!
Approvals
(CQC except HI-types; Patent US 20110227692/US
8766761; CN ZL201080069589.0)
Performance indicators
Choosing FN 9280/90 product line brings you the
rapid availability of a standard filter associated with
the necessary safety acceptances and a high
attenuation performance. For higher attenuation
performance the FN 9290 family with a dual stage
filter and identical panel cut-out can be used.
Standard IEC connector filters are a practical solution
to pass EMI system approval in a short time. A wide
selection of amperage ratings, mounting possibilities
and also filters for medical applications are designed
to offer you the best solution.
Features and benefits

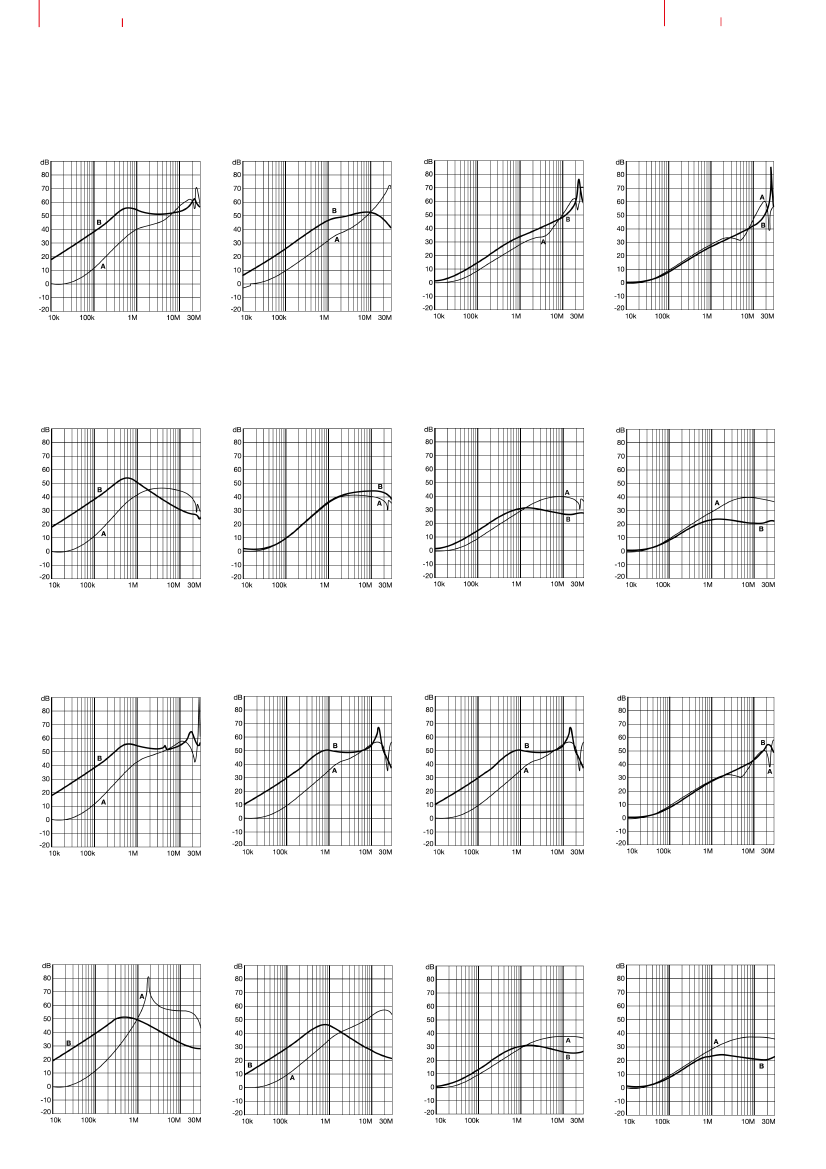

Good conducted attenuation performance, based
on chokes with high saturation resistance and
excellent thermal behavior
50,000 cycles
P –> PE 2000 VAC for 2 sec (standard types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 760 VAC for 2 sec
>1,000,000 hours
– 25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, EN 60939, EN 60950, EN
60601-1, UL 544, EN 60320
UL 94 V-2 or better
250 VAC, 50/60 Hz
1 to 10 A @ 40°C max.
DC to 400 Hz
10 A, 125 VAC; 10 A, 250 VAC; 1/3 HP
10 A (4 A), 250 VAC**
Inrush current 82 A
6,000 on-off operations according to UL 1054
10,000 on-off operations according to ENEC
Standard: <500 uA at 250 VAC/50 Hz
Medical: <5 uA at 250 VAC/50 Hz
IP 40 according to IEC 60529 (front side)
2 fuses (Ø5 x 20 mm) max. 250 V (certified to IEC
60127-6)
IP 20 spring cage safe against finger touch
0.2 –1.5 mm2 / 24 –16 AWG single or flexible wire
2-pole, dark not illuminated, Marking I - 0
Technical specifications
Mechanical life
High potential test voltage
Deep-drawn iron-sheet housing for best possible
shielding against magnetic fields

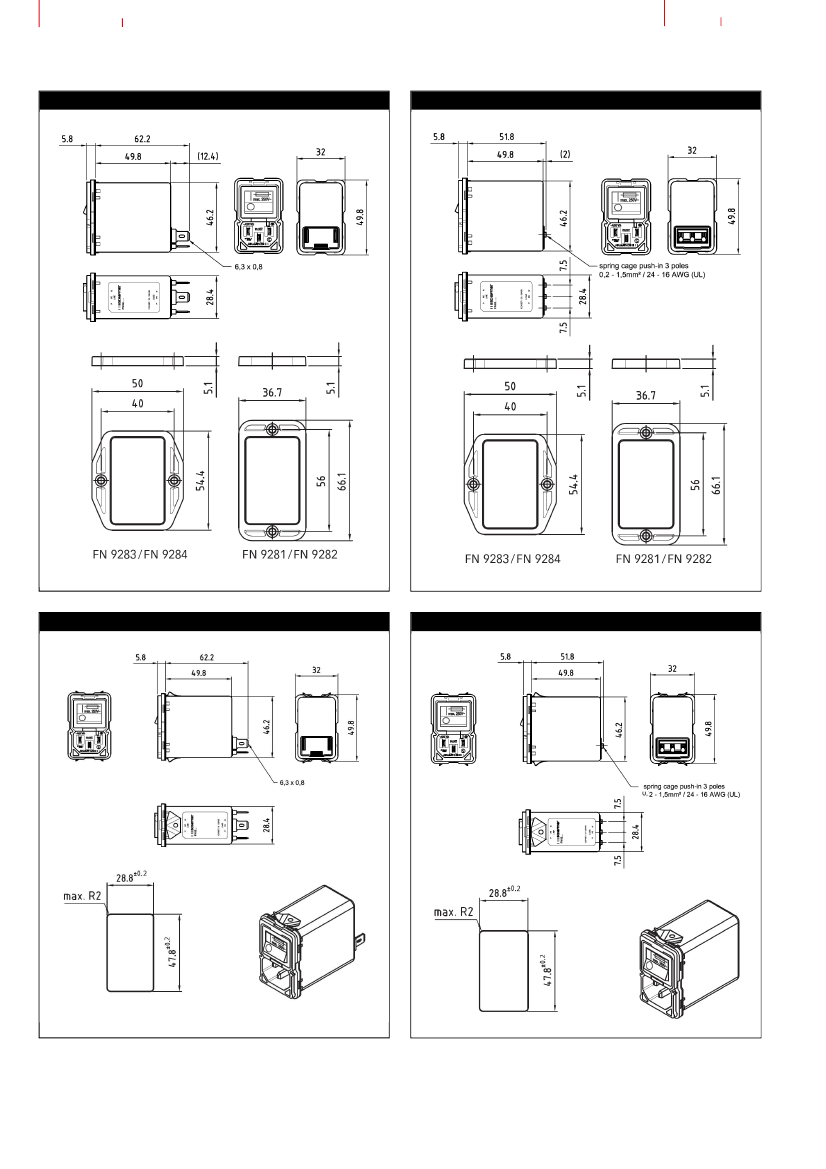

Rear/front flange mounting or snap-in versions
Dual and additional spare fuse holder
2-pole rocker switch
Faston or spring cage terminals
Medical version (B Type) according IEC/EN 60601-1
All versions according IEC/EN 62368-1
MTBF @ 40°C/230 V (Mil-HB-217F)
Temperature range (operation and storage)
Design corresponding to
Flammability corresponding to
Maximum continuous operating voltage
Rated currents
Operating frequency
Switch ratings
USA (UL) and Canada (C-UL)
Europe (ENEC)
Electrical specifications
Typical applications
Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Medical electrical devices (MD) and
In-Vitro-
Diagnostics (IVD) equipment
Audio/Video, information and communication
technologies
Leakage current
Protection category
Fuse holder
Terminals
Spring cage wire range
Rocker switch

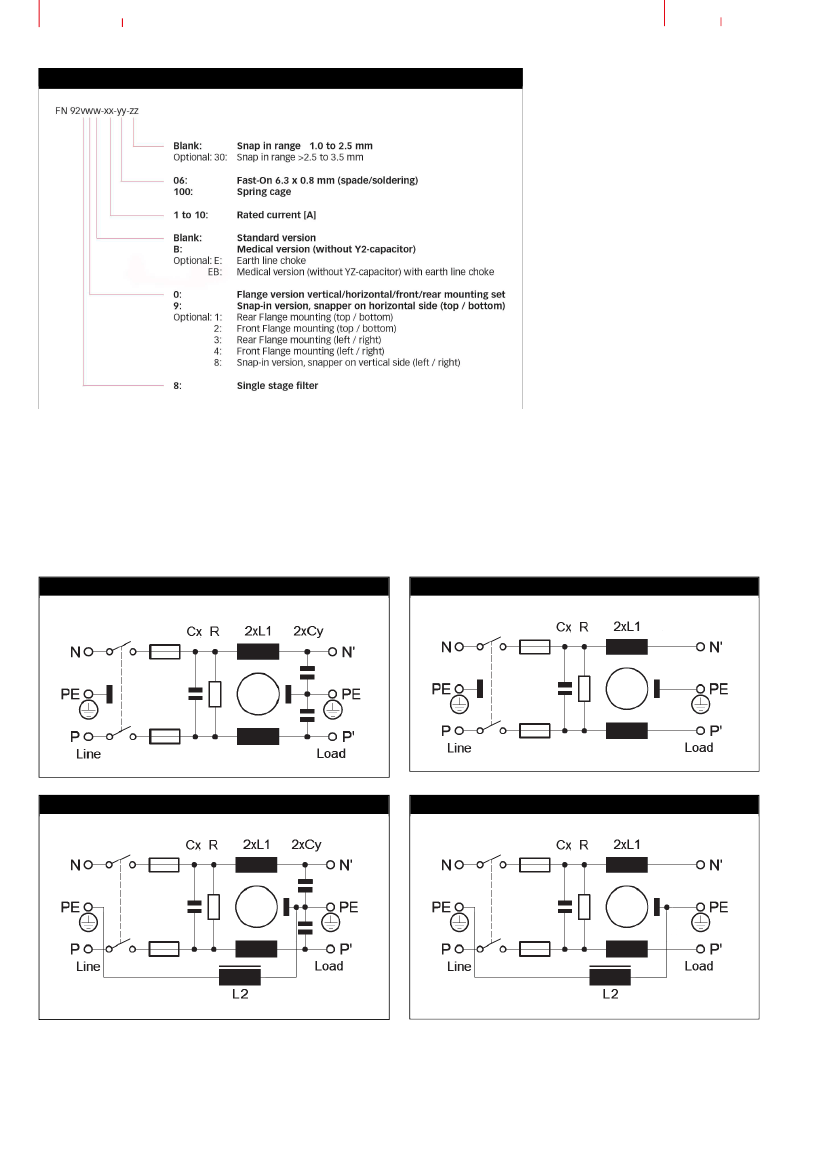

Typical electrical schematic
* 10 A version is 8 A UL and CSA approved
** Value in () relates to the inductive current charge: cos γ = 0.65
3
EMC/EMI Products
Schaffner Group
Datasheets
11 Oct 2018
Product selector
All FN 9280/FN 9290 are equipped with a dual fuse holder with a spare fuse holder.
Note: All FN 9280/FN 9280 B/FN 9289/FN 9289 B/FN 9290/FN 9290 B/FN 9299/FN 9299 B are stock types from our distribution partners.
Order Examples:
FN 9280 B-6-100: Medical version of single stage, dual fuse EMC/EMI filter, flange set for vertical/horizontal/front/rear mounting, 6 A, spring cage terminals, from stock
available.
FN 9298-6-06-30: Dual stage, dual fuse EMC/EMI filter, snap-in version, snappers for snap-in panel thickness range >2.5 to 3.5 mm, snapper on vertical side, 6 A, fast-on
terminals, non-stock order type
Standard type filters*
B-type filters* (without Cy)
E-type filters* (with earth line choke)
EB-type filters* (with earth line choke and without Cy)
* Fuses are not included
