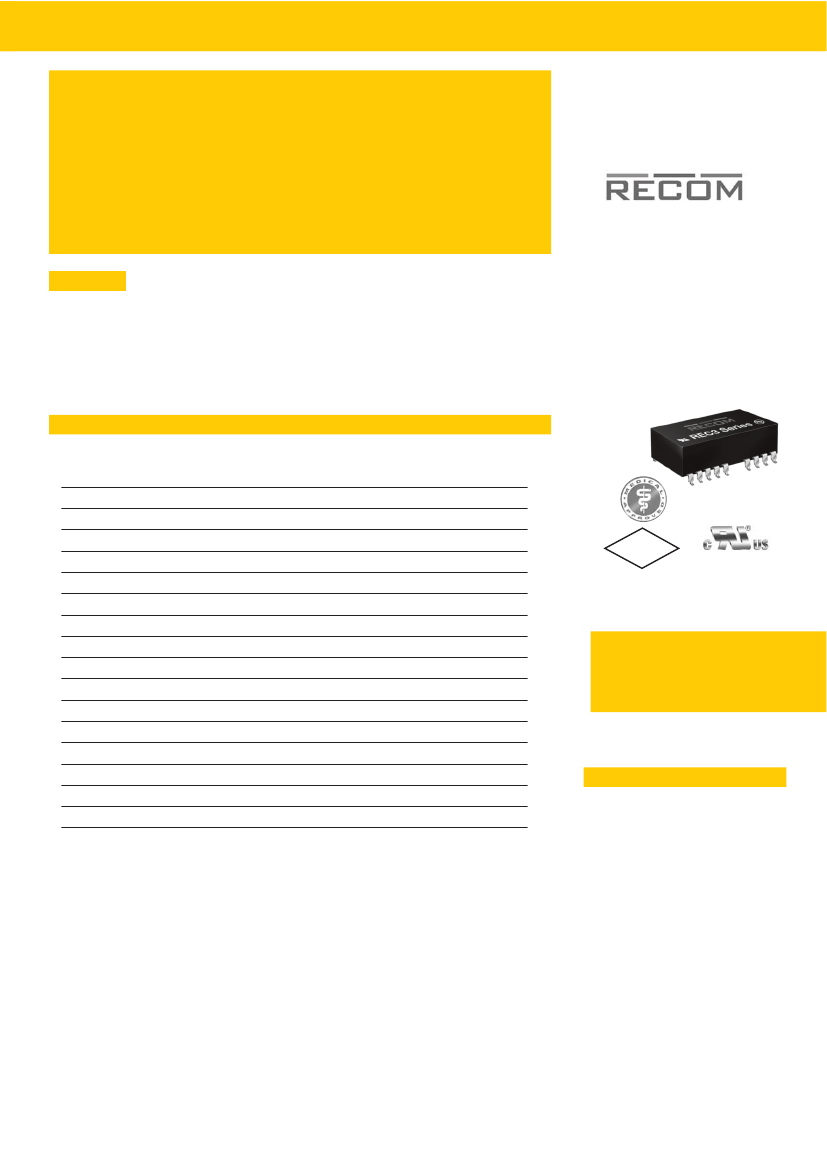

Features
Regulated
Converters
●
●
●
●
●
●
●
●
●
●
2kV, 4kVDC
&
6kVDC Isolation
Industry Standard 3W DIP24 Package
Feedback Regulated Output
Continuous Short Circuit Protection
Wide Input 2:1
&
4:1
Medical Approvals (4kV/6kV Versions)
EN and UL Certificates
3 Pinout Options, 3 Case Styles
Control Pin Option
Efficiency to 86%
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
Besides the standard isolation of 2kVDC, this series offers options of 4kVDC (= "/H4") or 6kVDC
(="/H6") making it suitable for medical applications and other sophisticated industrial applica-
tions. Packaging can be either DIP-24 plastic or 5-side-shielded DIP24 metal case (=option
"/M") as well as SMD pinning (= option "/SMD"). For all the above variants, 2 industry-standard
pinouts (= option "/A" or "/C") are available, and B pinning is available with 1.6kVDC isolation.
Remote on/off control is possible with the /CTRL option (A pinning only). The converters can
deliver 140% rated power for short periods of time to cope with applications with large
capacitive loads or high start up currents.
3 Watt
DIP24
&
SMD
Single
&
Dual
Output
Selection Guide
Part
Number
DIP24 (SMD)
REC3-xx3.3SRW/H*
REC3-xx05SRW/H*
REC3-xx09SRW/H*
REC3-xx12SRW/H*
REC3-xx15SRW/H*
REC3-xx05DRW/H*
REC3-xx12DRW/H*
REC3-xx15DRW/H*
REC3-xx3.3SRWZ/H*
REC3-xx05SRWZ/H*
REC3-xx09SRWZ/H*
REC3-xx12SRWZ/H*
REC3-xx15SRWZ/H*
REC3-xx05DRWZ/H*
REC3-xx12DRWZ/H*
REC3-xx15DRWZ/H*
Input
Voltage
(VDC)
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
Output
Voltage
(VDC)
3.3
5
9
12
15
±5
±12
±15
3.3
5
9
12
15
±5
±12
±15
Output Efficiency
Max
Current
Capacitive
(mA)
(%)
Load
(1)
900
600
330
250
200
±300
±125
±100
900
600
330
250
200
±300
±125
±100
66-76
71-79
74-83
75-85
75-86
74-83
75-85
75-86
77-79
78-80
80-83
83-85
83-85
77-80
83-85
83-85
4700µF
4700µF
3300µF
2200µF
2200µF
±2200µF
±1000µF
±1000µF
4700µF
4700µF
3300µF
2200µF
2200µF
±2200µF
±1000µF
±1000µF
‘B” Pinning is restricted to 1.6kV isolation due
to the closeness of the input and output pins.
If the options "/M" for metal case and "/SMD"
for SMD pinout are combined, the maximum
allowed isolation voltage is 2kVDC because of
the shorter distances between pins and the
metal case.
DIP-24 through-hole case and SMD-plastic
case are not affected and offer the full isolation
barriers of 2kV through to 6kVDC.
2011/65/EU
6/6
RoHS
E-358085
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified
REC3-S_DRW
Isolation Restrictions
H* = H2, H4 or H6 for A or C pinning options with 2kVDC, 4kVDC or 6kVDC isolation.
H* = H for B pinning option with 1.6kVDC isolation only.
* add suffix "/A", "/A/X2", "/B"or "/C" for pinning options,
see next page and Isolation Restrictions.
* add suffix "/M" for metal case.
* add suffix "/SMD" for SMD package.
* add suffix "/CTRL" for control pin option
(A Pinning only)
* add suffix -R for Tape and Reel packaging
2:1 Input
(REC3-S/DRWH4/H6)
xx = 4.5-9Vin = 05
xx = 9-18Vin = 12
xx = 18-36Vin = 24
xx = 36-72Vin = 48
4:1 Input
(REC3-S/DRWZ(H4/H6))
xx = 9-36Vin = 24
xx = 18-72Vin = 48
Ordering Examples:
REC3-0512DRW/H2/A/CTRL= 2:1 input, 5V Vin, ±12V Vout, 2kVDC, pinout “A”, plastic case, control pin
REC3-4812SRWZ/H4/A/M = 4:1 input, 48V Vin, 12V Vout, 4kVDC, pinout “A”, metal case, no control pin
REC3-2412DRWZ/H/B = 4:1 input, 24V Vin, ±12V Vout, 1.6kVDC, pinout “B”, plastic case, no control pin
REC3-0505SRW/H6/C/SMD-R = 2:1 input, 5V Vin, 5V Vout, 6kVDC, SMD pinout “C”, plastic case,
no control pin, Tape and Reel packaging.
www.recom-international.com
REV: 0/2015
Refer to Application Notes
E-143
ECONOLINE
DC/DC-Converter
REC3-S_DRW(Z)
/H* Series
Derating-Graph
(Ambient Temperature)
Vin = 5V
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
2:1 & 4:1
Output Voltage Accuracy
±2% max.
Line Regulation (HL-LL)
±0.4% max.
Load Regulation (for output load current change from 20% to 100%)
±0.6% max.
Minimum Load
10%
(2)
Output Ripple and Noise (0,1µF capacitor on output, 20MHz BW)
50mVp-p max.
Switching Frequency at Full Load
2:1 Input types
90kHz min. / 150kHz max.
and nominal Input Voltage
4:1 Input types
120kHz min. / 180kHz max.
Input Filter
Pi Network
Efficiency at Full Load
see above
No Load Power Consumption
300mW max.
Isolation Voltage
H2-Suffix
(tested for 1 second)
2000VDC
(rated for 1 minute**)
1000VAC / 60Hz
Isolation Voltage
H4-Suffix
(tested for 1 second)
4000VDC
(rated for 1 minute**)
2000VAC / 60Hz
Isolation Voltage
H6-Suffix
(tested for 1 second)
6000VDC
(rated for 1 minute**)
3000VAC / 60Hz
Isolation Capacitance
2:1 Input types
20pF min. / 60pF max.
4:1 Input types
40pF min. / 80pF max.
Isolation Resistance
1 GΩ min.
Short Circuit Protection (Max temp. = 60°C during short circuit conditions)
Continuous, Auto Restart
Operating Temperature Range
5V input types
-40°C to +80°C (see Graph)
(free air convection)
others
-40°C to +85°C (see Graph)
Storage Temperature Range
-55°C to +125°C
Relative Humidity
95% RH
Case Material
Non-Conductive Plastic or Metal
Thermal Impedance
Natural convection
20°C/W for plastic case
12°C/W for metal case
Package Weight
13g
Packing Quantity
15 pcs per Tube
100 pcs per Reel
MTBF (+25°C)
using MIL-HDBK 217F
1043 x 10
3
hours
(+85°C)
using MIL-HDBK 217F
Certifications UL General Safety Report: E358085
186 x 10
3
hours
UL 60950-1 1st Ed.
C22.2 No. 60950-1-03
EN General Safety Report: SPCLVD1212007 EN60950-1:2006 + A1:2010+A12:2011
EN Medical Safety Report: MDD1205098-3 + RM1205098-3 IEC/EN 60601-1 3rd Ed.
Medical Report + ISO14971 Risk Assessment
120
100
80
60
50
40
20
0
-40
Output Power (%)
Safe Operating Area
100
50 75
125
80 105
Operating Temperature (°C)
0
25
REC3-RW
120
100
80
60
50
40
20
0
-40
Output Power (%)
Safe Operating Area
0
25
50 75
100
85 105
125
Operating Temperature (°C)
}
Detailed Information see
Application Notes chapter "MTBF"
**Any data referred to in this datasheet are of indicative nature and
based on our practical experience only. For further details, please
refer to our Application Notes.
Notes
Note 1:
Note 2:
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter
The REC3-RW series requires a minimum of 10% load on the output to maintain specified regulation. Operating under no-load
conditions will not damage these devices; however, they may not meet all listed specifications.
Typical Characteristics
Single 2:1 Input Single 2:1 Input
Efficiency / Load
100
80
60
40
Dual 2:1 Input
Efficiency / Load
100
80
60
Efficiency / Load
2415
2409
2405
100
80
60
40
2418
1212D
0512D
1205
4805
2424
40
0515D
Efficiency %
Efficiency %
Efficiency %
20
0
20
0
20
0
0%
40%
20%
60%
Total Output current (%)
80%
100%
0%
40%
20%
60%
Total Output current (%)
80%
100%
0%
40%
20%
60%
Total Output current (%)
80%
100%
E-144
REV: 0/2015
www.recom-power.com
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm) DIP 24 , Wide Input 2:1 & 4:1
REC3-S_DRW(Z)
/H* Series
32.00
10.20
3.8
+0.5 /-0.25
20.30
Pin Connections
Pin #
1
15.24
2
3
10
11
1.00 ø+0.15/0
“B” Pinning
/H (1.6kV Only)
2.06
Single
+Vin
No Pin
No Pin
–Vout
+Vout
–Vin
–Vin
+Vout
–Vout
No Pin
No Pin
+Vin
Dual
+Vin
–Vout
Com
Com
+Vout
–Vin
–Vin
+Vout
Com
Com
–Vout
+Vin
0.51
Recommended Footprint Details
12
13
14
15
22
1 2 3
Bottom View
24 23 22
10 11 12
15 14 13
Top View
2.54
23
24
2.54
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
32.00
19.90
SMD Pinning
11.20
31.40
10.90
3.81
Tol.: ± 0.35 mm
6.35
20.30
25.40
2.54
SMD pin connections follow
standard package A (/A/SMD),
B (/B/SMD) or C (/C/SMD) pinning.
1.54
2.03
REC3-RW
Recommended Footprint Details
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
2.54
All unused pins are NC
(No Connection). See Below for
detailed pinout lists
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.67
24.64
1
Top View
11 x 2.54
27.94
for all packages incl.SMD case the length of plastic case is 31,8 mm, length of metal case 32.0 mm
/A/SMD Pinning
Pin Connections
Pin #
1 (Option)
2
3
4
5
9
10
11
12
Single
CTRL
–Vin
–Vin
NC
NC
NC
NC
NC
NC
Pin Connections
Dual Pin #
CTRL 13
–Vin 14
–Vin 15
NC
NC
NC
NC
16
20
22
24
Single
NC
+Vout
NC
-Vout
NC
NC
+Vin
+Vin
NC
Dual
NC
+Vout
NC
Com
NC
NC
+Vin
+Vin
NC
Pin Connections
Pin #
1
2
3
4
5
9
10
11
12
Single
+Vin
NC
NC
NC
NC
NC
-Vout
+Vout
-Vin
/B/SMD Pinning
Pin Connections
Dual Pin #
+Vin 13
–Vout 14
Com
NC
NC
NC
Com
-Vin
15
16
20
21
22
24
Single
-Vin
+Vout
-Vout
NC
NC
NC
NC
NC
+Vin
Dual
-Vin
+Vout
Com
NC
NC
NC
Com
-Vout
+Vin
Pin Connections
Pin #
1
2
3
4
5
9
10
11
12
/C/SMD Pinning
Pin Connections
Dual Pin #
+Vin
+Vin
NC
NC
NC
NC
Com
Com
NC
13
14
15
16
20
21
22
23
24
Single
+Vout
NC
NC
NC
NC
NC
NC
-Vin
-Vin
Dual
-Vout
NC
+Vout
NC
NC
NC
NC
-Vin
-Vin
Single
+Vin
+Vin
NC
NC
NC
NC
NC
NC
-Vout
Com 21
-Vout 23
+Vout 23
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
E-146
REV: 0/2015
www.recom-power.com
