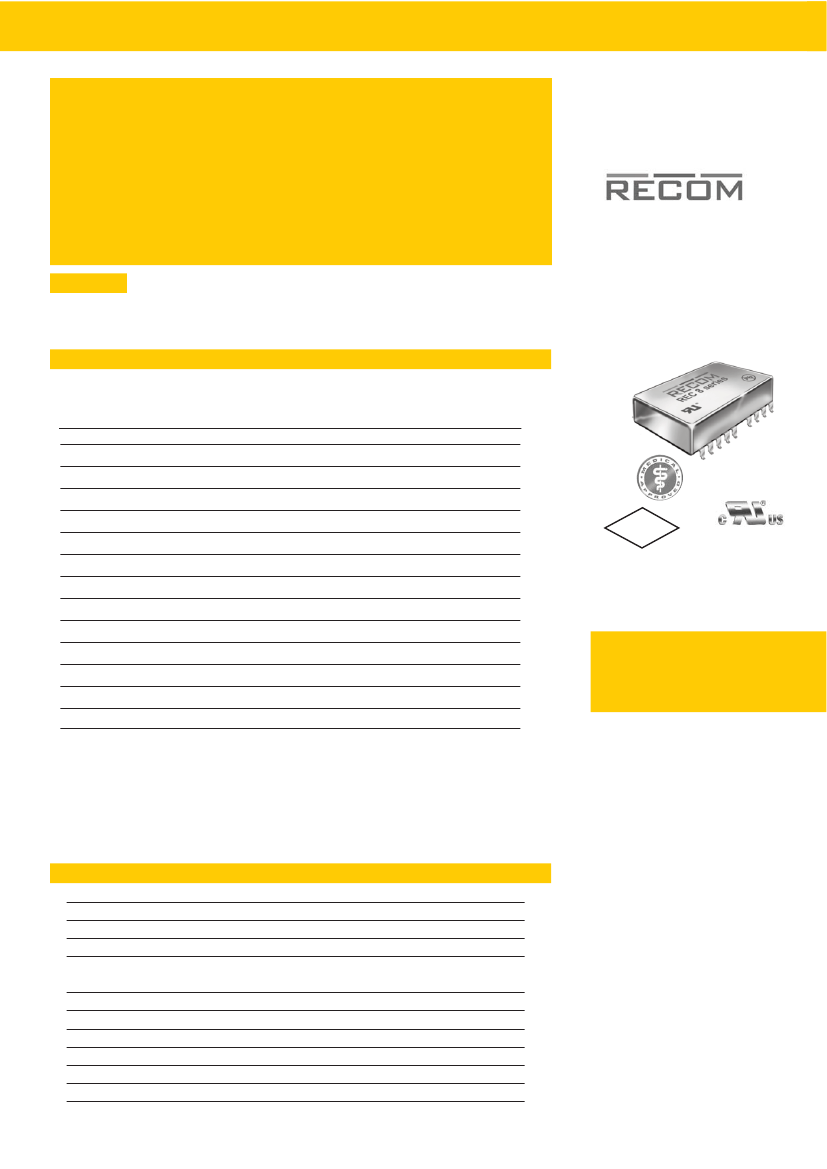

Features
Regulated
Converters
●
●
●
●
●
●
●
●
●
8W DIP24 Package
2KVDC and 3kVDC Isolation Options
2:1 and 4:1 Versions
Continuous Short Circuit Protection
(power limiting)
Synchronous Rectification on 3.3, 5V outputs
Full SMD internal design
Through Hole or SMD Pinning Options
Remote Control Pin
Efficiency to 87%
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
The REC8-xxxxSRW/DRW-series offer single and dual regulated outputs in a DIP24 package with
2kV or 3kV isolation options and are suitable for higher power industrial or medical applications.
Remote on/off control is standard and SMD pinning is offered with the /SMD option.
The converters can deliver 150% rated power for short periods of time to cope with applications
with large capacitive loads or high start up currents.
Selection Guide
Part
Number
REC8-xx3.3SRW/H*/A/M
REC8-xx05SRW/H*/A/M
REC8-xx12SRW/H*/A/M
REC8-xx15SRW/H*/A/M
REC8-xx05DRW/H*/A/M
REC8-xx12DRW/H*/A/M
REC8-xx15DRW/H*/A/M
REC8-xx3.3SRWZ/H*/A/M
REC8-xx05SRWZ/H*/A/M
REC8-xx12SRWZ/H*/A/M
REC8-xx15SRWZ/H*/A/M
REC8-xx05DRWZ/H*/A/M
REC8-xx12DRWZ/H*/A/M
REC8-xx15DRWZ/H*/A/M
Input
Voltage
(VDC)
4.5-9, 9-18, 18-36, 36-75
4.5-9, 9-18, 18-36, 36-75
4.5-9, 9-18, 18-36, 36-75
4.5-9, 9-18, 18-36, 36-75
9-18, 18-36, 36-75
Output
Voltage
(VDC)
3.3
5
12
15
±5
Output
Current
(mA)
1600
1600
666
533
±800
±333
±267
1600
1600
666
533
±800
±333
±267
Efficiency
(%)
83-85
85-87
84-86
84-86
84
84-86
84-86
84
86
85
85
83
85
85
Max.
Capacitive
Load
2200µF
2200µF
470µF
220µF
±1000µF
±220µF
±100µF
2200µF
2200µF
470µF
220µF
±1000µF
±220µF
±100µF
8 Watt
DIP24
&
SMD
Single
&
Dual
Output
4.5-9, 9-18, 18-36, 36-75 ±12
4.5-9, 9-18, 18-36, 36-75 ±15
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
3.3
5
12
15
±5
±12
±15
2011/65/EU
6/6
RoHS
E-224736
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified
REC8
* Standard is /H2 for 2kVDC isolation,
use /H3 for 3kVDC Isolation (not SMD)
* add suffix “/SMD” for SMD package, e.g.
REC8-2405SRW/H2/A/M/SMD
* add suffix -R for Tape and Reel packaging (only
available for SMD package)
e.g. REC8-2405SRW/H2/A/M/SMD-R
2:1
xx = 4.5-9Vin = 05,
xx = 9-18Vin = 12,
xx = 18-36Vin = 24,
xx = 36-75Vin = 48
4:1
xx = 9-36Vin = 24,
xx = 18-75Vin = 48
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Input Filter
Output Voltage Accuracy
Line Voltage Regulation (VL to VH at full load)
Load Voltage Regulation
Single
(25% to 100% full load )
Dual
Cross Regulation (100%: 25% to 100% full load )
Output Ripple and Noise (with 100n output capacitor and 20MHz BW)
Start-up time
Operating Frequency (Full Load)
Efficiency at Full Load
Minimum Load
2:1 & 4:1
PI Network
±1.5% max.
±0.5% max.
±0.5% max.
±1.2% max.
±5% max.
50mVp-p max.
300ms typ.
330kHz typ.
see Selection Guide
0%
continued on next page
REV: 1/2015
Refer to Application Notes
www.recom-power.com
E-160
ECONOLINE
DC/DC-Converter
Input Surge Voltage (100ms max.)
REC8-S_DRW(Z)/H*/A/M
Series
5V Input
12V Input
24V Input
48V Input
(tested for 1 second)
(rated for 1 minute**)
(tested for 1 second)
(rated for 1 minute**)
15VDC
36VDC
50VDC
100VDC
2000VDC
1000VAC / 60Hz
3000VDC
1500VAC / 60Hz
1200pF typ.
Output Power (%)
Specifications cont.
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Derating-Graph
(Ambient Temperature)
2:1 Converters
100
80
60
40
20
0
-40
0
50
85 100
150
2:1 Vin =5V
Isolation Voltage
H2-Suffix and SMD
H3-Suffix
Safe Operating Area
2:1 - All Others
Isolation Capacitance
Isolation Resistance
Overload Protection
Short Circuit Protection
Operating Temperature Range
(free air convection)
Remote On/Off
Storage Temperature Range
Temperature Coefficient
Relative Humidity
Case Material
Thermal Impedance
Maximum Case Temperature
Vibration
Package Weight
Packing Quantity
MTBF (+25°C)
(+71°C)
Certifications
EN General Safety
UL General Safety
EN Medical Safety
Report: SPCLVD1211033-2
Report: E224736
Report: MDD12060585 + RM1206085
4:1
2:1- Vin=5V
2:1 - All Others
DC/DC ON
DC/DC OFF
1 GΩ min.
150% typ.
Continuous, Auto Restart
-40°C to +71°C (see Graph)
-40°C to +71°C (see Graph)
-40°C to +85°C (see Graph)
Open or 3.5V<Vr<12V
Short or 0V<Vr<1.2V
-55°C to +105°C
±0.05% max.
95% RH max.
Nickel Plated Metal with Non-Conductive Base
Natural convection
12°C/W
100°C
10-55Hz, 2G, 30mins along X,Y & Z
18g
Tube
15 pcs
Tape and Reel
100 pcs
using MIL-HDBK 217F
using MIL-HDBK 217F
1200 x 10 hours
>300 x 10
3
hours
3
71
Operating Temperature °C
4:1 Converters
100
80
Safe Operating Area
4:1
Output Power (%)
60
40
20
0
-40
0
50 71 100
150
REC8
}
Detailed Information see
Application Notes chapter "MTBF"
Operating Temperature °C
EN60950-1:2006 +A12:2011
UL 60950-1 1st Ed.
C22.2 No. 60950-1-03
IEC/EN 60601-1 3rd Edition
Medical Report + ISO14971 Risk Assessment
**Any data referred to in this datasheet are of indicative
nature and based on our practical experience only.
For further details, please refer to our Application Notes.
Typical Characteristics
REC8-1205SRW/H2/A/M (/SMD)
REC8-1212SRW/H2/A/M (/SMD)
100
80
Efficiency / Load (Nominal Vin)
1205S
1212S
90
88
86
84
82
80
78
76
74
72
70
Efficiency VS Input Voltage
1205
Efficiency %
60
1212
20
0
0%
20%
80%
60%
Total Output current (%)
40%
100%
Efficiency (%)
40
9
10
12
14
16
18
Input Voltage (V)
Note: Refer to Application Notes for EMC Class B Filter suggestion
www.recom-power.com
REV: 1/2015
E-161
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm)
REC8-S_DRW(Z)/H*/A/M
Series
24 PIN DIP Package - Available with /H2 and /H3 Options
32.00
10.20
4.1
+0.25 /-0.5
2.03
0.50
20.30
15.24
Recommended Footprint Details
1.00 ø+0.15/0
1 2 3
Bottom View
23 22
16
14
Top View
9
11
Pin Connections DIP24
Pin #
1
2
3
2.54
9
11
14
16
22
23
Single
CTRL
–Vin
–Vin
NC
NC
+Vout
– Vout
+Vin
+Vin
Dual
CTRL
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
2.54
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
REC8
24 PIN SMD Package - available with /H2 option only.
32.00
31.40
11.20
10.90
3.81
6.35
20.30
25.40
19.90
2.54
Recommended Footprint Details
Pin area
0.1 x 0.50
1 2 3 4 5
Pin Connections DIP24 SMD
Pin #
1
2.03
2
3
9
Single
CTRL
–Vin
–Vin
NC
NC
+Vout
– Vout
+Vin
+Vin
Dual
CTRL
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
NC
NC
0.50
9 10 11 12
2.54
1.54
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.67
24.64
1
Top View
11
14
16
22
23
4,5,10,12
11 x 2.54
27.94
13,15,20,21,24
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
E-162
REV: 1/2015
www.recom-power.com
