LDN240 Series are single phase DIN Rail Switching Power Supplies,
suitable for worldwide applications such as process control, heavy
duty applications, but also building automation.
These units have received excellent market approval for their high
efficiency, excellent reliability and compactness. Simple but elegant
look and ease of installation due to pluggable connectors make them
ideal for various industrial applications.
LDN240 Series are Class I isolation devices suitable for SELV and
PELV circuitry (up to 48 VDC models) and are designed to be mounted
on DIN rail and installed inside a protective enclosure.
Single phase AC input 120 / 240 VAC (with switch)
High efficiencies and in compact size
Only 63 mm width aluminum enclosure
130% overload
Adjustable output voltage
Short circuit, overload and over temperature protection
RoHS Compliant
Automation
Process Control
Communication
Instrumentation Equipment
2
LDN240 Series
LDN240-12
LDN240-24
LDN240-24P
LDN240-48P
LDN240-72P
120 / 240 VAC (270 - 345 VDC)
120 / 240 VAC (270 - 345 VDC)
120 / 240 VAC (270 - 345 VDC)
120 / 240 VAC (270 - 345 VDC)
120 / 240 VAC (270 - 345 VDC)
1
1
1
1
1
12 VDC
24 VDC
24 VDC
48 VDC
72 VDC
16 A
10 A
10 A
5A
3.5 A
No ORing diode
No ORing diode
Internal ORing diode
Internal ORing diode
Internal ORing diode
Technical parameters are typical, measured in laboratory environment at 25°C and 240 VAC / 50 Hz, at nominal values, after minimum
5 minutes of operation.
Input AC Voltage Range
Input DC Voltage Range
Input Frequency Range
Input AC Current
Input DC Current
Inrush Peak Current
Touch (Leakage) Current
Internal Protection Fuse
Recommended External Protection
Rated, UL certified – settable with Input voltage selector
Operating
Rated
120 / 240 VAC
92 – 132 / 187 - 264 VAC
270 - 345 VDC
47 - 63 Hz
Vin = 120 VAC
Vin = 240 VAC
Vin = 270 VDC
Vin = 345 VDC
4A
2A
1.3 A
1A
≤
40 A
≤
0.8 mA
Not user replaceable
It is strongly recommended to provide external surge
arresters (SPD) according to local regulations
Fuse 6.3 AT
Fuse 10 AT or MCB 10 A C curve
Output Power
Rated Voltage
(Adjustable Voltage Range)
LDN240-12
LDN240-24 / LDN240-24P
LDN240-48P
LDN240-72P
LDN240-12
LDN240-24 / LDN240-24P
LDN240-48P
LDN240-72P
LDN240-12
LDN240-24 / LDN240-24P
LDN240-48P
LDN240-72P
LDN240-12
LDN240-24 / LDN240-24P
LDN240-48P
LDN240-72P
LDN240-12
LDN240-24
LDN240-24P
LDN240-48P / LDN240-72P
LDN240-12
LDN240-24 / LDN240-24P / LDN240-48P / LDN240-72P
Continuous Current
Overload Limit
Short Circuit Peak Current
Load Regulation
Ripple & Noise
1
240 W
12 VDC (12 – 15 VDC)
24 VDC (23 – 28 VDC)
48 VDC (45 – 55 VDC)
72 VDC (72 – 85 VDC)
16 A
10 A
5A
3.5 A
19 - 16 A
13.5 A
6.8 A
4.6 A
42 A
35 A
20 A
14 A
≤
1.5%
≤
1%
≤
2.5%
≤
1.5%
≤
150 mVpp
≤
100 mVpp
tech.support@psbel.com
LDN240 Series
Hold up Time
Protections
Vin = 120 VAC
Vin = 240 VAC
Overload, short circuit: Hiccup mode
Thermal protection
Output overvoltage
LDN240-12
LDN240-24 / LDN240-24P
LDN240-48P
LDN240-72P
DC OK - green LED
DC OK - dry contact (NO, 24 VDC / 1 A)
Possible for redundancy (with external ORing module)
P (models) - include internal ORing circuit
LDN240-12
LDN240-24
LDN240-24P
LDN240-48P
LDN240-72P
LDN240-12
LDN240-24
LDN240-24P
LDN240-48P
LDN240-72P
≥
60 ms
≥
70 ms
3
Output Over Voltage Protection
≥
18 VDC
≥
33 VDC
≥
68 VDC
≥
100 VDC
Status Signals
Parallel Connection
Efficiency
Dissipated Power
> 84%
> 88%
> 86%
> 88%
> 88%
< 36.5 W
< 33 W
< 39 W
< 33 W
< 34.5 W
1
Ripple and Noise are measured with 20MHz bandwidth, probe terminated with a 0.1μF MKP parallel capacitor.
NOTE:
Power rating, losses, efficiency, ripple, thermal behaviour and start-up may change outside of the nominal rated input range.
Contact factory for details.
Operating Temperature
Storage Temperature
Derating
Humidity
Life Time Expectation
Overvoltage Category
Pollution Degree
Protection Class
Isolation Voltage
UL certified up to 50°C
(Start-up type tested: - 40°C)
2
- 40 to + 70°C
- 40 to + 80°C
- 5 W / °C over 50°C
Non-condensing
At 25°C ambient full load
5 - 95% RH
77894 h (8.8 years)
III (EN50178)
2 (IEC60664-1)
Class I
4.2 kVDC
2.2 kVDC
0.75 kVDC
Safety Standards & Approvals
EMC Emission
EMC Immunity
Protection Degree
Vibration Sinusoidal
Shock
2
Input to Output
Input to Ground
Output to Ground
UL508 (certified)
EN60950 (reference)
EN50178 (reference)
EN55011 (CISPR11)
EN55022 (CISPR22)
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-11
EN60529
IEC 60068-2-6
IEC 60068-2-27
Class A
Class A
Level 3
Level 3
Level 3
Level 3
Level 2
IP20
5 - 17.8 Hz: ±1.6 mm; 17.8 - 500 Hz:
2 g 2 Hours / axis (X, Y, Z)
30 g 6 ms, 20 g 11 ms; 3 bumps / direction,
18 bumps total
Possible with load derating.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00717_AB
© 2016 Bel Power Solutions & Protection
4
LDN240 Series
Weight
Dimensions (W x D x H)
Mounting Rail
Connection Terminals
Case Material
Screw type pluggable (24 - 12 AWG)
Aluminum
750 g
63 x 140 x 117 mm
IEC 60715/H15/TH35-7.5(-15)
2.5 mm²

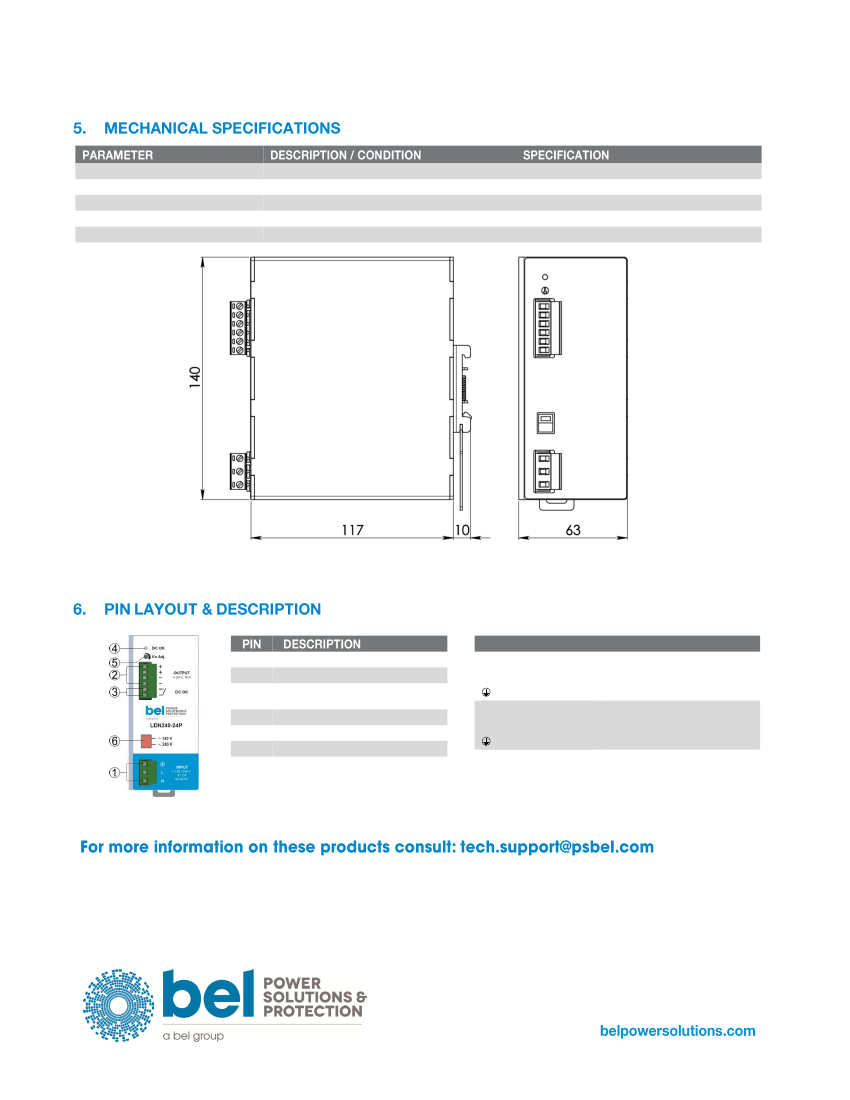

Figure 1. Mechanical Drawing
1
2
3
4
5
6
AC/DC input
DC output (load)
Diagnostic Output
(dry contact, NC output OK)
Green LED: Output OK
Output voltage adjustment
Input voltage selector
INPUT CONNECTION
Single phase:
L = Line
N = Neutral
= Earth ground
DC:
L = + Positive DC
N = - Negative DC
= Earth ground
OUTPUT CONNECTION
+ = Positive DC
- = Negative DC
Signaling:
DC OK: dry contact
NO
COM
