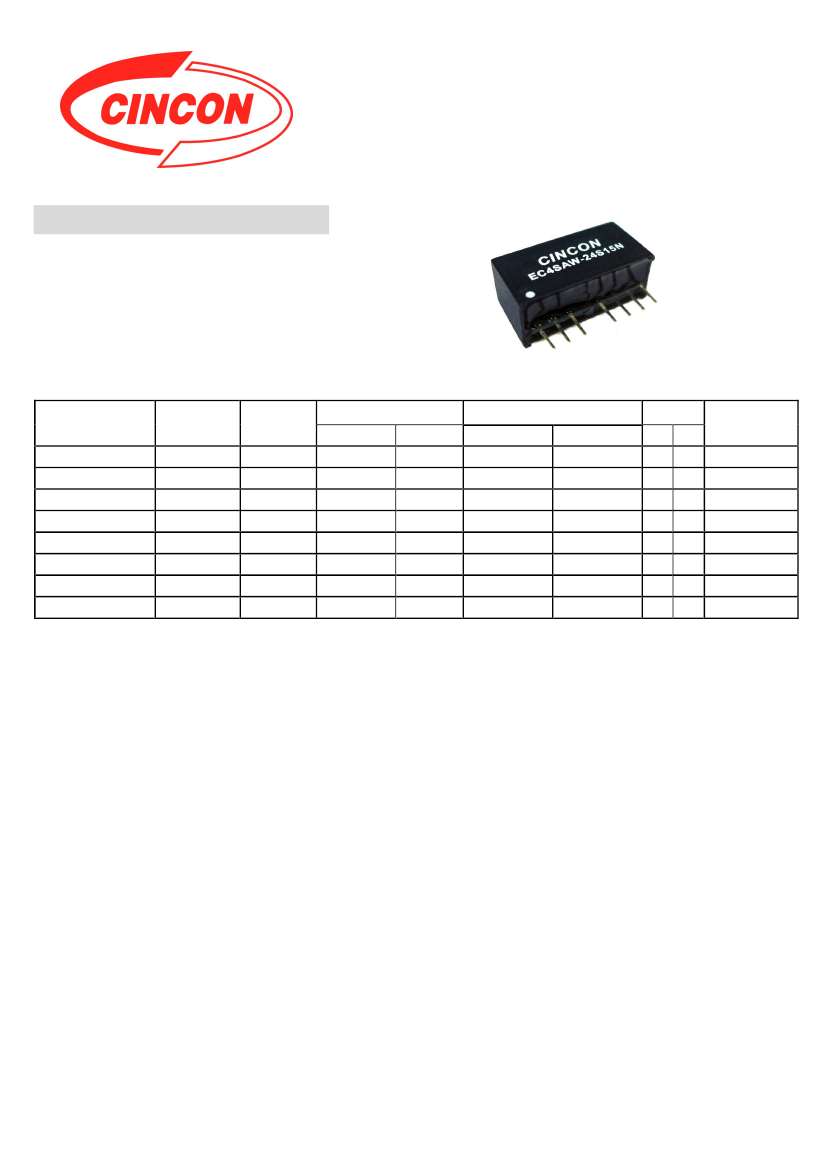

V10
SPECIFICATIONS
All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted
INPUT SPECIFICATIONS:
Input Voltage Range ........……………..................... 24V ..................... 9-36V
48V.................. 18-75V
Input Surge Voltage (100 ms max.) …………...…….. 24V ……… 50VDC max.
48V……. 100VDC max.
Input Filter ………………………………………………..……..……... Capacitive
Remote on/off control:
Module On …………………………… Open or high impedance
Module Off ………..………….……………………. 2mA to 4mA
Module Off (input idle current) ……..…………...… 2.5mA max.
GENERAL SPECIFICATIONS:
Efficiency .................................................................…..……... See Table
Isolation Voltage ..........…........………………....……..…. 1500VDC min.
9
Isolation Resistance .................................…...............……. 10 ohm min.
Isolation Capacitance …………………………………………... 50pF max.
Switching Frequency ...........................…..................…….... 580KHz typ.
Operating Ambient Temperature ……………..…... -40℃ to +85℃
De-rating, Above 61℃ …… 3.3V/5V … Linearly to Zero power at 105℃
De-rating, Above 65℃ …… 12V/15V … Linearly to Zero power at 105℃
Case Temperature (note3) ………………………….…………. 105
℃
max.
Cooling ……………………….…………….…………. Natural Convection
Storage Temperature ………………....….........…........ -55℃ to +125℃
Humidity …………………………………. 95% RH max. Non condensing
MTBF …. MIL-STD-217F, GB, 25
℃
, Full Load ……………… T.B.D. hrs
Dimensions …..…...........… 0.86x0.36x0.44 inches(21.8x9.2x11.1 mm)
Case Material ……………………………… Non-Conductive Black Plastic
Weight …………………………………………….……………………... 4.8g
OUTPUT SPECIFICATIONS:
Voltage Accuracy ............................................……….................
±1.5%
max.
Transient Response: 25% Step Load Change
Recovery Time …………………..….………………….…….. < 250us
Ripple & Noise, 20MHz BW .……………………………..... 100mV pk-pk max.
Temperature Coefficient ....................……….....….......…................
±0.03%/°C
Short Circuit Protection .........................................................….…. Continuous
Line Regulation (note1 ) .…….………………..….......................….
±0.2%
max.
Load Regulation (note2 ) ……..……………...……..........…............
±0.5%
max.
Current Limit ………………………………………………………….... 180% typ.
Start up time ……………………………………………………………. 15ms typ.
NOTE:
1. Measured from high line to low line.
2. Measured from full load to no load.
3. Maximum case temperature under any operating condition should
not be exceeded 105℃.
Typical Derating curve for Natural Convection
CASE SA DIMENSIONS:
120%
100%
LOAD(%)
80%
60%
40%
20%
0%
-40
105
-20
0
20
40
60
Ambient Temperature(
o
C)
80
100
3.3&5Vout
12&15Vout
-40
61
65
All Dimensions In Inches(mm)
Tolerances : Inches millimeters
X.XX±0.02 X.X±0.5
Pin
±0.002
±0.05
0.16 [4.1]
0.86 [21.8]
0.44[11.1]
0.02 [0.5]
0.10 [2.5]
0.70 [17.8]
0.14[3.5]
0.01 [0.3]
0.36[9.2]
Bottom View
1 2 3
5 6 7 8
PIN CONNECTION
Single
Pin
-V Input
1
2
+V Input
3
On/Off
5
NC
+V Output
6
-V Output
7
8
NC
0.08 [2.0]
0.02 [0.5]
2
