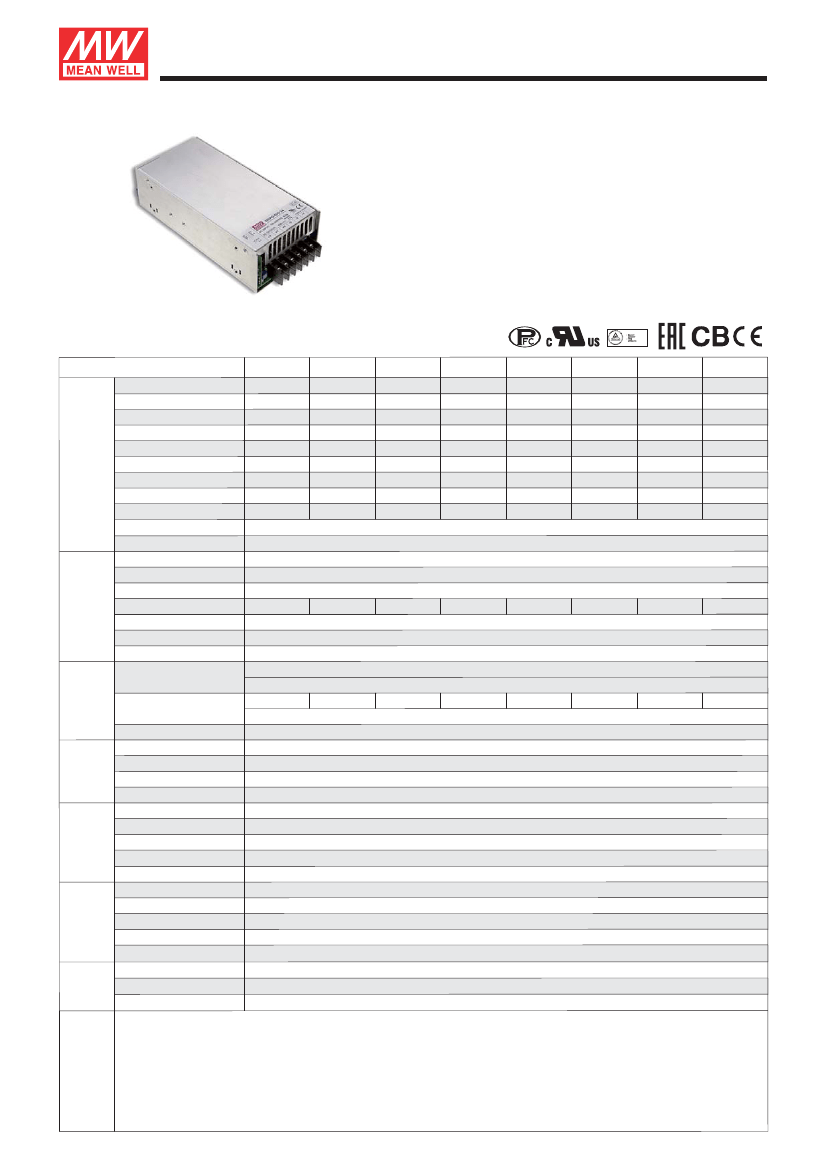

600W Single Output with PFC Function
HRPG-600
series
■
Features :
Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Built-in
DC OK signal
Built-in r
emote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.75W (Note.6)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
HRPG-600-3.3 HRPG-600-5
3.3V
120A
0 ~ 120A
396W
5V
120A
0 ~ 120A
600W
100mVp-p
4.3 ~ 5.8V
±2.0%
±0.5%
±1.0%
HRPG-600-7.5 HRPG-600-12 HRPG-600-15 HRPG-600-24 HRPG-600-36 HRPG-600-48
7.5V
80A
0 ~ 80A
600W
100mVp-p
6.8 ~ 9V
±2.0%
±0.5%
±1.0%
12V
53A
0 ~ 53A
636W
120mVp-p
10.2 ~ 13.8V
±1.0%
±0.3%
±0.5%
15V
43A
0 ~ 43A
645W
150mVp-p
13.5 ~ 18V
±1.0%
±0.3%
±0.5%
24V
27A
0 ~ 27A
648W
150mVp-p
21.6 ~ 28.8V
±1.0%
±0.2%
±0.5%
36V
17.5A
0 ~ 17.5A
630W
200mVp-p
28.8 ~ 39.6V
±1.0%
±0.2%
±0.5%
48V
13A
0 ~ 13A
624W
240mVp-p
40.8 ~ 55.2V
±1.0%
±0.2%
±0.5%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE ADJ. RANGE
2.8 ~ 3.8V
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
±0.5%
±1.0%
16ms/230VAC
1000ms, 50ms/230VAC
2500ms, 50ms/115VAC at full load
16ms/115VAC at full load
120 ~ 370VDC
PF>0.99/115VAC at full load
86%
88%
88%
88%
89%
89%
3.6A/230VAC
70A/230VAC
Note.4
85 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
5V STANDBY
FUNCTION
DC OK SIGNAL
REMOTE CONTROL
FAN CONTROL (Typ.)
WORKING TEMP.
PF>0.94/230VAC
78.5%
7.6A/115VAC
35A/115VAC
<1.2mA / 240VAC
82%
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
6 ~ 7V
9.4 ~ 10.9V
14.4 ~ 16.8V 18.8 ~ 21.8V 30 ~ 34.8V
3.96 ~ 4.62V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
5VSB : 5V@0.3A ; tolerance
±
5%, ripple : 50mVp-p(max.)
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
Load 35
±
15% or RTH2
≧
50
℃
Fan on
-40 ~ +70
℃
(Refer to "Derating Curve")
41.4 ~ 48.6V
57.6 ~ 67.2V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 7)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
UL60950-1, TUV EN60950-1
,
EAC TP TC 004 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3,
EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A,
EAC TP TC 020
147.7K hrs min.
MIL-HDBK-217F (25
℃
)
218*105*63.5mm (L*W*H)
1.58Kg;8pcs/13.6Kg/1.34CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. No load power consumption<0.75W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
8. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:HRPG-600-SPEC 2018-01-15

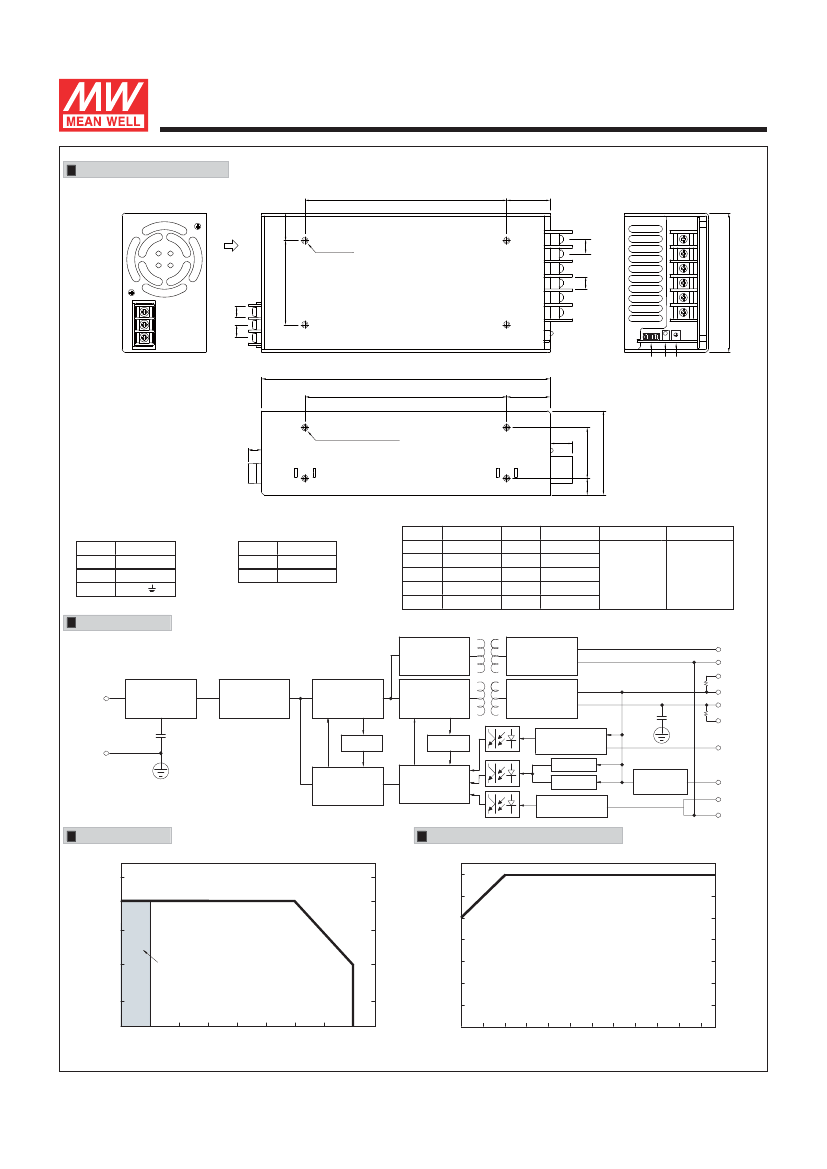

600W Single Output with PFC Function
Function Description of CN100
HRPG-600
series
Pin No. Function Description
AUXG Auxiliary voltage output ground. The signal return is isolated from the output terminals (+V & -V).
1
Auxiliary voltage output, 4.75~5.25V, referenced to pin 1(AUXG). The maximum load current is 0.3A. This output is not controlled by the
2
AUX "remote ON/OFF control".
3
4
5
6,8
7
9
10
RC+
RC-
CS
Turns the output on and off by electrical or dry contact between pin 4 (RC-), Short: Power OFF, Open: Power ON.
Remote control ground.
Current sharing signal. When units are connected in parallel, the CS pins of the units should be connected to allow current balance
between units.
GND This pin connects to the negative terminal(-V). Return for DC-OK signal output.
DC-OK DC-OK signal is a TTL level signal, referenced to pin8(DC-OK GND). High when PSU turns on.
Positive sensing. The +S signal should be connected to the positive terminal of the load. The +S and -S leads should be twisted in pair to
+S
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
-S
Negative sensing. The -S signal should be connected to the negative terminal of the load. The -S and +S leads should be twisted in pair to
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
Function Manual
1.Remote Sense
The remote sensing compensates voltage drop on
the load wiring up to 0.5V.
2
10
CN100
CN100
1
9
GND
CS
2
AUX AUXG 1
RC- RC+
GND DC-OK
10
-S
+S
9
+S
(Pin9)
+
-
LOAD
-S
(Pin10)
Sense lines should
be twisted in pairs
Fig 1.1
2.DC-OK Signal
DC-OK signal is a TTL level signal. High when PSU turns on.
Between DC-OK(pin7) and GND(pin6,8) Output Status
3.3 ~ 5.6V
0 ~ 1V
ON
OFF
2
10
CN100
1
9
2
CN100
AUX AUXG 1
RC- RC+
GND
CS
GND DC-OK
10
-S
+S
9
Fig 2.1
File Name:HRPG-600-SPEC 2018-01-15
600W Single Output with PFC Function
3.Remote Control
The PSU can be turned ON/OFF by using the
"Remote Control" function.
Between RC+(pin3) and RC-(pin4)
SW ON (Short)
SW OFF (Open)
Output Status
OFF
ON
2
10
HRPG-600
2
series
CN100
CN100
1
9
GND
CS
AUX AUXG 1
RC- RC+
GND DC-OK
10
-S
+S
9
SW
Fig 3.1

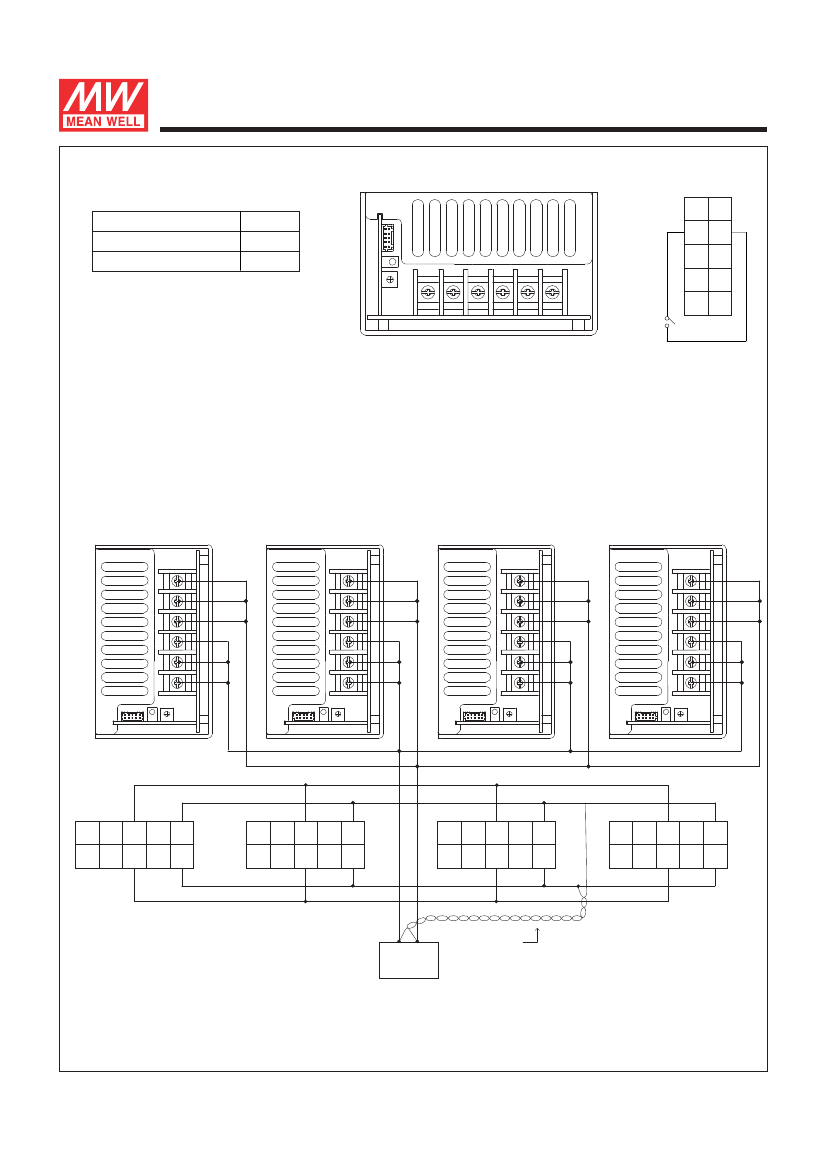

4.Current Sharing with Remote Sensing (Only for 24V, 36V and 48V)
HRPG-600 has the built-in active current sharing function and can be connected in parallel to provide higher output power :
(1)Parallel operation is available by connecting the units shown as below.
(+S,-S,CS and GND are connected mutually in parallel).
(2)Difference of output voltages among parallel units should be less than 2%.
(3)The total output current must not exceed the value determined by the following equation.
(output current at parallel operation)=(Rated current per unit)
×
(Number of unit)
×
0.9
(4)In parallel operation 4 units is the maximum, please consult the manufacturer for applications of more connecting in parallel.
(5)The power supplies should be paralleled using short and large diameter wiring and then connected to the load.
PSU1
PSU2
PSU3
PSU4
-V
-V
-V
-V
+V
+V
+V
+V
CN100
CN100
CN100
CN100
PSU1
CN100
1 AUXG RC+
CS DC-OK +S
-S
9
10
PSU2
CN100
1 AUXG RC+
CS DC-OK +S
-S
9
10
PSU3
CN100
1 AUXG RC+
CS DC-OK +S
-S
9
10
PSU4
CN100
1 AUXG RC+
CS DC-OK +S
-S
9
10
2 AUX RC- GND GND
2 AUX RC- GND GND
2 AUX RC- GND GND
2 AUX RC- GND GND
+V
-V
Sense lines should
be twisted in pairs
LOAD
Fig 4.1
Note : 1.In parallel connection, maybe only one unit (master) operate if the total output load is less than 2% of rated load condition.
The other PSU (slave) may go into standby mode and its output LED and relay will not turn on.
2.2% min. of dummy load is required.
File Name:HRPG-600-SPEC 2018-01-15
