TG55-1406N2RL: DescriptionAudio Transformer / Signal Transformer 10BASE-T SMD 16P DualPort 1:1, 1:1.41; CategoryPassive components Audio transformer transformer/signal; File Size447KB，2 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

TG55-1406N2RL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TG55-1406N2RL	-	-	View	Buy Now

TG55-1406N2RL Overview

Audio Transformer / Signal Transformer 10BASE-T SMD 16P DualPort 1:1, 1:1.41

TG55-1406N2RL Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Product Category	Audio transformer/signal transformer
product	LAN
type	Module
Termination type	SMD/SMT
inductance	140 uH
Insulation voltage	1.5 kV
Minimum operating temperature	0 C
Maximum operating temperature	+ 70 C
Number of channels	Dual
application	10BASE-T Interface
Package/box	SMD-16
length	12.7 mm
width	7.11 mm
high	5.08 mm
series	TG-10BT
Encapsulation	Tube
Maximum DC resistance	400 mOhms
Primary coil resistance	300 mOhms
shield	Shielded
Factory packaging quantity	40

Preview

Download Datasheet

View All

10BASE-T Isolation Modules

Dual Port SMD or DIL Package

RoHS

Compliant

Conflict

FREE

Product Features:

Standard series of Dual Port Isolation Modules

to meet the isolation requirements of IEEE

802.3

Designed specifically for use with the “filterless”

repeater / switch chips and “stacked” RJ45

connectors.

Non-standard turns ratios are also available

SMD parts include patented open frame

construction

1500Vrms hi-pot

US Patent Numbers

5,656,985

6,297,721 B1

6,297,720 B1

6,320,489 B1

6,344,785 B1

6,662,431 B1

Part Number

TD01-1006L1RL

TG01-1006N2LF

TD54-1006L1RL

TG54-1006N2LF

TD55-1406L1RL

TG55-1406N2LF

TD83-2006L1RL

TG83-2006N2LF

Pckg

DIL

SMD

DIL

SMD

DIL

SMD

DIL

SMD

Turns Ratio ±3%

PRI/SEC

PRI 1-2, 3-4, 5-6, 7-8

1:1, 1:1, 1:1, 1:1

1:1.41, 1:1.41, 1:1.41, 1:1.41

1:1, 1:1.41, 1:1.41, 1:1

1:1, 1:2, 1:2, 1:1

PRI OCL

(µH)

100 Typ.

140 Typ.

140/140 Typ.

200/50 Min.

PRI DCR PRI LL

Cw/w

Temp

(Ω max) (µH max) (pF max)

Range

0.3

12

0 to +70°C

0.3

12

0 to +70°C

0.4

15

0 to +70°C

0.4

15

0 to +70°C

0.4/0.4

0.4

12

0 to +70°C

0.4/0.4

0.4

12

0 to +70°C

0.5/0.35

0.15

11

-40 to +85°C

0.5/0.35

0.15

11

-40 to +85°C

Notes:

1. Please contact the factory or local representative for individual datasheets or additional information

2. DIL (Through-Hole) packages not recommended for new designs

3. Part numbers with LF suffix are RoHS compliant and PB-Free. Part numbers with RL suffix are RoHS compliant using exemption

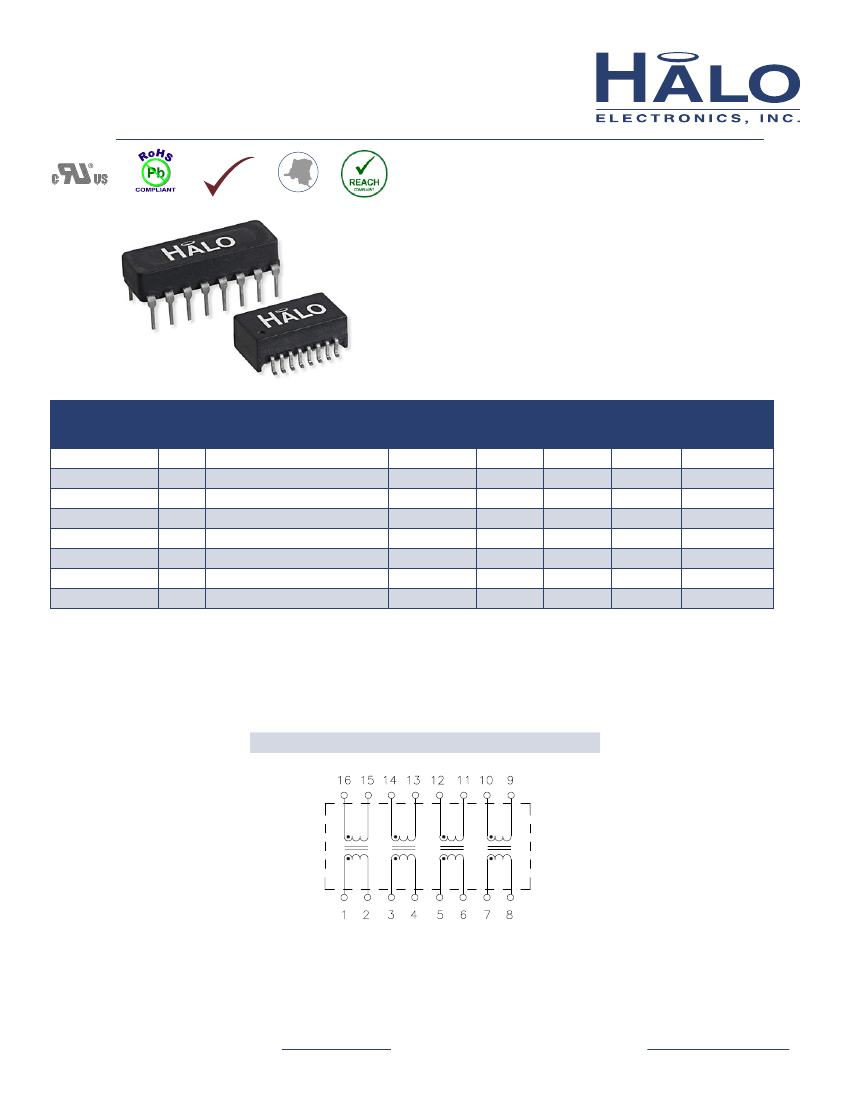

7a.

Schematic

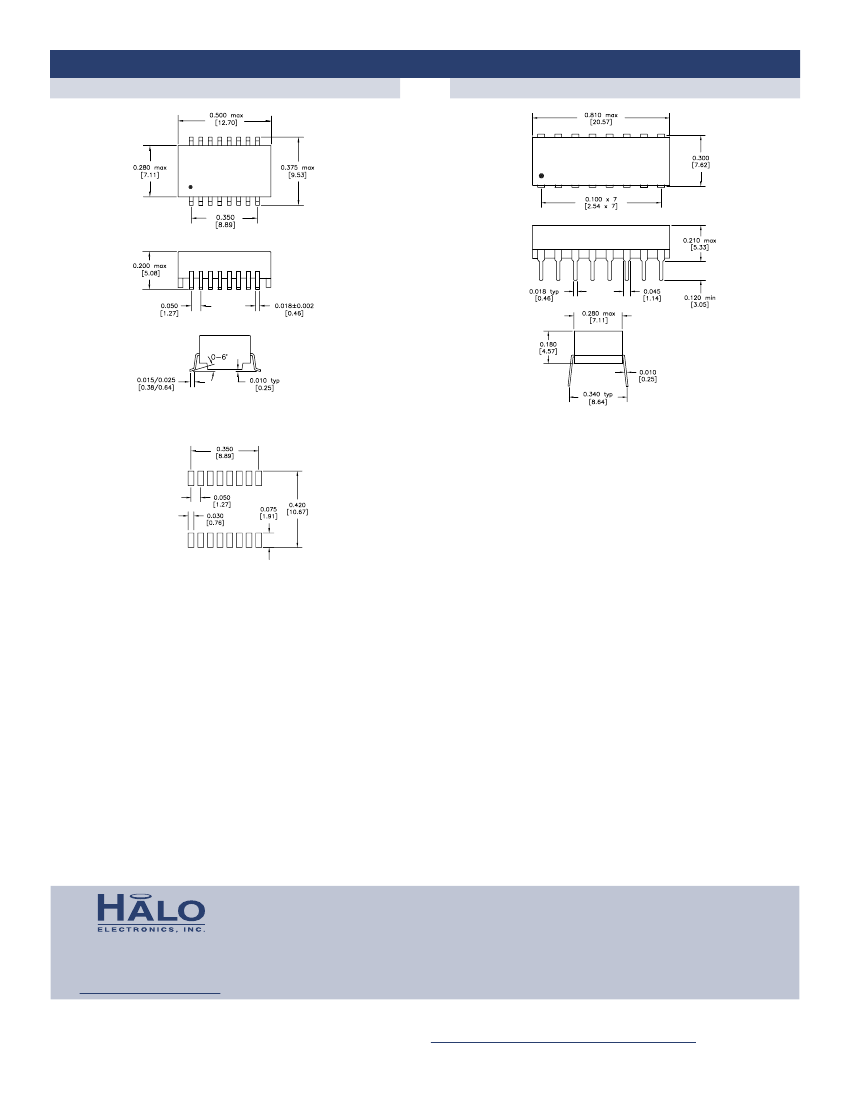

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or
